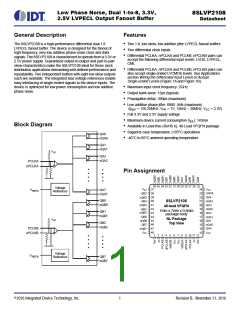

Low Phase Noise, Dual 1-to-8, 3.3V,
2.5V LVPECL Output Fanout Buffer
8SLVP2108
Datasheet
General Description
Features
The 8SLVP2108 is a high-performance differential dual 1:8
LVPECL fanout buffer. The device is designed for the fanout of
high-frequency, very low additive phase-noise clock and data
signals. The 8SLVP2108 is characterized to operate from a 3.3V or
2.5V power supply. Guaranteed output-to-output and part-to-part
skew characteristics make the 8SLVP2108 ideal for those clock
distribution applications demanding well-defined performance and
repeatability. Two independent buffers with eight low skew outputs
each are available. The integrated bias voltage references enable
easy interfacing of single-ended signals to the device inputs. The
device is optimized for low power consumption and low additive
phase noise.
• Two 1:8, low skew, low additive jitter LVPECL fanout buffers
• Two differential clock inputs
• Differential PCLKA, nPCLKA and PCLKB, nPCLKB pairs can
accept the following differential input levels: LVDS, LVPECL,
CML
• Differential PCLKA, nPCLKA and PCLKB, nPCLKB pairs can
also accept single-ended LVCMOS levels. See Applications
section Wiring the Differential Input Levels to Accept
Single-ended Levels (Figure 1A and Figure 1B).
• Maximum input clock frequency: 2GHz
• Output bank skew: 15ps (typical)
• Propagation delay: 390ps (maximum)
• Low additive phase jitter, RMS: 54fs (maximum)
(fREF = 156.25MHz, VPP = 1V, 12kHz – 20MHz, VCC = 3.3V)
• Full 3.3V and 2.5V supply voltage
• Maximum device current consumption (IEE): 143mA
• Available in Lead-free (RoHS 6), 48-Lead VFQFN package
• Supports case temperature 105°C operations
• -40°C to 85°C ambient operating temperature
Block Diagram
QA0
nQA0
QA1
nQA1
V
CC
QA2
nQA2
PCLKA
nPCLKA








Pin Assignment
36 35 34 33 32 31 30 29 28 27 26 25
Voltage
Reference
VCC
37
38
39
40
24 VCC
VREFA
QA7
nQA4
QA4
QB3
nQB3
QB4
23
22
nQA7
QB0
nQB0
21 nQA3
8SLVP2108
nQB4
20
19
18
17
16
QA3
nQA2
QA2
41
42
43
44
45
46
48-lead VFQFN
7mm x 7mm x 0.8mm
package body
QB5
nQB5
QB1
nQB1
QB6
nQB6
QB7
nQA1
QA1
NL Package
Top View
V
CC
QB2
15 nQA0
nQB2
PCLKB
QA0
14
47
48
1
nQB7
VCC
13 VCC
2 3 4 5 6 7 8 9 10 11 12
nPCLKB








Voltage
Reference
VREFB
QB7
nQB7
©2016 Integrated Device Technology, Inc.
1
Revision B, November 21, 2016
8SLVP2108 Datasheet
Pin Descriptions and Characteristics
Table 1. Pin Descriptions
Number
1, 12
2, 11
3
Name
VEE
Type
Description
Power
Unused
Input
Negative supply pins.
nc
Do not connect.
PCLKB
Pulldown
Non-inverting LVPECL differential clock/data input.
Pullup/
Pulldown
4
5
nPCLKB
VREFB
VCC
Input
Output
Power
Output
Input
Inverting LVPECL differential clock input.
Bias voltage reference for the PCLKB, nPCLKB input pair.
6, 7, 13,
24, 37, 48
Power supply pins.
8
VREFA
nPCLKA
Bias voltage reference for the PCLKA, nPCLKA input pair.
Pullup/
Pulldown
9
Inverting LVPECL differential clock input.
10
PCLKA
Input
Pulldown
Non-inverting LVPECL differential clock/data input.
Differential output pair A0. LVPECL interface levels.
Differential output pair A1. LVPECL interface levels.
Differential output pair A2. LVPECL interface levels.
Differential output pair A3. LVPECL interface levels.
Differential output pair A4. LVPECL interface levels.
Differential output pair A5. LVPECL interface levels.
Differential output pair A6. LVPECL interface levels.
Differential output pair A7. LVPECL interface levels.
Differential output pair B0. LVPECL interface levels.
Differential output pair B1. LVPECL interface levels.
Differential output pair B2. LVPECL interface levels.
Differential output pair B3. LVPECL interface levels.
Differential output pair B4. LVPECL interface levels.
Differential output pair B5. LVPECL interface levels.
Differential output pair B6. LVPECL interface levels.
Differential output pair B7. LVPECL interface levels.
14, 15
16, 17
18, 19
20, 21
22, 23
25, 26
27, 28
29, 30
31, 32
33, 34
35, 36
38, 39
40, 41
42, 43
44, 45
46, 47
QA0, nQA0
QA1, nQA1
QA2, nQA2
QA3, nQA3
QA4, nQA4
QA5, nQA5
QA6, nQA6
QA7, nQA7
QB0, nQB0
QB1, nQB1
QB2, nQB2
QB3, nQB3
QB4, nQB4
QB5, nQB5
QB6, nQB6
QB7, nQB7
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
NOTE: Pulldown and Pullup refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
Input Pulldown Resistor
Input Pullup Resistor
2
RPULLDOWN
RPULLUP
51
51
k
k
©2016 Integrated Device Technology, Inc.
2
Revision B, November 21, 2016
8SLVP2108 Datasheet
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of the product at these conditions or any conditions beyond those listed in the DC Characteristics or
AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
4.6V
-0.5V to VCC + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Input Sink/Source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
125 C
-65C to 150C
2000V
ESD - Human Body Model (NOTE 1)
ESD - Charged Device Model (NOTE 1)
1500V
DC Electrical Characteristics
Table 3A. Power Supply DC Characteristics, V = 3.3V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
3.3V
Maximum
3.465
Units
V
Power Supply Voltage
Power Supply Current
3.135
IEE
120
143
mA
QA[0:7] and QB[0:7]
terminated 50to VCC – 2V
ICC
Power Supply Current
595
706
mA
Table 3B. Power Supply DC Characteristics, V = 2.5V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
2.5V
Maximum
2.625
Units
V
Power Supply Voltage
Power Supply Current
2.375
IEE
113
133
mA
QA[0:7] and QB[0:7]
terminated 50to VCC – 2V
ICC
Power Supply Current
594
705
mA
©2016 Integrated Device Technology, Inc.
3
Revision B, November 21, 2016
8SLVP2108 Datasheet
Table 3C. LVPECL DC Characteristics, V = 3.3V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input High PCLKA, nPCLKA
IIH
V
CC = VIN = 3.465V
150
µA
Current
PCLKB, nPCLKB
PCLKA, PCLKB
nPCLKA, nPCLKB
VCC = 3.465V, VIN = 0V
VCC = 3.465V, VIN = 0V
-10
µA
µA
Input Low
Current
IIL
-150
Reference Voltage for Input
Bias
VREFx
IREF = 2mA
VCC – 1.82
VCC – 1.48
VCC – 1.27
V
VOH
VOL
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
VCC – 1.25
VCC – 1.70
VCC – 1.00
VCC – 1.47
VCC – 0.76
VCC – 1.25
V
V
NOTE: V
denotes V
and V
REFx
REFA REFB.
NOTE 1: Outputs terminated with 50
to V – 2V.
CC
Table 3D. LVPECL DC Characteristics, V = 2.5V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
PCLKA, nPCLKA
PCLKB, nPCLKB
IIH Input High Current
VCC = VIN = 2.625V
150
µA
PCLKA, PCLKB
VCC = 2.625V, VIN = 0V
VCC = 2.625V, VIN = 0V
IREF = 2mA
-10
µA
µA
V
IIL
Input Low Current
nPCLKA, nPCLKB
-150
VREFx
VOH
Reference Voltage for Input Bias; NOTE 2
Output High Voltage; NOTE 1
VCC – 1.81
VCC – 1.26
VCC – 1.67
VCC – 1.47 VCC – 1.27
VCC – 1.00
VCC – 1.45
VCC – 0.75
VCC – 1.22
V
VOL
Output Low Voltage; NOTE 1
V
NOTE: V
denotes V
and V
REFx
REFA REFB.
NOTE 1: Outputs terminated with 50
to V – 2V.
CC
NOTE 2: For V < 3V, the use of an alternate bias voltage source is recommended.
CC
©2016 Integrated Device Technology, Inc.
4
Revision B, November 21, 2016
8SLVP2108 Datasheet
AC Electrical Characteristics
Table 4A. AC Electrical Characteristics, V = 3.3V ± 5% or 2.5V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
fREF
Parameter
Test Conditions
Minimum
Typical Maximum Units
Input Frequency
Input Edge Rate
PCLKA, nPCLKA and PCLKB, nPCLKB
PCLKA, nPCLKA and PCLKB, nPCLKB
2
GHz
V/ns
V/t
1.5
PCLKA, nPCLKA to any QAx, nQAx or
PCLKB, nPCLKB to any QBx, nQBx for
VPP=0.1V or 0.3V
tPD
Propagation Delay; NOTE 1
120
255
390
ps
tsk(o)
tsk(b)
tsk(p)
tsk(pp)
Output Skew; NOTE 2, 3
Output Bank Skew; NOTE 3, 4
Pulse Skew
29
15
4
63
43
ps
ps
ps
ps
25
Part-to-Part Skew; NOTE 3, 5
70
154
f
QB0 = 500MHz, VPP(PCLKB) = 0.15V,
VCMR(PCLKB) = 1V;
-55
dB
fQA7 = 62.5MHz, VPP(PCLKA) = 1V,
VCMR(PCLKA) = 1V
Spurious Suppression,
Coupling from QA7 to QB0
tJIT, SP
fQB0 = 500MHz, VPP(PCLKB) = 0.15V,
VCMR(PCLKB) = 1V;
fQA7 = 15.625MHz, VPP(PCLKA) = 1V,
VCMR(PCLKA) = 1V
-65
dB
ps
Output Rise/ Fall Time;
NOTE 6
tR / tF
VPP
20% to 80%
60
100
165
fREF < 1.5GHz
0.1
0.2
1.5
1.5
V
V
Differential Input Voltage;
NOTE 7, 8
fREF 1.5GHz
Common Mode Input Voltage;
NOTE 7, 8, 9
VCMR
VO(pp)
1.0
V
CC – 0.3
V
fREF 2GHz, VCC = 2.5V ± 5%
fREF 2GHz, VCC = 3.3V ± 5%
fREF 2GHz, VCC = 2.5V ± 5%
fREF 2GHz, VCC = 3.3V ± 5%
0.29
0.31
0.58
0.62
0.46
0.48
0.92
0.96
0.63
0.67
1.26
1.34
V
V
V
V
Output Voltage Swing,
Peak-to-Peak
Differential Output Voltage
Swing, Peak-to-Peak
VDIFF_OUT
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: Measured from the differential input crosspoint to the differential output crosspoint.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential crosspoints.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew within a bank of outputs at the same supply voltage and with equal load conditions. Measured at the differential
crosspoints.
NOTE 5: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential crosspoints.
NOTE 6: Characterized with input signal meeting the input edge rate minimum specification.
NOTE 7: For single-ended LVCMOS input applications, please refer to the Applications Information, Wiring the Differential Input to Accept
Single-ended Levels, Figures 1A and 1B.
NOTE 8: VIL should not be less than -0.3V. VIH should not be higher than VCC
.
NOTE 9: Common mode input voltage is defined at the crosspoint.
©2016 Integrated Device Technology, Inc.
5
Revision B, November 21, 2016
8SLVP2108 Datasheet
Table 4B. Buffer Additive Phase Jitter, t , V = 3.3V ± 5%, V = 0V, T = -40°C to 85°C
JIT
CC
EE
A
Symbol Parameter
Test Conditions
Minimum
Typical Maximum Units
fREF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 1kHz – 40MHz
97
64
64
62
46
46
50
43
43
128
81
81
75
54
54
81
51
51
fs
fs
fs
fs
fs
fs
fs
fs
fs
fREF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 10kHz – 20MHz
fREF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 1kHz – 40MHz
Buffer Additive Phase Jitter,
fREF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 10kHz – 20MHz
tJIT
RMS; refer to Additive Phase
Jitter Section
f
REF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 1kHz – 40MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 10kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 12kHz – 20MHz
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
Table 4C. Buffer Additive Phase Jitter, t , V = 2.5V ± 5%, V = 0V, T = -40°C to 85°C
JIT
CC
EE
A
Symbol Parameter
Test Conditions
Minimum
Typical Maximum Units
fREF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 1kHz – 40MHz
100
68
68
65
48
48
53
45
45
132
86
86
77
57
57
81
56
56
fs
fs
fs
fs
fs
fs
fs
fs
fs
fREF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 10kHz – 20MHz
f
REF = 122.88MHz Square Wave, VPP = 1V
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 1kHz – 40MHz
Buffer Additive Phase Jitter,
fREF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 10kHz – 20MHz
tJIT
RMS; refer to Additive Phase
Jitter Section
f
REF = 156.25MHz Square Wave, VPP = 1V
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 1kHz – 40MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 10kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V
Integration Range: 12kHz – 20MHz
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
©2016 Integrated Device Technology, Inc.
6
Revision B, November 21, 2016
8SLVP2108 Datasheet
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Additive Phase Jitter @ 156.25MHZ, VPP = 1V
12kHz to 20MHz = 46fs (typical)
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device. This
is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
©2016 Integrated Device Technology, Inc.
7
Revision B, November 21, 2016
8SLVP2108 Datasheet
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
V
V
Qx
CC
Qx
CC
nQx
nQx
VEE
VEE
-1.3V±0.165V
-0.5V±0.125V
3.3V LVPECL Output Load Test Circuit
2.5V LVPECL Output Load Test Circuit
V
CC
nQx
Qx
nPCLKA,
nPCLKB
nQy
Qy
PCLKA,
PCLKB
V
EE
Differential Input Level
Output Skew
nQx
Qx
Part 1
nQx
Qx
nQy
Qy
Part 2
nQy
tPLH
tPHL
Qy
tsk(pp)
tsk(p)= |tPHL - tPLH
|
Part-to-Part Skew
Pulse Skew
©2016 Integrated Device Technology, Inc.
8
Revision B, November 21, 2016
8SLVP2108 Datasheet
Parameter Measurement Information, continued
nQX[0:7]
nPCLKA,
nPCLKB
QX[0:7]
PCLKA,
PCLKB
nQX[0:7]
QX[0:7]
nQA[0:7],
nQB[0:7]
tsk(b)
QA[0:7],
QB[0:7]
tPD
Where X is either Bank A or Bank B
Bank Skew
Propagation Delay
nQA[0:7],
nQB[0:7]
VDIFF_OUT
VO(pp)
QA[0:7],
QB[0:7]
Differential Voltage Swing = 2 x Single-ended VO(pp)
Output Rise/Fall Time
Differential Output Voltage Swing
©2016 Integrated Device Technology, Inc.
9
Revision B, November 21, 2016
8SLVP2108 Datasheet
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
The 8SLVP2108 inputs can be interfaced to LVPECL, LVDS, CML or
LVCMOS drivers. Figure 1A illustrates how to DC couple a single
LVCMOS input to the 8SLVP2108. The value of the series resistance
RS is calculated as the difference between the transmission line
impedance and the driver output impedance. This resistor should be
placed close to the LVCMOS driver. To avoid cross-coupling of
single-ended LVCMOS signals, apply the LVCMOS signals to no
more than one PCLK input.
VIH
Vth
VIL
RS
A practical method to implement Vth is shown in Figure 1B below.
LVCMOS
The reference voltage Vth = V1 = VCC/2, is generated by the bias
resistors R1 and R2. The bypass capacitor (C1) is used to help filter
noise on the DC bias. This bias circuit should be located as close to
the input pin as possible.
The ratio of R1 and R2 might need to be adjusted to position the V1
in the center of the input voltage swing. For example, if the input clock
swing is 2.5V and VCC = 3.3V, R1 and R2 value should be adjusted
VIH + VIL
2
Vth
=
to set V1 at 1.25V. The values below apply when both the
single-ended swing and VCC are at the same voltage.
Figure 1A. DC-Coupling a Single LVCMOS Input to the
8SLVP2108
When using single-ended signaling, the noise rejection benefits of
differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the
amplitude be reduced, particularly if both input references are
LVCMOS to minimize cross talk. The datasheet specifies a lower
differential amplitude, however this only applies to differential signals.
For single-ended applications, the swing can be larger, however VIL
This configuration requires that the sum of the output impedance of
the driver (Ro) and the series resistance (Rs) equals the transmission
line impedance. R3 and R4 in parallel should equal the transmission
line impedance; for most 50applications, R3 and R4 will be 100.
The values of the resistors can be increased to reduce the loading for
slower and weaker LVCMOS driver.
Though some of the recommended components of Figure 1B might
not be used, the pads should be placed in the layout so that they can
be utilized for debugging purposes. The datasheet specifications are
characterized and guaranteed by using a differential signal.
cannot be less than -0.3V and VIH cannot be more than VCC + 0.3V.
Figure 1B shows a way to attenuate the PCLK input level by a factor
of two as well as matching the transmission line between the
LVCMOS driver and the 8SLVP2108 at both the source and the load.
VC C
VC C
VCC
VCC
R3
100
R1
1K
Ro
RS
Zo = 50 Ohm
+
Receiv er
Driver
V1
R4
-
100
R2
1K
Ro +Rs = Zo
C1
0.1uF
Figure 1B. Alternative DC Coupling a Single LVCMOS Input to the 8SLVP2108
©2016 Integrated Device Technology, Inc.
10
Revision B, November 21, 2016
8SLVP2108 Datasheet
3.3V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS and other differential
signals. Both differential signals must meet the VPP and VCMR input
requirements. Figures 2A to 2C show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
3.3V
3.3V
3.3V
R3
R4
125Ω
125Ω
Zo = 50Ω
Zo = 50Ω
PCLK
nPCLK
LVPECL
Input
LVPECL
R1
R2
84Ω
84Ω
Figure 2A. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver
Figure 2B. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver with AC Couple
3.3V
3.3V
Zo = 50
PCLK
R1
100
nPCLK
Zo = 50
LVPECL
Input
LVDS
Figure 2C. PCLK/nPCLK Input Driven by a
3.3V LVDS Driver
©2016 Integrated Device Technology, Inc.
11
Revision B, November 21, 2016
8SLVP2108 Datasheet
2.5V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS and other differential
signals. Both differential signals must meet the VPP and VCMR input
requirements. Figures 3A to 3C show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V
2.5V
2.5V
PCLK
nPCLK
LVPECL
Input
LVPECL
Figure 3A. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver
Figure 3B. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver with AC Couple
PCLK
nPCLK
Figure 3C. PCLK/nPCLK Input Driven by a
2.5V LVDS Driver
©2016 Integrated Device Technology, Inc.
12
Revision B, November 21, 2016
8SLVP2108 Datasheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
PIN
SOLDER
EXPOSED HEAT SLUG
PIN
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
©2016 Integrated Device Technology, Inc.
13
Revision B, November 21, 2016
8SLVP2108 Datasheet
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 5A and 5B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are a low impedance follower output that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125
125
3.3V
3.3V
Zo = 50
+
_
Input
Zo = 50
R1
84
R2
84
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
©2016 Integrated Device Technology, Inc.
14
Revision B, November 21, 2016
8SLVP2108 Datasheet
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6B show examples of termination for 2.5V
LVPECLdriver. These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 6B can be eliminated and the termination is
shown in Figure 6C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
50Ω
R1
R3
250Ω
250Ω
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
2.5V LVPECL Driver
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 6C. 2.5V LVPECL Driver Termination Example
©2016 Integrated Device Technology, Inc.
15
Revision B, November 21, 2016
8SLVP2108 Datasheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8SLVP2108.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8SLVP2108 is the sum of the core power plus the power dissipated at the output(s).
The following is the power dissipation for VCC = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 143mA = 495.50mW
Power (outputs)MAX = 37.6mW/Loaded Output pair
If all outputs are loaded, the total power is 16 * 37.6mW = 601.6mW
Total PowerMAX (3.465V, with all outputs switching) = 495.50mW + 601.6mW = 1097.1mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 30.5°C/W per Table 5 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 1.097W * 30.5°C/W = 118.5°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 5. Thermal Resistance for 48-Lead VFQFN, Forced Convection
JA
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
30.5°C/W
26.7°C/W
23.9°C/W
©2016 Integrated Device Technology, Inc.
16
Revision B, November 21, 2016
8SLVP2108 Datasheet
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
LVPECL output driver circuit and termination are shown in Figure 7.
VCC
Q1
VOUT
RL
VCC - 2V
Figure 7. LVPECL Driver Circuit and Termination
To calculate worst case power dissipation at the outputs, use the following equations which assume a 50load, and a termination voltage of
VCC – 2V. These are typical calculations.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.76V
(VCC_MAX – VOH_MAX) = 0.76V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.25V
(VCC_MAX – VOL_MAX) = 1.25V
Pd_H is the power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MA – 2V))/RL] * (VCC_MA – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.76V)/50] * 0.76V = 18.85mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MA – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.25V)/50] * 1.25V = 18.75mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 37.6mW
©2016 Integrated Device Technology, Inc.
17
Revision B, November 21, 2016
8SLVP2108 Datasheet
Case Temperature Considerations
This device supports applications in a natural convection environment which does not have any thermal conductivity through ambient air. The
printed circuit board (PCB) is typically in a sealed enclosure without any natural or forced air flow and is kept at or below a specific temperature.
The device package design incorporates an exposed pad (ePad) with enhanced thermal parameters which is soldered to the PCB where most
of the heat escapes from the bottom exposed pad. For this type of application, it is recommended to use the junction-to-board thermal
characterization parameter JB (Psi-JB) to calculate the junction temperature (TJ) and ensure it does not exceed the maximum allowed
junction temperature in the Absolute Maximum Rating table.
The junction-to-board thermal characterization parameter, JB, is calculated using the following equation:
TJ = TCB + JB x Pd, Where
TJ = Junction temperature at steady state condition in (oC).
TCB = Case temperature (Bottom) at steady state condition in (oC).
JB = Thermal characterization parameter to report the difference between junction temperature and the temperature of the board
measured at the top surface of the board.
Pd = power dissipation (W) in desired operating configuration.
T
J
T
CB
The ePad provides a low thermal resistance path for heat transfer to the PCB and represents the key pathway to transfer heat away from the
IC to the PCB. It’s critical that the connection of the exposed pad to the PCB is properly constructed to maintain the desired IC case temperature
(TCB). A good connection ensures that temperature at the exposed pad (TCB) and the board temperature (TB) are relatively the same. An
improper connection can lead to increased junction temperature, increased power consumption and decreased electrical performance. In
addition, there could be long-term reliability issues and increased failure rate.
Example Calculation for Junction Temperature (TJ): TJ = TCB + JB x Pd
Package type:
Body size:
48-Lead VFQFN
7mm x 7mm x0.8mm
5.65mm x 5.65mm
4 x 4 matrix
ePad size:
Thermal Via:
JB
TCB
Pd
1.0oC/W
105oC
1.097W
For the variables above, the junction temperature is equal to 106.1oC. Since this is below the maximum junction temperature of 125oC, there
are no long term reliability concerns. In addition, since the junction temperature at which the device was characterized using forced convection
is 118.5oC, this device can function without the degradation of the specified AC or DC parameters.
©2016 Integrated Device Technology, Inc.
18
Revision B, November 21, 2016
8SLVP2108 Datasheet
Reliability Information
Table 6. vs. Air Flow Table for a 48 Lead VFQFN
JA
JA at 0 Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
30.5°C/W
26.7°C/W
23.9°C/W
Transistor Count
The transistor count for the 8SLVP2108 is: 7706
©2016 Integrated Device Technology, Inc.
19
Revision B, November 21, 2016
8SLVP2108 Datasheet
48-Lead VFQFN Package Outline and Package Dimensions
©2016 Integrated Device Technology, Inc.
20
Revision B, November 21, 2016
8SLVP2108 Datasheet
Ordering Information
Table 7. Ordering Information
Part/Order Number
8SLVP2108ANLGI
8SLVP2108ANLGI8
Marking
Package
Shipping Packaging
Temperature
IDT8SLVP2108ANLGI “Lead-Free” 48-Lead VFQFN
Tray
-40C to 85C
IDT8SLVP2108ANLGI “Lead-Free” 48-Lead VFQFN Tape & Reel, Pin 1 Orientation: EIA-481-C -40C to 85C
8SLVP2108ANLGI/W IDT8SLVP2108ANLGI “Lead-Free” 48-Lead VFQFN Tape & Reel, Pin 1 Orientation: EIA-481-D -40C to 85C
Table 8. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
8
Quadrant 1 (EIA-481-C)
USER DIRECTION OF FEED
Correct Pin 1 ORIENTATION
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
/W
Quadrant 2 (EIA-481-D)
USER DIRECTION OF FEED
©2016 Integrated Device Technology, Inc.
21
Revision B, November 21, 2016
8SLVP2108 Datasheet
Revision History Sheet
Rev
Table
Page
Description of Change
Date
T7, T8
20
Ordering Information Table - added additional row.
Added Orientation Packaging Table.
A
8/02/2012
1
5
10
Features section - added Differential PCLK bullets.
AC Characteristics Notes, added NOTE 7.
Updated application note, Wiring the Differential Inputs to Accept Single-ended Levels.
A
A
10/12/2012
T4A
Changed NOTE 8 to read: VIL should not be less than -0.3V. VIH should not be higher
1/28/2014
5/20/14
T4A
T4A
5
5
than VCC
.
VPP, Test Conditions; fixed symbol formating.
VO(PP), Test Conditions; fixed symbol formating.
VDIFF_OUT, Test Conditions; fixed symbol formating.
Ordering Info; fixed formating.
A
B
T7
20
22
Updated Contact Info page.
Features Section - added case temperature bullet.
Added Case Temperature Considerations.
Deleted “IDT” prefix and “I” suffix from the part number.
Updated datasheet header/footer.
1
18
11/21/16
Corporate Headquarters
Sales
Tech Support
www.IDT.com/go/support
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
DISCLAIMER Integrated Device Technology, Inc. (IDT) reserves the right to modify the products and/or specifications described herein at any time, without notice, at IDT's sole discretion. Performance spec-
ifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed in customer products. The information
contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any particular purpose, an implied
warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of
IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be rea-
sonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc.. All rights reserved.
©2016 Integrated Device Technology, Inc.
22
Revision B, November 21, 2016
厂商 型号 描述 页数 下载

RUBYCON

 		8SLE15M 导电性高分子铝固体电解电容器[ CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS ] 2 页

IDT

 		8SLVD1204-33 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI8 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33_18 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI8 [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1212 [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI8 [ 1:12, LVDS Output Fanout Buffer ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.219344s
