SZM5066ZPCK-410

型号：

SZM5066ZPCK-410

品牌：

RFMD[ RF MICRO DEVICES ]

页数：

14 页

PDF大小：

1132 K

下载PDF手册

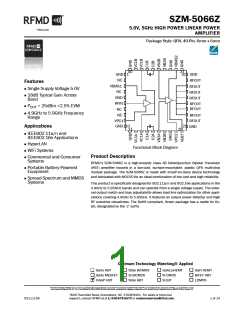

SZM-5066Z
5.0V, 5GHz HIGH POWER LINEAR POWER
AMPLIFIER
Package Style: QFN, 40-Pin, 6mm x 6mm
31
30
40
GND
NC
1
GND
RFOUT
RFOUT
RFOUT
RFOUT
Features
VBIAS1
NC
Single Supply Voltage 5.0V
18dB Typical Gain Across
Band
GND
RFIN
NC
RFOUT
RFOUT
P
= 25dBm <2.5% EVM
OUT
4.9GHz to 5.9GHz Frequency
Range
NC
RFOUT
RFOUT
GND
VPC1
21
20
GND 10
11
Applications
IEEE802.11a/n and
IEEE802.16e Applications
HyperLAN
Functional Block Diagram
WiFi Systems
Product Description
Commercial and Consumer
Systems
RFMD’s SZM-5066Z is a high-linearity class AB Heterojunction Bipolar Transistor
(HBT) amplifier housed in a low-cost, surface-mountable, plastic QFN multi-chip
module package. The SZM-5066Z is made with InGaP-on-GaAs device technology
and fabricated with MOCVD for an ideal combination of low cost and high reliability.
Portable Battery-Powered
Equipment
Spread-Spectrum and MMDS
Systems
This product is specifically designed for 802.11a/n and 802.16e applications in the
4.9GHz to 5.85GHz bands and can operate from a single voltage supply. The exter-
nal output match and bias adjustability allows load line optimization for other appli-
cations covering 4.9GHz to 5.85GHz. It features an output power detector and high
RF overdrive robustness. The RoHS compliant, Green package has a matte tin fin-
ish, designated by the ‘Z’ suffix.
Optimum Technology Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
BiFET HBT
LDMOS
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
1 of 14
SZM-5066Z
Absolute Maximum Ratings
Caution! ESD sensitive device.
Parameter
Supply Voltage
Rating
-0.5 to 6.0
-0.5 to 6.0
Unit
V
DC
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical perfor-
mance or functional operation of the device under Absolute Maximum Rating condi-
tions is not implied.
Power Control Voltage (V
)
V
PC
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended appli-
cation circuitry and specifications at any time without prior notice.
DC Supply Current
Input RF Power
1000
+10
mA
dBm
°C
Operating Ambient Temperature
Storage Temperature
-40 to +85
-40 to +150
TBD
RoHS (Restriction of Hazardous Substances): Compliant per EU Directive
2002/95/EC.
°C
Moisture sensitivity
Specification
Parameter
Unit
Condition
Min.
Typ.
Max.
Temp = 25°C, V = V
= V
= 5.0V, using
CC
PC1
PC2
Typical Conditions
a standard IEEE802.11a waveform at 54Mbps,
64 QAM, unless otherwise noted
IEEE802.11a/n
Compliance
Frequency
Output Power
EVM
5.1
24
5.9
3.0
GHz
dBm
%
25
2.5
Measured at P
= 25dBm, Increase in EVM
OUT
over EVM floor. Frequency = 5.1GHz to
5.85GHz, -40°C to +85°C, Duty Cycle
Gain
18
dB
dB
Frequency = 5.1GHz to 5.9GHz
Over 5.1GHz to 5.9GHz
Gain Flatness
Gain Variance
Power Detect
Power Detect Voltage
Current
1.5
1.25
+29
1.7
+dB
dBm
V
-40°C to +85°C; F,
+10
0.1
Usable power detection range
Operating
Quiescent
800
730
5
925
825
10
mA
mA
mA
at RF P
= +25dBm, V = +5V (54Mbps)
OUT CC
RF = OFF, V = V = 5.0V
CC
PC
I
VPC
Leakage
2
6
A
Power Supply
and V
5.0
5.0
V
V
Input Voltage
V
DC
PC1
PC2
Turn-on Time
1.5
1.8
S
Output stable to within 90% of final gain
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
2 of 14
DS111108
SZM-5066Z
Specification
Typ.
Parameter
Unit
Condition
Min.
Max.
IEEE802.11a/n
Compliance, cont.
2nd Harmonic
Freq = 4.900GHz to 5.15GHz
-20
-20
-29
dBm/MHz
dBm/MHz
dBm/MHz
At rated output power using a standard
IEEE802.11a waveform at 6Mbps
Freq = 5.15GHz to 5.85GHz
3rd Harmonic
At rated output power using a standard
IEEE802.11a waveform at 6Mbps
At rated output power across full frequency
range using a standard IEEE802.11a waveform
at 6Mbps
Input and Output Return Loss
Stable into Output VSWR
-15
-10
4:1
dB
No spurs above -47dBm; at P
30dBm
= 0dBm to
OUT
No Damage into Output VSWR
10:1
at rated P
OUT
SZM-5066ZWD410
Frequency
5.1
24
5.90
3.0
GHz
dBm
%
Output Power
EVM
25
2.5
Measured at P
= 25dBm, increase in EVM
OUT
over EVM floor. Frequency = 5.1GHz to
5.85GHz, -40°C to +85°C, Duty Cycle
Stability
0
30
dBm
PA should be stable when P
from 0dBm to 30dBm
is measured
OUT
Gain
33
dB
dB
Frequency = 5.10GHz to 5.90GHz
Over 5.10GHz to 5.90GHz
-40°C to +85°C; F, Beta
Gain Flatness
Gain Variance
Power Detect
Power Detect Voltage
Current
1.5
1.25
29
dB
10
dBm
V
Usable power detection range
0.1
1.7
Operating
900
820
5
1000
850
10
mA
mA
mA
At RF P
= +25dBm, V = +5V (54Mbps)
OUT CC
Quiescent
RF = OFF, V = V = 5.0V
CC PC
IV
PC
Leakage
2
5
5
6
uA
V
Power Supply
VPC1 and VCP2 Input Voltage
V
DC
Turn-on Time
1.5
1.8
uS
Output stable to within 90% of final gain
2nd Harmonic
Freq = 4.900GHz to 5.150GHz
-20
-20
-29
dBm/MHz
dBm/MHz
dBm/MHz
At rated output power using a standard
IEEE802.11a waveform at 6Mbps
Freq = 5.15GHz to 5.85GHz
3rd Harmonic
At rated output power using a standard
IEEE802.11a waveform at 6Mbps
At rated output power across full frequency
range using a standard IEEE802.11a waveform
at 6Mbps
Input and Output Return Loss
Stable into Output VSWR
-15
-10
4:1
dB
No spurs above -47dBm; at P
30dBm
= 0dBm to
OUT
No Damage into Output VSWR
10:1
at rated P
OUT
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
3 of 14
SZM-5066Z
Pin
2,4,
7,8
Function
NC
Description
No Connection; Can be connected to GND or Open or to other pin.
These are no connect pins and are not wired inside the package. It is recommended to connect them as shown
in the application circuit to achieve the stated performance.
1,
GND
5,10,1
1,18,
21,30,
31,33,
40
This is the supply voltage for the active bias circuit of the 1st stage.
This is the RF input pin.
3
6
VBIAS1
RFIN
Power up/down control pin for the 1st stage. An external series resistor is required for proper setting of bias lev-
els depending on control voltage. The voltage on this pin should never exceed the voltage on pin 3 by more than
0.5V unless the supply current from pin 3 is limited <10mA.
9
VPC1
These four pins are connected internally to the collector of the 1st stage RF device. To achieve specified perfor-
mance, the layout of these pins should match the Recommended Land Pattern.
12,13 VC1A, VC1B
,38,39
These pins have capacitors across them internally mounted to the package as shown in the block diagram. They
are used as tuning and coupling elements between the 1st and 2nd stages.
14,15, C1A, C2A,
36,37
C1B, C2B
These four pins are connected internally to the base of the 2nd stage RF device. To achieve specified perfor-
mance, the layout of these pins should match the Recommended Land Pattern.
16,17, VB2A,VB2B
34,35
Power up/down control pin for the 2nd stage. An external series resistor is required for proper setting of bias lev-
els depending on control voltage. The voltage on this pin should never exceed the voltage on pin 32 by more
than 0.5V unless the supply current from pin 32 is limited <10mA.
19
VPC2
This is the output port for the power detector. It samples the power at the input of the second stage.
These are the RF output pins and DC connections to the 2nd stage collector.
20
VDET
RFOUT
22,23,
24,25,
26,27,
28,29
32
This is the supply voltage for the active bias circuit of the 2nd stage.
VBIAS2
Package Drawing
QFN, 40-Pin, 6.0mm x 6.0mm x 0.5mm
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
4 of 14
DS111108
SZM-5066Z
PCB Metal Land Pattern
PCB Solder Mask Pattern
PCB Stencil Pattern
Note: Thermal vias for center slug “C” should be incorporated into the PCB design. The number and size of thermal vias will
depend on the application. Example of the number and size of vias can be found on the RFMD evaluation board layout.
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
5 of 14
SZM-5066Z
Pin Out
(Top View)
40
39
38
37
36
35
34
33
32
31
GND
NC
1
2
3
4
5
6
7
8
9
30 GND
29 RFOUT
28 RFOUT
27 RFOUT
26 RFOUT
25 RFOUT
24 RFOUT
23 RFOUT
22 RFOUT
21 GND
VBIAS1
NC
GND
RFIN
NC
NC
VPC1
GND 10
11
12
13
14
15
16
17
18
19
20
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
6 of 14
DS111108
SZM-5066Z
Evaluation Board Schematic
VCC
C9
1.8 pF
C8
1.8 pF
C4
1.8 pF
C2
1.0 µF
C1
0.1 µF
L1
1.8 nH
R1
0
C10
0.1 µF
R2
0 
40
39
38
37
36
35
34
33
32
31
C3
DNP
C7
0.1 µF
1
2
30
29
28
27
26
25
24
23
22
21
C6
0.1 µF
3
C5
1.8 pF
4
L3
5.6 nH
5
C22
4.7 pF
J2
RF_OUT
TL1 TL2 TL3 TL4
TL5
TL6
J1
6
C18
4.7 pF
C21**
0.4 pF
C23
DNP
RF IN
L2
C20
0.2 pF
1.8 nH
7
8
P1
1
ZO () E
9
TL1 9.4
9.1
P1-1
VCC
TL2 13.9 4.6
TL3 13.9 14.8
TL4 13.9 28.6
TL5 24.3 61
R10
3.0 k
10
2
GND
P2
4
11
12
13
14
15
16
17
18
19
20
R11
820 
TL6 50
135
GND
VPC
** Place C21 as close as practical to U1.
P2-3
P2-1
3
2
1
GND
VDET2
R13
3.0 k
VPC
R14
1.0 k
R12
47 k
VDET2
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
7 of 14
SZM-5066Z
Evaluation Board Schematic - SZM-5066ZWDPCBA-410
STA-5063 VCC
R7
12
C1
0.1 uF
C2
1 uF
VCC
C8
C4
1.8 pF
1.8 pF
R2
0 
C9
1.8 pF
C3
DNP
R1
0 
L1
1.8 nH
C6
0.1 uF
U1
SZM5066
C10
0.1 uF
C7
0.1 uF
40 39 38 37 36 35 34 33 32 31
1
30
29
28
27
26
25
24
23
22
21
NC
C5
1.8 pF
2
3
NC
C17
4.7pF
C13
4.7pF
U2
STA5063
VCC
NC
J1
RF IN
1
2
6
5
L3
5.6 nH
4
C18
4.7 pF
L5
1.8 nH
R3
C15
4.7 pF
C22
4.7 pF
5
RFOUT
3.9K 
J2
RFOUT
3
4
6
RFIN
NC
C21
1 pF
C23
DNP
C14
100 pF
L4
6.8 nH
L2
1.8 nH
C20
0.2 pF
7
C16
1000 pF
C19
DNP
8
NC
R4
56 
C24
100 pF
R10
3K 
9
VPC1
C25
1 uF
NC
NC
10
11 12 13 14 15 16 17 18 19 20
P2
1
P1
1
VDET
VCC
R11
STA-5063 VCC
820 
2
3
4
2
R12
47K 
R8
13K 
R14
R13
VPC
1K 
3K 
VPC
VDET
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
8 of 14
DS111108
SZM-5066Z
Evaluation Board Layout
Board Size 2” x 2”
Board Thickness 0.32”, Board Material RO4003, Multi-Layer
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
9 of 14
SZM-5066Z
Evaluation Board Layout - SZM-5066Z + STA-5063
Board Size 2” x 2”
Board Thickness 0.32”, Board Material RO4003, Multi-Layer
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
10 of 14
DS111108
SZM-5066Z
EVM(%) vs. Pout(dBm)
25° C
EVM (%) versus POUT (dBm)
- 40° C
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
4.0
3.5
3.0
2.5
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
EVM (%)
2.0
1.5
1.0
0.5
0.0
10.0
15.0
20.0
25.0
10.0
15.0
20.0
Output Power (dBm)
25.0
Output Power (dBm)
EVM(%) vs. Pout(dBm)
85° C
Icc (A) versus POUT (dBm)
- 40° C
0.890
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
0.840
0.790
0.740
0.690
0.640
EVM (%)
0.0
5.0
10.0
15.0
20.0
25.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
Icc(A) vs. Pout(dBm)
25° C
Icc(A) vs. Pout(dBm)
85° C
0.780
0.760
0.740
0.720
0.760
0.740
0.720
0.700
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
Icc (A)
Icc (A)
0.700
0.680
0.660
0.640
0.680
0.660
0.640
0.620
0.0
5.0
10.0
15.0
20.0
25.0
0.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
11 of 14
SZM-5066Z
Gain(dB) vs. Pout(dBm)
25° C
Gain (dB) versus POUT (dBm)
- 40° C
25.0
24.0
23.0
22.0
21.0
20.0
19.0
18.0
17.0
23.0
22.0
21.0
20.0
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
GAIN (dB)
19.0
18.0
17.0
16.0
0.0
0.0
0.0
5.0
10.0
15.0
20.0
25.0
0.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
Gain(dB) vs. Pout(dBm)
85° C
IVPC (mA) versus POUT (dBm)
- 40° C
22.0
21.0
20.0
19.0
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
4.665
4.615
4.565
4.515
4.465
GAIN (dB)
18.0
17.0
16.0
15.0
14.0
5.0
10.0
15.0
20.0
25.0
0.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
Ivpc(mA) vs. Pout(dBm)
25° C
Ivpc(mA) vs. Pout(dBm)
85° C
4.900
4.850
5.140
5.090
5150MHz
5360MHz
5725MHz
5875MHz
5150MHz
5360MHz
5725MHz
5875MHz
IVPC (mA)
IVPC (mA)
4.800
4.750
4.700
5.040
4.990
4.940
0.0
5.0
10.0
15.0
20.0
25.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
12 of 14
DS111108
SZM-5066Z
Power Detect (V) vs. Pout(dBm)
25° C
Power Detect (V) versus POUT (dBm)
- 40° C
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
5150MHz
5360MHz
5725MHz
5875MHz
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
5150MHz
5360MHz
5725MHz
5875MHz
PDet (V)
0.0
5.0
10.0
15.0
20.0
25.0
0.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
Output Power (dBm)
Power Detect (V) vs. Pout(dBm)
85° C
1.5
5150MHz
5360MHz
5725MHz
5875MHz
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
PDet (V)
0.0
5.0
10.0
15.0
20.0
25.0
Output Power (dBm)
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS111108
13 of 14
SZM-5066Z
Ordering Information
Ordering Code
Description
SZM5066Z
Standard 25 piece bag
Standard 100 piece reel
Standard 2500 piece reel
SZM5066ZSR
SZM5066ZTR13
SZM5066ZWDPCK-410 Fully assembled SZM5066Z PCBA with STA5063 driver
and 5 loose sample pieces
SZM5066ZPCK-410
Fully assembled SZM5066ZPCBA410 and 5 loose
sample pieces
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
14 of 14
DS111108
厂商 型号 描述 页数 下载

ETC

 		SZM-01T-P0.7 可拆卸式压接式的线对线连接器[ Disconnectable Crimp style Wire-to-wire connectors ] 5 页

SIRENZA

 		SZM-2066Z 2.4-2.7GHz 2W功率放大器[ 2.4-2.7GHz 2W Power Amplifier ] 13 页

SIRENZA

 		SZM-2166Z 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB1 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB2 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB3 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-3066Z 3.3-3.8GHz 2W功率放大器[ 3.3-3.8GHz 2W Power Amplifier ] 9 页

SIRENZA

 		SZM-3166Z 3.3-3.6GHz 2W功率放大器[ 3.3-3.6GHz 2W Power Amplifier ] 9 页

SIRENZA

 		SZM-3166Z-EVB1 3.3-3.6GHz 2W功率放大器[ 3.3-3.6GHz 2W Power Amplifier ] 9 页

ETC

 		SZM-41T-P0.7 可拆卸式压接式的线对线连接器[ Disconnectable Crimp style Wire-to-wire connectors ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.218341s
