SZM-3166Z

型号：

SZM-3166Z

描述：

3.3-3.6GHz 2W功率放大器[ 3.3-3.6GHz 2W Power Amplifier ]

品牌：

SIRENZA[ SIRENZA MICRODEVICES ]

页数：

9 页

PDF大小：

356 K

下载PDF手册

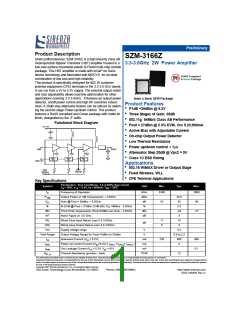

Preliminary
Product Description
SZM-3166Z
Sirenza Microdevices’ SZM-3166Z is a high linearity class AB
Heterojunction Bipolar Transistor (HBT) amplifier housed in a
low-cost surface-mountable plastic Q-FlexN multi-chip module
package. This HBT amplifier is made with InGaP on GaAs
device technology and fabricated with MOCVD for an ideal
combination of low cost and high reliability.
3.3-3.6GHz 2W Power Amplifier
RoHS Compliant
Pb
& Green Package
This product is specifically designed for 802.16 customer
premise equipment (CPE) terminals in the 3.3-3.6 GHz bands.
It can run from a 3V to 5.2V supply. The external output match
and bias adjustability allows load line optimization for other
applications covering 3.5-3.8GHz. It features an output power
detector, on/off power control and high RF overdrive robust-
ness. A 20dB step attenuator feature can be utilized by swtich-
ing the second stage Power up/down control. This product
features a RoHS compliant and Green package with matte tin
finish, designated by the ‘Z’ suffix.
6mm x 6mm QFN Package
Product Features
• P1dB =35dBm @ 5.2V
• Three Stages of Gain: 35dB
• 802.11g 54Mb/s Class AB Performance
• Pout = 27dBm @ 2.5% EVM, Vcc 5.2V,900mA
• Active Bias with Adjustable Current
• On-chip Output Power Detector
• Low Thermal Resistance
Functional Block Diagram
Vcc =5V
• Power up/down control < 1μs
• Attenuator Step 20dB @ Vpc2 = 0V
• Class 1C ESD Rating
RFIN
RFOUT
Stage
Bias
1
Stage
Bias
2
Stage
Bias
3
Vbias =5V
Applications
• 802.16 WiMAX Driver or Output Stage
Pow er
Pow er
Up/Dow n
Control
Detector
• Fixed Wireless, WLL
• CPE Terminal Applications
Key Specifications
Parameters: Test Conditions, 3.3-3.6GHz App circuit,
Symbol
Unit
Min.
Typ.
Max.
Z
= 50Ω, V = 5.2V, Iq = 800mA, T = 30ºC
0
CC
BP
f
Frequency of Operation
MHz
dBm
dB
3300
3600
O
P
Output Power at 1dB Compression – 3.5GHz
Gain @ Pout = 26dBm – 3.5GHz
34.5
1dB
S
32
35
38
21
%
% EVM @ Pout = 27dBm, EVM 802.11g 54Mb/s - 3.5GHz
Third Order Suppression (Pout=23dBm per tone) - 3.5GHz
Noise Figure at 3.5 GHz
%
2.5
IM3
NF
dBc
dB
-42
-37
5
IRL
Worst Case Input Return Loss 3.3-3.6GHz
Worst Case Output Return Loss 3.3-3.6GHz
Supply voltage range
11
6
14
dB
ORL
9
5.2
Vcc
V
V
Vdet Range
Output Voltage Range for Pout=10dBm to 33dBm
0.9 to 2.2
800
I
Quiescent Current (V = 5.2V)
mA
mA
mA
ºC/W
720
880
0.1
cq
cc
I
Power Up Control Current (V =5.2V) ( I +I + I )
VPC1 VPC2 VPC3
5
VPC
pc
I
Vcc Leakage Current (V = 5.2V, V = 0V)
cc pc
leak
R
Thermal Resistance (junction - lead)
12
th, j-l
The information provided herein is believed to be reliable at press time. Sirenza Microdevices assumes no responsibility for inaccuracies or ommisions.
Sirenza Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Sirenza Microdevices does not authorize or warrant any Sirenza Microdevices product
for use in life-support devices and/or systems.
Copyright 2007 Sirenza Microdevices, Inc. All worldwide rights reserved.
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
1
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Typical Performance 3.3-3.6GHz App Circuit (Vcc=5.2V, Icq=800mA, * 802.11g 54Mb/s 64QAM)
Parameter
Gain @ Pout=26dBm
P1dB
Units
3.3GHz
3.4GHz
3.5GHz
3.6GHz
3.7GHz
3.8GHz
31.5
33
dB
35
35
35
35
33
dBm
%
34
34.5
2.5
35
34.5
2.6
34
% EVM @ Pout = 27dBm*
Current @ Pout 2.5% EVM*
Input Return Loss
2.7
930
14
2.5
3.1
4
mA
dB
930
15
920
15.5
10
893
17
910
18.5
8
885
15.5
7
Output Return Loss
dB
9
10
9
Absolute Maximum Ratings
Parameters
Value
1500
600
300
9.0
Unit
mA
mA
mA
V
VC3 Collector Bias Current (I
VC2 Collector Bias Current (I
VC1 Collector Bias Current (I
)
)
)
VC3
VC2
VC1
**Device Voltage (V )
D
Power Dissipation
6
W
Operating Lead Temperature (T )
-40 to +85
30
ºC
L
Caution: ESD Sensitive
Appropriate precaution in handling, packaging
and testing devices must be observed.
*Max RF output Power for 50 ohm contin-
uous long term operation
dBm
dBm
dBm
Max RF Input Power for 50 ohm output
load
29
5
Max RF Input Power for 10:1 VSWR out-
put load
Max Storage Temperature
+150
+150
ºC
ºC
Operating Junction Temperature (T )
J
ESD Human Body Model
Class 1C
Operation of this device beyond any one of these limits may
cause permanent damage. For reliable continuous operation
the device voltage and current must not exceed the maximum
operating values specified in the table on page one.
Bias conditions should also satisfy the following expression:
I
V
< (T - T ) / R
j-l
cq cc
J
L
TH’
Note: Icq in this equation is for the stage with the highest current
* With specified application circuit.
** No RF Drive
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
2
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Pin Out Description
Pin #
Function
Description
5, 7, 11,12,17,18, 22,
29, 31, 33, 34, 39, 40
These are no connect (NC) pins and are not wired inside the package. It is recommended to con-
nect them as shown in the application circuit to achieve the stated performance.
NC
These pins are internally grounded inside the package to the backside ground paddle. It is recom-
mended to also ground them external to the package to achieve the specified performance.
1,10, 21, 30
GND
2
3
VC1
This is the collector of the first stage.
VBIAS12
This is the supply voltage for the active bias circuit of the 1st and 2nd stages.
This pin is not connected inside the package, but it is recommended to connect it to GND to
achieve the specified performance.
4
6
NC
RFIN
This is the RF input pin. It is DC grounded inside the package. Do not apply DC voltage to this pin.
Power up/down control pin for the 1st stage. An external series resistor is required for proper set-
ting of bias levels depending on control voltage. The voltage on this pin should never exceed the
voltage on pin 3 by more than 0.5V unless the supply current from pin 3 is limited < 10mA.
8
9
VPC1
VPC2
Power up/down control pin for the 2nd stage. Power down VPC2<1V for step attenuator function
enable. An external series resistor is required for proper setting of bias levels depending on control
voltage. The voltage on this pin should never exceed the voltage on pin 3 by more than 0.5V unless
the supply current from pin 3 is limited < 10mA.
These two pins are connected internal to the package to the 2nd stage collector. To achieve spec-
ified performance, the layout of these pins should match the Recommended Land Pattern, pg. 9.
13, 38
14,15, 36, 37
16,35
VC2A, VC2B
C1A,C2A
C1B,C2B
These pins have capacitors across them internal to the package as shown in the below schematic.
They are used as tuning and RF coupling elements between the 2nd and 3rd stage.
These are the connections to the base of the 3rd stage output device. To achieve specified perfor-
mance, the layout of these pins should match the Recommended Land Pattern, pg. 9.
VB3A, VB3B
VPC3
Power up/down control pin for the 3rd stage. An external series resistor is required for proper set-
ting of bias levels depending on control voltage. The voltage on this pin should never exceed the
voltage on pin 32 by more than 0.5V unless the supply current from pin 33 is limited < 10mA.
19
20
23-28
32
VDET
RFOUT
VBIAS3
This is the output port for the power detector. It samples the power at the input of the 3rd stage.
These are the RF output pins and DC connections to the 3rd stage collector.
This is the supply voltage for the active bias circuit of the 3rd stage.
Simplified Device Schematic
31
30
40
GND
VC1
1
GND
NC
VBIAS12
NC
RFOUT
RFOUT
RFOUT
NC
RFIN
NC
RFOUT
RFOUT
VPC1
VPC2
RFOUT
NC
GND 10
21
GND
11
20
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
3
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Measured 3.3 - 3.6 GHz Application Circuit Data (Vcc = Vpc = 5.2V, Iq =800mA, T=25C)
EVM vs Frequency, T=+25C
EVM vs Pout, F=3.4GHz
802.11g, OFDM 54Mb/s, 64QAM
802.11g, OFDM 54Mb/s, 64QAM
5
4
3
2
1
0
5
4
3
2
1
0
16
18
20
22
24
26
28
30
16
18
20
22
24
26
28
30
Pout(dBm)
Pout(dBm)
3.4GHz
3.5GHz
3.6GHz
-40C
+25C
+85C
EVM vs Pout, F=3.5GHz
802.11g, OFDM 54Mb/s, 64QAM
EVM vs Pout, F=3.6GHz
802.11g, OFDM 54Mb/s, 64QAM
5
4
3
2
1
0
5
4
3
2
1
0
16
18
20
22
24
26
28
30
16
18
20
22
Pout(dBm)
+25C
24
26
28
30
Pout(dBm)
-40C
+85C
-40C
+25C
+85C
IM3 vs Pout (2 Tone Avg.), T=+25C
Tone Spacing = 1MHz
Typical Gain vs Pout, F=3.4GHz
40
38
36
34
32
30
28
-25
-30
-35
-40
-45
-50
-55
-60
-65
18
20
22
24
26
28
18
20
22
24
26
28
30
32
34
36
Pout(dBm)
Pout(dBm)
3.4GHz
3.5GHz
3.6GHz
3.7GHz
-40C
+25C
+85C
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
4
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Measured 3.3 - 3.6 GHz Application Circuit Data (Vcc = Vpc = 5.2V, Iq =800mA, T=25C)
Typical Gain vs Pout, F=3.5GHz
Typical Gain vs Pout, F=3.6GHz
40
38
36
34
32
30
28
40
38
36
34
32
30
28
18
20
22
24
26
28
30
32
34
36
3.8
3.8
18
20
22
24
26
28
30
32
34
36
Pout(dBm)
Pout(dBm)
-40C
+25C
+85C
-40C
+25C
+85C
Narrowband S11 - Input Return Loss
Narrowband S21 - Forward Gain
50
45
40
35
30
25
20
-5
-10
-15
-20
-25
3.3
3.4
3.5
3.6
3.7
3.8
3.3
3.4
3.5
3.6
3.7
Frequency(GHz)
Frequency(GHz)
-40C
+25C
+85C
-40C
+25C
+85C
Narrowband S12 - Reverse Isolation
Narrowband S22 - Output Return Loss
0
-40
-50
-60
-70
-80
-90
-5
-10
-15
-20
3.3
3.4
3.5
3.6
3.7
3.8
3.3
3.4
3.5
3.6
3.7
Frequency(GHz)
Frequency(GHz)
-40C
+25C
+85C
-40C
+25C
+85C
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
5
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Measured 3.3 - 3.6 GHz Application Circuit Data (Vcc = Vpc = 5.2V, Iq = 800mA, T=25C)
DC Supply Current vs Pout, T=+25C
DC Supply Current vs Pout, F=3.5GHz
1.8
1.6
1.4
1.2
1
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.8
0.6
18
20
22
24
26
28
30
32
34
36
18
20
22
24
26
28
30
32
34
36
Pout(dBm)
Pout(dBm)
3.4GHz
3.5GHz
3.6GHz
3.7GHz
-40C
+25C
+85C
Noise Figure vs Frequency, T=+25C
RF Power Detector (Vdet) vs Pout, F=3.5GHz
6.5
6
3
2.8
2.6
2.4
2.2
2
5.5
5
1.8
1.6
1.4
1.2
1
4.5
4
3.5
18
20
22
24
26
28
30
32
34
36
3.3
3.4
3.5
3.6
3.7
3.8
Pout(dBm)
Frequency(GHz)
-40C
+25C
+85C
RF Power Detector (Vdet) vs Pout, F=3.6GHz
Icq vs Vpc, Vcc=5.2V, swept Vpc
1.4
3
2.8
2.6
2.4
2.2
2
1.2
1
0.8
0.6
0.4
0.2
0
1.8
1.6
1.4
1.2
1
18
20
22
24
26
28
30
32
34
36
0
1
2
3
4
5
6
Pout(dBm)
Vpc(V)
-40c
+25c
+85c
-40C
+25C
+85C
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
6
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Measured 3.3 - 3.6 GHz Application Circuit Data (Vcc = Vpc = 5.2V, Iq = 800mA, T=25C)
Broadband S11 -Input Return Loss
Broadband S21 - Forward Gain
0
-5
40
35
30
25
20
15
10
-10
-15
-20
-25
0
1
2
3
4
5
6
0
1
2
3
4
5
6
Frequency(GHz)
Frequency(GHz)
-40C
+25C
+85C
-40C
+25C
+85C
Broadband S12 - Reverse Isolation
Broadband S22 - Output Return Loss
-30
0
-40
-50
-5
-10
-15
-20
-25
-60
-70
-80
-90
-100
-110
0
1
2
3
4
5
6
0
1
2
3
4
5
6
Frequency(GHz)
Frequency(GHz)
-40C
+25C
+85C
-40C
+25C
+85C
20dB Step attenuator Function Gain Delta vs Temp.
Attenuator Enabled VPC2=0V
30
28
26
24
22
20
18
16
14
12
10
3.3
3.35
3.4
3.45
3.5
Frequency(GHz)
T=-40c T=+25c
3.55
3.6
3.65
3.7
3.75
3.8
T=+85c
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
7
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
3.3-3.6 GHz Evaluation Board Schematic For Vcc = Vpc =5.2V
3.3-3.6 GHz Evaluation Board Layout For Vcc = Vpc = 5.2V
Board material GETEK, 10mil thick, Dk=3.9, 2 oz. copper
C1
C7
C3
L2
C4
R8
C6
R7
R6
C5
C2
L1
C9
Q1
C8
R5
R1
R9
R2
R3
R4
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
8
http://www.sirenza.com
EDS-105462 Rev C
Preliminary
SZM-3166Z 3.3-3.6GHz 2W Power Amp
Part Number Ordering Information
Part Symbolization
The part will be symbolized with “SZM-3166Z” to desig-
nate it as a RoHs green compliant product. Marking des-
ignator will be on the top surface of the package.
Reel
Size
Reel
Part Number
Description
Quantity
SZM-3166Z
Lead Free, RoHS compliant
7”
1000
SZM-3166Z-EVB1 3.3-3.6GHz Evaluation Board
N/A
N/A
Package Outline Drawing (dimensions in mm):
Recommended Metal Land Pattern
(dimensions in mm[in]):
Recommended PCB Soldermask
for Land Pattern (dimensions in mm[in]):
303 South Technology Court Broomfield, CO 80021
Phone: (800) SMI-MMIC
http://www.sirenza.com
EDS-105462 Rev C
9
厂商 型号 描述 页数 下载

ETC

 		SZM-01T-P0.7 可拆卸式压接式的线对线连接器[ Disconnectable Crimp style Wire-to-wire connectors ] 5 页

SIRENZA

 		SZM-2066Z 2.4-2.7GHz 2W功率放大器[ 2.4-2.7GHz 2W Power Amplifier ] 13 页

SIRENZA

 		SZM-2166Z 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB1 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB2 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-2166Z-EVB3 2.3-2.7GHz 2W功率放大器[ 2.3-2.7GHz 2W Power Amplifier ] 16 页

SIRENZA

 		SZM-3066Z 3.3-3.8GHz 2W功率放大器[ 3.3-3.8GHz 2W Power Amplifier ] 9 页

SIRENZA

 		SZM-3166Z-EVB1 3.3-3.6GHz 2W功率放大器[ 3.3-3.6GHz 2W Power Amplifier ] 9 页

ETC

 		SZM-41T-P0.7 可拆卸式压接式的线对线连接器[ Disconnectable Crimp style Wire-to-wire connectors ] 5 页

SEOUL

 		SZM04A0A ž电源指示灯 - 超高光通量输出，高亮度[ Z Power LED - Super high Flux output and high Luminance ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.194157s
