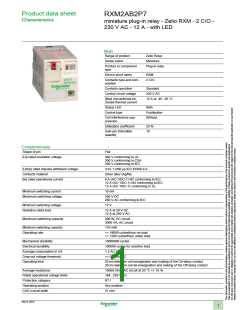

Product data sheet
Characteristics
RXM2AB2P7
miniature plug-in relay - Zelio RXM - 2 C/O -
230 V AC - 12 A - with LED
Main
Range of product
Zelio Relay
Miniature
Series name
Product or component
type
Plug-in relay
Device short name
RXM
Contacts type and com-
position
2 C/O
Contacts operation
Standard
Control circuit voltage
230 V AC
[Ithe] conventional en-
closed thermal current
12 A at -40...55 °C
Status LED
Control type
With
Pushbutton
Without
Coil interference sup-
pression
Utilisation coefficient
20 %
10
Sale per indivisible
quantity
Complementary
Shape of pin
Flat
[Ui] rated insulation voltage
300 V conforming to UL
300 V conforming to CSA
250 V conforming to IEC
[Uimp] rated impulse withstand voltage
Contacts material
4 kV 1.2/50 µs IEC 61000-4-5
Silver alloy (Ag/Ni)
[Ie] rated operational current
6 A (AC-1/DC-1) NC conforming to IEC
12 A (AC-1/DC-1) NO conforming to IEC
12 A (AC-1/DC-1) conforming to UL
Minimum switching current
Maximum switching voltage
10 mA
250 V DC
250 V AC conforming to IEC
Minimum switching voltage
Resistive rated load
17 V
12 A at 28 V DC
12 A at 250 V AC
Maximum switching capacity
336 W, DC circuit
3000 VA, AC circuit
Minimum switching capacity
Operating rate
170 mW
<= 18000 cycles/hour no-load
<= 1200 cycles/hour under load
Mechanical durability
Electrical durability
10000000 cycles
100000 cycles for resistive load
1.2 AC 60 Hz
Average consumption in VA
Drop-out voltage threshold
Operating time
>= 0.15 Uc AC
20 ms between coil energisation and making of the On-delay contact
20 ms between coil de-energisation and making of the Off-delay contact
Average resistance
15000 Ohm, AC circuit at 20 °C +/- 15 %
Rated operational voltage limits
Protection category
Operating position
184...253 V AC
RT I
Any position
21 mm
CAD overall width
