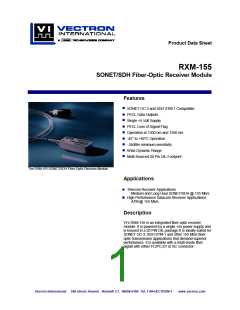

Product Data Sheet
RXM-155
SONET/SDH Fiber-Optic Receiver Module
Features
SONET OC-3 and SDH STM-1 Compatible
PECL Data Outputs
Single +5 Volt Supply
PECL Loss of Signal Flag
Operation at 1300 nm and 1550 nm
-45° to +85°C Operation
-34dBm minimum sensitivity
Wide Dynamic Range
Multi-Sourced 20 Pin DIL Footprint
The RXM-155 SONET/SDH Fiber-Optic Receiver Module
Applications
Telecom Receiver Applications
Medium and Long Haul SONET/SDH @ 155 Mb/s
High Performance Datacom Receiver Applications
ATM @ 155 Mb/s
Description
VI’s RXM-155 is an integrated fiber-optic receiver
module. It is powered by a single +5v power supply and
is housed in a 20 PiN DIL package.It is ideally suited for
SONET OC-3, SDH STM-1 and other 155 Mb/s fiber-
optic transmission applications that demand superior
performance. It is available with a multi-mode fiber
pigtail with either FC/PC,ST or SC connector.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Functional Overview
The optical signal is coupled through a short length of
50.0 µm multimode or single mode optical fiber to a
hermetic module which encases an InGaAs PiN-
photodiode and preamplifier. The PiN-photodiode
converts the optical signal to an electrical current. The
signal is then converted to a voltage and amplified by a
low noise transimpedance amplifier.
This highly integrated module converts a 155 Mb/s
fiber-optic NRZ signal to differential PECL data outputs.
A PECL flag alerts the user to a loss of signal condition
when the optical input falls below an acceptable level.
A single +5 Volt supply provides bias for the module’s
preamplifier, and Quantizer. The photodiode may be
biased with -5 Volts or Grounded. All elements are
integrated into fiber-coupled 1.3” X 0.635” 20 pin DIL
package. The RXM-155 footprint and pinout are
industry common for ease of integration.
Further gain is provided by the quantizer, which also
provides a Flag output when the optical signal falls
below an acceptable level.
Figure 1. RXM-155 Functional Block Diagram
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
2
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Pin 1 Indicator
10
Top View
11
20
Figure 2. Pin Diagram (Top View)
Table 1. Pin Function
Symbol
Pin
7
Function
Data
Data
VD
PECL Data Output.
9
PECL Complementary Data Output.
10
Detector Anode Bias. Connect to GND or a -5V biased series resistor for
received optical power monitoring.1
11
12
VCC
5 Volt Supply Voltage.
Flag
Input Signal Level Status. This PECL output switches low when the received
optical power falls below the flag threshold.
14
Flag
GND
NC
Complementary Input Signal Status. PECL complement of Flag.
1,2,3,6,8,13,15,16
Ground.
4,5,17,18,19,20
No User Connection.
1. By connecting pin 10 to a -5 Volt bias through a series resistor (e.g. 1 kΩ) received optical power can be monitored as a voltage drop across the resistor.
Absolute Maximum Ratings
Absolute maximum ratings are provided here as
worst case and short duration exposure conditions
only. Exposure to conditions more severe than the
Absolute Maximum Ratings may result in permanent
damage. Exposure to conditions at the Absolute
Maximum Ratings for extended periods may also
adversely affect device performance or reliability.
Functional operation of the device is not implied at
these conditions.
Table 2. Absolute Maximum Ratings
Parameter
Storage Temperature Range
Supply Voltage
Symbol
TS
Minimum
Maximum
Units
°C
-40
0
85
+6
VCC
V
pin Detector Bias
VD
-15
0
V
Lead Soldering Conditions
250/10
°C/s
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
3
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Performance Characteristics
Table 3. Electrical Performance
Parameter
Symbol
Minimum
120
Typical
Maximum
Units
Mb/s
°C
Input Signal Rate
fO
TO
155.52
175
+85
5.5
0
Operating Temperature
Power Supply Voltage
pin Detector Bias Voltage (pin10)
Power Supply Current
Data Output Levels 1
Low
-40
VCC
VD
4.5
5.0
0
V
-15
V
ICC
200
mA
VOL
VOH
VCC - 1.95
VCC - 1.03
275
VCC - 1.63
VCC - 0.88
575
V
V
High
Data Output Rise and Fall Times 2
Received Power Level Flag
Decreasing Optical Power
Increasing Optical Power
Flag Hysteresis
TR, TF
LOS
375
ps
-37
-35
2
dBm
dBm
dB
Hyst
1. Measured with a load of RL = 50Ω to VCC - 2 V. See figures 3 and 4. ECL levels are specified for dc measurement, an additional tolerance of 50 mV should be included for
dynamic measurements.
2. Measured at 20% to 80% levels.
Figure 3. PECL Interface
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
4
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Figure 4. ECL (AC Coupled) Interface
Figure 5. Typical Performance @ 155.52MHz
Table 4. Optical Performance
Parameter
Symbol
Sens.
PMAX
λ
Minimum
Typical
Maximum
Units
dBm
Minimum Average Sensitivity 1
Maximum Optical Input 1
Input Wavelength
-34.0
0
dBm
nm
1280
1580
1. For a BER less than 1E-10. Measured using a 223 - 1 pseudorandom word and a 50% average optical duty cycle and a 10 dB Extinction Ratio.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
5
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Qualification
The RXM-155 has been designed to comply with the
requirements of Bellcore specifications GR-468-
CORE, Reliability Assurance for Optoelectronic
devices and will be subject to a complete qualification
test plan to demonstrate full compliance. All of the
technologies used in the assembly of the module
represent standard microelectronic and optical
technologies that are used in similar products, and
have extensive field reliability data.
All components and technologies used in the optical
receiver are backed by qualification data covering
mechanical and environmental tests along with
accelerated life tests. Typical tests, test conditions
and sample sizes are listed below.
Table 5. Qualification Plan
Test
Test Method
MIL-STD-883, Method 2016
Sample Size
Physical Dimensions
Mechanical Shock
Vibration, variable frequency
Lead Solderability
Lead Integrity
11
MIL-STD-883, Method2002, Test B
MIL-STD-883, Method 2007, Test A
MIL-STD-883, Method 2003
MIL-STD-883, Method 2004
-40°C/85°C, 300 cycles
11
11
22 Leeds
15 Leeds
Temperature Cycling
High Temperature Aging
Damp Bake
11
11
11
11
3
85°C under bias, 2000 hours
85°C/85% RH/ 1000 hrs
Low Temperature Storage
ESD
-40°C, 168 hours
MIL-STD-883,Method 3015
MIL-STD-883,Method 2011
Destructive Bond Pull
40
Table 6. Optical Fiber Characteristics
Parameter
Fiber Length
Fiber Core
Minimum
Typical
1000
50
Maximum
Units
mm
um
Fiber Buffer
900
µm
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
6
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Outline Diagram
Figure 6. Outline Diagram
Ordering Information
Standard modules are built with 50um MM fiber, with an outer jacket diameter of 900um. Alternative fiber type,
connector type and fiber lengths are available upon request. Contact factory for specific details.
Table 7. Part Numbers
Fiber-Optic Connector1
Model Number
VI Code Number
FC/PC
ST
RXM-155A
RXM-155B
RXM-155C
330018265
330003674
330018276
SC
1. Other connectors or fiber requirements are available to meet specific application requirements.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
7
RXM-155 SONET/SDH Receiver Module
Product Data Sheet
Notes:
USA: Vectron International • 166 Glover Avenue, Norwalk, CT 06856 • Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
EUROPE: In Denmark, Finland, Ireland, Italy, Israel, Norway, Spain, UK: Tel: 44 (0) 1703 766 288 • Fax: 44 (0) 1703 766 822
In Austria,Belgium,France,Germany,Luxenburg,Netherlands,Sweden,Switzerland:Tel: 49(0)7263 6480 • Fax:49(0)7263 6196
ASIA: In China, Taiwan, Japan: Tel: 01 603 598 0070 • Fax: 01 603 598 0075
In Korea, Singapore, Australia, India: Tel: 01 203 853 4433 • Fax: 01 203 853 1423
Vectron International, Inc. reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Vectron International 166 Glover Avenue Norwalk CT. 06856-5160 Tel: 1-88-VECTRON-1
www.vectron.com
8
