YW80486DX2SC50

型号：

YW80486DX2SC50

品牌：

INTEL[ INTEL ]

页数：

48 页

PDF大小：

1589 K

下载PDF手册
EMBEDDED IntelDX2™ PROCESSOR
■
■
■
■
■
■
■
Integrated Floating-Point Unit
Speed-Multiplying Technology
32-Bit RISC Technology Core
8-Kbyte Write-Through Cache
Four Internal Write Buffers
Burst Bus Cycles
■
■
■
■
SL Technology
Data Bus Parity Generation and Checking
Boundary Scan (JTAG)
3.3-Volt Processor, 50 MHz, 25 MHz CLK
— 208-Lead Shrink Quad Flat Pack (SQFP)
5-Volt Processor, 66 MHz, 33 MHz CLK
— 168-Pin Pin Grid Array (PGA)
■
■
Dynamic Bus Sizing for 8- and 16-bit
Data Bus Devices
Binary Compatible with Large Software
Base
64-Bit Interunit Transfer Bus
32-Bit Data Bus
Core
CLK
Clock
Clock
Multiplier
32-Bit Data Bus
Linear Address
32
PCD
PWT
Bus Interface
A31-A2
Base/
Index
Bus
Barrel
Shifter
Segmentation
Unit
2
Cache Unit
BE3#- BE0#
Paging
Unit
32
Address
Drivers
20
Descriptor
Registers
Register
File
32
Physical
Address
Write Buffers
4 x 32
8 Kbyte
Cache
32
32
Translation
Lookaside
Buffer
Limit and
Attribute PLA
D31-D0
ALU
Data Bus
Transceivers
ADS# W/R# D/C# M/IO#
PCD PWT RDY# LOCK#
PLOCK# BOFF# A20M#
BREQ HOLD HLDA
RESET SRESET INTR
NMI SMI# SMIACT#
FERR# IGNNE#
Bus Control
Displacement Bus
32
Prefetcher
Micro-
Instruction
STPCLK#
Request
Sequencer
32-Byte Code
Queue
BRDY# BLAST#
BS16# BS8#
Burst Bus
Control
Code
Stream
2x16 Bytes
Control &
Protection
Test Unit
Instruction
Decode
Floating
Point Unit
Bus Size
Control
24
KEN# FLUSH#
AHOLD EADS#
Cache
Control
Decoded
Instruction
Path
Floating
Point
Register File
Control
ROM
DP3-DP0 PCHK#
Parity
Generation
and Control
TCK TMS
TDI TD0
Boundary
Scan
Control
A3223-01

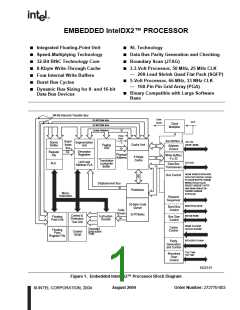

Figure 1. Embedded IntelDX2™ Processor Block Diagram
August 2004
Order Number: 272770-003
© INTEL CORPORATION, 2004
Information in this document is provided in connection with Intel products. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in
Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel
disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or
warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright
or other intellectual property right. Intel products are not intended for use in medical, life saving, or life
sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or
"undefined." Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or
incompatibilities arising from future changes to them.
The Embedded IntelDX2™ processor may contain design defects or errors known as errata which may cause
the product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your
product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel
literature may be obtained by calling 1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Copyright © Intel Corporation, 1997, 2004
*Third-party brands and names are the property of their respective owners.
Contents
EMBEDDED IntelDX2™ PROCESSOR
1.0 INTRODUCTION ........................................................................................................................................ 1
1.1 Features ............................................................................................................................................. 1
1.2 Family Members ................................................................................................................................. 2
2.0 HOW TO USE THIS DOCUMENT ............................................................................................................. 3
3.0 PIN DESCRIPTIONS ................................................................................................................................. 3
3.1 Pin Assignments ................................................................................................................................. 3
3.2 Pin Quick Reference ......................................................................................................................... 16
4.0 ARCHITECTURAL AND FUNCTIONAL OVERVIEW ............................................................................. 25
4.1 CPUID Instruction ............................................................................................................................. 25
4.1.1 Operation of the CPUID Instruction ....................................................................................... 25
4.2 Identification After Reset .................................................................................................................. 26
4.3 Boundary Scan (JTAG) .................................................................................................................... 26
4.3.1 Device Identification ............................................................................................................... 26
4.3.2 Boundary Scan Register Bits and Bit Order ........................................................................... 27
5.0 ELECTRICAL SPECIFICATIONS ........................................................................................................... 28
5.1 Maximum Ratings ............................................................................................................................. 28
5.2 DC Specifications ............................................................................................................................. 28
5.3 AC Specifications ............................................................................................................................. 33
5.4 Capacitive Derating Curves .............................................................................................................. 39
6.0 MECHANICAL DATA .............................................................................................................................. 41
6.1 Package Dimensions ........................................................................................................................ 41
6.2 Package Thermal Specifications ...................................................................................................... 44
FIGURES
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Embedded IntelDX2™ Processor Block Diagram ...................................................................... i
Package Diagram for 208-Lead SQFP Embedded IntelDX2™ Processor ................................ 4
Package Diagram for 168-Pin PGA Embedded IntelDX2™ Processor ................................... 10
CLK Waveform ........................................................................................................................ 35
Input Setup and Hold Timing ................................................................................................... 35
Input Setup and Hold Timing ................................................................................................... 36
PCHK# Valid Delay Timing ...................................................................................................... 36
Output Valid Delay Timing ....................................................................................................... 37
Maximum Float Delay Timing .................................................................................................. 37
TCK Waveform ........................................................................................................................ 38
Test Signal Timing Diagram .................................................................................................... 38
iii
Contents
Figure 12.
Figure 13.
Figure 14.
Figure 15.
Typical Loading Delay versus Load Capacitance under Worst-Case Conditions
for a Low-to-High Transition, 3.3 V Processor .........................................................................39
Typical Loading Delay versus Load Capacitance under Worst-Case Conditions
for a High-to-Low Transition, 3.3 V Processor .........................................................................39
Typical Loading Delay versus Load Capacitance under
Worst-Case Conditions for a Low-to-High Transition, 5 V Processor ......................................40
Typical Loading Delay versus Load Capacitance under
Worst-Case Conditions for a High-to-Low Transition, 5 V Processor ......................................40
Figure 16.
Figure 17.
208-Lead SQFP Package Dimensions .................................................................................... 41
Principal Dimensions and Data for 168-Pin Pin Grid Array Package .......................................42
TABLES
Table 1.
The Embedded IntelDX2™ Processor Family ............................................................................2
Pinout Differences for 208-Lead SQFP Package ......................................................................5
Pin Assignment for 208-Lead SQFP Package ...........................................................................6
Pin Cross Reference for 208-Lead SQFP Package ...................................................................8
Pinout Differences for 168-Pin PGA Package .........................................................................11
Pin Assignment for 168-Pin PGA Package ..............................................................................12
Pin Cross Reference for 168-Pin PGA Package ......................................................................14
Embedded IntelDX2™ Processor Pin Descriptions .................................................................16
Output Pins ..............................................................................................................................23
Input/Output Pins .....................................................................................................................23
Test Pins ..................................................................................................................................23
Input Pins .................................................................................................................................24
CPUID Instruction Description .................................................................................................25
Boundary Scan Component Identification Code (3.3 Volt Processor) .....................................26
Boundary Scan Component Identification Code (5 Volt Processor) ........................................27
Absolute Maximum Ratings .....................................................................................................28
Operating Supply Voltages ......................................................................................................28
3.3 V DC Specifications ...........................................................................................................29
3.3 V ICC Values ......................................................................................................................30
5 V DC Specifications ..............................................................................................................31
5 V ICC Values .........................................................................................................................32
AC Characteristics ...................................................................................................................33
AC Specifications for the Test Access Port .............................................................................34
168-Pin Ceramic PGA Package Dimensions ...........................................................................42
Ceramic PGA Package Dimension Symbols ...........................................................................43
Thermal Resistance, θJA (°C/W) .............................................................................................44
Thermal Resistance, θJC (°C/W) .............................................................................................44
Maximum Tambient, TA max (°C) ...............................................................................................44
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Table 16.
Table 17.
Table 18.
Table 19.
Table 20.
Table 21.
Table 22.
Table 23.
Table 24.
Table 25.
Table 26.
Table 27.
Table 28.
iv
Embedded IntelDX2™ Processor
• Instruction Pipelining — Overlapped instruction
fetching, decoding, address translation and
execution.
1.0 INTRODUCTION
The embedded IntelDX2™ processor provides high
performance to 32-bit, embedded applications.
Designed for applications that need a floating-point
unit, the processor is ideal for embedded designs
running DOS*, Microsoft Windows*, OS/2*, or UNIX*
applications written for the Intel architecture.
Projects can be completed quickly by utilizing the
wide range of software tools, utilities, assemblers
and compilers that are available for desktop
computer systems. Also, developers can find
advantages in using existing chipsets and peripheral
components in their embedded designs.
• On-Chip Floating-Point Unit — Intel486™
processors support the 32-, 64-, and 80-bit formats
specified in IEEE standard 754. The unit is binary
compatible with the 8087, Intel287™, Intel387™
coprocessors, and Intel OverDrive® processor.
• On-Chip Cache with Cache Consistency
Support — An 8-Kbyte, write-through, internal
cache is used for both data and instructions.
Cache hits provide zero wait-state access times
for data within the cache. Bus activity is tracked to
detect alterations in the memory represented by
the internal cache. The internal cache can be
invalidated or flushed so that an external cache
controller can maintain cache consistency.
The embedded IntelDX2 processor is binary
compatible with the Intel386™ and earlier Intel
processors. Compared with the Intel386 processor, it
provides faster execution of many commonly-used
instructions. It also provides the benefits of an
integrated, 8-Kbyte, write-through cache for code
and data. Its data bus can operate in burst mode
which provides up to 106-Mbyte-per-second
transfers for cache-line fills and instruction
prefetches.
• External Cache Control — Write-back and flush
controls for an external cache are provided so the
processor can maintain cache consistency.
• On-Chip Memory Management Unit — Address
management and memory space protection
mechanisms maintain the integrity of memory in a
multitasking and virtual memory environment. Both
memory segmentation and paging are supported.
Intel’s SL technology is incorporated in the
embedded IntelDX2 processor. Utilizing Intel’s
System Management Mode (SMM), it enables
designers to develop energy-efficient systems.
• Burst Cycles — Burst transfers allow a new
double-word to be read from memory on each bus
clock cycle. This capability is especially useful for
instruction prefetch and for filling the internal
cache.
Two component packages are available. A 168-pin
Pin Grid Array (PGA) is available for 5-Volt designs
and a 208-lead Shrink Quad Flat Pack (SQFP) is
available for 3.3-Volt designs.
• Write Buffers — The processor contains four
write buffers to enhance the performance of
consecutive writes to memory. The processor can
continue internal operations after a write to these
buffers, without waiting for the write to be
completed on the external bus.
The processor operates at twice the external-bus
frequency. The 5 V processor operates up to 66
MHz (33-MHz CLK). The 3.3 V processor operates
up to 50 MHz (25-MHz CLK).
• Bus Backoff — When another bus master needs
control of the bus during a processor initiated bus
cycle, the embedded IntelDX2 processor floats its
bus signals, then restarts the cycle when the bus
becomes available again.
1.1 Features
• Instruction Restart — Programs can continue
execution following an exception generated by an
unsuccessful attempt to access memory. This
feature is important for supporting demand-paged
virtual memory applications.
The embedded IntelDX2 processor offers these
features:
• 32-bit RISC-Technology Core — The embedded
IntelDX2 processor performs a complete set of
arithmetic and logical operations on 8-, 16-, and
32-bit data types using a full-width ALU and eight
general purpose registers.
• Dynamic Bus Sizing — External controllers can
dynamically alter the effective width of the data
bus. Bus widths of 8, 16, or 32 bits can be used.
• Single Cycle Execution — Many instructions
execute in a single clock cycle.
*
Other brands and names are the property of their
respective owners.
1
Embedded IntelDX2™ Processor
• Boundary Scan (JTAG) — Boundary Scan
provides in-circuit testing of components on
printed circuit boards. The Intel Boundary Scan
implementation conforms with the IEEE Standard
Test Access Port and Boundary Scan Architecture.
• Auto HALT Power Down — After the execution of
a HALT instruction, the embedded IntelDX2
processor issues a normal Halt bus cycle and the
clock input to the processor core is automatically
stopped, causing the processor to enter the Auto
HALT Power Down state (20–45 mA typical,
depending on input clock frequency).
Intel’s SL technology provides these features:
• Intel System Management Mode (SMM) — A
unique Intel architecture operating mode provides
a dedicated special purpose interrupt and address
space that can be used to implement intelligent
power management and other enhanced functions
in a manner that is completely transparent to the
operating system and applications software.
• Auto Idle Power Down — This function allows the
processor to reduce the core frequency to the bus
frequency when both the core and bus are idle.
Auto Idle Power Down is software transparent and
does not affect processor performance. Auto Idle
Power Down provides an average power savings
of 10% and is only applicable to clock multiplied
processors.
• I/O Restart — An I/O instruction interrupted by a
System Management Interrupt (SMI#) can
automatically be restarted following the execution
of the RSM instruction.
1.2 Family Members
• Stop Clock — The embedded IntelDX2 processor
has a stop clock control mechanism that provides
two low-power states: a Stop Grant state (20–45
mA typical, depending on input clock frequency)
and a Stop Clock state (~100-200 µA typical, with
input clock frequency of 0 MHz).
Table 1 shows the embedded IntelDX2 processors
and briefly describes their characteristics.
Table 1. The Embedded IntelDX2™ Processor Family
Maximum
Processor
Frequency
Maximum
External Bus
Frequency
Supply Voltage
Product
Package
V
CC
x80486DX2SC50
x80486DX2SA66
3.3 V
5.0 V
50 MHz
66 MHz
25 MHz
33 MHz
208-Lead SQFP
168-Pin PGA
NOTE: To address the fact that many of the package prefix variables have changed, all package prefix
variables in this document are now indicated with an "x".
2

Embedded IntelDX2™ Processor
2.0 HOW TO USE THIS DOCUMENT
3.0 PIN DESCRIPTIONS
For a complete set of documentation related to the
embedded IntelDX2 processor, use this document in
conjunction with the following reference documents:
3.1 Pin Assignments
The following figures and tables show the pin assign-
ments of each package type for the embedded
IntelDX2 processor. Tables are provided showing
the pin differences between the embedded IntelDX2
processor and other embedded Intel486 processor
products.
• Embedded Intel486™ Processor Family
Developer’s Manual — Order No. 273021
• Embedded Intel486™ Processor Hardware
Reference Manual — Order No. 273025
• Intel486 Microprocessor Family Programmer’s
Reference Manual — Order No. 240486
208-Lead SQFP - Quad Flat Pack
• Intel Application Note AP-485 — Intel Processor
Identification with the CPUID Instruction —
Order No. 241618
• Figure 2, Package Diagram for 208-Lead SQFP
Embedded IntelDX2™ Processor (pg. 4)
• Table 2, Pinout Differences for 208-Lead SQFP
Package (pg. 5)
The information in the reference documents for the
IntelDX2 processor applies to the embedded
IntelDX2 processor. Some of the IntelDX2 processor
information is duplicated in this document to
minimize the dependence on the reference
documents.
• Table 3, Pin Assignment for 208-Lead SQFP
Package (pg. 6)
• Table 4, Pin Cross Reference for 208-Lead SQFP
Package (pg. 8)
168-Pin PGA - Pin Grid Array
• Figure 3, Package Diagram for 168-Pin PGA
Embedded IntelDX2™ Processor (pg. 10)
• Table 5, Pinout Differences for 168-Pin PGA
Package (pg. 11)
• Table 6, Pin Assignment for 168-Pin PGA
Package (pg. 12)
• Table 7, Pin Cross Reference for 168-Pin PGA
Package (pg. 14)
3
Embedded IntelDX2™ Processor
V
V
V
1
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
SS
CC
SS
V
2
CC
CC
V
3
A25
A26
A27
A28
PCHK#
BRDY#
BOFF#
BS16#
BS8#
4
5
6
V
CC
7
8
A29
A30
A31
V
9
CC
SS
V
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
V
SS
INC
RDY#
KEN#
DP0
D0
D1
D2
D3
D4
V
CC
SS
V
HOLD
AHOLD
TCK
V
SS
CC
V
V
CC
208-Lead SQFP
Embedded IntelDX2™ Processor
V
V
CC
CC
V
CC
V
SS
V
CC
V
CC
SS
V
CC
V
V
SS
CLK
CC
V
V
CC
V
CC
HLDA
W/R#
D5
V
CC
D6
SS
V
V
CC
BREQ
BE0#
BE1#
BE2#
BE3#
NC
D7
Top View
DP1
D8
D9
V
V
CC
SS
V
CC
SS
V
V
SS
M/IO#
V
CC
D10
D11
D12
D13
D/C#
PWT
PCD
V
V
CC
SS
V
CC
SS
V
V
D14
CC
V
D15
CC
V
SS
EADS#
A20M#
RESET
FLUSH#
INTR
CC
V
DP2
D16
V
CC
SS
V
NMI
V
SS
V
SS
A3227-01
Figure 2. Package Diagram for 208-Lead SQFP Embedded IntelDX2™ Processor
4
Embedded IntelDX2™ Processor
Table 2. Pinout Differences for 208-Lead SQFP Package
Embedded
Intel486™ SX
Processor
1
Embedded
IntelDX2™
Processor
Embedded Write-Back
Enhanced IntelDX4™
Processor
Pin #
3
VCC
VCC5
V
CC
2
11
INC
INC
CLKMUL
HITM#
INC
63
64
INC
INC
INC
INC
INC
INC
INC
WB/WT#
FERR#
CACHE#
INV
66
FERR#
INC
70
71
INC
72
IGNNE#
IGNNE#
NOTES:
1. This pin location is for the VCC5 pin on the embedded IntelDX4 processor. For compatibility with 3.3V processors that
have 5V-tolerant input buffers (i.e., embedded IntelDX4 processors), this pin should be connected to a VCC trace, not to
the VCC plane.
2. INC. Internal No Connect. These pins are not connected to any internal pad in the embedded IntelDX2 processor. How-
ever, new signals are defined for the location of the INC pins in the embedded IntelDX4 processor. One system design
can accommodate any one of these processors provided the purpose of each INC pin is understood before it is used.
5
Embedded IntelDX2™ Processor
Table 3. Pin Assignment for 208-Lead SQFP Package (Sheet 1 of 2)
Pin#
1
Description
Pin#
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
Description
Pin#
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
Description
Pin#
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
Description
VSS
VSS
VSS
VSS
A24
A23
A22
A21
2
V
V
V
CC
CC
CC
1
V
3
VSS
VSS
D16
DP2
VSS
CC
4
PCHK#
BRDY#
BOFF#
BS16#
BS8#
V
CC
5
VSS
6
SRESET
SMIACT#
V
CC
CC
7
V
V
CC
8
D15
D14
A20
A19
A18
TMS
TDI
V
CC
9
V
VSS
CC
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
VSS
V
V
CC
CC
INC2
INC2
INC2
VSS
D13
D12
D11
D10
VSS
RDY#
KEN#
SMI#
FERR#
NC3
V
CC
V
VSS
A17
CC
VSS
HOLD
AHOLD
TCK
TDO
V
CC
V
A16
A15
VSS
V
CC
CC
INC2
INC2
VSS
D9
V
CC
V
IGNNE#
STPCLK#
D31
D8
V
CC
CC
VSS
DP1
A14
A13
V
D7
CC
V
D30
NC3
V
CC
CC
CLK
VSS
V
A12
VSS
A11
CC
V
D6
D5
V
CC
CC
HLDA
W/R#
VSS
D29
D28
V
V
CC
CC
V
VSS
VSS
CC
V
VSS
V
V
CC
CC
CC
CC
BREQ
BE0#
BE1#
BE2#
BE3#
V
A10
A9
V
CC
D27
D26
D25
VSS
V
V
CC
CC
V
VSS
A8
CC
VSS
V
CC
V
D24
V
V
CC
CC
CC
6
Embedded IntelDX2™ Processor
Table 3. Pin Assignment for 208-Lead SQFP Package (Sheet 2 of 2)
Pin#
36
Description
VSS
Pin#
88
Description
Pin#
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
Description
Pin#
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
Description
VSS
D4
D3
A7
37
M/IO#
89
A6
V
CC
38
V
90
DP3
D23
D22
D21
VSS
D2
RESERVED#
CC
39
D/C#
PWT
PCD
91
D1
A5
A4
A3
40
92
D0
41
93
DP0
VSS
A31
A30
A29
42
V
94
V
CC
CC
43
VSS
95
VSS
V
CC
44
V
96
NC3
V
CC
CC
45
V
97
VSS
VSS
A2
CC
46
EADS#
A20M#
RESET
FLUSH#
INTR
98
V
V
CC
CC
47
99
D20
D19
D18
A28
A27
A26
A25
ADS#
BLAST#
48
100
101
102
103
104
49
V
CC
50
V
PLOCK#
LOCK#
VSS
CC
51
NMI
D17
VSS
V
CC
52
VSS
VSS
NOTES:
1. This pin location is for the VCC5 pin on the embedded IntelDX4 processor. For compatibility with 3.3V processors that have
5V-tolerant input buffers (i.e., embedded IntelDX4 processors), this pin should be connected to a VCC trace, not to the VCC
plane.
2. INC. Internal No Connect. These pins are not connected to any internal pad in the embedded IntelDX2 processors. How-
ever, signals are defined for the location of the INC pins in the IntelDX4 processor. One system design can accommodate
any one of these processors provided the purpose of each INC pin is understood before it is used.
3. NC. Do Not Connect. These pins should always remain unconnected. Connection of NC pins to VCC, or VSS or to any other
signal can result in component malfunction or incompatibility with future steppings of the Intel486 processors.
7
Embedded IntelDX2™ Processor
Table 4. Pin Cross Reference for 208-Lead SQFP Package (Sheet 1 of 2)
Address
A2
Pin #
202
197
196
195
193
192
190
187
186
182
180
178
177
174
173
171
166
165
164
161
160
159
158
154
153
152
151
149
148
147
Data
D0
Pin #
144
143
142
141
140
130
129
126
124
123
119
118
117
116
113
112
108
103
101
100
99
Control
A20M#
ADS#
Pin #
47
203
17
31
32
33
34
204
6
NC
67
INC
11
63
64
70
71
VCC
2
VSS
1
A3
D1
96
3
10
A4
D2
AHOLD
BE0#
127
9
15
A5
D3
14
19
20
22
23
25
29
35
38
42
44
45
54
56
60
62
69
77
80
82
86
89
95
98
102
106
111
114
121
128
131
133
21
A6
D4
BE1#
28
A7
D5
BE2#
36
A8
D6
BE3#
43
A9
D7
BLAST#
BOFF#
BRDY#
BREQ
BS16#
BS8#
52
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
D8
53
D9
5
55
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
30
7
57
61
8
76
CLK
24
39
145
125
109
90
46
66
49
26
16
72
50
13
207
37
51
41
4
81
D/C#
88
DP0
94
DP1
97
DP2
104
105
107
110
115
120
122
132
135
138
146
156
157
170
175
181
184
189
DP3
EADS#
FERR#
FLUSH#
HLDA
93
92
91
HOLD
IGNNE#
INTR
87
85
84
KEN#
83
LOCK#
M/IO#
NMI
79
78
75
PCD
74
PCHK#
PLOCK#
PWT
206
40
12
194
48
65
59
RDY#
RESERVED#
RESET
SMI#
134
136
199
201
SMIACT#
8
Embedded IntelDX2™ Processor
Table 4. Pin Cross Reference for 208-Lead SQFP Package (Sheet 2 of 2)
Address
Pin #
Data
Pin #
Control
SRESET
STPCLK#
TCK
Pin #
58
NC
INC
VCC
137
139
150
155
162
163
169
172
176
179
183
185
188
191
198
200
205
VSS
208
73
18
TDI
168
68
TDO
TMS
167
27
W/R#
9
Embedded IntelDX2™ Processor
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
V
V
V
V
V
V
D9
DP1
V
D20
D19
D11
A28
A27
D2
D0
A31
SS
SS
SS
CC
SS
SS
D6
D7
SS
1
2
3
4
5
6
7
1
2
3
4
V
V
D8
V
V
D22
D21
D18
CLK
D13
D17
D3
V
A25
VCC
VSS
A26
D1
A29
A30
D5
CC
CC
CC
SS
CC
V
D15
D12
D4
DP0
A17
A19
TCK
D23
DP3
D24
D10
DP2
D16
D14
A23
NC
SS
V
V
SS
CC
V
V
A18
A14
A21
A24
SS
CC
5
6
7
V
V
D25
D27
CC
SS
V
V
A22
A20
A15
A12
D26
D28
D30
SS
CC
168-Pin PGA
Embedded IntelDX2™ Processor
D29
VSS
INC
D31
VCC
V
V
CC
SS
8
9
8
V
V
A16
A13
CC
SS
9
SMI# SRESET
V
V
CC
SS
10
11
12
13
14
15
10
Pin Side View
VCC
VSS
INC
INC
TDI
RESERVED#
V
V
A9
A5
A7
A2
CC
SS
11
12
13
SMIACT#
NC
V
INC
INC
A11
A8
SS
A10
VSS
A6
VCC
A3
TMS FERR#
14
15
IGNNE# NMI FLUSH# A20M# HOLD KEN# STPCLK# BRDY# BE2#
D/C# LOCK# HLDA BREQ
BE0#
PWT
V
RDY#
BE3#
V
V
V
V
V
V
V
CC
A4
INTR
TDO RESET BS8#
M/IO#
W/R#
PLOCK# BLAST#
BE1#
PCD
CC
CC
CC
CC
CC
CC
16
17
16
17
V
V
V
V
V
V
SS
BOFF#
D
AHOLD EADS# BS16#
INC
R
ADS#
PCHK#
Q
SS
SS
SS
H
SS
SS
SS
A
B
C
E
F
G
J
K
L
M
N
P
S
A3226-01
Figure 3. Package Diagram for 168-Pin PGA Embedded IntelDX2™ Processor
10
Embedded IntelDX2™ Processor
Table 5. Pinout Differences for 168-Pin PGA Package
Embedded Write-Back Enhanced
IntelDX4™ Processor
Pin #
Embedded IntelDX2™ Processor
A10
A12
B12
B13
J1
INC
INC
INC
INC
VCC
INC
NC
INV
HITM#
CACHE#
WB/WT#
VCC5
R17
S4
CLKMUL
VOLDET
11
Embedded IntelDX2™ Processor
Table 6. Pin Assignment for 168-Pin PGA Package (Sheet 1 of 2)
Pin #
A1
Description
D20
Pin #
D17
E1
Description
BOFF#
VSS
Pin #
P2
Description
A29
A2
D22
P3
A30
A3
TCK
E2
V
P15
P16
P17
Q1
HLDA
CC
A4
D23
E3
D10
V
CC
VSS
A5
DP3
E15
E16
E17
F1
HOLD
A6
D24
V
A31
VSS
CC
VSS
VSS
A7
Q2
A8
D29
VSS
DP1
D8
Q3
A17
A19
A9
F2
Q4
A10
A11
A12
A13
A14
A15
A16
A17
B1
INC1
VSS
F3
D15
Q5
A21
F15
F16
F17
G1
KEN#
RDY#
BE3#
VSS
Q6
A24
INC1
INC1
TDI
Q7
A22
Q8
A20
Q9
A16
IGNNE#
INTR
AHOLD
D19
G2
V
Q10
Q11
Q12
Q13
Q14
Q15
Q16
Q17
R1
A13
CC
G3
D12
A9
G15
G16
G17
H1
STPCLK#
A5
V
A7
CC
VSS
VSS
B2
D21
A2
VSS
B3
BREQ
PLOCK#
PCHK#
A28
VSS
B4
H2
D3
VSS
B5
H3
DP2
BRDY#
B6
D25
H15
H16
H17
J1
B7
V
V
R2
A25
CC
CC
VSS
B8
D31
R3
V
CC
VSS
B9
V
V
R4
CC
CC
B10
B11
B12
B13
B14
B15
B16
SMI#
J2
D5
D16
R5
A18
V
J3
R6
V
CC
CC
INC1
INC1
TMS
NMI
J15
J16
J17
K1
BE2#
BE1#
PCD
VSS
R7
A15
R8
V
CC
R9
V
V
V
CC
CC
CC
R10
R11
TDO
K2
V
CC
12
Embedded IntelDX2™ Processor
Table 6. Pin Assignment for 168-Pin PGA Package (Sheet 2 of 2)
Pin #
B17
C1
Description
EADS#
D11
Pin #
K3
Description
D14
Pin #
R12
R13
R14
R15
R16
R17
S1
Description
A11
A8
K15
K16
K17
L1
BE0#
C2
D18
V
V
CC
CC
VSS
VSS
D6
C3
CLK
A3
BLAST#
INC1
A27
C4
V
V
CC
CC
C5
L2
C6
D27
D26
L3
D7
C7
L15
L16
L17
M1
PWT
S2
A26
C8
D28
V
S3
A23
NC2
CC
VSS
VSS
C9
D30
S4
C10
C11
C12
C13
C14
C15
C16
C17
D1
SRESET
RESERVED#
SMIACT#
NC2
S5
A14
VSS
M2
V
S6
CC
M3
D4
S7
A12
VSS
VSS
VSS
VSS
VSS
M15
M16
M17
N1
D/C#
S8
FERR#
FLUSH#
RESET
BS16#
D9
V
S9
CC
VSS
D2
S10
S11
S12
S13
S14
S15
S16
S17
N2
D1
N3
DP0
LOCK#
M/IO#
W/R#
D0
A10
VSS
D2
D13
N15
N16
N17
P1
D3
D17
A6
A4
D15
D16
NOTES:
A20M#
BS8#
ADS#
1. INC. Internal No Connect. These pins are not connected to any internal pad in the embedded
IntelDX2 processors. However, signals are defined for the location of the INC pins in the IntelDX4
processor. One system design can accommodate any one of these processors provided the pur-
pose of each INC pin is understood before it is used.
2. NC. Do Not Connect. These pins should always remain unconnected. Connection of NC pins to
VCC, or VSS or to any other signal can result in component malfunction or incompatibility with
future steppings of the Intel486 processors.
13
Embedded IntelDX2™ Processor
Table 7. Pin Cross Reference for 168-Pin PGA Package (Sheet 1 of 2)
Address Pin #
Data
D0
Pin #
P1
N2
N1
H2
M3
J2
Control
A20M#
ADS#
Pin #
D15
S17
A17
K15
J16
J15
F17
R16
D17
H15
Q15
C17
D16
C3
NC
C13
S4
INC
A10
A12
A13
B12
B13
R17
Vcc
B7
Vss
A7
A2
A3
Q14
R15
S16
Q12
S15
Q13
R13
Q11
S13
R12
S7
D1
B9
A9
A4
D2
AHOLD
BE0#
B11
C4
A11
B3
A5
D3
A6
D4
BE1#
C5
B4
A7
D5
BE2#
E2
B5
A8
D6
L2
BE3#
E16
G2
E1
A9
D7
L3
BLAST#
BOFF#
BRDY#
BREQ
BS16#
BS8#
E17
G1
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
D8
F2
D1
E3
C1
G3
D2
K3
F3
J3
G16
H16
J1
D9
G17
H1
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
Q10
S5
K2
H17
K1
K16
L16
M2
R7
CLK
K17
L1
Q9
D/C#
M15
N3
Q3
DP0
M16
P16
R3
L17
M1
R5
DP1
F1
Q4
D3
C2
B1
A1
B2
A2
A4
A6
B6
C7
C6
C8
A8
C9
B8
DP2
H3
M17
P17
Q2
Q8
DP3
A5
R6
Q5
EADS#
FERR#
FLUSH#
HLDA
B17
C14
C15
P15
E15
A15
A16
F15
N15
N16
B15
J17
Q17
Q16
L15
F16
C11
C16
B10
C12
R8
Q7
R9
R4
S3
R10
R11
R14
S6
Q6
S8
R2
HOLD
IGNNE#
INTR
S9
S2
S10
S11
S12
S14
S1
R1
KEN#
P2
LOCK#
M/IO#
NMI
P3
Q1
PCD
PCHK#
PLOCK#
PWT
RDY#
RESERVED#
RESET
SMI#
SMIACT#
14
Embedded IntelDX2™ Processor
Table 7. Pin Cross Reference for 168-Pin PGA Package (Sheet 2 of 2)
Address Pin #
Data
Pin #
Control
SRESET
STPCLK#
TCK
Pin #
C10
G15
A3
NC
INC
Vcc
Vss
TDI
A14
B16
B14
N17
TDO
TMS
W/R#
15
Embedded IntelDX2™ Processor
3.2 Pin Quick Reference
The following is a brief pin description. For detailed signal descriptions refer to Appendix A, “Signal Descrip-
tions,” in the Embedded Intel486™ Processor Family Developer’s Manual, order No. 273021.
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 1 of 7)
Symbol
CLK
Type
Name and Function
I
Clock provides the fundamental timing and internal operating frequency for the
embedded IntelDX2 processor. All external timing parameters are specified with
respect to the rising edge of CLK.
ADDRESS BUS
A31-A4
I/O
O
Address Lines A31–A2, together with the byte enable signals, BE3#–BE0#,
define the physical area of memory or input/output space accessed. Address
lines A31–A4 are used to drive addresses into the embedded IntelDX2 processor
to perform cache line invalidation. Input signals must meet setup and hold times
t22 and t23. A31–A2 are not driven during bus or address hold.
A3–A2
BE3#
BE2#
BE1#
BE0#
O
O
O
O
Byte Enable signals indicate active bytes during read and write cycles. During
the first cycle of a cache fill, the external system should assume that all byte
enables are active. BE3#–BE0# are active LOW and are not driven during bus
hold.
BE3# applies to D31–D24
BE2# applies to D23–D16
BE1# applies to D15–D8
BE0# applies to D7–D0
DATA BUS
D31–D0
I/O
I/O
Data Lines. D7–D0 define the least significant byte of the data bus; D31–D24
define the most significant byte of the data bus. These signals must meet setup
and hold times t22 and t23 for proper operation on reads. These pins are driven
during the second and subsequent clocks of write cycles.
DATA PARITY
DP3–DP0
There is one Data Parity pin for each byte of the data bus. Data parity is
generated on all write data cycles with the same timing as the data driven by the
embedded IntelDX2 processor. Even parity information must be driven back into
the processor on the data parity pins with the same timing as read information to
ensure that the correct parity check status is indicated by the embedded IntelDX2
processor. The signals read on these pins do not affect program execution.
Input signals must meet setup and hold times t22 and t23. DP3–DP0 must be
connected to VCC through a pull-up resistor in systems that do not use parity.
DP3–DP0 are active HIGH and are driven during the second and subsequent
clocks of write cycles.
PCHK#
O
Parity Status is driven on the PCHK# pin the clock after ready for read
operations. The parity status is for data sampled at the end of the previous clock.
A parity error is indicated by PCHK# being LOW. Parity status is only checked for
enabled bytes as indicated by the byte enable and bus size signals. PCHK# is
valid only in the clock immediately after read data is returned to the processor. At
all other times PCHK# is inactive (HIGH). PCHK# is never floated.
16
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 2 of 7)
Symbol
Type
Name and Function
BUS CYCLE DEFINITION
M/IO#
D/C#
O
O
O
Memory/Input-Output, Data/Control and Write/Read lines are the primary bus
definition signals. These signals are driven valid as the ADS# signal is asserted.
M/IO#
D/C#
W/R#
Bus Cycle Initiated
Interrupt Acknowledge
HALT/Special Cycle (see details below)
I/O Read
W/R#
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
I/O Write
Code Read
Reserved
Memory Read
Memory Write
HALT/Special Cycle
Cycle Name
Shutdown
BE3# - BE0#
A4-A2
000
1110
1011
1011
HALT
000
Stop Grant bus cycle
100
LOCK#
O
O
Bus Lock indicates that the current bus cycle is locked. The embedded IntelDX2
processor does not allow a bus hold when LOCK# is asserted (address holds are
allowed). LOCK# goes active in the first clock of the first locked bus cycle and
goes inactive after the last clock of the last locked bus cycle. The last locked cycle
ends when Ready is returned. LOCK# is active LOW and not driven during bus
hold. Locked read cycles are not transformed into cache fill cycles when KEN# is
returned active.
PLOCK#
Pseudo-Lock indicates that the current bus transaction requires more than one
bus cycle to complete. For the embedded IntelDX2 processor, examples of such
operations are segment table descriptor reads (64 bits) and cache line fills (128
bits). For Intel486 processors with on-chip Floating-Point Unit, floating-point long
reads and writes (64 bits) also require more than one bus cycle to complete.
The embedded IntelDX2 processor drives PLOCK# active until the addresses for
the last bus cycle of the transaction are driven, regardless of whether RDY# or
BRDY# have been returned.
Normally PLOCK# and BLAST# are inverse of each other. However, during the
first bus cycle of a 64-bit floating-point write (for Intel486 processors with on-chip
Floating-Point Unit) both PLOCK# and BLAST# are asserted.
PLOCK# is a function of the BS8#, BS16# and KEN# inputs. PLOCK# should be
sampled only in the clock in which Ready is returned. PLOCK# is active LOW and
is not driven during bus hold.
BUS CONTROL
ADS#
O
Address Status output indicates that a valid bus cycle definition and address are
available on the cycle definition lines and address bus. ADS# is driven active in
the same clock in which the addresses are driven. ADS# is active LOW and not
driven during bus hold.
17
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 3 of 7)
Symbol
Type
Name and Function
RDY#
I
Non-burst Ready input indicates that the current bus cycle is complete. RDY#
indicates that the external system has presented valid data on the data pins in
response to a read or that the external system has accepted data from the
embedded IntelDX2 processor in response to a write. RDY# is ignored when the
bus is idle and at the end of the first clock of the bus cycle.
RDY# is active during address hold. Data can be returned to the embedded
IntelDX2 processor while AHOLD is active.
RDY# is active LOW and is not provided with an internal pull-up resistor. RDY#
must satisfy setup and hold times t16 and t17 for proper chip operation.
BURST CONTROL
BRDY#
I
Burst Ready input performs the same function during a burst cycle that RDY#
performs during a non-burst cycle. BRDY# indicates that the external system has
presented valid data in response to a read or that the external system has
accepted data in response to a write. BRDY# is ignored when the bus is idle and
at the end of the first clock in a bus cycle.
BRDY# is sampled in the second and subsequent clocks of a burst cycle. Data
presented on the data bus is strobed into the embedded IntelDX2 processor
when BRDY# is sampled active. If RDY# is returned simultaneously with BRDY#,
BRDY# is ignored and the burst cycle is prematurely aborted.
BRDY# is active LOW and is provided with a small pull-up resistor. BRDY# must
satisfy the setup and hold times t16 and t17
.
BLAST#
O
I
Burst Last signal indicates that the next time BRDY# is returned, the burst bus
cycle is complete. BLAST# is active for both burst and non-burst bus cycles.
BLAST# is active LOW and is not driven during bus hold.
INTERRUPTS
RESET
Reset input forces the embedded IntelDX2 processor to begin execution at a
known state. The processor cannot begin executing instructions until at least
1 ms after VCC, and CLK have reached their proper DC and AC specifications.
The RESET pin must remain active during this time to ensure proper processor
operation. However, for warm resets, RESET should remain active for at least 15
CLK periods. RESET is active HIGH. RESET is asynchronous but must meet
setup and hold times t20 and t21 for recognition in any specific clock.
INTR
I
Maskable Interrupt indicates that an external interrupt has been generated.
When the internal interrupt flag is set in EFLAGS, active interrupt processing is
initiated. The embedded IntelDX2 processor generates two locked interrupt
acknowledge bus cycles in response to the INTR pin going active. INTR must
remain active until the interrupt acknowledges have been performed to ensure
processor recognition of the interrupt.
INTR is active HIGH and is not provided with an internal pull-down resistor. INTR
is asynchronous, but must meet setup and hold times t20 and t21 for recognition in
any specific clock.
NMI
I
Non-Maskable Interrupt request signal indicates that an external non-maskable
interrupt has been generated. NMI is rising-edge sensitive and must be held LOW
for at least four CLK periods before this rising edge. NMI is not provided with an
internal pull-down resistor. NMI is asynchronous, but must meet setup and hold
times t20 and t21 for recognition in any specific clock.
18
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 4 of 7)
Symbol
Type
Name and Function
SRESET
I
Soft Reset pin duplicates all functionality of the RESET pin except that the
SMBASE register retains its previous value. For soft resets, SRESET must
remain active for at least 15 CLK periods. SRESET is active HIGH. SRESET is
asynchronous but must meet setup and hold times t20 and t21 for recognition in
any specific clock.
SMI#
I
System Management Interrupt input invokes System Management Mode
(SMM). SMI# is a falling-edge triggered signal which forces the embedded
IntelDX2 processor into SMM at the completion of the current instruction. SMI# is
recognized on an instruction boundary and at each iteration for repeat string
instructions. SMI# does not break LOCKed bus cycles and cannot interrupt a
currently executing SMM. The embedded IntelDX2 processor latches the falling
edge of one pending SMI# signal while it is executing an existing SMI#. The
nested SMI# is not recognized until after the execution of a Resume (RSM)
instruction.
SMIACT#
STPCLK#
O
I
System Management Interrupt Active, an active LOW output, indicates that the
embedded IntelDX2 processor is operating in SMM. It is asserted when the
processor begins to execute the SMI# state save sequence and remains active
LOW until the processor executes the last state restore cycle out of SMRAM.
Stop Clock Request input signal indicates a request was made to turn off or
change the CLK input frequency. When the embedded IntelDX2 processor
recognizes a STPCLK#, it stops execution on the next instruction boundary
(unless superseded by a higher priority interrupt), empties all internal pipelines
and write buffers, and generates a Stop Grant bus cycle. STPCLK# is active
LOW. Though STPCLK# has an internal pull-up resistor, an external 10-KΩ pull-
up resistor is needed if the STPCLK# pin is unused. STPCLK# is an
asynchronous signal, but must remain active until the embedded IntelDX2
processor issues the Stop Grant bus cycle. STPCLK# may be de-asserted at
any time after the processor has issued the Stop Grant bus cycle.
BUS ARBITRATION
BREQ
O
Bus Request signal indicates that the embedded IntelDX2 processor has
internally generated a bus request. BREQ is generated whether or not the
processor is driving the bus. BREQ is active HIGH and is never floated.
HOLD
I
Bus Hold Request allows another bus master complete control of the embedded
IntelDX2 processor bus. In response to HOLD going active, the processor floats
most of its output and input/output pins. HLDA is asserted after completing the
current bus cycle, burst cycle or sequence of locked cycles. The embedded
IntelDX2 processor remains in this state until HOLD is de-asserted. HOLD is
active HIGH and is not provided with an internal pull-down resistor. HOLD must
satisfy setup and hold times t18 and t19 for proper operation.
HLDA
O
Hold Acknowledge goes active in response to a hold request presented on the
HOLD pin. HLDA indicates that the embedded IntelDX2 processor has given the
bus to another local bus master. HLDA is driven active in the same clock that the
processor floats its bus. HLDA is driven inactive when leaving bus hold. HLDA is
active HIGH and remains driven during bus hold.
19
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 5 of 7)
Symbol
Type
Name and Function
BOFF#
I
Backoff input forces the embedded IntelDX2 processor to float its bus in the next
clock. The processor floats all pins normally floated during bus hold but HLDA is
not asserted in response to BOFF#. BOFF# has higher priority than RDY# or
BRDY#; if both are returned in the same clock, BOFF# takes effect. The
embedded IntelDX2 processor remains in bus hold until BOFF# is negated. If a
bus cycle is in progress when BOFF# is asserted the cycle is restarted. BOFF# is
active LOW and must meet setup and hold times t18 and t19 for proper operation.
CACHE INVALIDATION
AHOLD
I
Address Hold request allows another bus master access to the embedded
IntelDX2 processor’s address bus for a cache invalidation cycle. The processor
stops driving its address bus in the clock following AHOLD going active. Only the
address bus is floated during address hold, the remainder of the bus remains
active. AHOLD is active HIGH and is provided with a small internal pull-down
resistor. For proper operation, AHOLD must meet setup and hold times t18 and
t19.
EADS#
I
I
External Address - This signal indicates that a valid external address has been
driven onto the embedded IntelDX2 processor address pins. This address is used
to perform an internal cache invalidation cycle. EADS# is active LOW and is
provided with an internal pull-up resistor. EADS# must satisfy setup and hold
times t12 and t13 for proper operation.
CACHE CONTROL
KEN#
Cache Enable pin is used to determine whether the current cycle is cacheable.
When the embedded IntelDX2 processor generates a cycle that can be cached
and KEN# is active one clock before RDY# or BRDY# during the first transfer of
the cycle, the cycle becomes a cache line fill cycle. Returning KEN# active one
clock before RDY# during the last read in the cache line fill causes the line to be
placed in the on-chip cache. KEN# is active LOW and is provided with a small
internal pull-up resistor. KEN# must satisfy setup and hold times t14 and t15 for
proper operation.
FLUSH#
I
Cache Flush input forces the embedded IntelDX2 processor to flush its entire
internal cache. FLUSH# is active LOW and need only be asserted for one clock.
FLUSH# is asynchronous but setup and hold times t20 and t21 must be met for
recognition in any specific clock.
PAGE CACHEABILITY
PWT
PCD
O
O
Page Write-Through and Page Cache Disable pins reflect the state of the page
attribute bits, PWT and PCD, in the page table entry, page directory entry or
control register 3 (CR3) when paging is enabled. When paging is disabled, the
embedded IntelDX2 processor ignores the PCD and PWT bits and assumes they
are zero for the purpose of caching and driving PCD and PWT pins. PWT and
PCD have the same timing as the cycle definition pins (M/IO#, D/C#, and W/R#).
PWT and PCD are active HIGH and are not driven during bus hold. PCD is
masked by the cache disable bit (CD) in Control Register 0.
20
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 6 of 7)
Symbol
Type
Name and Function
BUS SIZE CONTROL
BS16#
BS8#
I
I
Bus Size 16 and Bus Size 8 pins (bus sizing pins) cause the embedded IntelDX2
processor to run multiple bus cycles to complete a request from devices that
cannot provide or accept 32 bits of data in a single cycle. The bus sizing pins are
sampled every clock. The processor uses the state of these pins in the clock
before Ready to determine bus size. These signals are active LOW and are
provided with internal pull-up resistors. These inputs must satisfy setup and hold
times t14 and t15 for proper operation.
ADDRESS MASK
A20M#
I
Address Bit 20 Mask pin, when asserted, causes the embedded IntelDX2
processor to mask physical address bit 20 (A20) before performing a lookup to
the internal cache or driving a memory cycle on the bus. A20M# emulates the
address wraparound at 1 Mbyte, which occurs on the 8086 processor. A20M# is
active LOW and should be asserted only when the embedded IntelDX2 processor
is in real mode. This pin is asynchronous but should meet setup and hold times
t20 and t21 for recognition in any specific clock. For proper operation, A20M#
should be sampled HIGH at the falling edge of RESET.
TEST ACCESS PORT
TCK
I
Test Clock, an input to the embedded IntelDX2 processor, provides the clocking
function required by the JTAG Boundary scan feature. TCK is used to clock state
information (via TMS) and data (via TDI) into the component on the rising edge of
TCK. Data is clocked out of the component (via TDO) on the falling edge of TCK.
TCK is provided with an internal pull-up resistor.
TDI
I
Test Data Input is the serial input used to shift JTAG instructions and data into
the processor. TDI is sampled on the rising edge of TCK, during the SHIFT-IR
and SHIFT-DR Test Access Port (TAP) controller states. During all other TAP
controller states, TDI is a “don’t care.” TDI is provided with an internal pull-up
resistor.
TDO
TMS
O
I
Test Data Output is the serial output used to shift JTAG instructions and data out
of the component. TDO is driven on the falling edge of TCK during the SHIFT-IR
and SHIFT-DR TAP controller states. At all other times TDO is driven to the high
impedance state.
Test Mode Select is decoded by the JTAG TAP to select test logic operation.
TMS is sampled on the rising edge of TCK. To guarantee deterministic behavior
of the TAP controller, TMS is provided with an internal pull-up resistor.
21
Embedded IntelDX2™ Processor
Table 8. Embedded IntelDX2™ Processor Pin Descriptions (Sheet 7 of 7)
Symbol
Type
Name and Function
NUMERIC ERROR REPORTING
FERR#
O
The Floating Point Error pin is driven active when a floating point error occurs.
FERR# is similar to the ERROR# pin on the Intel387™ Math CoProcessor.
FERR# is included for compatibility with systems using DOS type floating point
error reporting. FERR# will not go active if FP errors are masked in FPU register.
FERR# is active LOW, and is not floated during bus hold.
IGNNE#
I
When the Ignore Numeric Error pin is asserted the processor will ignore a
numeric error and continue executing non-control floating point instructions, but
FERR# will still be activated by the processor. When IGNNE# is de-asserted the
processor will freeze on a non-control floating point instruction, if a previous
floating point instruction caused an error. IGNNE# has no effect when the NE bit
in control register 0 is set. IGNNE# is active LOW and is provided with a small
internal pull-up resistor. IGNNE# is asynchronous but setup and hold times t20
and t21 must be met to ensure recognition on any specific clock.
RESERVED PINS
RESERVED#
I
Reserved is reserved for future use. This pin MUST be connected to an external
pull-up resistor circuit. The recommended resistor value is 10 kOhms. The pull-up
resistor must be connected only to the RESERVED# pin. Do not share this
resistor with other pins requiring pull-ups.
22
Embedded IntelDX2™ Processor
Table 9. Output Pins
Output Signal
Name
Active Level
Floated During Floated During
During Stop Grant and
Stop Clock States
Address Hold
Bus Hold
BREQ
HLDA
HIGH
HIGH
LOW
Previous State
As per HOLD
BE3#-BE0#
PWT, PCD
W/R#, M/IO#, D/C#
LOCK#
•
•
•
•
•
•
•
Previous State
Previous State
Previous State
HIGH (inactive)
HIGH (inactive)
HIGH (inactive)
Previous State
Previous State
Previous State
Previous State
Previous State
HIGH
HIGH/LOW
LOW
PLOCK#
ADS#
LOW
LOW
BLAST#
PCHK#
LOW
LOW
FERR#
LOW
A3-A2
HIGH
LOW
•
•
SMIACT#
NOTES: The term “Previous State” means that the processor maintains the logic level applied to the signal pin just before
the processor entered the Stop Grant state. This conserves power by preventing the signal pin from floating.
Table 10. Input/Output Pins
Output Signal
Floated During
Address Hold
Floated During
Bus Hold
During Stop Grant and
Stop Clock States
Name
Active Level
D31-D0
DP3–DP0
A31-A4
HIGH
HIGH
HIGH
•
•
•
Floated
Floated
•
Previous State
NOTES: The term “Previous State” means that the processor maintains the logic level applied to the signal pin just before the
processor entered the Stop Grant state. This conserves power by preventing the signal pin from floating.
Table 11. Test Pins
Name
TCK
TDI
Input or Output
Input
Sampled/ Driven On
N/A
Input
Rising Edge of TCK
Failing Edge of TCK
Rising Edge of TCK
TDO
TMS
Output
Input
23
Embedded IntelDX2™ Processor
Table 12. Input Pins
Synchronous/
Asynchronous
Internal Pull-Up/
Pull-Down
Name
Active Level
CLK
RESET
SRESET
HOLD
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
HIGH
HIGH
LOW
Asynchronous
Asynchronous
Synchronous
Synchronous
Synchronous
Synchronous
Asynchronous
Asynchronous
Synchronous
Synchronous
Synchronous
Synchronous
Asynchronous
Asynchronous
Asynchronous
Pull-Down
AHOLD
EADS#
BOFF#
FLUSH#
A20M#
Pull-Down
Pull-Up
Pull-Up
Pull-Up
Pull-Up
Pull-Up
Pull-Up
BS16#, BS8#
KEN#
RDY#
BRDY#
INTR
Pull-Up
Pull-Up
NMI
IGNNE#
RESERVED#
SMI#
LOW
LOW
HIGH
HIGH
HIGH
Asynchronous
Asynchronous
Pull-Up
Pull-Up1
Pull-Up
Pull-Up
Pull-Up
STPCLK#
TCK
TDI
TMS
NOTES:
1. Though STPCLK# has an internal pull-up resistor, an external 10-KΩ pull-up resistor is needed if the STPCLK# pin is
unused.
24
Embedded IntelDX2™ Processor
can change the value of this flag, the CPUID
instruction is available. The actual state of the ID
Flag bit is irrelevant and provides no significance to
the hardware. This bit is cleared (reset to zero) upon
device reset (RESET or SRESET) for compatibility
with Intel486 processor designs that do not support
the CPUID instruction.
4.0 ARCHITECTURAL AND
FUNCTIONAL OVERVIEW
The embedded IntelDX2 processor architecture is
essentially the same as the IntelDX2 processor.
Refer to the Embedded Intel486™ Processor Family
Developer’s Manual for a description of the IntelDX2
processor.
CPUID-instruction details are provided here for the
embedded IntelDX2 processor. Refer to Intel Appli-
cation Note AP-485 Intel Processor Identification
with the CPUID Instruction (Order No. 241618) for a
description that covers all aspects of the CPUID
instruction and how it pertains to other Intel
processors.
Note that the embedded IntelDX2 processor has one
pin reserved for possible future use. This pin, an
input signal, is called RESERVED# and must be
connected to a 10-KΩ pull-up resistor. The pull-up
resistor must be connected only to the RESERVED#
pin. Do not share this resistor with other pins
requiring pull-ups.
4.1.1 Operation of the CPUID Instruction
4.1 CPUID Instruction
The CPUID instruction requires the software
developer to pass an input parameter to the
processor in the EAX register. The processor
response is returned in registers EAX, EBX, EDX,
and ECX.
The embedded IntelDX2 processor supports the
CPUID instruction (see Table 13). Because not all
Intel processors support the CPUID instruction, a
simple test can determine if the instruction is
supported. The test involves the processor’s ID Flag,
which is bit 21 of the EFLAGS register. If software
Table 13. CPUID Instruction Description
Parameter passed in
EAX
Processor
Core Clocks
OP CODE
Instruction
Description
(Input Value)
0F A2
CPUID
9
14
9
0
1
Vendor (Intel) ID String
Processor Identification
Undefined (Do Not Use)
> 1
Vendor ID String - When the parameter passed in EAX is 0 (zero), the register values returned upon
instruction execution are shown in the following table.
31-------------24
23-----------16
15--------------8
7--------------0
High Value (= 1)
EAX
0
0
0
0
0
0
0
0
0
0
0
0
0 0 0 1
Vendor ID String
(ASCII
EBX
EDX
ECX
u (75)
I (49)
l (6C)
n (6E)
e (65)
e (65)
e (65)
n (6E)
t (74)
G (47)
i (69)
n (6E)
Characters)
The values in EBX, EDX and ECX indicate an Intel processor. When taken in the proper order, they decode to
the string “GenuineIntel.”
25

Embedded IntelDX2™ Processor
Processor Identification - When the parameter passed to EAX is 1 (one), the register values returned upon
instruction execution are:
31---------------------------14
13,12
0 0
11----8
7----4
3----0
Processor
Signature
EAX
(Do Not Use)
0 1 0 0
Family
0 0 1 1
Model
XXXX
Intel Reserved
Processor
Type
Stepping
(Intel releases information about stepping numbers as needed)
31--------------------------------------------------------------------------------------------------0
Intel Reserved
(Do Not Use)
EBX
ECX
Intel Reserved
Intel Reserved
31----------------------------------------------------------------------------2
0------------------------------------------------------------------------------0
1
0
Feature Flags
EDX
1
0
VME
FPU
4.2 Identification After Reset
Processor Identification - Upon reset, the EDX register contains the processor signature:
31---------------------------14
13,12
11----8
7----4
3----0
XXXX
Stepping
Processor
Signature
EDX
(Do Not Use)
0 0
0 1 0 0
Family
0 0 1 1
Model
Intel Reserved
Processor
Type
(Intel releases information about stepping numbers as needed)
4.3 Boundary Scan (JTAG)
4.3.1 Device Identification
Tables 14 and 15 show the 32-bit code for the embedded IntelDX2 processor. This code is loaded into the
Device Identification Register.
Table 14. Boundary Scan Component Identification Code (3.3 Volt Processor)
Version
Part Number
Mfg ID
1
009H = Intel
VCC
0=5 V
1=3.3 V
Family
0100 = Intel486
CPU Family
Model
00101 =
embedded IntelDX2
processor
Intel
Architecture
Type
31----28
XXXX
27
1
26-----------21
000001
20----17
0100
16--------12
00101
11------------1
00000001001
0
1
(Intel releases information about version numbers as needed)
Boundary Scan Component Identification Code = x828 5013 (Hex)
26
Embedded IntelDX2™ Processor
Table 15. Boundary Scan Component Identification Code (5 Volt Processor)
Version
Part Number
Mfg ID
1
009H = Intel
VCC
0=5 V
1=3.3 V
Intel
Architecture
Type
Family
0100 = Intel486
CPU Family
Model
00101 =
embedded IntelDX2
processor
31----28
XXXX
27
0
26-----------21
000001
20----17
0100
16--------12
00101
11------------1
00000001001
0
1
(Intel releases information about version numbers as needed)
Boundary Scan Component Identification Code = x028 5013 (Hex)
4.3.2 Boundary Scan Register Bits and Bit
Order
The following is the bit order of the embedded
IntelDX2 processor boundary scan register:
The boundary scan register contains a cell for each
pin as well as cells for control of bidirectional and
three-state pins. There are “Reserved” bits which
correspond to no-connect (N/C) signals of the
embedded IntelDX2 processor. Control registers
WRCTL, ABUSCTL, BUSCTL, and MISCCTL are
used to select the direction of bidirectional or three-
TDO ← A2, A3, A4, A5, RESERVED#, A6,
A7, A8, A9, A10, A11, A12, A13,
A14, A15, A16, A17, A18, A19,
A20, A21, A22, A23, A24, A25,
A26, A27, A28, A29, A30, A31,
DP0, D0, D1, D2, D3, D4, D5, D6,
D7, DP1, D8, D9, D10, D11, D12,
D13, D14, D15, DP2, D16, D17,
D18, D19, D20, D21, D22, D23,
DP3, D24, D25, D26, D27, D28,
D29, D30, D31, STPCLK#,
state output signal pins.
A “1” in these cells
designates that the associated bus or bits are floated
if the pins are three-state, or selected as input if they
are bidirectional.
• WRCTL controls D31-D0 and DP3–DP0
• ABUSCTL controls A31-A2
IGNNE#,
SMIACT#, SRESET, NMI, INTR,
FLUSH#, RESET, A20M#,
FERR#,
SMI#,
• BUSCTL controls ADS#, BLAST#, PLOCK#,
LOCK#, W/R#, BE0#, BE1#, BE2#, BE3#, M/IO#,
D/C#, PWT, and PCD
EADS#, PCD, PWT, D/C#, M/IO#,
BE3#, BE2#, BE1#, BE0#, BREQ,
W/R#, HLDA, CLK, RESERVED#,
AHOLD, HOLD, KEN#, RDY#,
BS8#, BS16#, BOFF#, BRDY#,
• MISCCTL controls PCHK#, HLDA, and BREQ
PCHK#,
BLAST#,
LOCK#,
ADS#,
PLOCK#,
MISCCTL,
BUSCTL, ABUSCTL, WRCTL
← TDI
27
Embedded IntelDX2™ Processor
5.0 ELECTRICAL SPECIFICATIONS
5.1 Maximum Ratings
5.2 DC Specifications
The following tables show the operating supply
voltages, DC I/O specifications, and component
power consumption for the embedded IntelDX2
processor.
Table 16 is a stress rating only. Extended exposure
to the Maximum Ratings may affect device reliability.
Table 17. Operating Supply Voltages
Furthermore, although the embedded IntelDX2
processor contains protective circuitry to resist
damage from electrostatic discharge, always take
precautions to avoid high static voltages or electric
fields.
Product
VCC
x80486DX2SC50
x80486DX2SA66
3.3 V ± 0.3 V
5.0 V ± 0.25 V
Functional operating conditions are given in Section
5.2, DC Specifications and Section 5.3, AC Speci-
fications.
Note: To address the fact that many of the package
prefix variables have changed, all package prefix
variables in this document are now indicated with
an "x".
Table 16. Absolute Maximum Ratings
Case Temperature under
Bias
-65 °C to +110 °C
Storage Temperature
-65 °C to +150 °C
DC Voltage on Any Pin with
Respect to Ground
-0.5 V to VCC + 0.5 V
Supply Voltage V
Respect to VSS
with
-0.5 V to +6.5 V
CC
28


Embedded IntelDX2™ Processor
Table 18. 3.3 V DC Specifications
Functional Operating Range: VCC = 3.3 V ± 0.3 V, TCASE=0 °C to +85 °C
Symbol
VIL
Parameter
Input LOW Voltage
Min.
-0.3
Max.
+0.8
Unit
V
Notes
VIH
Input HIGH Voltage
2.0
VCC +0.3
VCC +0.3
V
Note 1
VIHC
VOL
Input HIGH Voltage of CLK
Output LOW Voltage
VCC -0.6
V
I
I
OL = 2.0 mA
0.4
0.2
V
V
OL = 100 µA
VOH
Output HIGH Voltage
OH = -2.0 mA
I
2.4
VCC -0.2
V
V
IOH = -100 µA
ILI
Input Leakage Current
15
µA
Note 2
IIH
Input Leakage Current
SRESET
200
300
µA
µA
Note 3
Note 3
IIL
Input Leakage Current
Output Leakage Current
Input Capacitance
400
15
10
10
6
µA
µA
pF
pF
pF
Note 4
ILO
CIN
Note 5
Note 5
Note 5
COUT
CCLK
I/O or Output Capacitance
CLK Capacitance
NOTES:
1. All inputs except CLK.
2. This parameter is for inputs without pull-up or pull-down resistors and 0V ≤ VIN ≤ VCC
3. This parameter is for inputs with pull-down resistors and VIH = 2.4V.
4. This parameter is for inputs with pull-up resistors and VIL = 0.4V.
.
5.
F =1 MHz. Not 100% tested.
C
29
Embedded IntelDX2™ Processor
Table 19. 3.3 V ICC Values
Functional Operating Range: VCC = 3.3 V ±0.3 V; TCASE = 0°C to +85°C
Operating
Parameter
CC Active
(Power Supply)
Frequency
Typ
Maximum
Notes
I
40 MHz
50 MHz
450 mA
550 mA
Note 1
ICC Active
(Thermal Design)
40 MHz
50 MHz
318 mA
395 mA
416 mA
507 mA
Notes 2, 3, 4
Note 5
ICC Stop Grant
40 MHz
50 MHz
20 mA
23 mA
40 mA
50 mA
ICC Stop Clock
0 MHz
100 µA
1 mA
Note 6
NOTES:
1. This parameter is for proper power supply selection. It is measured using the worst case instruction mix at VCC = 3.6V.
2. The maximum current column is for thermal design power dissipation. It is measured using the worst case instruction mix
at VCC = 3.3V.
3. The typical current column is the typical operating current in a system. This value is measured in a system using a typical
device at VCC = 3.3V, running Microsoft Windows 3.1 at an idle condition. This typical value is dependent upon the specific
system configuration.
4. Typical values are not 100% tested.
5. The ICC Stop Grant specification refers to the ICC value once the embedded IntelDX2 processor enters the Stop Grant or
Auto HALT Power Down state.
6. The ICC Stop Clock specification refers to the ICC value once the embedded IntelDX2 processor enters the Stop Clock
state. The VIH and VIL levels must be equal to VCC and 0 V, respectively, to meet the ICC Stop Clock specifications.
30
Embedded IntelDX2™ Processor
Table 20. 5 V DC Specifications
Functional operating range: VCC = 5V ± 0.25V; TCASE = 0°C to +85°C
Symbol
VIL
Parameter
Input LOW Voltage
Min
-0.3
2.0
Max
+0.8
Unit
V
Notes
VIH
Input HIGH Voltage
Output LOW Voltage
Output HIGH Voltage
Input Leakage Current
VCC+0.3
0.45
V
VOL
VOH
ILI
V
Note 1
Note 2
Note 3
2.4
V
15
µA
IIH
Input Leakage Current
SRESET
200
300
µA
µA
Note 4
Note 4
IIL
Input Leakage Current
Output Leakage Current
Input Capacitance
400
15
20
20
20
µA
µA
pF
pF
pF
Note 5
ILO
CIN
Note 6
Note 6
Note 6
COUT
CCLK
Output or I/O Capacitance
CLK Capacitance
NOTES:
1. This parameter is measured at:
Address, Data, BEn# 4.0 mA
Definition, Control 5.0 #mA
2. This parameter is measured at:
Address, Data, BEn# -1.0 mA
Definition, Control -0.9 mA
3. This parameter is for inputs without pull-ups or pull-downs and 0V ≤ VIN ≤ VCC
4. This parameter is for inputs with pull-downs and VIH = 2.4V.
5. This parameter is for inputs with pull-ups and VIL = 0.45V.
6. FC=1 MHz; Not 100% tested.
.
31
Embedded IntelDX2™ Processor
Table 21. 5 V ICC Values
Functional Operating Range: VCC = 5V ±0.25V; TCASE = 0°C to +85°C
Operating
Parameter
CC Active
(Power Supply)
Frequency
Typ
Maximum
Notes
I
50 MHz
66 MHz
950 mA
1200 mA
Note 1
ICC Active
(Thermal Design)
50 MHz
66 MHz
680 mA
901 mA
906 mA
1145 mA
Notes 2, 3, 4
Note 5
ICC Stop Grant
50 MHz
66 MHz
35 mA
40 mA
70 mA
90 mA
ICC Stop Clock
0 MHz
200 µA
2 mA
Note 6
NOTES:
1. This parameter is for proper power supply selection. It is measured using the worst case instruction mix at VCC = 5.25V.
2. The maximum current column is for thermal design power dissipation. It is measured using the worst case instruction mix
at VCC = 5V.
3. The typical current column is the typical operating current in a system. This value is measured in a system using a typical
device at VCC = 5V, running Microsoft Windows 3.1 at an idle condition. This typical value is dependent upon the specific
system configuration.
4. Typical values are not 100% tested.
5. The ICC Stop Grant specification refers to the ICC value once the embedded IntelDX2 processor enters the Stop Grant or
Auto HALT Power Down state.
6. The ICC Stop Clock specification refers to the ICC value once the processor enters the Stop Clock state. The VIH and VIL
levels must be equal to VCC and 0V, respectively, in order to meet the ICC Stop Clock specifications.
32
Embedded IntelDX2™ Processor
5.3 AC Specifications
The AC specifications for the embedded IntelDX2 processor are given in this section.
Table 22. AC Characteristics
TCASE = 0°C to +85°C; CL = 50pF, unless otherwise specified. (Sheet 1 of 2)
Vcc (Package)
3.3V
(208-Lead
SQFP)
5V
(168-Pin
PGA)
Symbol
Parameter
Min Max Min Max
Unit
MHz
ns
Figure
Notes
CLK Frequency
8
25
8
33
Note 1
t1
CLK Period
40
125
30
125
4
4
t1a
CLK Period Stability
±250
±250
ps
Adjacent
clocks
t2
t3
t4
t5
t6
CLK High Time
CLK Low Time
CLK Fall Time
CLK Rise Time
14
14
11
11
ns
ns
ns
ns
ns
4
4
4
4
8
at 2V
at 0.8V
4
4
3
3
2V to 0.8V
0.8V to 2V
A31–A2, PWT, PCD, BE3–BE0#,
M/IO#, D/C#, W/R#, ADS#, LOCK#,
BREQ, HLDA, SMIACT#, FERR#
Valid Delay
3
19
3
16
t7
A31–A2, PWT, PCD, BE3–BE0#,
M/IO#, D/C#, W/R#, ADS#, LOCK#,
BREQ, HLDA Float Delay
28
20
ns
9
Note 2
t8
t8a
t9
PCHK# Valid Delay
3
3
24
24
28
20
3
3
22
20
20
18
ns
ns
ns
ns
7
8
9
8
BLAST#, PLOCK# Valid Delay
BLAST#, PLOCK# Float Delay
Note 2
Note 2
t10
D31–D0, DP3–DP0 Write Data Valid
Delay
3
3
t11
D31–D0, DP3–DP0 Write Data Float
Delay
28
20
ns
9
t12
t13
t14
t15
t16
t17
t18
t18a
t19
EADS# Setup Time
8
3
5
3
5
3
5
3
6
8
3
ns
ns
ns
ns
ns
ns
ns
ns
ns
5
5
5
5
6
6
5
5
5
EADS# Hold Time
KEN#, BS16#, BS8# Setup Time
KEN#, BS16#, BS8# Hold Time
RDY#, BRDY# Setup Time
RDY#, BRDY# Hold Time
HOLD, AHOLD Setup Time
BOFF# Setup Time
8
3
8
3
10
10
3
HOLD, AHOLD, BOFF# Hold Time
33
Embedded IntelDX2™ Processor
Table 22. AC Characteristics
TCASE = 0°C to +85°C; CL = 50pF, unless otherwise specified. (Sheet 2 of 2)
Vcc (Package)
3.3V
(208-Lead
SQFP)
5V
(168-Pin
PGA)
Symbol
Parameter
Min Max Min Max
Unit
Figure
Notes
t20
FLUSH#, A20M#, NMI, INTR, SMI#,
STPCLK#, SRESET, RESET,
IGNNE# Setup Time
10
5
ns
5
Note 3
t21
FLUSH#, A20M#, NMI, INTR, SMI#,
STPCLK#, SRESET, RESET,
IGNNE# Hold Time
3
3
ns
5
Note 3
t22
t23
D31–D0, DP3–DP0,
A31–A4 Read Setup Time
6
3
5
3
ns
ns
6
5
D31–D0, DP3–DP0,
A31–A4 Read Hold Time
6
5
NOTES:
1. 0-MHz operation is guaranteed when the STPCLK# and Stop Grant bus cycle protocol is used.
2. Not 100% tested, guaranteed by design characterization.
3. A reset pulse width of 15 CLK cycles is required for warm resets (RESET or SRESET). Power-up resets (cold resets)
require RESET to be asserted for at least 1 ms after VCC and CLK are stable.
Table 23. AC Specifications for the Test Access Port
(Both 3.3V SQFP and 5V PGA Processors)
T
CASE = 0°C to +85°C; CL = 50 pF
Symbol
Parameter
Min
Max
Unit
MHz
ns
Figure
Notes
t24
t25
TCK Frequency
TCK Period
8
Note 1
125
40
10
10
10
10
10
11
11
11
11
11
11
11
11
t26
TCK High Time
TCK Low Time
TCK Rise Time
TCK Fall Time
ns
@ 2.0V
@ 0.8V
Note 2
Note 2
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
t27
40
ns
t28
8
8
ns
t29
ns
t30
TDI, TMS Setup Time
8
10
3
ns
t31
TDI, TMS Hold Time
ns
t32
TDO Valid Delay
30
36
30
36
ns
t33
TDO Float Delay
ns
t34
All Outputs (except TDO) Valid Delay
All Outputs (except TDO) Float Delay
All Inputs (except TDI, TMS, TCK) Setup Time
All Inputs (except TDI, TMS, TCK) Hold Time
3
ns
t35
ns
t36
8
ns
t37
10
ns
NOTES:
1. TCK period ≤ CLK period.
2. Rise/Fall times are measured between 0.8V and 2.0V. Rise/Fall times can be relaxed by 1 ns per 10-ns increase in TCK
period.
3. Parameters t30 – t37 are measured from TCK.
34
Embedded IntelDX2™ Processor
2.0 V
1.5 V
2.0 V
1.5 V
CLK
0.8 V
0.8 V
t2
t3
t4
t5
t1
tx
ty
1.5 V
tx = input setup times
ty = input hold times, output float, valid and hold times
Figure 4. CLK Waveform
Tx
Tx
Tx
CLK
t13
t12
EADS#
BS8#, BS16#, KEN#
t14
t15
t19
t21
t23
t18
t20
t22
BOFF#, AHOLD, HOLD
RESET, FLUSH#,
A20M#, INTR, NMI, SMI#,
STPCLK#, SRESET, IGNNE#
A31-A4
(READ)
Figure 5. Input Setup and Hold Timing
35
Embedded IntelDX2™ Processor
Tx
T2
Tx
CLK
t16
t17
RDY#, BRDY#
1.5 V
1.5 V
t23
t22
D31-D0, DP3–DP0
Figure 6. Input Setup and Hold Timing
T2
Tx
Tx
Tx
CLK
RDY#, BRDY#
D31-D0,
DP3-DP0
VALID
MIN
t8
MAX
VALID
PCHK#
Figure 7. PCHK# Valid Delay Timing
36
Embedded IntelDX2™ Processor
Tx
Tx
Tx
CLK
MIN
MAX
t6
A2-A31, PWT, PCD,
BE0-3#, M/IO#,
VALID n
VALID n+1
VALID n+1
VALID n+1
D/C#, W/R#, ADS#,
LOCK#, BREQ, HLDA,
SMIACT#
MIN
MAX
t10
VALID n
D31-D0, DP3–DP0
MIN
MAX
t8a
BLAST#,
PLOCK#
VALID n
Figure 8. Output Valid Delay Timing
Tx
Tx
Tx
CLK
MIN
t7
t6
A2-A31, PWT, PCD,
BE0-3#, M/IO#, D/C#,
W/R#, ADS#, LOCK#,
BREQ, HLDA, FERR#
VALID
MIN
MIN
t11
t10
D31-D0, DP3–DP0
VALID
t9
t8a
BLAST#,
PLOCK#
VALID
Figure 9. Maximum Float Delay Timing
37
Embedded IntelDX2™ Processor
2.0 V
2.0 V
0.8 V
t27
TCK
0.8 V
t26
t28
t29
t25
Figure 10. TCK Waveform
1.5 V
TCK
t31
t30
TMS,
TDI
VALID
t33
t32
VALID
TDO
OUTPUT
INPUT
t35
t34
VALID
t37
VALID
t36
VALID
Figure 11. Test Signal Timing Diagram
38
Embedded IntelDX2™ Processor
5.4 Capacitive Derating Curves
The following graphs are the capacitive derating curves for the embedded IntelDX2 processor.
nom+7
nom+6
nom+5
nom+4
nom+3
nom+2
nom+1
nom
nom-1
nom-2
25
50
75
100
125
150
Capacitive Load (pF)
NOTE: This graph will not be linear outside of the capacitive range shown.
nom = nominal value from the AC Characteristics table.
Figure 12. Typical Loading Delay versus Load Capacitance under Worst-Case Conditions
for a Low-to-High Transition, 3.3 V Processor
nom+5
nom+4
nom+3
nom+2
nom+1
nom
nom-1
nom-2
25
50
75
100
125
150
Capacitive Load (pF)
NOTE: This graph will not be linear outside of the capacitive range shown.
nom = nominal value from the AC Characteristics table.
Figure 13. Typical Loading Delay versus Load Capacitance under Worst-Case Conditions
for a High-to-Low Transition, 3.3 V Processor
39
Embedded IntelDX2™ Processor
nom+5
nom+4
nom+3
nom+2
nom+1
nom
nom-1
nom-2
25
50
75
Capacitive Load (pF)
100
125
150
Note: This graph will not be linear outside of the capacitive range shown.
nom = nominal value from the AC Characteristics table.
A3234-01
Figure 14. Typical Loading Delay versus Load Capacitance under
Worst-Case Conditions for a Low-to-High Transition, 5 V Processor
nom+7
nom+6
nom+5
nom+4
nom+3
nom+2
nom+1
nom
nom-1
nom-2
25
50
75
100
125
150
Capacitive Load (pF)
Note: This graph will not be linear outside of the capacitive range shown.
nom = nominal value from the AC Characteristics table.
A3235-01
Figure 15. Typical Loading Delay versus Load Capacitance under
Worst-Case Conditions for a High-to-Low Transition, 5 V Processor
40
Embedded IntelDX2™ Processor
6.0 MECHANICAL DATA
This section describes the packaging dimensions and thermal specifications for the embedded IntelDX2
processor.
6.1 Package Dimensions
30.6 ± 0.25
28.0 ± 0.10
25.50 (ref)
1.14
(ref)
.40 Min
157
208
0.13 + 0.12-0.08
1
156
0˚ Min
7˚ Max
0.60 ± 0.10
1.30 Ref
0.50
Top View
3.37 ± 0.08
3.70 Max
0.13 Min
0.25 Max
52
105
53
104
NOTE: Length measurements same as width measurements
Tolerance Window for
Lead Skew from Theoretical
True Position
1.76 Max
0.10 Max
Units: mm
A3262-01
Figure 16. 208-Lead SQFP Package Dimensions
41
Embedded IntelDX2™ Processor
Figure 17. Principal Dimensions and Data for 168-Pin Pin Grid Array Package
Table 24. 168-Pin Ceramic PGA Package Dimensions
Millimeters
Max
Inches
Symbol
Min
3.56
0.64
2.8
Notes
Min
Max
Notes
A
A1
A2
A3
B
4.57
0.140
0.025
0.110
0.045
0.017
1.735
1.595
0.090
0.100
0.180
0.045
0.140
0.055
0.020
1.765
1.605
0.110
0.130
1.14
SOLID LID
SOLID LID
SOLID LID
SOLID LID
3.5
1.14
0.43
44.07
40.51
2.29
2.54
1.40
0.51
D
44.83
40.77
2.79
D1
e1
L
3.30
N
168
168
S1
1.52
2.54
0.060
0.100
42
Embedded IntelDX2™ Processor
Table 25. Ceramic PGA Package Dimension Symbols
Letter or Symbol
Description of Dimensions
Distance from seating plane to highest point of body
Distance between seating plane and base plane (lid)
Distance from base plane to highest point of body
Distance from seating plane to bottom of body
Diameter of terminal lead pin
A
A1
A2
A3
B
D
Largest overall package dimension of length
D1
e1
L
A body length dimension, outer lead center to outer lead center
Linear spacing between true lead position centerlines
Distance from seating plane to end of lead
S1
Other body dimension, outer lead center to edge of body
NOTES:
1. Controlling dimension: millimeter.
2. Dimension “e1” (“e”) is non-cumulative.
3. Seating plane (standoff) is defined by P.C. board hole size: 0.0415–0.0430 inch.
4. Dimensions “B”, “B1” and “C” are nominal.
5. Details of Pin 1 identifier are optional.
43
Embedded IntelDX2™ Processor
Where TJ, TA, TC equals Junction, Ambient and
Case Temperature respectively. θJC, θJA equals
Junction-to-Case and Junction-to-Ambient thermal
Resistance, respectively. P is defined as Maximum
Power Consumption.
6.2 Package Thermal Specifications
The embedded IntelDX2 processor is specified for
operation when the case temperature (TC) is within
the range of 0°C to 85°C. TC may be measured in
any environment to determine whether the processor
is within the specified operating range.
Values for θJA and θJC are given in the following
tables for each product at its maximum operating
frequencies. Maximum TA is shown for each product
operating at various processor frequencies (twice
the CLK frequencies).
The ambient temperature (TA) can be calculated
from θJC and θJA from the following equations:
TJ = TC + P * θJC
T
T
T
A = TJ - P * θJA
C = TA + P * [θJA - θJC
]
A = TC - P * [θJA - θJC
]
Table 26. Thermal Resistance, θJA (°C/W)
θJA vs. Airflow — ft/min. (m/sec)
0
200
400
600
800
1000
(0)
(1.01)
(2.03)
(3.04)
(4.06)
(5.07)
208-Lead SQFP (3.3V) - Without Heat Sink
168-Pin PGA (5V) - Without Heat Sink
168-Pin PGA (5V) - With Heat Sink*
*0.350" high omnidirectional heat sink.
24.0
17.0
13.0
17.0
14.5
8.0
15.0
12.5
6.0
13.0
11.0
5.0
–
–
10.0
4.5
9.5
4.25
Table 27. Thermal Resistance, θJC (°C/W)
θJC vs. Airflow — ft/min. (m/sec)
0
200
400
600
(0)
(1.01)
(2.03)
(3.04)
600
6.0
0
200
6.0
–
400
6.0
–
208-Lead SQFP (3.3V)
168-Pin PGA (5V)
3.5
1.5
–
Table 28. Maximum Tambient, TA max (°C)
Airflow — ft/min. (m/sec)
Freq.
0
200
400
600
(MHz)
(0)
(1.01)
(2.03)
(3.04)
IntelDX2™ Processor
208-Lead SQFP (3.3V)
Without Heat Sink
168-Pin PGA (5V)
Without Heat Sink
168-Pin PGA (5V)
With Heat Sink
40
50
50
66
50
66
57
51
15
-4
70
67
26
11
56
48
73
70
35
22
65
59
75
73
46
36
69
65
33
19
44
厂商 型号 描述 页数 下载

INTEL

 		YW80486DX4WB100 [ RISC Microprocessor, 32-Bit, 100MHz, CMOS, PQFP208 ] 49 页

INNOVASIC

 		YW80C186EB20 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INNOVASIC

 		YW80C186EB25 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INNOVASIC

 		YW80C188EB20 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INNOVASIC

 		YW80C188EB25 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INTEL

 		YW80C196NU40 8XC196NU商业CHMOS 16位微控制器[ 8XC196NU COMMERCIAL CHMOS 16-BIT MICROCONTROLLER ] 43 页

INTEL

 		YW80C196NU50 8XC196NU商业CHMOS 16位微控制器[ 8XC196NU COMMERCIAL CHMOS 16-BIT MICROCONTROLLER ] 43 页

INNOVASIC

 		YW80L186EB13 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INNOVASIC

 		YW80L186EB16 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

INNOVASIC

 		YW80L188EB13 8位/ 16位微控制器[ 8-Bit/16-Bit Microcontrollers ] 85 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.167510s
