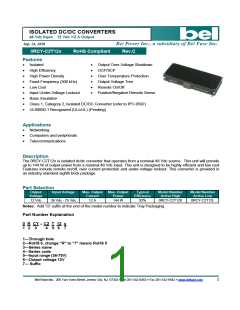

ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RCY-C2T12x
Features
RoHS Compliant
Rev.C
•
•
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
Output Over-Voltage Shutdown
OCP/SCP
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Low Cost
Over Temperature Protection
Output Voltage Trim
Remote On/Off
Input Under-Voltage Lockout
Basic Insulation
Positive/Negative Remote Sense
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RCY-C2T12x is isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide
up to 144 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost.
Features include remote on/off, over current protection and under-voltage lockout. This converter is provided in
an industry standard eighth brick package.
Part Selection
Output
Input Voltage
Max. Output Max. Output
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
Current
Power
12 Vdc
36 Vdc - 75 Vdc
12 A
144 W
93%
0RCY-C2T120
0RCY-C2T12L
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R CY – C2 T 12 x
1 2
3
4
5 6
7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (36-75V)
6---Output voltage 12V
7--- Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
V
Parameter
Min
-0.3
-
Typ
Max
80
Notes
Continuous Input Voltage
Input Transient Voltage
Remote On/Off
-
-
-
100
18
V
100 mS maximum
-0.3
V
Input to baseplate isolation
voltage
output to baseplate isolation
voltage
1500
500
-
-
-
-
V
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
-40
-
-
-
-
V
85
°C
°C
-55
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
5.0
120
15
A
60
10
mA
mA
Tested with simulated source
impedance of 10 uH, 5 Hz to 20 MHz;
use a 100 uF/100 V electrolytic
capacitor with ESR = 1 ohm max. at
200 kHz at 25 °C.
Input Reflected Ripple Current
(rms)
-
-
5
10
40
mA
Input Reflected Ripple Current
(pk-pk)
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
25
mA
-
0.1
34
32
0.5
36
34
A2s
V
33
31
V
Note: All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
11.76
12.00
12.24
V
Vin=48V, Io=50% load
Load Regulation
Line Regulation
-
-
±12
±12
±24
±24
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±30
±60
mV
Total Regulation
-
-
±60
90
30
-
±100
150
50
mV
mV
mV
A
0-20 MHz BW, with a 1µF ceramic
capacitor and a 10uF Tantalum cap at
output.
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
Output Current Range
Output DC Current Limit
-
0
13
12
15
17
A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Short Circuit Surge Transient
-
2
4
A2s
Turn on Time
-
-
60
0
100
-
mS
%
Overshoot at Turn on
Output Capacitance
0
-
680
uF
Transient Response
Overshoot
-
-
-
-
400
200
400
200
600
300
600
300
mV
uS
△V25%~50% of
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
10uF Tantalum cap at the output.
Max Load
Settling Time
Overshoot
mV
uS
△V50%~25% of
Max Load
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, full load
Efficiency
91
93
-
%
Switching Frequency
Isolation Capacitance
Output Voltage Trim Range
Remote Sense Compensation
Over Temperature Protection
Over Voltage Protection
Weight
270
300
3900
-
330
kHz
pF
-
80
-
-
110
10
-
The total voltage increased by trim
and remote sense should not exceed
10%Vo.
%Vo
%Vo
°C
-
-
125
125
47
-
-
%
Vin=48V, full load, in hiccup mode
-
-
g
Calculated Per Bell Core SR-332
(Vin=48 V, Vo=12 V, Io=12 A, Ta = 25
°C, FIT=109/MTBF)
FIT
TBD
-
-
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.30 x 0.90 x 0.50
58.41 x 22.91 x 12.70
Note: All specifications are typical at 25 °C unless otherwise stated.
Control Specifications
Parameter
Min
Typ
Max
Unit
Notes
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
2.4
-0.3
2.4
0
-
-
-
-
-
0.8
18
0.8
18
1
V
V
0RCY-C2T12L. The remote on/off pin
open, Unit off.
Active Low
Active High
V
0RCY-C2T120. The remote on/off pin
open, Unit on.
V
mA
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
Efficiency Curve
94%
92%
90%
88%
86%
84%
82%
80%
78%
76%
74%
72%
70%
36 V
48 V
56 V
75 V
1.20
3.00
6.00
9.00
12.00
Output Current (A)
Thermal Derating Curve
Vin=48 V
Vin=56 V
With maximum junction temperature of semiconductors derated to 120 degree C
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveform
48 Vdc input, 12.0 Vdc/12 A output
Note: Ripple and noise at full load, 0-20 MHz BW, Ta=25 deg C, with a 1uF ceramic cap and a 10 uF Tantalum
cap at output.
Transient Response Waveforms
Vout=12.0 V, 50%-25% Load Transient
Vout=12.0 V, 25%-50% Load Transient
Note: Transient Response at Vin=48 V, di/dt=0.1 A/uS, external 10 uF tantalum Cap and 1uF ceramic Cap at the
output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and GND pin. The Trim Up resistor should be connected between the Trim pin and the
Vout pin. Only one of the resistors should be used for any given application.
Vout
511
Module
Module
Trim
GND
Rtrimdown =
−10.22
[kΩ
]
Rtrimdown
Rtrimup
delta
Vout
Trim
GND
(100+ delta)⋅Vo ⋅5.11− 626
1.225⋅ delta
Rtrimup =
−10.22[kΩ
]
Note:
(
Vo _ req −Vo
)
delta =
×100
[%]
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=12.000 V
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
400
360
320
280
240
200
160
120
80
40
0
0
9.6 9.84 10.08 10.32 10.56 10.8 11.04 11.28 11.52 11.76 12
Adjusted output voltageVo,adj (V)
12 12.12 12.24 12.36 12.48 12.6 12.72 12.84 12.96 13.08 13.2
Adjusted output voltageVo,adj(V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
Pin Connections
Pin
Name
Pin Dia
0.040’’
0.040’’
0.040’’
0.062’’
0.040’’
0.040’’
0.040’’
0.062’’
1
Vin+
2
On/Off
Vin-
3
4
Vout-
Sense-
Trim
5
6
7
Sense+
Vout+
8
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
48 Vdc Input 12 Vdc /12 A Output
Sep. 24, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
2007-06-29
2009-06-18
PA
B
First release.
HF Fan
1. Add 100ms transient and input/output pin to heatsink voltage.
2. Change mechanical outline.
HF Fan
2010-09-24
C
Add efficiency data and TD chart in 56Vin condition.
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice. 092410
8
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RCB-60T025 [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T02L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T03B [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T03C 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RCB-60T03L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T05L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCM-20S 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 3 页

BEL

 		0RCM-20S12H [ DC-DC Regulated Power Supply Module, ROHS COMPLIANT, QUARTER BRICK PACKAGE-5 ] 3 页

BEL

 		0RCM-20S12HG [ DC-DC Regulated Power Supply Module, ROHS COMPLIANT, QUARTER BRICK PACKAGE-5 ] 3 页

BEL

 		0RCM-20S12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.257727s
