AZT71HG

型号：

AZT71HG

描述：

可编程电容调谐IC[ Programmable Capacitive Tuning IC ]

品牌：

AZM[ ARIZONA MICROTEK, INC ]

页数：

14 页

PDF大小：

715 K

下载PDF手册

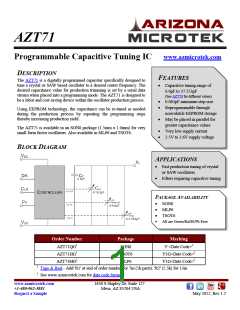

AZT71
www.azmicrotek.com
Programmable Capacitive Tuning IC
DESCRIPTION
FEATURES
The AZT71 is a digitally programmed capacitor specifically designed to
tune a crystal or SAW based oscillator to a desired center frequency. The
desired capacitance value for production trimming is set by a serial data
stream when placed into a programming mode. The AZT71 is designed to
be a labor and cost saving device within the oscillator production process.
•
Capacitive tuning range of
6.6pF to 37.553pF
(See AZT70 for different values)
•
•
0.063pF minimum step size
Reprogrammable through
nonvolatile EEPROM storage
May be placed in parallel for
greater capacitance values
Very low supply current
Using EEPROM technology, the capacitance can be re-tuned as needed
during the production process by repeating the programming steps
thereby increasing production yield.
•
The AZT71 is available in an SON8 package (1.5mm x 1.0mm) for very
small form factor oscillators. Also available in MLP6 and TSOT6.
•
•
2.5V to 3.6V supply voltage
BLOCK DIAGRAM
APPLICATIONS
•
Fast production tuning of crystal
or SAW oscillators
•
Filters requiring capacitive tuning
PACKAGE AVAILABILITY
•
•
•
•
SON8
MLP6
TSOT6
All are Green/RoHS/Pb-Free
Order Number
AZT71QG1
Package
SON8
Marking
Y <Date Code>2
Y1G<Date Code>2
Y1G<Date Code>2
AZT71HG1
AZT71MG1
TSOT6
MLP6
1
2
Tape & Reel - Add 'R1' at end of order number for 7in (1k parts), 'R2' (2.5k) for 13in
See www.azmicrotek.com for date code format
www.azmicrotek.com
+1-480-962-5881
1630 S Stapley Dr, Suite 127
Mesa, AZ 85204 USA
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PIN DESCRIPTION AND CONFIGURATION
Table 1 - Pin Description SON8 Package (1.5mm x 1.0mm)
Pin
1
Name
X1
Type
Output
n/a
Function
Capacitance
X1
NC
VSS
VDD
1
8
7
6
5
PV
2
NC
not connected
2
3
4
NC
CLK
DA
3
VSS
VDD
DA
CLK
NC
Power
Power
Input
Input
n/a
Negative Supply (GND)
Positive Supply
4
5
Programming Data Input
Programming Clock Input
not connected
6
7
8
PV
Input
Programming Voltage
Figure 1 - Pin Configuration SON8
Table 2 - Pin Description TSOT6 Package
Pin
Name
Type
Function
X1
1
2
6 VDD
5 DA
4 CLK
1
X1
Output
Capacitance
2
3
4
5
6
VSS
PV
Power
Input
Input
Input
Power
Negative Supply (GND)
Programming Voltage
Programming Clock Input
Programming Data Input
Positive Supply
VSS
CLK
DA
PV 3
VDD
Figure 2 - Pin Configuration TSOT6
Table 3 - Pin Description 6MLP Package (2.0mm x 2.0mm)
Pin
Name
Type
Function
X1
VSS
VDD
1
2
3
6
5
4
PV
1
X1
Output
Capacitance
2
3
4
5
6
VSS
VDD
DA
Power
Power
Input
Input
Input
Negative Supply (GND)
Positive Supply
CLK
DA
Programming Data Input
Programming Clock Input
Programming Voltage
CLK
PV
Figure 3 - Pin Configuration 6MLP
www.azmicrotek.com
+1-480-962-5881
2
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
ENGINEERING NOTES
CAPACITOR STRUCTURE
The AZT71 capacitance value is composed of four parallel capacitors banks, CF is a fixed capacitor value of 6.6pF and
Chi, Cmid & Clo are variable capacitors of differing ranges and resolutions as seen in Table 4. Capacitors composing Chi,
C
mid and Clo are set with a binary control word through an 11-bit shift register described in PROGRAMMING THE AZT71.
The values of each Chi, Cmid and Clo stepping are detailed in the complete Nominal Capacitance Binary Mapping
spreadsheet.
CTotal = CF + Chi + Cmid + Clo
Table 4 - AZT71 Capacitor Structure
Internal
Capacitor
Min Value
(pF)
Max Value
(pF)
Step Size
(pF)
CF
Chi
Cmid
Clo
6.6
0
0
6.6
19.2
9.8
n/a
6.4
1.4
0
1.953
0.063
Total
6.6
37.553
PROGRAMMING THE AZT71
CONTROL WORD
The capacitance in the AZT71 is controlled by an 11-bit shift register with the data input bit definitions shown in Table 5.
The control word data is inputted serially on the rising edge of the CLK signal with bit0 first and bit10 last.
Table 5 - AZT71 Control Word Definition
11-bit Control Word
bit10
MSB
bit9
LSB
bit8
bit7
bit6
LSB
bit5
bit4
bit3
bit2
---
bit1
LSB
bit0
Chi
Cmid
---
Clo
---
Not Used
MSB
MSB
---
The control word mapping is a binary word for each of Chi, Cmid and Clo where higher number bits are more significant.
Figure 4 shows the capacitance value mapping for the AZT71. The detailed Nominal Capacitance Binary Mapping can be
located on the AZM website.
www.azmicrotek.com
+1-480-962-5881
3
Request a Sample
May 2012, Rev 1.2



Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
Figure 4 – AZT71 Capacitance Value Mapping
AZT71 FUNCTIONAL MODES
The AZT71 is designed to be used in 2 functional modes, Programming and Operational.
In the Programming mode, the AZT71 is used by the manufacturer to set the capacitance value to control the desired
center frequency of the oscillator. The programming mode uses either the shift registers or EEPROM (detailed later) and
gives the manufacturer access to pins DA, CLK, and PV which allow the AZT71 to be programmed with an
accompanying programming board (Figure 5). Arizona Microtek can provide this board (AZPB70) along with software
that works through all the programming steps/functions described in the next sections.
In the Operational mode, the EEPROM internal to the AZT71 has already been programmed with the desired factory
settings. Pins DA, CLK, and PV are to be disconnected, thereby allowing the AZT71’s internal pull-downs to place the
pins at ground potential. In the operational mode, only 3 pins are necessary for hookup (Figure 6).
www.azmicrotek.com
+1-480-962-5881
4
Request a Sample
May 2012, Rev 1.2

Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
VDD
DA
CLK
PV
DA
AZT71
X1
Programming
CLK
PV
Board
(PRT70)
VSS
OUT
OSCILLATOR
RESONATOR
Figure 5 – AZT71 in Programming Mode
VDD
NC
DA
AZT71
X1
NC
NC
CLK
PV
VSS
OUT
OSCILLATOR
RESONATOR
Figure 6 – AZT71 in Operational Mode
PROGRAMMING MODES
The AZT71 has two capacitance setting modes from which bits are set and the matching capacitors are selected.
•
Reading directly from the shift register
o
This is useful for testing the capacitance and subsequent oscillator frequency. This mode is active after
the last bit is shifted in and when the CLK pin is left logic high. For the shift register, capacitors are
selected when bits are active HIGH.
•
Reading from the value contained in the EEPROM
o
Prevents customer adjustment and retains factory programming and is active when the CLK pin is at logic
low or not connected. For the EEPROM, capacitors are selected when bits are active LOW.
www.azmicrotek.com
+1-480-962-5881
5
Request a Sample
May 2012, Rev 1.2


Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PROGRAMMING FROM THE SHIFT REGISTER
To initially determine the capacitance value for the desired center frequency of the oscillator one should set the
capacitance of the AZT71 directly from the active shift register bits. To accomplish this, the CLK pin is left high after the
last control word bit has been shifted in. Figure 7 shows the control word 11001100100 has been serially entered into the
register. Note that bit0 is the 1st bit to enter and bit10 is the last. In the AZT71, bit0 does not affect the capacitance value
but still must be included in the serial bit stream. For the shift register, capacitors are selected when bits are active HIGH.
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
Register data
active when
CLK is high
DA
bit 0
loaded 1st
CLK
t
Figure 7 - Shift register programming
WRITING DATA TO THE EEPROM
Once the desired capacitance value has been determined, the digital control word can be written or re-written into the
EEPROM. By storing the control word in the EEPROM, the customer is prevented from making adjustments from the
factory set programming data. This is accomplished within the AZT71 with internal pull-downs on the DA, PV, and CLK
pins. The detailed sequence for writing data to the EEPROM within the AZT71 is described in Table 6. Note that with
EEPROM, capacitors are selected when bits are active LOW.
Table 6 – Data writing sequence for EEPROM
Step
Action
Determine the desired capacitor control word with the operational power supply voltage and
desired oscillator conditions
1
2
3
4
5
Set the VDD supply voltage to +5.0V
If EEPROM is not already erased, erase EEPROM (see
ERASING THE EEPROM)
Read the current state of the EEPROM bits (see READING BACK FROM THE EEPROM)
Compare the desired control word to the stored EEPROM control word. Count the number of
differences so as to prevent double/redundant writing
6
7
One bit at a time, load the first desired control word bit (bit selection for EEPROM is active LOW)
Set the PV pin to +6V (≥5.6V, ≤6.1V) with the pulse and idle shown in timing diagram (Figure 10)
Progress through all necessary control word bits by repeating steps 5 & 6 until all bits are set to the
desired control word.
8
9
Verify the correct EEPROM contents by reading back the individual bits
www.azmicrotek.com
+1-480-962-5881
6
Request a Sample
May 2012, Rev 1.2


Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
For an example of writing bits into the EEPROM, suppose the desired capacitance is 7.23pF. The control word becomes
‘00000010100’ (Figure 8). Also suppose the EEPROM bits have been erased and therefore logic high (The AZT71 is
initially shipped in this condition). Since bit0 is the first bit to be loaded, the bit sequence becomes 0-0-1-0-1-0-0-0-0-0-0.
However, as described before, selecting bits for the EEPROM are active LOW, which will invert the logical values in the
sequence to 1-1-0-1-0-1-1-1-1-1-1 (Figure 9). Note the differences between the EEPROM bits and the converted control
word. Since there are 2 differences, two write cycles are required as only 1 bit should be written at a time. Figure 10
shows the timing for bit2 while Figure 11 shows the timing for bit4.
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
Figure 8 – Desired control word
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
DA
difference
difference
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
EEPROM
Figure 9 – Converted control word and differences from known EEPROM states
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
DA
CLK
PV
bit 0
loaded 1st
bit 10
loaded last
10ms
min
≥5.6V,
≤6.1V
4µs
min
t
Figure 10 – First programming cycle to program bit2 into the EEPROM
www.azmicrotek.com
+1-480-962-5881
7
Request a Sample
May 2012, Rev 1.2



Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
DA
CLK
PV
bit 0
loaded 1st
bit 10
loaded last
10ms
min
≥5.6V,
≤6.1V
4µs
min
t
Figure 11 – Second programming cycle to program bit4 into the EEPROM
READING BACK FROM THE EEPROM
During programming, the PV pin is used to program the necessary control bits into the EEPROM. However, it is also used
to read the bits currently programmed into the EEPROM. When the PV pin is not used during programming, the AZT71
provides a weak pull-up and pull-down on the pin. This allows the EEPROM data to be shifted out to the PV pin and read
after the CLK sequence is complete and when the DA & CLK pins are high (Figure 12). Each EEPROM bit is selected by
setting the DA signal low (EEPROM selection is active low) during the CLK sequence. With an external 68kΩ resistor
pull-up to VDD on the PV pin, a low EEPROM bit produces ≤ 0.4V level while a high EEPROM bit produces a ≥ 0.6*VDD
level.
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
bit5
selected
DA
CLK
PV
bit0
bit10
loaded last
loaded 1st
Resulting voltage if
bit5 was high in
EEPROM
With an external 68kΩ resistor pull-up to VDD
≥ 0.6*VDD
≤ 0.4V
Resulting voltage if
bit5 was low in
EEPROM
indeterminate
t
Figure 12 – Timing diagram to read bits from EEPROM
www.azmicrotek.com
+1-480-962-5881
8
Request a Sample
May 2012, Rev 1.2




Arizona Microtek, Inc.
ERASING THE EEPROM
AZT71
Programmable Capacitive Tuning IC
The EEPROM can be erased by initiating a programming cycle with all DA bits set high, including bit9 and bit10. After
the programming cycle, all the EEPROM bits are set low (logical high) except for the check bit (bit0), which remains
high.
Table 7 – Erase sequence for EEPROM
Step
Action
1
Set the VDD supply voltage to +5.0V
2
3
4
Load the programming word bits all high.
Set the PV pin to +6V (≥5.6V, ≤6.1V) with the pulse and idle shown in timing diagram (Figure 13)
Verify the correct EEPROM contents by reading back the individual bits
bit 0
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
bit 9
bit 10
EEPROM has
been erased
(no capacitors
selected)
DA
CLK
PV
bit0
loaded 1st
bit10
loaded last
10ms
min
≥5.6V,
≤6.1V
4µs
min
t
Figure 13 – Programming Sequence for erasing the EEPROM
PROGRAMMING VOLTAGE LIMIT CIRCUIT
Some existing programming circuits use a current source connected to a 6.5 – 8.0 V supply. That circuit produces an
excessive voltage on the PV pin, which can damage the AZT71. A simple modification eliminates the issue and maintains
full programming compatibility with existing programming methods. A 5.6 V, ½ watt Zener, 1N5232B or equivalent,
placed between the PV pin and ground will limit the voltage while still allowing the programming circuit to generate the
current required for programming fuse link type parts.
www.azmicrotek.com
+1-480-962-5881
9
Request a Sample
May 2012, Rev 1.2

Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PERFORMANCE DATA
Table 8 – Absolute Maximum Ratings
Absolute Maximum Ratings are those values beyond which device life may be impaired.
Symbol
Characteristic
Power Supply
Rating
0 to +6.5
Unit
V
VDD
VI1
Input Voltage
-0.5 to VDD + 0.5
-40 to +85
-65 to +150
TBD
V
TA
Operating Temperature Range
Storage Temperature Range
Human Body Model
Machine Model
°C
°C
V
TSTG
ESDHBM
ESDMM
TBD
V
ESDCDM
Charged Device Model
TBD
V
1 PV Pin can exceed VDD by 1.2V during the programming interval
Table 9 – DC Characteristics
DC Characteristics (VDD = 2.375V to 3.6V unless otherwise specified, TA = -40 to 85 °C)
Symbol
Characteristic
Conditions
Min
Typ
Max
Unit
Nominal capacitance variation across
process
CPV
-15
+15
%
Capacitance variation across output
voltage
CVV
Voltage variation at X1 pin, 100MHz
±150 ppm/V
ppm/°C
100MHz - Zero Code
100MHz - Mid Code1
100MHz - Full Scale
DA, CLK
325
40
Capacitance variation across
temperature
CTV
130
VIH
VIL
Input HIGH Voltage
Input LOW Voltage
Pull-down Resistor
Pull-down Resistor
Pull-down Resistor
Output High Voltage
0.8 * VDD
0.2 * VDD
V
V
Ω
Ω
Ω
V
DA, CLK
RPD,D
RPD,CLK
RPD,PV
VOH
DA
75k
75k
CLK
PV
170k
0.6 * VDD
PV Pin when reading EEPROM bits
68kΩ external pull-up resistor to VDD
VOL
VPP
Output Low Voltage
0.4
V
Programming Voltage (VDD=5.0V)
PV pin when programming EEPROM
5.6
10
6.0
7.0
6.1
V
IDD
IDDPROG
tMEM
Power Supply Current
Power Supply Current
EEPROM Data Retention
Programming Temperature
Programming Cycle
Normal Operation
50
20
µA
µA
yrs
°C
k
Programming Mode
20
25
Tprog
Cyprog
1 Bit4, Bit7 High
www.azmicrotek.com
+1-480-962-5881
10
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
Table 10 – AC Characteristics
AC Characteristics (VDD = 2.375V to 3.6V unless otherwise specified, TA = -40 to 85 °C)
Symbol
Characteristic
Fixed Capacitance
Step Size
Conditions
Min
Typ
6.6
Max Unit
CF
pF
pF
pF
pF
pF
pF
pF
6.4
Chi
Max Value
19.2
1.4
Step Size
Cmid
Max Value
9.8
Step Size
0.063
1.953
Clo
Max Value
CLK
Tprog
Max CLK rate
50% duty cycle
5
MHz
Programming Time (VDD=5.0V, PV=6.0V)
per bit programmed
10
ms
20MHz - Full Scale
20MHz - Mid Scale
80MHz - Full Scale
80MHz - Mid Scale
155MHz - Full Scale
155MHz - Mid Scale
150
100
40
40
25
300
200
80
80
50
Q
Q Value
25
50
www.azmicrotek.com
+1-480-962-5881
11
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PACKAGE DIAGRAM
SON8 (1.5x1.0x0.4mm)
Green/RoHS compliant/Pb-Free
MSL=1
www.azmicrotek.com
+1-480-962-5881
12
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PACKAGE DIAGRAM
TSOT6
Green/RoHS compliant/Pb-Free
MSL=1
www.azmicrotek.com
+1-480-962-5881
13
Request a Sample
May 2012, Rev 1.2
Arizona Microtek, Inc.
AZT71
Programmable Capacitive Tuning IC
PACKAGE DIAGRAM
MLP6 (2.0mm x 2.0mm)
Green/RoHS compliant/Pb-Free
MSL=1
Arizona Microtek, Inc. reserves the right to change circuitry and specifications at any time without prior notice.
Arizona Microtek, Inc. makes no warranty, representation or guarantee regarding the suitability of its products for
any particular purpose, nor does Arizona Microtek, Inc. assume any liability arising out of the application or use of
any product or circuit and specifically disclaims any and all liability, including without limitation special,
consequential or incidental damages. Arizona Microtek, Inc. does not convey any license rights nor the rights of
others. Arizona Microtek, Inc. products are not designed, intended or authorized for use as components in systems
intended to support or sustain life, or for any other application in which the failure of the Arizona Microtek, Inc.
product could create a situation where personal injury or death may occur. Should Buyer purchase or use Arizona
Microtek, Inc. products for any such unintended or unauthorized application, Buyer shall indemnify and hold
Arizona Microtek, Inc. and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of
personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Arizona Microtek, Inc. was negligent regarding the design or manufacture of the part.
www.azmicrotek.com
+1-480-962-5881
14
Request a Sample
May 2012, Rev 1.2
厂商 型号 描述 页数 下载

POSEICO

 		AZT1150 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT1150S08 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT310HVI [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT310HVIS56 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT400HVI [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT400HVIS45 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT460 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT460S45 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT530 [ HIGH CURRENT PHASE CONTROL ] 4 页

POSEICO

 		AZT530S36 [ HIGH CURRENT PHASE CONTROL ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.303344s
