SZAF07

型号：

SZAF07

描述：

WHITE SIDE VIEW LED[ WHITE SIDE VIEW LED ]

品牌：

SEOUL[ Seoul Semiconductor ]

页数：

15 页

PDF大小：

818 K

下载PDF手册

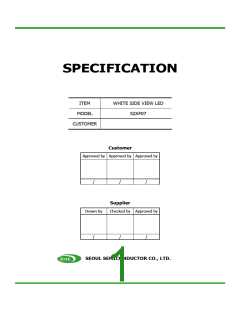

SPECIFICATION
ITEM
MODEL
WHITE SIDE VIEW LED
SZAF07
CUSTOMER
Customer
Approved by Approved by Approved by
/
/
/
Supplier
Drawn by
Checked by Approved by
/
/
/
SEOUL SEMICONDUCTOR CO., LTD.
SZAF07
Rev. 1.00
Contents
1. Features
02
02
03
03
04
06
09
10
11
12
13
14
15
2. Applications
3. Absolute Maximum Ratings
4. Electro-Optical Characteristics
5. CIE Chromaticity Diagram
6. Characteristic Diagram
7. Reliability
8. Precautions
9. Soldering Profile
10. Outline Dimension
11. Packing
12. Reel Packing Structure
13. History
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
1
SZAF07
Rev. 1.00
1. Features
ꢀ Package: SMT Solderability
ꢀ Dimension : 3.8 × 1.05 × 0.6 (mm)
ꢀ Low Thermal Resistance
ꢀ RoHS Compliant, Lead Free
ꢀ Suitable for Small Applications
ꢀ High ESD Voltage
ꢀ Own Patent Reserved
ꢀ
SZAF07 is Very Useful Side View LED in Back Light Unit Application
2. Applications
ꢀ Flat Backlighting (LCD, Display)
ꢀ Mobile Phone, Camera, PDA, Notebook
ꢀ Coupling into Light Guide Panel
ꢀ AV Systems
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
2
SZAF07
Rev. 1.00
3. Absolute Maximum Ratings
(Ta = 25°C)
Parameter
Symbol
Value
Unit
Pd*1
IF
Power Dissipation
Forward Current
120
30
mW
mA
mA
V
*2
Peak Forward Current
Reverse Voltage
100
IFM
5
VR
Operating Temperature
Storage Temperature
Junction Temperature
-30 ~ +85
-40 ~ +100
125
°C
Topr
Tstg
Tj
°C
°C
*1 Care is to be taken that Power Dissipation does not exceed the Absolute Maximum Rating of the product.
*2 FM conditions : Pulse width TW ≤ 0.1ms, Duty ratio ≤ 1/10
I
4. Electro-Optical Characteristics
(Ta = 25°C)
Item
Forward Voltage*
Symbol
Condition
IF = 20 mA
VR = 5 V
Min
Typ
Max
Unit
Rank Y
Rank Z
Rank A
2.7
3.0
3.3
-
800
900
1000
1100
1200
1300
-
-
-
-
-
-
-
-
-
-
3.0
3.3
3.7
50
V
VF
IR
Reverse Current
µA
Mcd
˚
Rank I8
Rank I9
Rank J0
Rank J1
Rank J2
Rank J3
900
1000
1100
1200
1300
1400
Luminous Intensity*1
Viewing Angle *2
IV
IF = 20 mA
IF = 20 mA
IF = 20 mA
120
2θ1/2
x
y
x
y
x
y
0.264
0.248
0.287
0.276
0.307
0.294
-
-
-
-
-
-
0.296
0.295
0.311
0.315
0.330
0.339
Rank b
Rank e
Rank f
Color Coordinates
*3
*1 luminous intensity IV is measured at the peak of the spatial pattern which may not be aligned with the mechanical axis of the LED
package. Luminous Intensity Measurement allowance is ±10%.
*2 θ1/2 is the off-axis where the luminous intensity is 1/2 of the peak intensity.
*3 Measurement Uncertainty of the Color Coordinates is ±0.01
*
Note : All products confirm to the listed minimum and maximum specifications for electric and optical characteristics, when operated at
20mA within the maximum ratings shown above.
All measurements were made under the standardized environment of Seoul Semiconductor.
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
3
SZAF07
Rev. 1.00
5. CIE Chromaticity Diagram
0.9
0.40
0.38
0.36
0.34
0.32
0.30
0.28
0.26
0.24
0.22
520
525
515
510
530
535
540
545
550
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
g
h
555
560
565
570
575
580
585
590
595
600
610
620
505
500
d
f
c
495
e
490
630
830
b
485
480
475
470
460
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
0.24 0.26 0.28 0.30 0.32 0.34 0.36 0.38
x Co o r d .
x C o o r d .
ꢀ
Luminous Intensity
Ranking by Color Coordinates
b1
b2
b3
b4
Ranking by Luminous Intensity
D
I8
I9
J0
J1
J2
J3
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
E
F
G
H
I
*
The Checked ranks are available
ꢀ
Color Rank
(I
F = 20 mA, Ta = 25°C)
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
4
SZAF07
Rev. 1.00
6. Characteristic Diagram
Forward Current vs. Forward Voltage
Intensity vs. Forward Current
Ta = 25OC
1800
1600
1400
1200
1000
800
600
400
200
0
Ta = 25OC
10
1
0
5
10
15
20
25
30
35
2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4
Forward Current [mA]
Forward Voltage [V]
Forward Current vs. Ambient Temperature
Radiation Diagram
30
25
20
15
10
5
1.0
0.5
0.0
Ta = 25OC
x axis
axis
y
y
x
0
-30 -15
0
15 30 45 60 75 90
-100 -80 -60 -40 -20
0
20 40 60 80 100
Theta
Ambient temperature [oC]
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
5
SZAF07
Rev. 1.00
Color Coordinate vs. Forward Current
Spectrum
0.266
0.265
0.264
0.263
Ta = 25OC
30 mA
Ta = 25OC
IF = 20 mA
1 mA
0.274
0.276
0.278
0.280
400
500
600
700
800
x Coord.
Wavelength [nm]
Forward Voltage vs. Ambient Temperature
Color Coordinate vs. Ambient Temperature
0.266
1.06
Ta = 25OC
30 mA
IF = 20 mA
1.04
0.265
0.264
1.02
1.00
0.98
0.96
0.94
1 mA
0.263
0.274
0.276
0.278
0.280
-45 -30 -15
0
15 30 45 60 75 90
Ambient Temperature [oC]
x Coord.
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
6
SZAF07
Rev. 1.00
Relative Luminosity vs. Ambient Temperature
Allowable Forward Current vs. Duty Ratio
120
100
80
1.2
1.1
1.0
0.9
0.8
0.7
Ta = 25OC
60
40
20
-30 -15
0
15 30 45 60 75 90
1
10
100
Ambient Temperature [oC]
Duty Ratio [%]
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
7
SZAF07
Rev. 1.00
7. Reliability
(1) TEST ITEMS AND RESULTS
TEST ITEM
Number of
Damaged
Test conditions
Note
Reference
EIAJ ED-4701
100 101
EIAJ ED-4701
100 101
EIAJ ED-4701
300 307
Ta = 25°C; IF = 20 mA
Ta = 25°C; IF = 30 mA
Life Test 1
1000 hr
500 hr
0/20
0/20
0/50
0/20
0/20
0/50
0/50
0/20
0/50
0/50
0/50
0/50
0/50
Life Test 2
-30°C ~ 85°C
(30 min) (30 min)
Thermal Shock
20 cycle
1000 hr
1000 hr
1000 hr
1000 hr
500 hr
Ta = 85°C; IF = 5 mA
Ta = - 30°C; IF = 20 mA
Ta = 100°C
High Temperature Life Test
Low Temperature Life Test
High Temperature Storage
Low Temperature Storage
High Humidity Heat Life Test
Humidity Heat Load
-
-
EIAJ ED-4701
200 201
EIAJ ED-4701
200 202
EIAJ ED-4701
100 102
EIAJ ED-4701
100 103
EIAJ ED-4701
301 302
EIAJ ED-4701
303
EIAJ ED-4701
100 105
EIAJ ED-4701
200 203
Ta = - 40°C
Ta = 60°C; RH = 90%, IF = 20 mA
Ta = 60°C; RH = 90%
1000 hr
2 time
Tsld = 260°C, 10 sec
Resistance to Soldering Heat
Solder ability (Reflow Soldering)
Temperature Cycle
Pre treatment; 30°C, 70%, 168 hr
Tsld = 215±5°C, 3 sec
1 time
over 95%
(Lead Solder)
- 40°C ~ 25°C ~ 100°C ~ 25°C
100 cycle
10 cycle
(30 min) (5 min) (30 min) (5 min)
25°C ~ 65°C ~ - 10°C
RH = 90%, 24 hr / 1 cycle
Moisture Resistance Cycle
(2) CRITERIA FOR JUDGING THE DAMAGE
Criteria for Judgment
Min. Max.
Item
Symbol
Test Condition
Forward Voltage
Reverse Current
-
U.S.L × 1.2
U.S.L × 2.0
-
VF
IR
IV
IF = 20 mA
-
V = 5 V
R
Luminous Intensity
L.S.L × 0.5
IF = 20 mA
U.S.L. : Upper Standard Level,
L.S.L. : Lower Standard Level
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
8
SZAF07
Rev. 1.00
8. Precautions
(1) Storage conditions
ꢀ Keep the product in a dry box or a desiccator with a desiccant in order to prevent moisture absorption.
a. Keep it at a temperature in the range from 5°C to 30°C and at a humidity of less than 60% RH.
ꢀ In case of being stored for more than 3 months, the product should be sealed with Nitrogen gas.
(2) After opening the package
ꢀ When soldering, this could result in a decrease of the photoelectric effect or light intensity.
a. Soldering should be done right after mounting the product.
b. Keep the temperature in the range from 5°C to 40°C and the humidity at less than 30%.
ꢀ Soldering should be done within 7 days after opening the desiccant package.
If the product has been exposed for more than 7 days after opening the package or the indicating color
of the desiccator changes, the product must be baked at a temperature between 60°C and 65°C for 10 to
12 hours.
ꢀ An unused and unsealed product should be repacked in a desiccant package and kept sealed in a dry
atmosphere.
(3) Precautions for use
ꢀ Any external mechanical force or excessive vibration should not be applied to the product during cooling
after soldering, and it is preferable to avoid rapid cooling.
ꢀ The product should not be mounted on a distorted part of PCB.
ꢀ Gloves or wrist bands for ESD(Electric Static Discharge) should be wore in order to prevent ESD and
surge damage, and all devices and equipments must be grounded to the earth.
(4) Miscellaneous
ꢀ Radiation resistance is not considered.
ꢀ When cleaning the product, any kind of fluid such as water, oil and organic solvent must not be used
and IPA(Isopropyl Alcohol) must be used.
ꢀ When using the product, operating current should be settled in consideration of the maximum ambient
temperature.
ꢀ Its appearance or specification for improvement is subject to change without notice.
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
9
SZAF07
Rev. 1.00
9. Soldering Profile
The LED can be soldered in place using the reflow soldering method.
(1) Lead solder
Preliminary heating to be at maximum 210°C for maximum 2 minutes.
Soldering heat to be at maximum 240°C for maximum 10 seconds.
280
240
200
160
120
80
40
0
0
15
30
45
60
75
90 105 120 135 150 165 180 195
Soldering Times [sec]
(2) Lead-free solder
Preliminary heating to be at maximum 220°C for maximum 2 minutes.
Soldering heat to be at maximum 260°C for maximum 10 seconds.
280
240
200
160
120
80
40
0
0
15
30
45
60
75
90 105 120 135 150 165 180 195
Soldering Times [sec]
(3) Hand Soldering conditions
Not more than 5 seconds @MAX 300°C, under Soldering iron.
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
10
SZAF07
Rev. 1.00
10. Outline Dimension
( Tolerance : ±0.2, Unit : mm )
[Bottom View]
Cathode
Anode
<Recommended solder Pattern>
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
11
SZAF07
Rev. 1.00
11. Packing
( Tolerance : ±0.2, Unit : mm )
4.0±0.1
+0.1
-0
2.0±0.05
Cathode
Anode
4.0±0.1
SECTION B-B'
15.4±1.0
+0.2
+0
-3
180
13
-0
2 ±0.2
22
13 ±0.3
Label
(1)
(2)
(3)
Quantity: 3500 pcs / Reel
Cumulative Tolerance: Cumulative Tolerance / 10 pitches to be ±0.2 mm
Adhesion Strength of Cover Tape: Adhesion strength to be 0.1 - 0.7 N when the cover tape is turned off from
the carrier tape at 10° angle to be the carrier tape
(4)
Package: P/N, Manufacturing data Code No. and quantity to be indicated on a damp proof Package
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
12
SZAF07
Rev. 1.00
12. Reel Packing Structure
Reel
Aluminum Vinyl Bag
Desiccant
Humidity indicator
Barcode Label
Outer Box Structure
RANK :
XXX
QUANTITY : XXXX
LOT NUMBER : XXXXXXXX
142 (mm)
TUV
MADE IN KOREA
SSC PART NUMBER : XXXXXXXX
SIZE (mm)
SWBK07 X
SEOUL
Acriche
TYPE
7inch
Semiconductor EcoLight
a
c
b
RoHS
Material : Paper(SW3B(B))
245 220 142
245 220 80
220 (mm)
245 (mm)
ꢀ Lot Number
The lot number is composed of the following characters;
SZAF07 ○□□◎◎ ◇◇◇
Symbol
○
Meaning
Year
Example
8 for 2008, 9 for 2009, 10 for 2010 ‥‥
01 for Jan., 02 for Feb., ‥‥ 12 for Dec.
01, 02, 03, 04, 05, ‥‥ 27, 28, 29, 30, 31
001, 002, 003, 004, 005, 006, 007 ‥‥
□□
Month
Day
◎◎
◇◇◇
Number
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
13
SZAF07
Rev. 1.00
13. History
Rev. No.
1.00
Contents
Date
- The institution of New Spec.
2008. 05.16
Published by
SEOUL SEMICONDUCTOR CO., LTD.
http://www.seoulsemicon.com
148-29, Gasan-Dong, Geumcheon-Gu,
Seoul, 153-801. South Korea
© All Right Reserved.
SSC-QP-7-03-44(갑)
SEOUL SEMICONDUCTOR CO., LTD.
14
厂商 型号 描述 页数 下载

SIRENZA

 		SZA-2044 2.0-2.7 GHz的5V 1W功率放大器[ 2.0-2.7 GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-2044Z 2.0-2.7 GHz的5V 1W功率放大器[ 2.0-2.7 GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-3044 2.7-3.8GHz 5V 1W功率放大器[ 2.7-3.8GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-3044Z 2.7-3.8GHz 5V 1W功率放大器[ 2.7-3.8GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-5044 4.9 - 5.9 GHz的5V电源功放[ 4.9 - 5.9 GHz 5V Power Amplifier ] 7 页

SIRENZA

 		SZA-5044Z 4.9 - 5.9 GHz的5V电源功放[ 4.9 - 5.9 GHz 5V Power Amplifier ] 7 页

SIRENZA

 		SZA-6044 5.1 5.9 GHz的1/4瓦功率放大器的有源偏置[ 5.1- 5.9 GHz 1/4 Watt Power Amplifier with Active Bias ] 6 页

SEOUL

 		SZA05A0A ž电源指示灯 - 超高光通量输出，高亮度[ Z Power LED - Super high Flux output and high Luminance ] 21 页

ARCH

 		SZA100-12S [ Open Frame Switching Power Supply ] 5 页

ARCH

 		SZA100-15S [ Open Frame Switching Power Supply ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.246079s
