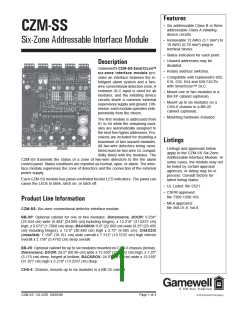

Features
• Six addressable Class B or three
addressable Class A initiating
device circuits.
CZM-SS
• Removable 12 AWG (3.1 mm²) to
18 AWG (0.78 mm²) plug-in
terminal blocks.
Six-Zone Addressable Interface Module
• Status indicators for each point.
• Unused addresses may be
disabled.
Description
Gamewell’s CZM-SS SmartScanTM
six-zone interface module pro-
vides an interface between the in-
telligent alarm system and a two-
wire conventional detection zone. A
common SLC input is used for all
modules, and the initiating device
circuits share a common external
supervisory supply and ground. Oth-
erwise, each module operates inde-
pendently from the others.
• Rotary address switches.
• Compatible with Gamewell’s 602,
610, 632, 654 and 658 FACPs
with SmartScan™ SLC.
• Mount one or two modules in a
BB-XP cabinet (optional).
• Mount up to six modules on a
CHS-6 chassis in a BB-25
cabinet (optional).
• Mounting hardware included.
The first module is addressed from
01 to 94 while the remaining mod-
ules are automatically assigned to
the next five higher addresses. Pro-
visions are included for disabling a
maximum of two unused modules.
All two-wire detectors being moni-
Listings
Listings and approvals below
apply to the CZM-SS Six-Zone
Addressable Interface Module. In
some cases, the module may not
be listed by certain approval
agencies, or listing may be in
process. Consult factory for
latest listing status.
tored must be two-wire UL compat-
ibility listed with the modules. The
CZM-SS transmits the status of a zone of two-wire detectors to the fire alarm
control panel. Status conditions are reported as normal, open, or alarm. The inter-
face module supervises the zone of detectors and the connection of the external
power supply.
Each CZM-SS module has panel-controlled bicolor LED indicators. The panel can
cause the LEDs to blink, latch on, or latch off.
• UL Listed: file S521.
• CSFM approved:
file 7300-1288:169.
Product Line Information
• MEA approved:
file 368-01-E Vol.II.
CZM-SS: Six-zone conventional-detector interface module.
BB-XP: Optional cabinet for one or two modules. Dimensions, DOOR: 9.234"
(23.454 cm) wide (9.484" [24.089 cm] including hinges), x 12.218" (31.0337 cm)
high, x 0.672" (1.7068 cm) deep; BACKBOX: 9.0" (22.860 cm) wide (9.25" [23.495
cm] including hinges), x 12.0" (30.480 cm) high x 2.75" (6.985 cm); CHASSIS
(installed): 7.150" (18.161 cm) wide overall x 7.312" (18.5725 cm) high interior
overall x 2.156" (5.4762 cm) deep overall.
BB-25: Optional cabinet for up to six modules mounted on CHS-6 chassis (below).
Dimensions, DOOR: 24.0" (60.96 cm) wide x 12.632" (32.0852 cm) high, x 1.25"
(3.175 cm) deep, hinged at bottom; BACKBOX: 24.0" (60.96 cm) wide x 12.550"
(31.877 cm) high x 5.218" (13.2537 cm) deep.
CHS-6: Chassis, mounts up to six modules in a BB-25 cabinet.
