CYT6118DKG

型号:

CYT6118DKG

描述:

500毫安CMOS LDO稳压器[ 500mA CMOS LDO Regulator ]

品牌:

ETC[ ETC ]

页数:

6 页

PDF大小:

172 K

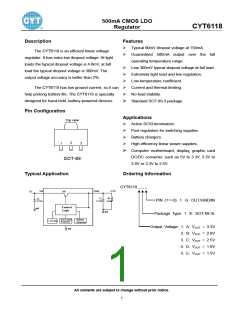

500mA CMOS LDO
Regulator
CYT6118
Description
Features
¾
Typical 90mV dropout voltage at 150mA.
The CYT6118 is an efficient linear voltage
¾
Guaranteed 500mA output over the full
operating temperature range.
regulator. It has extra low dropout voltage. At light
loads the typical dropout voltage is 4.6mV, at full
load the typical dropout voltage is 300mV. The
output voltage accuracy is better than 2%.
¾
¾
¾
¾
¾
¾
Low 300mV typical dropout voltage at full load.
Extremely tight load and line regulation.
Low temperature coefficient.
The CYT6118 has low ground current, so it can
help prolong battery life. The CYT6118 is specially
designed for hand-held, battery-powered devices.
Current and thermal limiting.
No-load stability.
Standard SOT-89-3 package.
Pin Configuration
Applications
Top view
¾
¾
¾
¾
¾
Active SCSI terminators.
Post regulators for switching supplies.
Battery chargers.
2
3
1
High-efficiency linear power supplies.
Computer motherboard, display, graphic card
DC/DC converter, such as 5V to 3.3V, 3.3V to
2.8V or 3.3V to 2.5V.
SOT-89
Typical Application
Ordering Information
CYT6118 _ _ _
3.3V
Vin
Vout
M0
5V
C1
C=10u
R2
rload
C0
C=10u
PIN (1=>3): 1. G: OUT/GND/IN
Control
Logic
gnd
gnd
Package Type: 1. K: SOT-89-3L
Over Current
Protection
Thermal
Protection
1.25V Ref
Output Voltage: 1. A: VOUT = 3.3V
2. B: VOUT = 2.8V
gnd
3. C: VOUT = 2.5V
4. D: VOUT = 1.8V
5. E: VOUT = 1.5V
All contents are subject to change without prior notice.
1
500mA CMOS LDO
Regulator
CYT6118
Absolute Maximum Ratings(1)
Operating Ratings(2)
Supply Input Voltage (VIN) ..……….… -0.7V to +7V
Power Dissipation (PD) …………. Internally Limited(3)
Junction Temperature (TJ) …….….. 0°C to +125°C
Lead Temperature (soldering, 5 sec.) ….…. 260°C
Storage Temperature (TS) ………. -10°C to +150°C
Supply Input Voltage (VIN) ……...…… +2.5V to +6V
Junction Temperature (TJ) …….….. 0°C to +125°C
Package Thermal
Resistance …………………………………120°C /W
Electrical Characteristics
VIN = VOUT + 1.0V; COUT = 4.7µF, IOUT = 10mA; TJ = 25°C;unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Units
1.470
1.764
2.450
2.744
3.234
1.5
1.8
2.5
2.8
3.3
1.530
1.836
2.550
2.856
3.366
CYT6118-1.5V
CYT6118-1.8V
CYT6118-2.5V
CYT6118-2.8V
Output Voltage
Accuracy
VOUT
V
CYT6118-3.3V
Output Voltage
Temperature Coefficient
Line Regulation
VOUT /T
Note 4
--
40
--
ppm/
VOUT / VOUT
VOUT / VOUT
VIN = VOUT + 1V to 5.5V
--
--
--
--
--
--
--
--
--
--
--
--
--
0.3
0.5
9
--
--
--
--
--
--
--
--
--
--
--
--
--
%
%
Load Regulation(5)
I
OUT =10mA to 500mA(5)
IOUT =10mA
VOUT<2V
Dropout
mV
mV
IOUT =150mA
IOUT =500mA
IOUT =10mA
175
530
4.6
90
VIN - VOUT
Voltage(6)
VOUT>2V
IOUT =150mA
IOUT =500mA
300
150
30
Thermal Protection Temperature
Protection Hysterisys
f =120Hz
ºC
ºC
dB
mA
A
TPROTECTION
Thermal Protection
PSRR
IGROUND
ILIMIT
Ripple Rejection
Ground Current
Current Limit
35
IOUT=10mA
1
VOUT =0V
1.5
All contents are subject to change without prior notice.
2
500mA CMOS LDO
Regulator
CYT6118
Note 1: Exceeding the absolute maximum rating may damage the device.
Note 2: The device is not guaranteed to function outside its operating rating.
Note 3: The maximum allowable power dissipation at any TA (ambient temperature) is calculated using: PD(MAX) = (TJ(MAX)
- TA)/θJA. Exceeding the maximum allowable power dissipation will result in excessive die temperature, and the
regulator will go into thermal shutdown. See Table 1 and the “Thermal Considerations” section for details.
Note 4: Output voltage temperature coefficient is the worst-case voltage change divided by the total temperature range.
Note 5: Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are tested for
load regulation in the load range from 100µA to 500mA. Changes in output voltage due to heating effects are
covered by the thermal regulation specification.
Note 6: Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
All contents are subject to change without prior notice.
3
500mA CMOS LDO
Regulator
CYT6118
Application Hints
Thermal Consideration
Like any Low dropout regulator, CYT6118 requires
external capacitors to ensure stability. The external
capacitors must be carefully selected to ensure the
performances.
It is important that the thermal limit of the package
should not be exceeded. The CYT6118 has built-in
thermal protection. When the thermal limit is
exceeded, the IC will enter protection, and the VOUT
will be reset to zero. The power dissipation for a
given application can be calculated as follows:
Input Capacitor:
An Input Capacitor of at least 10uF is required.
Ceramic or Tantalum can be used. The value can
be increased without upper limit.
The Power Dissipation (PD) is
PD = IOUT * [VIN – VOUT
]
The thermal limit of the package is then limited to
D(MAX) = [TJ – TA]/θJA where TJ is the junction
Output Capacitor:
An Output Capacitor is required for look stability. It
must be located no more than 1cm away from the
P
temperature, TA is ambient temperature, and θJA is
around 120°C/W for CYT6118. CYT6118 is designed
to enter thermal protection at 150°C. For example, if
TA is 25°C then the max PD is limited to about 1W.
In other words, if IOUT(MAX) = 500mA, then [VIN –
VOUT pin, and connected directly between VOUT and
GND pins. The minimum value is 10uF but once
again its value can be increased without limit.
VOUT] can not exceed 2.1V.
All contents are subject to change without prior notice.
4
500mA CMOS LDO
Regulator
CYT6118
Typical Performance Characteristics
(VIN = 5V, CIN = 1µF, COUT = 10µF, TA=25°C, unless otherwise noted.)
Output Voltage vs Temperature
Load Regulation
3.5
3
3.5
3
1.5V
1.8V
2.5V
3.3V
1.5V
1.8V
2.5V
3.3V
2.5
2
2.5
2
1.5
1
1.5
1
0
50
100
150
0
100
200
300
400
500
600
Temperature (C)
Output Current (mA)
Quiescent Current vs Temperature
(Output Voltage @ 2.5V)
Dropout Voltage vs Output Current
0.6
0.5
0.4
0.3
0.2
0.1
0
1.17
1.16
1.15
1.14
1.13
1.12
1.11
1.1
1.09
1.08
1.07
1.06
1.5V
1.8V
2.5V
3.3V
0
20
40
60
80
100
120
140
0
100
200
300
400
500
600
Temperature (C)
Output Current (mA)
Line Transient
Load Transient (10mA – 500mA)
All contents are subject to change without prior notice.
5
500mA CMOS LDO
Regulator
CYT6118
Outline Drawing for SOT-89
DIMENSIONS
INCHES
MIN MAX
MM
MAX
DIMN
MIN
0.173 0.181 4.400 4.600
0.159 0.167 4.050 4.250
0.067 0.075 1.700 1.900
0.051 0.059 1.300 1.500
0.094 0.102 2.400 2.600
0.035 0.047 0.890 1.200
A
B
C
D
E
F
G
H
I
SOT-89
A
C
D
J
K
L
0.118REF
0.059REF
3.00REF
1.50REF
0.016 0.020 0.400 0.520
0.055 0.063 1.400 1.600
0.014 0.016 0.350 0.410
J
K
L
G
H
I
10°TYP
10°TYP
0.028REF
0.70REF
M
All contents are subject to change without prior notice.
6
