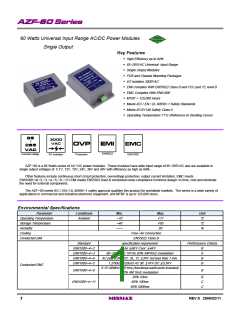

AZF-60 Series
60 Watts Universal Input Range AC/DC Power Modules
Single Output
Key Features
y High Efficiency up to 84%
y 85~265VAC Universal Input Range
y Single Output Modules
y PCB and Chassis Mounting Packages
y I/O Isolation 3000VAC
y EMI Complies With EN55022 Class B and FCC part 15, level B
y EMC Complies With EN61000
y MTBF > 125,000 Hours
y Meets IEC / EN / UL 60950-1 Safety Standards
y Meets IEC61140 Safety Class II
y Operating Temperature 71] (Reference to Derating Curve)
85
3000
VAC
EMI
EMC
OVP
265
VAC
EN55022
Universal Voltage
I/O Isolation
Protection
EN61000
AZF-60 is a 60 Watts series of AC-DC power modules. These modules have wide input range of 85~265VAC and are available in
single output voltages of 5.1V, 12V, 15V, 24V, 36V and 48V with efficiency as high as 84% .
Other features include continuous short circuit protection, overvoltage protection, output current limitation, EMC meets
EN61000-4(-2,-3,-4,-5,-6,-11) EMI meets EN55022 level B conducted noise compliance minImize design-in time, cost and eliminate
the need for external components.
The AZF-60 meets IEC / EN / UL 60950-1 safety approval qualifies this product for worldwide markets. The series is a wide variety of
applications in commercial and industrial electronic equipment, and MTBF is up to 125,000 hours.
Environmental Specifications
Parameter
Operating Temperature
Storage Temperature
Humidity
Conditions
Min.
-10
-40
---
Max.
+71
+85
95
Unit
]
Ambient
]
%
Cooling
Free-Air Convection
EN55022 Class B
Conducted EMI
Standard
specification requirement
Air {8KV Cont. {4KV
Performance Criteria
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
B
A
B
B
80~1000MHz 10V/m 80% AM1KHz modulation
AC port {2KV DC, SL, TL {2KV not less than 1 min.
1.2/50uS(8/20uS) AC dif. {1KV DC {0.5KV
0.15~80MHz 10Vrms (functional earth ports included)
80% AM 1kHz modulation
30% 10ms
Conducted EMC
EN61000-4-6
B
B
C
C
EN61000-4-11
60% 100ms
95% 5000ms
REV:5 2009/02/11
MINMAX
1
