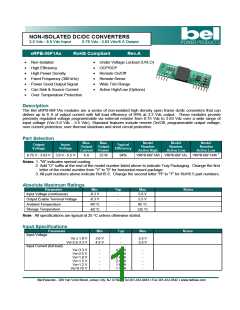

NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output
xRPB-06F1Ax
RoHS Compliant
Rev.A
•
•
•
•
•
•
•
Non-Isolated
•
•
•
•
•
•
Under Voltage Lockout (UVLO)
OCP/SCP
High Efficiency
High Power Density
Remote On/Off
Fixed Frequency (300 kHz)
Power Good Output Signal
Can Sink & Source Current
Over Temperature Protection
Remote Sense
Wide Trim Range
Active High/Low (Options)
Description
The Bel xRPB-06F1Ax modules are a series of non-isolated high density open frame dc/dc converters that can
deliver up to 6 A of output current with full load efficiency of 94% at 3.3 Vdc output. These modules provide
precisely regulated voltage programmable via external resistor from 0.75 Vdc to 3.63 Vdc over a wide range of
input voltage (Vin=3.0 Vdc - 5.5 Vdc). Standard features include remote On/Off, programmable output voltage,
over current protection, over thermal shutdown and short circuit protection.
Part Selection
Max.
Output
Current
Max.
Output
Power
Model
Number
Active High
Model
Number
Active Low
Model
Number
Active Low
Output
Voltage
Input
Voltage
Typical
Efficiency
0.75 V - 3.63 V 3.0 V - 5.5 V
6 A
22 W
94%
VRPB-06F1A0 VRPB-06F1AL VRPB-06F1AW 1
Notes: 1. “W” indicates special coating.
2. Add “G” suffix at the end of the model number listed above to indicate Tray Packaging. Change the first
letter of the model number from “V” to “0” for horizontal mount package.
3. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage (continuous)
-0.3 V
-
5.8 V
Output Enable Terminal Voltage
Ambient Temperature
-0.3 V
-40 °C
-40 °C
-
-
-
5.5 V
85 °C
125 °C
Storage Temperature
Note: All specifications are typical at 25 °C unless otherwise stated.
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
Vo ≤ 1.8 V
Vo=2.5-3.3 V
3.0 V
4.5 V
-
-
5.5 V
5.5 V
Input Current (full load)
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
Vo=1.2 V
Vo=0.75 V
-
-
-
-
-
-
4.21 A
3.26 A
2.43 A
2.07 A
1.69 A
1.14 A
-
-
-
-
-
-
