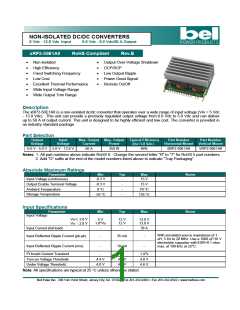

NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.6 Vdc - 5.0 Vdc/50 A Output
xRP2-50E1A0
RoHS Compliant
Rev.E
•
•
•
•
•
•
•
Non-Isolated
•
•
•
•
•
Output Over-Voltage Shutdown
OCP/SCP
High Efficiency
Fixed Switching Frequency
Low Cost
Low Output Ripple
Power Good Signal
Remote On/Off
Excellent Thermal Performance
Wide Input Voltage Range
Wide Output Trim Range
Description
The xRP2-50E1A0 is a non-isolated dc/dc converter that operates over a wide range of input voltage (Vin = 5 Vdc
- 13.8 Vdc). This unit can provide a precisely regulated output voltage from 0.6 Vdc to 5.0 Vdc and can deliver
up to 50 A of output current. This unit is designed to be highly efficient and low cost. The converter is provided in
an industry standard package.
Part Selection
Output
Voltage
Input
Voltage
Max. Output Max. Output Typical Efficiency
Part Number
Horizontal Mount Vertical Mount
Part Number
Current
Power
(Vo=1.8 Vdc）
0.6 V - 5.0 V 5.0 V - 13.8 V
50 A
250 W
86%
0RP2-50E1A0 VRP2-50E1A0
Notes: 1. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
2. Add “G” suffix at the end of the model numbers listed above to indicate “Tray Packaging”.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage (continuous)
-0.3 V
-
15 V
Output Enable Terminal Voltage
Ambient Temperature
-0.3 V
0 °C
-
-
-
15 V
70 °C
125 °C
Storage Temperature
-55 °C
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
Vo≤2.8 V
Vo >2.8 V
5 V
1.8*Vo
12 V
12 V
13.8 V
13.8 V
Input Current (full load)
-
-
38 A
With simulated source impedance of 1
uH, 5 Hz to 20 MHz. Use a 1000 uF/16 V
electrolytic capacitor with ESR=0.1 ohm
max, at 100 kHz at 25°C.
Input Reflected Ripple Current (pk-pk)
-
35 mA
-
Input Reflected Ripple Current (rms)
-
10 mA
-
I2t Inrush Current Transient
Turn-on Voltage Threshold
Under Voltage Threshold
-
-
1 A2s
4.8 V
4.6 V
4.4 V
4.0 V
4.6 V
4.3 V
Note: All specifications are typical at 25 °C unless otherwise stated.
