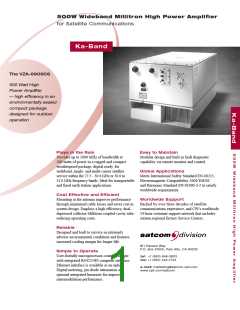

Ka-Band
SPECIFICATIONS, VZA-6906C6
Electrical
Electrical (continued)
Frequency
Custom frequency ranges between
27.5 and 30.0 GHz or 30.0 to 31.0 GHz
Intermodulation
-24 dBc max. with two equal
carriers at total output power
7 dB OBO (3 dB OBO with optional
integral linearizer)
Output Power
Millitron
Flange
500 W min. (57.0 dBm)
400 W min. (56.0 dBm)
O P T I O N S :
Group Delay (in any 40 MHz band)
Linear
Parabolic
Ripple
0.03 ns/MHz max.
0.02 ns/MHz sq. max.
2.0 ns pk-pk max.
Bandwidth
1000 or 2000 MHz instantaneous max.
70 dB typ.
• Remote Control Panel
• Integrated Linearizer
Small Signal Gain
RF Level Adjust
Gain Stability
0 to 30 dB typ.
Primary Power
180-264 VAC, 47-63 Hz
• Integrated 1:1 Switch
Control and Drive
0.25 dB/24hr max.
(at constant drive and temp.) ;
1 dB over temp.
Power Consumption
1.7 kVA, typ.
2.0 kVA, max.
Power Factor
0.95 min.
• Redundant and Power
Combined Subsystems
Small Signal Gain Slope
0.05 dB/MHz max.
Environmental (Operating)
Small Signal Gain Variation
1.5 dB pk-pk max. across any 500 MHz band;
2.5 dB pk-pk max. across 2500 MHz band
Ambient Temperature
-40°C to +50°C operating,
-30°C to +70°C non-operating
• Ethernet Interface
• Harmonic Filter
Input VSWR
Output VSWR
Load VSWR
1.3:1 max.
1.3:1 max.
Relative Humidity
Altitude
100% condensing
• L-Band Block Up Converter
10,000 ft. with standard adiabatic
derating of 2°C/1000 ft., operating;
50,000 ft., non-operating
2.0 max. operational; any value for operation
without damage
Phase Noise
Single Carrier
AC fundamentals related
Sum of Spurs
Shock
20 g pk, 11 msec, 1/2 sine pulse
2.1 grms; 5-500 Hz
Exceeds IESS-308/309 by 10 dB
-36 dBc
-47 dBc (370 Hz to 1 MHz)
Vibration
Acoustic Noise
Heat Dissipation
Mechanical
Cooling (TWT)
RF Input Connection
RF Output Connection
65 dBA @ 3 ft. from amplifier
1400 watts, max.
AM/PM Conversion
2.0°/dB max. for a single carrier at
7 dB below rated power (at 3 dB below
rated power with linearizer)
Forced air with integral blower
WR-28G waveguide
Harmonic Output
-30 dBc at rated power, second and third
harmonics
WR 34 waveguide with
UG-1530/U flange (WR-28 optional)
Noise and Spurious
(at rated gain)
<-150 dBW/4 kHz below 21.2 GHz
<-70 dBW/4 kHz in passband
<-50 dBc above 31 GHz
RF Output Monitor
2.9 mm coax, female
Dimensions (WxHxD)
14.5 x 13.1 x 24.0
(368 x 333 x 610)
Weight
91 lbs with no options (41.4 kg)
Certificate Number: 30515
For more detailed information, please refer to the corresponding CPI Technical Description.
Note: Specifications may change without notice as a result of additional data or product refinement.
Please contact CPI before using this information for system design.
MKT 222, ISSUE 3
12/08
