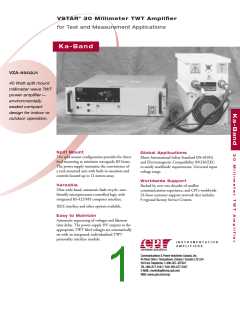

VSTAR 30 Millimeter TWT Amplifier
for Test and Measurement Applications
Ka-Band
VZA-6902J1
40 Watt split mount
millimeter wave TWT
power amplifier—
environmentally
sealed compact
design for indoor or
outdoor operation.
Split Mount
Global Applications
The split mount configuration provides for direct
feed mounting to minimize waveguide RF losses.
The power supply maintains the convenience of
a rack mounted unit with built-in monitors and
controls located up to 12 meters away.
Meets International Safety Standard EN-61010,
and Electromagnetic Compatibility 89/336/EEC
to satisfy worldwide requirements. Universal input
voltage range.
Worldwide Support
Versatile
Backed by over two decades of satellite
communications experience, and CPI’s worldwide
24-hour customer support network that includes
9 regional factory Service Centers.
Ultra wide-band, automatic fault recycle, user-
friendly microprocessor-controlled logic with
integrated RS-422/485 computer interface.
IEEE interface and other options available.
Easy to Maintain
Automatic sequencing of voltages and filament
time delay. The power supply HV outputs to the
appropriate TWT label voltages are automatically
set with an integrated, individualized TWT
personality interface module.
I N S T R U M E N T A T I O N
A M P L I F I E R S
Communications & Power Industries Canada, Inc.
45 River Drive / Georgetown, Ontario / Canada L7G 2J4
Hot Line Telephone: 1-800-267-JETSAT
TEL: 905-877-0161 / FAX: 905-877-5327
E-MAIL: marketing@cmp.cpii.com
WEB: www.cpii.com/cmp
