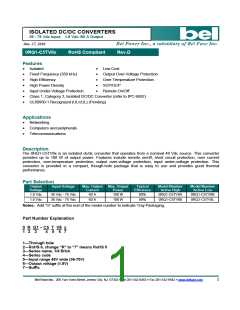

ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RQ1-C5TV8x
Features
RoHS Compliant
Rev.D
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
Low Cost
Fixed Frequency (350 kHz)
High Efficiency
Output Over-Voltage Protection
Over Temperature Protection
SCP/OCP
High Power Density
Input Under-Voltage Protection
Remote On/Off
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RQ1-C5TV8x is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This converter
provides up to 108 W of output power. Features include remote on/off, short circuit protection, over current
protection, over-temperature protection, output over-voltage protection, input under-voltage protection. This
converter is provided in a compact, though-hole package that is easy to use and provides good thermal
performance.
Part Selection
Output
Input Voltage
Max. Output Max. Output
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
Current
Power
1.8 Vdc
1.8 Vdc
36 Vdc - 75 Vdc
36 Vdc - 75 Vdc
60 A
108 W
89%
89%
0RQ1-C5TV8A
0RQ1-C5TV80
0RQ1-C5TV8B
0RQ1-C5TV8L
60 A
108 W
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R Q1 – C5 T V8 x
1 2
3
4
5
6 7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name, 1/4 Brick
4---Series code
5---Input range 48V wide (36-75V)
6---Output voltage (1.8V)
7---Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
V
Parameter
Min
-0.3
-
Typ
Max
80
Notes
Continuous Input Voltage
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
Non-operating
100 mS maximum
100
18
V
-0.3
-
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
°C
°C
125
Note: All specifications are typical at 25 °C unless otherwise stated.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
4
A
70
5
100
10
mA
mA
Input Reflected Ripple Current
(pk-pk)
With simulated source impedance of
10 uH, 5 Hz to 20 MHz; use a 100
uF/100 V electrolytic capacitor with
ESR = 1 ohm max at 200 kHz
-
-
10
2
20
7
mA
Input Reflected Ripple Current
(rms)
mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
1
A2s
V
32
30
34
32
35
34
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 5A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes: 1. This converter has internal C-L-C (0.47uF-2.2uH-6.6uF) filter.
2. All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, half load
Output Voltage Set Point
1.764
1.8
1.836
V
Load Regulation
Line Regulation
-
-
5
2
10
7
mV
mV
Vin=48 V, Iout=0-60 A
Vin=36~75V, full load
Regulation Over Temperature
(-40deg.C-85deg.C)
%Vo
/C
-
-
0.01
Vin=48V, full load, 0-20MHz BW, with
a 1µF ceramic capacitor and a 10µF
tantalum capacitor at output
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
-
-
60
15
-
100
30
mV
mV
mV
A
Output Ripple and Noise(Pk-Pk)
under worst case
over all operating input voltage, load
and ambient temperature condition
-
150
60
Output Current Range
0
-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Output DC Current Limit
65
75
85
A
Rise time
-
-
-
30
0
15
50
mS
mS
%
Turn on Time
Overshoot at Turn on
-
3
Output Capacitance
0
-
20,000
uF
Transient Response
Overshoot
-
-
-
-
60
150
60
100
200
100
200
mV
uS
△V50%~75% of
di/dt=0.1A/us, Vin=48 Vdc, Ta=25 °C,
with a 1µF ceramic capacitor and a
10uF Tantalum cap at output
Max Load
Settling Time
Overshoot
mV
uS
△V75%~50% of
Max Load
Settling Time
150
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, full load
Efficiency
87
89
-
%
Switching Frequency
320
80
-
350
-
380
110
130
kHz
%Vo
°C
Output Voltage Trim Range
Over Temperature Protection
120
This voltage is achieved by trimming
up output slowly.
Over Voltage Protection(Static)
2
-
2.5
V
The transient over voltage is achieved
by connecting the Trim pin to Vout+
pin through a 1K resistor.
Over Voltage Protection (Dynamic)
-
-
-
2.8
-
V
g
-
Weight
FIT
70
Calculated Per Bell Core SR-332
(Vin=48 V, Vo=1.8V, Io=48A, Ta =
25°C, FIT=109/MTBF)
TBD
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.34 x 1.51 x 0.53
59.49 x 38.40 x 13.49
-
-
0RQ1-C5TV8A & 0RQ1-C5TV8B
0RQ1-C5TV80 & 0RQ1-C5TV8L
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.28 x 1.45 x 0.402
57.88 x 36.83 x 10.21
Isolation characteristics
Input to Output
-
-
1500
Vdc
Vdc
Vdc
ohm
pF
Input to Case
-
-
1500
Output to Case
-
10M
-
-
-
500
Isolation Resistance
Isolation Capacitance
-
-
1500
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
Efficiency Curve
92.0%
90.0%
88.0%
86.0%
84.0%
82.0%
36 V
48 V
75 V
15A
30A
45A
60A
Output Current
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
-
0.8
V
Active Low
Active High
The remote on/off pin open, Unit off.
2.4
-0.3
2.4
0
-
-
-
-
18
0.8
18
1
V
V
The remote on/off pin open, Unit on.
V
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Recommended remote on/off circuit for active high
Vin+
On/off
Vin-
Vin+
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and Sense (-) pin. The Trim Up resistor should be connected between the Trim pin and the
Sense (+). Only one of the resistors should be used for any given application.
Minimum trim down voltage is 1.44V
Maximum trim up voltage is 1.98V.
The total voltage increased by trim and remote sense should not exceed 10% of the nominal output voltage.
Vout
+sense
511
Trim
Rtrimdown =
− 10.22
[kΩ
]
delta
Rtrim_down
Rtrim_up
-sense
GND
Vout
+sense
(100 + delta ) ⋅Vo ⋅ 5.11 − 626
1.225 ⋅ delta
Rtrimup =
−10 .22
[kΩ
]
Trim
-sense
GND
Vadj −Vo
Note:
(
)
delta =
×100 %
[ ]
Vo
Vadj is the desired output voltage
Vo = 1.804V @Iout=0
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote Sense
This module has remote sense compensation feature. It can minimize the effects of resistance between
module’s output and load in system layout and facilitates accurate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorporated within the feedback loop of this module. The can make an effect on the
module's compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(10 ohm) from Vo+ to Sense+ and a resistor RS- (10 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the over current condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 210mS. The module operates
normally when the output current goes into specified range. The typical average output current is 3A during
hiccup.
Vin=48V
Expansion of on time portion
Over Voltage Protection
The output overvoltage protection consists of circuitry that monitors the voltage on the output terminals. If the
voltage on the output terminals exceeds the over voltage protection threshold, the module will shutdown into
hiccup mode and restart once every 350mS. The module operates normally when the fault is cleared.
Test setup:
Waveform:
R≥1K
Vo+
Trim
Vo-
K
R
Sense+
Trim
K
R
Sense-
Vin=48V, Iout=5A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Temperature Protection
The OTP is achieved by thermistor R60 and the threshold is set at 120C in non-latch mode; the hottest
component Q1 reaches 120C with 100LFM air flow correspondingly. It will restart automatically when the
temperature falls down to 100C. The protecting point will be varied a little under different conditions (air flow,
ambient temperature, input voltage, load...).
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
V1=32V
V2=34V
Voltage Rising
Input Voltage (V)
V1
V2
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveforms
48Vdc input, 1.8Vdc/60A output
Note: Ripple and noise at full load, with a 1uF ceramic cap and a 10 uF Tantalum cap at output and Ta=25 deg C.
Transient Response Waveforms
Vout=1.8V 50%-75% Load Transients at Vin=48V
Vout=1.8V 75%-50% Load Transients at Vin=48V
Note: Transient response at di/dt=0.1A/uS, 1uF ceramic cap and 10uF aluminum cap at output and Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Startup & Shutdown
Rise Time
Shutdown
Vin=48V, Vo=1.8V, Io=60A
Vin=48V, Vo=1.2V, Io=60A
Startup time
Startup from Vin
Ch1: Vo
Startup from on/off
Ch1: Vo
Ch3: Vin
Ch3: on/off
Vin=48V, Vo=1.2V, Io=60A
Vin=48V, Vo=1.2V, Io=60A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
Derating curve under normal input
Temperature reference points on top side
Temperature reference points on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Safety & EMC
Safety
1. Material flammability UL94V-0
2. TUV Certification
3. UL Certification
EN60950-1
UL60950-1
EMC
1. Surge
IEC61000-4-5
2. DC-DIP
3. Conductive EMI
IEC61000-4-29
EN55022 class A
Compliance to EN55022 class A (both q.peak and average) with the following inductive and capacitive filter
Setup:
C4
+Vin
-Vin
T1
T1
Conv.positive
input
C1
C2
C3
Conv.negative
input
C5
Item
Designator
Parameter
1uF/100V,ceramic
0.1uF/100V, ceramic
100uF/100V, AL cap
Vendor
Murata
Vendor P/N
1
2
3
4
5
6
C1
C2
C3
C4
C5
T1
GRM32ER72A105KA01L
C3216X7R2A104K
UVZ2A101MPD
TDK
Nichicon
Johanson
Johanson
Pulse
2200pF/2000V,ceramic
2200pF/2000V,ceramic
1.3mH, common mode
631R15W222KV4TE
631R15W222KV4TE
P0402NL
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
13
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Safety & EMC (continued)
Positive
Negative
Layout
Layout of components on top side
Layout of components on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
14
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
0RQ1-C5TV8A and 0RQ1-C5TV8B
Pin Connections
Pin
Function
Pin Size
0.040’’
0.040’’
0.040’’
0.060’’
0.040’’
0.040’’
0.040’’
0.060’’
1
Vin(-)
2
On/Off
Vin(+)
3
4
Vo(+)
5
Sense(+)
Trim
6
7
Sense(-)
Vo(-)
8
Notes: 1. Pin 5 must be connected to Vo(+).
2. Pin 7 must be connected to Vo(-).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
15
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
0RQ1-C5TV80 and 0RQ1-C5TV8L
Pin Connections
Pin
Function
Pin Size
0.040’’
0.040’’
0.040’’
0.060’’
0.040’’
0.040’’
0.040’’
0.060’’
1
Vin(-)
2
On/Off
Vin(+)
3
4
Vo(+)
5
Sense(+)
Trim
6
7
Sense(-)
Vo(-)
8
Notes: 1. Pin 5 must be connected to Vo(+).
2. Pin 7 must be connected to Vo(-).
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
16
ISOLATED DC/DC CONVERTERS
36 - 75 Vdc Input 1.8 Vdc /60 A Output
Jan. 27, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
YP Zhou
YP Zhou
YP Zhou
2008-09-19
2008-12-02
2009-05-06
PA
PB
PC
First release
Update mechanical drawing.
1. Update efficiency.
2. Add mechanical drawing, efficiency data, ripple and transients’
wave and the derating curve.
2010-01-27
D
1. Update the max value of continuous input voltage from 75V to 80V.
2. Update the no load input current from 180mA to 100mA.
3. Update the max value of line regulation from 5mV to 7mV.
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice. 012710
17
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0S12BG [ DC-DC Regulated Power Supply Module, ] 11 页

BEL

 		0RQ1-T0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 10 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.233072s
