0RQ1-T0S12BG

型号：

0RQ1-T0S12BG

品牌：

BEL[ BEL FUSE INC. ]

页数：

11 页

PDF大小：

984 K

下载PDF手册

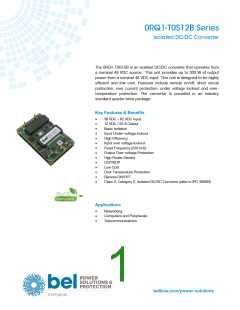

The 0RQ1-T0S12B is an isolated DC/DC converter that operates from
a nominal 48 VDC source. This unit provides up to 300 W of output
power from a nominal 48 VDC input. This unit is designed to be highly
efficient and low cost. Features include remote on/off, short circuit
protection, over current protection, under voltage lockout and over-
temperature protection. The converter is provided in an industry
standard quarter brick package.
36 VDC – 62 VDC Input
12 VDC / 25 A Output
Basic Isolation
Input Under-voltage lockout
High Efficiency
Input over voltage lockout
Fixed Frequency (220 kHz)
Output Over-voltage Protection
High Power Density
•
•
•
•
•
•
•
•
•
•
•
•
•
•
OCP/SCP
Low Cost
Over Temperature Protection
Remote ON/OFF
Class II, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
Networking
Computers and Peripherals
Telecommunications
•
•
•
2
0RQ1-T0S12BSeries
1.
OUTPUT
VOLTAGE
INPUT
VOLTAGE
MAX. OUTPUT
CURRENT
MAX. OUTPUT
POWER
TYPICAL
EFFICIENCY
MODEL NUMBER
ACTIVE LOW
12 VDC
36-62 VDC
25 A
300 W
96%
0RQ1-T0S12B
NOTE: 1. Add “G” suffix at the end of the model number to indicate Tray Packaging.
2.Add “H” suffix at the end of the model number to indicate Tray packaging and RoHS compliant without requiring exemption 7c-III.
0
R
Q1
Series
-
T0
S
12
B
y
Through hole
mount
Output
Power
Input
range
Output
voltage
RoHS
Active Logic
Package
name
1/8th
Brick
G, H-Tray
package
Through hole
RoHS
300W
36-60 V
12 V
Active low
2.
PARAMETER
DESCRIPTION
MIN
TYP
MAX
80
UNITS
Input Voltage
Continuous, non-operating
Operating for 100 ms
-0.3
-
V
V
Input voltage Transient protection
Remote On/Off
70
-0.3
-
-
-
-
-
-
18
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
Altitude
2250
85
V
-40
-55
-
C
C
m
125
2000
NOTE: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may permanently damage the device.
3.
PARAMETER
DESCRIPTION
MIN
TYP
48
-
MAX
62
9
UNIT
V
Operating Input Voltage
36
-
Input Current (full load)
A
Input Current (no load)
-
70
15
50
160
-
150
20
-
mA
mA
mA
mA
A2s
V
Remote Off Input Current
Input Reflected Ripple Current (rms)
Input Reflected Ripple Current (pk-pk)
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
10µH source impedance; Vin=48V, Io=Iomax
-
-
-
1
-
34.5
34
36
-
32
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 5 A on system board. Refer to the fuse manufacture’s datasheet for
further information.
NOTE: All specifications are typical at 25°C unless otherwise stated.
tech.support@psbel.com
3
0RQ1-T0S12BSeries
4.
PARAMETER
DESCRIPTION
MIN
TYP
12.00
20
MAX
12.24
40
UNIT
V
Output Voltage Set Point
Load Regulation
Vin = 48V, Io = 50% load
Io=0~100% load
Vin=36~62V
11.76
-
-
-
-
mV
mV
mV
mV
Line Regulation
20
60
Regulation Over Temperature
Ripple and Noise (pk-pk)
50
100
100
Vin=48V, Io=100%load at 25°C ambient,
0-20 MHz BW, with a 1µF ceramic capacitor
and a 270 µF AL. cap at output.
40
Ripple and Noise (rms)
-
-
5
-
30
mV
mV
Ripple and Noise (pk-pk)
under worst case
Over all operating input voltage, load and
ambient temperature condition.
200
Output Current Range
Output DC Current Limit
Short Circuit Surge Transient
Rise time
0
28
-
-
30
-
25
34
6
A
A
A2s
ms
ms
ms
%
-
25
40
40
0
-
Enable from Vin
-
45
45
3
Turn on Delay Time
Enable from ON/OFF
-
Overshoot at Turn on
Output Capacitance
TRANSIENT RESPONSE
△V 50%~75% of Max Load
Settling Time
-
270
-
10000
µF
-
-
-
-
300
500
300
500
-
-
-
-
mV
µs
di/dt=0.1A/µs, Vin=48 VDC,
Ta=25°C, with a 1 µF
ceramic capacitor and a
270 μF AL. cap at output.
Vo=12 V
△V 75%~50% of Max Load
Settling Time
mV
µs
NOTE: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
5.
PARAMETER
DESCRIPTION
MIN
TYP
96
MAX
UNIT
%
Efficiency
Vin = 48 V, full load
95
-
-
-
Switching Frequency
Over Temperature Protection
Over Voltage Protection
220
125
-
kHz
℃
-
-
-
14
V
Calculated Per Bell Core SR-332 (Vin=48 V,
Vo=12 V, Io=20 A, Ta = 25°C,
FIT=109/MTBF)
FIT
72.34
-
Weight
-
68
-
g
2.30 x 1.45 x 0.55
58.42x 36.83 x 14.00
in
Dimensions (L x W x H)
mm
ISOLATION CHARACTERISTICS
Input to Output
-
10M
-
-
-
2250
V
Isolation Resistance
-
-
Ohm
pF
Isolation Capacitance
3300
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2018 Bel Power Solutions & Protection
Rev. D1
4
0RQ1-T0S12BSeries
6.
Efficiency vs Output Current at Room Temperture
98%
96%
94%
92%
90%
88%
86%
84%
36V
48V
60V
2.5
6.25
12.5
18.75
25
OUTPUT CURRENT(Amp)
7.
Maximum junction temperature of semiconductors derated to 120 ˚ C.
tech.support@psbel.com
5
0RQ1-T0S12BSeries
The OTP is achieved by temperature sensor and it is in non-latch mode when the hottest point on base plate reaches 105°C. It will restart
automatically when the temperature falls down to 90°C. The protecting point will be varied a little under different conditions (air flow,
ambient temperature, input voltage, load...)
Temperature reference points on base plate
8.
NOTE: Ripple and noise at full load, 48 VDC input, 12 VDC / 25 A output and Ta=25 ˚ C, and with a 1µF ceramic cap and a 270 µF AL.
cap at output.
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2018 Bel Power Solutions & Protection
Rev. D1
6
0RQ1-T0S12BSeries
9.
Figure 1. Vout = 12V 50%-75% Load Transients
Figure 2. Vout = 12V 75%-50% Load Transients
NOTE: Transient Response at Vin=48V, di/dt=0.1A/µs, 1µF ceramic cap and 270 µF AL. cap at output, Ta=25℃.
10.
PARAMETER
DESCRIPTION
MIN
-0.3
2.4
0
TYP
MAX
0.8
18
UNIT
V
Signal Low (Unit On)
Signal High (Unit Off)
Current Sink
-
-
-
Active Low
Remote On/Off pin is open, the module is off.
V
1
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
tech.support@psbel.com
7
0RQ1-T0S12BSeries
11.
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting circuitry and can
endure current limiting for a few milliseconds. If the over current condition persists beyond a few milliseconds, the module will shut
down into hiccup mode and restart once every 400ms. The module operates normally when the output current goes into specified
range. The typical average output current is 3A during hiccup.
12.
V1=33V
V2=34V
13.
Figure 4. Vin=48V@Ta=25℃, Vo=12V, Io=25A, Cext = 10000µF
Figure 3. Vin=48V@Ta=25℃, Vo=12V, Io=25A, Cext = 0µF
North America
+1 408 785 5200
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
© 2018 Bel Power Solutions & Protection
Rev. D1
8
0RQ1-T0S12BSeries
Figure 6. Startup from ON/OFF
Ch1: Vo
Ch2: ON/OFF
Vin=48V@Ta=25℃, Vo=12V, Io=25A
Cext = 10000µF
Figure 5. Startup from Vin
Ch1: Vo
Ch2: Vin
Vin=48V@Ta=25℃, Vo=12V, Io=25A
Cext = 10000µF
Figure 7. Vin=48V@Ta=25℃, Vo=12V, Io=25A, Cext = 10000µF
tech.support@psbel.com
9
0RQ1-T0S12BSeries
14.
SAFETY:
SETUP:
1. Material flammability UL94V-0
2. UL Certification
UL60950-1
EMC:
1. Conductive EMI: EN55022 class A
Compliance to EN55022 class A (both peak and average) with the
following inductive and capacitive filter
ITEM
DESIGNATOR
CX2
PARAMETER
100µF/100V, AL cap
VENDOR
VENDOR P/N
1
2
CX3
100µF/100V, AL cap
2*6.8nF/1000V,ceramic
2*6.8nF/1000V,ceramic
6.8nF/1000V,ceramic
6.8nF/1000V,ceramic
1206,0R,Resistor
3
CY31
CY32
CY41
CY42
RY31
RY32
RY41
RY42
T2A
4
5
6
7
8
1206,0R,Resistor
9
1206,0R,Resistor
10
11
1206,0R,Resistor
1mH, common mode
T1A,CX1,CX2
RY11,RY21,RY12
RY22,CY11,CY21
CY12,CY22
12
NIL
POSITIVE:
NEGATIVE:
North America
+1 408 785 5200
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
© 2018 Bel Power Solutions & Protection
Rev. D1
10
0RQ1-T0S12BSeries
15.
DIA.
0.04’’
0.04’’
0.04’’
0.06’’
0.06’’
PIN
1
FUNCTION
Vin(+)
2
Enable
Vin(-)
3
4
Vout(-)
Vout(+)
5
NOTE: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered using a peak solder
temperature of no more than 260 ºC for less than 5 seconds.
NOTE:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches; Tolerances: x.xx +/-0.02 in[0.5mm].
x.xxx +/-0.010 in[0.25mm]. Unless otherwise stated.
tech.support@psbel.com
11
0RQ1-T0S12BSeries
16.
DATE
REVISION
CHANGES DETAIL
APPROVAL
2015-1-27
2015-8-14
A
First release
Summer Wang
1. Update Fixed Frequency from 300kHz to 220kHz
2. Update Line Regulation Max value from 40mv to 60mv
3. Update Output Ripple and Noise (rms) from 20mv to 30mv
4. Update Ripple and Noise (pk-pk) under worst case from 150mv to 200mv
1. Add FIT data.
B
Summer Wang
2. Update mechanical drawing, change width from 2.28’’ to 2.3’’.
3. Update Isolation Capacitance from 2700pF to 3300pF.
4. Delete TUV Certification in Safety.
2015-9-17
C
D
Summer Wang
Summer Wang
2015-12-10
1. Update Safety and EMC
NUCLEAR AND MEDICAL APPLICATIONS - Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on
the date manufactured. Specifications are subject to change without notice.
North America
Asia-Pacific
Europe, Middle East
+1 408 785 5200
+86 755 298 85888
+353 61 225 977
© 2018 Bel Power Solutions & Protection
Rev. D1
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8X 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 10 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220765s
