CYV15G0103EQ

型号：

CYV15G0103EQ

描述：

准专业型视频电缆均衡器[ Prosumer Video Cable Equalizer ]

品牌：

CYPRESS[ CYPRESS ]

页数：

9 页

PDF大小：

250 K

下载PDF手册

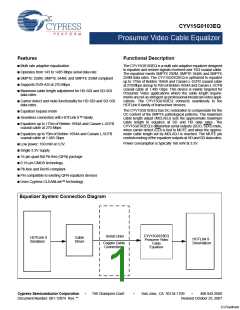

CYV15G0103EQ
Prosumer Video Cable Equalizer
Features
Functional Description
■ Multi rate adaptive equalization
The CYV15G0103EQ is a multi rate adaptive equalizer designed
to equalize and restore signals received over 75Ω coaxial cable.
The equalizer meets SMPTE 292M, SMPTE 344M, and SMPTE
259M data rates. The CYV15G0103EQ is optimized to equalize
up to 175m of Belden 1694A and Canare L-5CFB coaxial cable
at 270 Mbps and up to 70m of Belden 1694A and Canare L-5CFB
coaxial cable at 1.485 Gbps. This device is mainly targeted for
Prosumer Video applications where the cable length require-
ments are not as stringent as professional broadcast video appli-
cations. The CYV15G0103EQ connects seamlessly to the
HOTLink II family of transceiver devices.
■ Operates from 143 to 1485 Mbps serial data rate
■ SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant
■ Supports DVB-ASI at 270 Mbps
■ Maximum cable length adjustment for HD-SDI and SD-SDI
data rates
■ Carrier detect and mute functionality for HD-SDI and SD-SDI
data rates
The CYV15G0103EQ has DC restoration to compensate for the
DC content of the SMPTE pathological patterns. The maximum
cable length adjust (MCLADJ) sets the approximate maximum
cable length to equalize at SD and HD data rates. The
CYV15G0103EQ’s differential serial outputs (SDO, SDO) mute,
when carrier detect (CD) is tied to MUTE and when the approx-
imate cable length set by MCLADJ is reached. The MUTE pin
controls muting of the equalizer outputs at HD and SD data rates.
■ Equalizer bypass mode
■ Seamless connection with HOTLink II™ family
■ Equalizes up to 175m of Belden 1694A and Canare L-5CFB
coaxial cable at 270 Mbps
■ Equalizes up to 70m of Belden 1694A and Canare L-5CFB
coaxial cable at 1.485 Gbps
Power consumption is typically 160 mW at 3.3V.
■ Low power: 160 mW at 3.3V
■ Single 3.3V supply
■ 16-pin quad flat Pb-free (QFN) package
■ 0.18 μm CMOS technology
■ Pb-free and RoHS compliant
■ Pin compatible to existing QFN equalizer devices
■ Uses Cypress CLEANLink™ technology
Equalizer System Connection Diagram
CYV15G0103EQ
Prosumer Video
Cable
Serial Links
HOTLink II
Serializer
Cable
Driver
HOTLink II
Deserializer
Copper Cable
Connections
Equalizer
Cypress Semiconductor Corporation
Document Number: 001-12874 Rev. **
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised October 25, 2007
[+] Feedback
CYV15G0103EQ
Equalizer Block Diagram
CYV15G0103EQ Prosumer Video Equalizer Block Diagram
CYV15G0103EQ Prosumer Video Equalizer Block Diagram
Cable Length Analog
Carrier Detect and
Adjustor and Mute
Mute Control Block
Threshold Block
MUTE
CD
MCLADJ
DC Restore
BYPASS
SDI, SDI
Equalizer
Differential Output
SDO, SDO
Pinouts
Figure 1. Pin Diagram - 16-PIN QFN Top View)
16
15
14
13
1
2
3
4
12
11
10
9
GND
GND
SDI
SDO
SDO
GND
CYV15G0103EQ
(Marked CY20EQ
On Package)
SDI
GND
5
6
7
8
Center Pad
(bottom of package)
Document Number: 001-12874 Rev. **
Page 2 of 9
[+] Feedback
CYV15G0103EQ
Table 1. Pin Descriptions - CYV15G0103EQ Prosumer Video Cable Equalizer
Name
IO Characteristics Signal Description
Control Signals
MUTE
LVTTL Input
Mute. When the MUTE pin is set LOW, the equalizer’s differential serial outputs are not
muted.
When the MUTE pin is set HIGH, the equalizer’s differential serial outputs are muted.
BYPASS setting is ignored when MUTE is HIGH.
Connecting CD to the MUTE pin enables automatic muting of the equalizer when the
signal is lost.
Do not leave an unused MUTE pin floating. Always drive it to a known state.
CD
LVTTL Output
Analog Input
LVTTL Input
Carrier Detect. When the incoming data stream is present and maximum cable length
does not exceed that set by MCLADJ, CD outputs a voltage less than 0.8V.
When the incoming data stream is not present or maximum cable length exceeds that set
by MCLADJ, CD outputs a voltage greater than 2.8V.
Connecting CD to the MUTE pin enables automatic muting of the equalizer upon loss of
signal.
MCLADJ
BYPASS
Maximum Cable Length Adjust. The maximum cable length to equalize is set by the
voltage applied to the MCLADJ input. When the maximum cable length set by MCLADJ
is reached, the CD indicator deasserts.
If MCLADJ functionality is not needed, this pin should be left floating or tied to ground to
allow maximum equalized cable length.
MCLADJ works at both SD and HD data rates.
Equalizer Bypass. When BYPASS is set HIGH, the signal presented at the equalizer’s
differential serial inputs (SDI, SDI) is routed to the equalizer’s differential serial outputs
(SDO, SDO) without equalizing.
When BYPASS is set LOW, the incoming video data stream is equalized and presented
at the equalizer‘s serial differential outputs (SDO, SDO).
When the MUTE pin is set HIGH, the BYPASS setting is ignored and the serial outputs
are muted.
AGC, AGC
SDO, SDO
Analog
Automatic Gain Control. Place a capacitor of 1 μF between the AGC and AGC pins.
Differential
Output
Differential Serial Outputs. The equalized serial video data stream is presented at the
SDO/SDO differential serial CML output.
SDI, SDI
Differential
Input
Differential Serial Inputs. SDI/SDI accepts either a single-ended or differential serial
video data stream over 75Ω coaxial cable.
Power
VCC
Power
Gnd
–
Power Supply for Device. Connect to +3.3V DC.
Connect to Ground.
GND
Center Pad
Connect to PCB Ground for Maximum Thermal Dissipation.
Document Number: 001-12874 Rev. **
Page 3 of 9
[+] Feedback
CYV15G0103EQ
Equalizer Operation
MUTE
The CYV15G0103EQ is a high speed adaptive cable equalizer
designed to equalize standard definition (SD) and high definition
(HD) serial digital interface (SDI) video data streams. The
CYV15G0103EQ equalizer is optimized to equalize up to 175m
of Belden 1694A and Canare L-5CFB cable at 270 Mbps and up
to 70m of Belden 1694A and Canare L-5CFB cable at 1.485
Gbps. The CYV15G0103EQ equalizer contains one power
supply and typically consumes 160 mW power at 3.3V. The multi
rate equalizer meets the SMPTE 259M, SMPTE 292M, SMPTE
344M, and DVB-ASI video standards. It meets all pathological
requirements for SMPTE 292M as defined by RP198 and for
SMPTE 259M as defined by RP178. The CYV15G0103EQ multi
rate cable equalizer operates from 143 Mbps to 1.485 Gbps
serial data rate.
MUTE is an input pin that controls the muting of the equalizer’s
output. MUTE operates for both HD and SD data rates.
If MUTE is set LOW, the equalizer serial outputs are not muted.
If MUTE is set HIGH, then the equalizer serial outputs are muted.
When MUTE is active, the BYPASS setting is also ignored.
Connecting CD to MUTE enables automatic muting of the
equalizer when the signal is lost.
Do not leave the MUTE pin floating. Always drive it to a known
state.
Carrier Detect (CD)
Carrier Detect is an active LOW output pin that indicates the
presence of a valid incoming data signal. When the incoming
data signal is present, and maximum cable length does not
exceed that set by MCLADJ, CD outputs a voltage less than
0.8V.
The CYV15G0103EQ equalizer has multiple variable gain equal-
ization stages that reverse the cable attenuation effects. This
equalization is achieved by separate regulation of the lower and
higher frequency components in the signal to give a clean output
eye diagram. The CYV15G0103EQ has DC restoration to
compensate for the DC content of the SMPTE pathological
patterns.
When the incoming data stream is not present, or maximum
cable length exceeds that set by MCLADJ, CD outputs a voltage
greater than 2.8V.
Connecting CD to MUTE enables automatic muting of the
equalizer upon loss of signal.
SDI, SDI
CYV15G0103EQ accepts single-ended or differential serial
video data streams over 75Ω coaxial cable. It is recommended
to AC couple the SDI and SDI inputs because they are internally
biased to 1.2V.
BYPASS
The CYV15G0103EQ has a bypass mode that enables the user
to bypass the equalizer’s equalization and DC restoration
functions. When BYPASS is set HIGH, the signal presented at
the equalizer’s differential serial inputs (SDI, SDI) is routed to the
equalizer’s differential serial outputs (SDO, SDO) without
performing equalization.
SDO, SDO
The CYV15G0103EQ has differential serial output interface
drivers that use Current Mode Logic (CML) drivers to provide
source matching for the transmission line. These outputs are
either AC coupled or DC coupled to HOTLink II receivers.
When BYPASS is set LOW, the incoming video data stream is
equalized and presented at the equalizer‘s differential serial
outputs (SDO, SDO).
MCLADJ
AGC
Maximum Cable Length Adjust (MCLADJ) sets the approximate
maximum amount of cable to be equalized. When the maximum
cable length set by MCLADJ is reached, the CD pin deasserts.
MCLADJ works at SD and HD data rates.
Place a 1 μF capacitor between the AGC and AGC pins of the
CYV15G0103EQ equalizer.
The graph in Figure 2 on page 7 illustrates the voltage required
at the MCLADJ input to equalize various Belden 1694A cable
lengths. The same graph applies for Canare L-5CFB cables.
If MCLADJ functionality is not needed, then this pin should be left
floating or tied to ground to allow maximum equalized cable
length.
Document Number: 001-12874 Rev. **
Page 4 of 9
[+] Feedback
CYV15G0103EQ
Power Up Requirements
Maximum Ratings
The CYV15G0103EQ contains one power supply. The voltage
on any input or IO pin must not exceed the power pin during
power up.
Exceeding maximum ratings may shorten the useful life of the
device. These user guidelines are not tested.
Storage Temperature.................................. –65°C to +150°C
Ambient Temperature with
Power Applied ............................................ –55°C to +125°C
Operating Range
Ambient
Temperature
Supply Voltage to Ground Potential................–0.5V to +3.8V
Range
VCC
DC Voltage Applied to Outputs
in High Z State....................................... –0.5V to VCC + 0.5V
Commercial
0°C to +70°C
+3.3V ±5%
DC Input Voltage ...................................–0.5V to VCC + 0.5V
Electro Static Discharge (ESD) HBM........................> 2000V
(JEDEC EIA/JESD-A114A)
Latch Up Current ....................................................> 200 mA
DC Electrical Characteristics
Parameter
Description
Supply Voltage[1]
Power Consumption[2]
Supply Current[1]
Test Conditions
Min
3.135
125
38
Typ
3.3
160
48
Max
3.465
190
60
Unit
V
VCC
PD
–
–
–
mW
mA
V
IS
VCMOUT
Output Common Mode Voltage[1]
Load = 50Ω
–
VCC – ΔVSDO/2 =
–
2.9
VCMIN
Input Common Mode Voltage[1]
(Bypass = High)
Input Common Mode Voltage[1]
(Bypass = Low)
–
–
1
0
1.4
2.9
V
V
–
Floating MCLADJ DC Voltage[1]
MCLADJ Range[2]
CD Output Voltage[1]
–
–
1.3
0.72
–
V
V
V
V
V
–
0.4
2.8
–
1.02
–
VCD(OH)
VCD(OL)
VMUTE
Carrier Not Present
Carrier Present
–
0.8
–
MUTE Input Voltage Required to Force Min to Mute
Outputs to Mute[1]
2.5
VMUTE
MUTE Input Voltage Required to Force Max to Activate
Active[1]
–
–
1
V
Notes
1. Production test.
2. Calculated results from production test.
Document Number: 001-12874 Rev. **
Page 5 of 9
[+] Feedback
CYV15G0103EQ
AC Electrical Characteristics
Parameter
Description
Serial Input Data Rate[1]
Input Voltage Swing
Test Conditions
Min
143
500[5]
Typ
Max
1485
1200
Unit
Mbps
mV
–
–
–
VSDI
Single-ended, at the transmitter,
HD data rate
VSDI
Input Voltage Swing
Single-ended, at the transmitter,
SD data rate
500[6]
1200
mV
ΔVSDO
Output Voltage Swing[1]
Differentialp-p, 50Ω load
450
–
700
0.2[1]
950
–
mV
UI
–
Output Jitter for Various Cable
Lengths and Data Rates
270 Mbps
Belden 1694A: 0-175m
Canare L-5CFB: 0-175m
800 mV transmit amplitude
Equalizer pathological pattern
1.485 Gbps
–
0.25[1]
–
UI
Belden 1694A: 0-70m
Canare L-5CFB: 0-70m
800 mV transmit amplitude
Equalizer pathological pattern
–
–
–
–
–
–
–
–
–
Output Rise/Fall Time[3, 4]
Output Rise/Fall Time[3, 4]
Mismatch in Rise/Fall Time[3, 4]
Duty Cycle Distortion[3, 4]
Overshoot[3, 4]
Input Return Loss[3]
Input Resistance[3, 4]
Input Capacitance[3, 4]
Output Resistance[3, 4]
20% - 80%, HD data rate
80
80
–
120
120
–
220
350
30
–
ps
ps
ps
ps
%
20% - 80%, SD data rate
–
HD color bar pattern
–
–
20
–
–
10
–
–
-15
–
–
dB
kΩ
pF
Ω
Single-ended
Single-ended
Single-ended
2.5
1
–
–
–
–
50
–
Notes
3. Not tested. Based on characterization.
4. Not tested. Guaranteed by design simulations.
5. Based on characterization across temperature and voltage with 70m of Belden 1694A and Canare L-5CFB cable, transmitting SMPTE Equalizer Pathological Test
Pattern.
6. Based on characterization across temperature and voltage with 175m of Belden 1694A and Canare L-5CFB cable, transmitting SMPTE Equalizer Pathological Test
Pattern.
Document Number: 001-12874 Rev. **
Page 6 of 9
[+] Feedback
CYV15G0103EQ
Typical Performance Graphs
(Unless otherwise stated, VCC = 3.3V, TA = 25°C)
Figure 2. MCLADJ Input Voltage vs Belden 1694A Cable Length at SD-SDI and HD-SDI Data Rates
2.7
2.65
2.6
2.55
2.5
2.45
2.4
2.35
2.3
0
20
40
60
80
100
120
140
160
CABLE LENGTH (m)
Typical Application Circuit
Figure 3. Interfacing CYV15G0103EQ to the HOTLink II SerDes
+3.3V
+3.3V
C10
C12
13 14 15 16
0.01μF
0.01μF
LFI
RXLE
SDASEL
LPEN
1μF
1μF
BNC JACK
R16
RXD7
12
11
10
C15
GND
SDO
RXD6
75Ω
1
2
RXD5
INSEL
GND
SDI
Z0
Z0
RXD4
75Ω
IN1+
SDO
GND
RXD3
L2
2 Z0
R18
3
4
C16
RXD2
SDI
GND
9
RXD1
IN1-
6.4nH
RXD0
FRAMCHAR
RFEN
RFMODE
DECMODE
RXCKSEL
RXMODE
RXRATE
RXOP
RXST2
RXST1
RXST0
RXCLK+
RXCLK-
RXCLKC+
37.4Ω
75Ω
R14
R15
6
7
8
5
CYV15G0103EQ
C11
1μF
MCLADJ
C YV15G0101DXB
Document Number: 001-12874 Rev. **
Page 7 of 9
[+] Feedback
CYV15G0103EQ
Ordering Information
Package
Marking
Operating
Range
Ordering Code
Package Name
Package Type
Pb-free 16-Pin QFN
CYV15G0103EQ-LXC
CY20EQ
LY16A
0 to 70°C
Package Dimension
Figure 4. 16-Pin QFN (4x4 mm) Package LY16A
0.05
C
3.90
4.10
2.50
REF.
1.00 MAX.
0.80 MAX.
0.05 MAX.
0.20 REF.
3.70
3.80
PIN1 ID
0.20 R.
0.35 0.05
REF.
N
N
2.50
0.45
1
1
2
2
E-PAD
1.90
2.00
0.30-0.50
0.42 0.18
(4X)
0°-12°
0.65
C
1.90
2.00
SEATING
PLANE
TOP VIEW
BOTTOM VIEW
SIDE VIEW
DIMENSION IN mm
MIN.
MAX.
PART #
001-04468-*A
LF16A STANDARD PKG.
LY16A LEAD FREE PKG.
REFERENCE JEDEC MO-220
PKG.WEIGHT 0.04gms
Document Number: 001-12874 Rev. **
Page 8 of 9
[+] Feedback
CYV15G0103EQ
Document History Page
Document Title: CYV15G0103EQ Prosumer Video Cable Equalizer
Document Number: 001-12874
ISSUE
DATE
ORIG. OF
CHANGE
REV.
ECN NO.
DESCRIPTION OF CHANGE
**
1396423
SEE ECN
UKK/AESA
New datasheet
© Cypress Semiconductor Corporation, 2007. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any
circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical,
life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical
components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems
application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign),
United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of,
and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress
integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without
the express written permission of Cypress.
Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not
assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where
a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer
assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Use may be limited by and subject to the applicable Cypress software license agreement.
Document Number: 001-12874 Rev. **
Revised October 25, 2007
Page 9 of 9
PSoC Designer™, Programmable System-on-Chip™, and PSoC Express™ are trademarks and PSoC® is a registered trademark of Cypress Semiconductor Corp. All other trademarks or registered
2
trademarks referenced herein are property of the respective corporations. Purchase of I C components from Cypress or one of its sublicensed Associated Companies conveys a license under the
2
2
2
Philips I C Patent Rights to use these components in an I C system, provided that the system conforms to the I C Standard Specification as defined by Philips. HOTLink II and CLEANLink are trademarks
of Cypress Semiconductor. All other trademarks or registered trademarks referenced herein are property of the respective corporations. All products and company names mentioned in this document
may be the trademarks of their respective holders.
[+] Feedback
厂商 型号 描述 页数 下载

CYPRESS

 		CYV15G0100EQ 准专业型视频电缆均衡器[ Prosumer Video Cable Equalizer ] 10 页

CYPRESS

 		CYV15G0100EQ-SXC 准专业型视频电缆均衡器[ Prosumer Video Cable Equalizer ] 10 页

CYPRESS

 		CYV15G0101DXB 单通道的HOTLink收发器[ Single-channel HOTLink Transceiver ] 39 页

CYPRESS

 		CYV15G0101DXB-BBC 单通道的HOTLink收发器[ Single-channel HOTLink Transceiver ] 39 页

CYPRESS

 		CYV15G0101DXB-BBI 单通道的HOTLink收发器[ Single-channel HOTLink Transceiver ] 39 页

CYPRESS

 		CYV15G0101DXB-BBXC 单通道的HOTLink II ™收发器[ Single-channel HOTLink II⑩ Transceiver ] 39 页

CYPRESS

 		CYV15G0101DXB-BBXI 单通道的HOTLink II ™收发器[ Single-channel HOTLink II⑩ Transceiver ] 39 页

CYPRESS

 		CYV15G0101EQ 多码率视频电缆均衡器（ SOIC ）[ Multi-Rate Video Cable Equalizer (SOIC) ] 10 页

CYPRESS

 		CYV15G0101EQ-SXC 多码率视频电缆均衡器（ SOIC ）[ Multi-Rate Video Cable Equalizer (SOIC) ] 10 页

CYPRESS

 		CYV15G0101EQ_07 多速率视频电缆均衡器[ Multi Rate Video Cable Equalizer ] 10 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226412s
