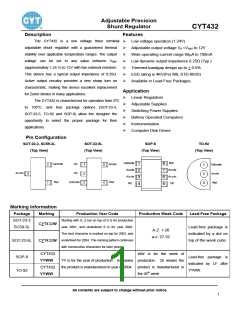

Adjustable Precision
Shunt Regulator
CYT432
Description
Features
The CYT432 is
a low voltage three terminal
¾
¾
¾
¾
¾
¾
¾
Low voltage operation (1.24V)
adjustable shunt regulator with a guaranteed thermal
stability over applicable temperature ranges. The output
voltage can be set to any value between VREF
(approximately 1.24 V) to 12V with two external resistors.
This device has a typical output impedance of 0.25Ω.
Active output circuitry provides a very sharp turn on
characteristic, making this device excellent replacement
for Zener diodes in many applications.
Adjustable output voltage V0 =VREF to 12V
Wide operating current range 60µA to 100mA
Low dynamic output impedance 0.25Ω (Typ.)
Trimmed bandgap design up to + 0.5%.
ESD rating is 4KV(Per MIL-STD-883D)
Available in Lead-Free Packages.
Application
¾
¾
¾
¾
¾
¾
Linear Regulators
The CYT432 is characterized for operation from 0oC
to 105oC, and four package options (SOT-23-3,
SOT-23-5, TO-92 and SOP-8) allow the designer the
opportunity to select the proper package for their
applications.
Adjustable Supplies
Switching Power Supplies
Battery Operated Computers
Instrumentation
Computer Disk Drives
Pin Configuration
SOT-23-3, SC59-3L
SOT-23-5L
(Top View)
SOP-8
TO-92
(Top View)
(Top View)
(Top View)
Marking Information
Package
SOT-23-3
SC59-3L
Marking
Production Year Code
Production Week Code
Lead-Free Package
Starting with S, a bar on top of S is for production
year 2001, and underlined S is for year 2002.
The next character is marked on top for 2003, and
underlined for 2004. The naming pattern continues
with consecutive characters for later years.
CYT432W
Lead-free package is
indicated by a dot on
top of the week code.
A-Z: 1-26
a-z: 27-52
SOT-23-5L
CYT432W
WW is for the week of
CYT432
YYWW
CYT432
YYWW
Lead-free package is
indicated by LF after
YYWW.
SOP-8
TO-92
YY is for the year of production. 04 means production. 26 means the
the product is manufactured in year of 2004. product is manufactured in
the 26th week
All contents are subject to change without prior notice.
