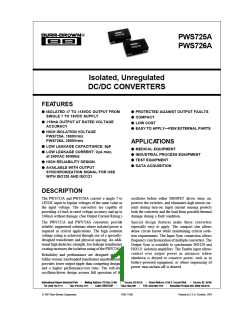

PWS725A
PWS726A
Isolated, Unregulated
DC/DC CONVERTERS
FEATURES
● ISOLATED ±7 TO ±18VDC OUTPUT FROM
● PROTECTED AGAINST OUTPUT FAULTS
● COMPACT
SINGLE 7 TO 18VDC SUPPLY
● ±15mA OUTPUT AT RATED VOLTAGE
● LOW COST
ACCURACY
● EASY TO APPLY—FEW EXTERNAL PARTS
● HIGH ISOLATION VOLTAGE
PWS725A, 1500Vrms
PWS726A, 3500Vrms
APPLICATIONS
● MEDICAL EQUIPMENT
● INDUSTRIAL PROCESS EQUIPMENT
● TEST EQUIPMENT
● LOW LEAKAGE CAPACITANCE: 9pF
● LOW LEAKAGE CURRENT: 2µA max,
at 240VAC 50/60Hz
● HIGH RELIABILITY DESIGN
● DATA ACQUISITION
● AVAILABLE WITH OUTPUT
SYNCHRONIZATION SIGNAL FOR USE
WITH ISO120 AND ISO121
DESCRIPTION
The PWS725A and PWS726A convert a single 7 to
18VDC input to bipolar voltages of the same value as
the input voltage. The converters are capable of
providing ±15mA at rated voltage accuracy and up to
±40mA without damage. (See Output Current Rating.)
oscillator before either MOSFET driver turns on,
protects the switches, and eliminates high inrush cur-
rents during turn-on. Input current sensing protects
both the converter and the load from possible thermal
damage during a fault condition.
The PWS725A and PWS726A converters provide
reliable, engineered solutions where isolated power is
required in critical applications. The high isolation
voltage rating is achieved through use of a specially-
designed transformer and physical spacing. An addi-
tional high dielectric-strength, low leakage transformer
coating increases the isolation rating of the PWS726A.
Special design features make these converters
especially easy to apply. The compact size allows
dense circuit layout while maintaining critical isola-
tion requirements. The Input Sync connection allows
frequency synchronization of multiple converters. The
Output Sync is available to synchronize ISO120 and
ISO121 isolation amplifiers. The Enable input allows
control over output power in instances where
shutdown is desired to conserve power, such as in
battery-powered equipment, or where sequencing of
power turn-on/turn-off is desired.
Reliability and performance are designed in. The
bifilar wound, wirebonded transformer simultaneously
provides lower output ripple than competing designs,
and a higher performance/cost ratio. The soft-start
oscillator/driver design assures full operation of the
International Airport Industrial Park
•
Mailing Address: PO Box 11400
Cable: BBRCORP
•
Tucson, AZ 85734
•
Street Address: 6730 S. Tucson Blvd.
• Tucson, AZ 85706
Tel: (520) 746-1111 Twx: 910-952-1111
•
•
•
Telex: 066-6491
•
FAX: (520) 889-1510
•
Immediate Product Info: (800) 548-6132
© 1987 Burr-Brown Corporation
PDS-736D
Printed in U.S.A. October, 1993
SPECIFICATIONS
ELECTRICAL
TA = +25°C, CL = 1µF ceramic, VIN = 15VDC, operating frequency = 800kHz, VOUT = ±15VDC, CIN = 1µF ceramic, IOUT = ±15mA, unless otherwise specified.
PWS725A
TYP
PSW726A
TYP
PARAMETER
CONDITIONS
MIN
MAX
MIN
MAX
UNITS
INPUT
Rated Voltage
Input Voltage Range
Input Current
15
*
VDC
VDC
mA
mAp-p
mAp-p
mAp-p
7
18
*
*
I
O = ±15mA
77
150
5
*
*
*
Input Current Ripple
No External Filtering
L-C Input Filter, LIN = 100µH, CIN = 1µF(1)
C Only, CIN = 1µF
60
ISOLATION
Test Voltages
Input to Output, 10 seconds
Input to Output, 60 seconds, min
Input to Output, Continuous, AC 60Hz
Input to Output, Continuous DC
Input to Output
4000
1500
8000
3500
VDC
Vrms
Vrms
VDC
Ω || pF
µA
Rated Voltage
1500
2121
3500
4950
Isolation Impedance
Leakage Current
1012 || 9
1.2
*
*
Input to Output, 240Vrms, 60Hz
2.0
*
OUTPUT
Rated Output Voltage
Output Current
14.25
15
15
15.75
40
80
*
*
*
*
*
*
*
VDC
mA
mA
%/mA
mVp-p
mVp-p
Balanced Loads
Single-Ended
Balanced Loads, ±10mA < IOUT < ±40mA
No External Capacitor
Load Regulation
Ripple Voltage (400kHz)
0.4
60
10
*
*
L
O = 10µH, CO = 1µF (Figure 1)
O = 0µH, CO Filter Only
O = 10µH, CO = 1µF
See Performance Curves
L
Output Switching Noise
Output Capacitive Load
L
L
1
*
mVp-p
µF
µF
O = 100µH, C Filter
C Filter Only
10
1
*
*
Voltage Balance, V+, V–
Sensitivity to ∆VIN
Output Voltage Temp. Coefficient
Output Sync Signal
0.04
1.15
10
%
V/V
mV/°C
Vp-p
Square Wave, 50% Duty Cycle
30
*
TEMPERATURE
Specification
Operating
–25
–25
–25
+85
+85
+125
*
*
*
*
*
*
°C
°C
°C
Storage
* Specification same as PWS725A.
PACKAGE INFORMATION(1)
PIN CONFIGURATION
Top View
DIP
PACKAGE DRAWING
NUMBER
MODEL
PACKAGE
1
2
3
4
32
+VO
–VO
NC
PWS725A
PWS726A
32-Pin Ceramic DIP
32-Pin Ceramic DIP
210
210
31 NC
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix D of Burr-Brown IC Data Book.
NC
30 Output Ground
29 Output Sync
Output Ground
NC 13
Input Ground 14
Input Sync 15
VIN 16
20 Frequency Adjust
19 Frequency Adjust
18 Enable
17 NC
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
®
2
PWS725A/726A
TYPICAL PERFORMANCE CURVES
TA = +25°C, VCC = ±15VDC unless otherwise noted.
LOAD REGULATION
OUTPUT CAPACITANCE vs RIPPLE VOLTAGE
20
100
90
80
70
60
50
40
30
20
VIN = +15V
IO = ±15mA
18
16
14
V
IN = ±15V
Balanced Loads
Single-ended Loads
Peak-to-Peak
DC < f < 20MHz
Capacitor Only
12
10
10
0
L-C Filter, L = 100µH
0
10
20
20
40
30
60
40 Balanced
80 Single
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
Capacitance (µF)
1
Output Current (mA)
LINE REGULATION
IO = ±15mA
MAXIMUM POWER DISSIPATION
20
2
18
16
14
12
10
8
1.44
1
6
4
0
6
7
8
10
12
14
16
18
–25
0
25
50
75 85
100
Input Voltage (V)
Temperature (°C)
OUTPUT VOLTAGE DRIFT
INPUT CURRENT vs OUTPUT CURRENT
0
–1
–2
–3
–4
–5
140
77
70
–6
–50
0
0
50
Temperature (°C)
85 100
0
±15
±30
±45
IO (mA)
®
3
PWS725A/726A
TYPICAL PERFORMANCE CURVES (CONT)
TA = +25°C, VCC = ±15VDC unless otherwise noted.
SYNC FREQUENCY vs
INPUT CURRENT AND OUTPUT VOLTAGE
VIN = +15V
90
80
70
60
±VOUT
15
14
IINPUT (IO = ±15mA)
400
800
1200
1600
SYNC Frequency (kHz)
(Optional External Control)
THEORY OF OPERATION
The PWS725A and the PWS726A DC/DC converters con-
sist of a free-running oscillator, control and switch driver
circuitry, MOSFET switches, a transformer, a bridge recti-
fier, and filter capacitors together in a 32-pin DIP (0.900
inches nominal) package. The control circuitry consists of
current limiting, soft start, frequency adjust, enable, and
synchronization features. See Figure 1. In instances where
several converters are used in a system, beat frequencies
developed between the converters are a potential source of
low frequency noise in the supply and ground paths. This
noise may couple into signal paths. See Figures 2 and 3 for
connection of INPUT SYNC pin. Converters can be syn-
chronized and these beat frequencies avoided. The unit with
the highest natural frequency will determine the synchro-
nized running frequency. To avoid excess stray capaci-
tance, the INPUT SYNC pin should not be loaded with
more than 50pF. If unused, the INPUT SYNC must be left
open.
Soft start circuitry protects the MOSFET switches during
start up. This is accomplished by holding the gate-to-source
voltage of both MOSFET switches low until the free-
running oscillator is fully operational. In addition to that
soft start circuitry, input current sensing also protects the
MOSFET switches. This current limiting keeps the FET
OUTPUT SYNC
29
(5)
LIN
RSC
VIN
7-18/VDC
16
(4)
(5)
LO
+IO
CIN
0.22µF
+VOUT
32
+
20
(4)
(4)
CO
20kΩ
Oscillator/
Driver
Control
Full-Wave
Bridge
Rectifier
–
Frequence
Increase(1)
+
–
4 & 30
CO
19
0.22µF
1
–VOUT
0.22µF
–IO
(4)
LO
18
15
14
ENABLE(3) INPUT
SYNC(2)
NOTES: (1) Frequency Adjust is optional, with pins 19 and 20 left open. The normal switching frequency is 800kHz.
(2) Leave INPUT SYNC pin open if unused; limit stray capacitance on INPUT SYNC pin to less than 50pF.
(3) Leave ENABLE pin open or connect to VIN if not used.
(4) Optional output filtering, with LO = 0, limit CO ≤ 1µF, with LO = 100µH, limit CO ≤ 10µF, see Performance
Curves for LO = 0.
(5) Optional input filtering, see Performance Curves for LIN = 0.
(6) CAUTION: Do not connect pin 29 to low impedance loads. See Figure 5.
FIGURE 1. PWS725A/726A Functional Diagram.
®
4
PWS725A/726A
+7V to +18 V
+7V to +18 V
MC1472
or Equivalent
Peripheral
+VCC
Driver
+5V
16
330Ω
1W
8
1
15
4
8
Master
PWS725A
3
OPA633
Slave
PWS725A/726A
2N3904
TTL
Buffer
2
4
SYNC
15
Signal(2)
PWS725A/726A
–VCC
16
620Ω
15
19(1)
16
1/8W
Keep Connection
Short
2N3904
19(1)
100Ω
Slave
PWS725A/726A
15
NOTE: (1) Units to be synchronized
should have a lower free-running
frequency than the master unit.
Grounding Frequency Adjust (pin 19)
will shift the free-running frequency
to approximately 400kHz.
PWS725A/726A
NOTES: (1) Units to be synchronized
should have a lower free-running
frequency than the TTL signal.
16
15
19(1)
16
19(1)
Grounding Frequency Adjust (Pin 19)
will shift the free-running frequency
to approximately 400kHz. (2) The TTL
SYNC signal can have a frequency
range of 450kHz to 1.5MHz.
To Other
PWS725A/726A
Converters
To Other
PWS725A/726A
Converters
FIGURE 2. Synchronization of Multiple PWS725As or
PWS726As from a Master Converter.
FIGURE 3. Synchronization of Multiple PWS725As or
PWS726As from an External TTL Signal.
switches operating in their safe operating area under fault
conditions or excessive loads. When either of these condi-
tions occur, the peak input current exceeds a safe limit. The
result is an approximate 5% duty cycle, 300µs drive period
to the MOSFET switches. This protects the internal MOSFET
switches as well as the external load from any thermal
damage. When the fault or excessive load is removed, the
converter resumes normal operation. A delay period of
approximately 50µs incorporated in the current sensing
circuitry allows the output filter capacitors to fully charge
after a fault is removed. This delay period corresponds to a
filter capacitance of no more than 1µF at either of the output
pins. This provides full protection of the MOSFET switches
and also sufficiently filters the output ripple voltage (see
specification table). The current sensing circuitry is de-
signed to provide thermal protection for the MOSFET
switches over the operating temperature range as well. The
low thermal resistance for the package (θJC = 10°C/W)
ensures safe operation under rated conditions. When these
rated conditions are exceeded, the unit will go into its
shutdown mode.
PWS725A/726A
Monitor frequency with scope
or frequency counter (use
15
low C probe).
19
20kΩ
20
(1)
Frequency
Increase
+5VBE
+4VBE
1.25µs Nominal
SYNC Signal
NOTE: (1) For nominal 800kHz operation, leave
pins 19 and 20 open.
FIGURE 4. Frequency Adjustment Procedure.
OUTPUT CURRENT RATING
An optional potentiometer can be connected between the
two FREQUENCY ADJUST pins to trim the oscillator
operating frequency ±10% (see Figure 4). Care should be
taken when trimming the frequency near the low frequency
range. If the frequency is trimmed too low, the peak induc-
tive currents in the primary will trip the input current
sensing circuitry to protect the MOSFET switches from
these peak inductive currents.
The total current which can be drawn from the PWS725A
or PWS726A is a function of total power being drawn from
both outputs (see Functional Diagram). If one output is not
used, then maximum current can be drawn from the other
output. If both outputs are loaded, the total current must be
limited such that:
|IL+| + |IL–| ≤ 80mA
It should be noted that many analog circuit functions do not
simultaneously draw full rated current from both the posi-
tive and negatives supplies. For example, an operational
amplifier may draw 13mA from the positive supply under
The ENABLE pin allows external control of output power.
When this pin is pulled low, output power is disabled. Logic
thresholds are TTL compatible. When not used, the Enable
input may be left open or tied to VIN (pin 16).
®
5
PWS725A/726A
full load while drawing only 3mA from the negative supply.
Under these conditions, the PWS725A/726A could supply
power for up to five devices (80mA ÷ 16mA ≈ 5). Thus, the
PWS725A/726A can power more circuits than is at first
apparent.
OUTPUT SYNC SIGNAL
To allow synchronization of an ISO120 or ISO121 isolation
amplifier, the PWS725A and PWS726A have an OUTPUT
SYNC signal at pin 29. It should be connected as shown in
Figure 5 to keep capacitive loading of pin 29 to a minimum.
If output sync is not used, leave pin open.
ISOLATION VOLTAGE RATINGS
Because a long-term test is impractical in a manufacturing
situation, the generally accepted practice is to perform a
production test at a higher voltage for some shorter period of
time. The relationship between actual test conditions and the
continuous derated maximum specification is an important
one. Burr-Brown has chosen a deliberately conservative
one: VDCTEST = (2 X VACrmsCONTINUOUS RATING) + 1000V for
ten seconds. This choice is appropriate for conditions where
system transient voltages are not well defined.(1) Where the
real voltages are well-defined or where the isolation voltage
is not continuous, the user may choose a less conservative
derating to establish a specification from the test voltage.
Ext Osc
Connection
of
ISO120
or
20kΩ
4
29
PWS725A/726A
20pF
ISO121
FIGURE 5. Synchronization with ISO120 or ISO121 Isola-
tion Amplifier.
NOTE: (1) Reference National Electrical Manufacturers Association (NEMA)
Standards Parts ICS I-109 and ICS I-111.
®
6
PWS725A/726A
厂商 型号 描述 页数 下载

HAMMOND

 		PWS [ Echangeur de chaleur air/eau ] 2 页

ADVANTECH

 		PWS-1409 9槽14.1 TFT LCDPortable工作站[ 9-slot 14.1 TFT LCDPortable Workstation ] 2 页

ADVANTECH

 		PWS-1409T 9槽14.1 TFT LCDPortable工作站[ 9-slot 14.1 TFT LCDPortable Workstation ] 2 页

ADVANTECH

 		PWS-1409TP 9槽14.1 TFT LCDPortable工作站[ 9-slot 14.1 TFT LCDPortable Workstation ] 2 页

ADVANTECH

 		PWS-1419T 9槽14.1 TFT LCDPortable工作站[ 9-slot 14.1 TFT LCDPortable Workstation ] 2 页

ADVANTECH

 		PWS-1419TP 9槽14.1 TFT LCDPortable工作站[ 9-slot 14.1 TFT LCDPortable Workstation ] 2 页

ADVANTECH

 		PWS-440-6E000E [ 3.7" Ultra Rugged PDA ] 2 页

ADVANTECH

 		PWS-440-6E003E [ 3.7" Ultra Rugged PDA ] 2 页

ADVANTECH

 		PWS-440-6M000E [ 3.7" Ultra Rugged PDA ] 2 页

ADVANTECH

 		PWS-440-6M003E [ 3.7" Ultra Rugged PDA ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.293408s
