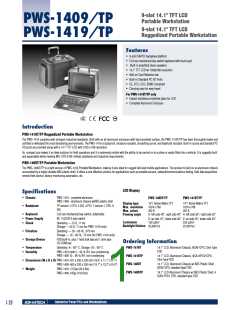

9-slot 14.1" TFT LCD
Portable Workstation
PWS-1409/TP
PWS-1419/TP
9-slot 14.1" TFT LCD
Ruggedized Portable Workstation
Features
§ 9-slot ISA/PCI backplane platform
§ Full size mechanical key-switch keyboard with touch-pad
§
Built-in amplified stereo speakers
§ 14.1" TFT LCD w/ 1028x768 resolution
§ Add-on Card Retention bar
§ Built-in Standard PC I/O Ports
§ CE, FCC, CCC, BSMI Compliant
§ Carrying case for easy travel
For PWS-1419T/TP only
§ Impact-resistance protective glass for LCD
§ Complete Aluminum Enclosure
Introduction
PWS-1419T/TP Ruggedized Portable Workstation
The PWS-1419 complies with stringent industrial standards. Built with an all aluminum enclosure with hard anodized surface, the PWS-1419T/TP has been thoroughly tested and
certified to withstand the most demanding environments. The PWS-1419 is dustproof, moisture resistant, shock/drop proof, and heat/cold resistant. Built-in sound and standard PC
I/O ports are provided along with a 14.1" TFT LCD with 1025 x 768 resolution.
Its compact size makes it an ideal solution for field operations and it is extremely mobile with the ability to be carried on to a plane or easily fitted into a vehicle. It is ruggedly built
and expandable while meeting MIL-STD-810E military standards and industrial requirements.
PWS-1409T/TP Portable Workstation
The PWS-1409T/TP is a light version of PWS-1419 Portable Workstation, making it also ideal for rugged field and mobile applications. The product is built on an aluminum chassis
surrounded by a highly durable ABS plastic shell. It offers a cost effective solution for applications such as portable servers, network/communications testing, field data acquisition,
remote field service, factory monitoring automation, etc.
LCD Display
Specifications
§ Chassis
PWS-1419 - complete aluminum
PWS-1409T/TP
PWS-1419T/TP
PWS-1409 - aluminum chassis w/ABS plastic shell
Display type
Max. resolution
Max. colors
14"1 Active Matrix TFT
1024 x 768
262 K
14"1 Active Matrix TFT
1024 x 768
262 K
§ Backplane
TP version-1 CPU, 4 ISA, 4 PCI; T version-1 CPU, 8
ISA
§ Keyboard
§ Power Supply
§ Shock
Full size mechanical key-switch, detachable
AC 110/220 V auto switch
Viewing angle
H: left side 40°, right side 40° H: left side 50°, right side 50°
V: up side 15°, down side 30° V: up side 20°, down side 35°
130 cd/m2
25,000 hrs
220 cd/m2
25,000 hrs
Luminance
Backlight lifetime
Operating — 15 G, 11 ms
Storage — 50 G, 11 ms (for PWS-1419 only)
§ Vibration
Operating — 20 ~ 60 Hz, .075 mm
Storage — 10 ~ 50 Hz, .15 mm (for PWS-1419 only)
§ Storage Device
FDD built-in, plus 1 hard disk bay and 1 slim type
CD-ROM bay
Ordering Information
§ Temperature
§ Humidity
Operating -8 ~ 60° C, Storage -20 ~ 60° C
§ PWS-1419T
§ PWS-1419TP
§ PWS-1409T
§ PWS-1409TP
14.1" LCD, Aluminum Chassis, 8ISA/1CPU, Slim Type
FDD
PWS-1419 meth 5 ~ 95 % RH, non-condensing
PWS-1409 10 ~ 90 % RH, non-condensing
14.1" LCD, Aluminum Chassis, 4ISA /4PCI/1CPU,
Slim Type FDD
§ Dimensions (W x H x D) PWS-1419: 421 x 282 x 230 mm (16.6" x 11.1" x 9.1")
14.1" LCD, Aluminum Chassis w/ ABS Plastic Shell,
8ISA/1CPU, standard type FDD
PWS-1409: 400 x 320 x 200 mm (15.7" x 13.2" x10.4")
§ Weight
PWS-1419: 12 Kgs (26.4 lbs)
PWS-1409: 9 Kgs (19.8 lbs)
14.1" LCD Aluminum Chassis w/ ABS Plastic Shell, 4
ISA/4 PCI/1 CPU, standard type FDD
