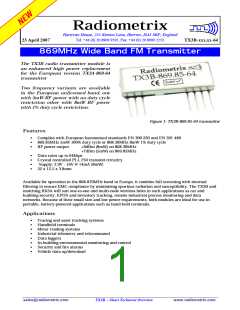

Radiometrix
Hartcran House, 231 Kenton Lane, Harrow, HA3 8RP, England
Tel: +44 (0) 20 8909 9595, Fax: +44 (0) 20 8909 2233
23 April 2007
TX3B-xxx.xx-64
8 6 9 MH z Wid e Ba n d FM Tr a n s mit t e r
The TX3B radio transmitter module is
an enhanced high power replacement
for the European version TX3A-869-64
transmitter
Two frequency variants are available
in the European unlicensed band, one
with 5mW RF power with no duty cycle
restriction other with 8mW RF power
with 1% duty cycle restriction.
Figure 1: TX3B-869.85-64 transmitter
Features
ꢀ
ꢀ
ꢀ
Complies with European harmonised standards EN 300 220 and EN 301 489
869.85MHz 5mW 100% duty cycle or 868.30MHz 8mW 1% duty cycle
RF power output
+9dBm (8mW) on 868.30MHz
+7dBm (5mW) on 869.85MHz
ꢀ
ꢀ
ꢀ
ꢀ
Data rates up to 64kbps
Crystal controlled PLL FM transmit circuitry
·Supply: 2.9V - 16V @ 14mA (8mW)
32 x 12.5 x 3.8mm
Available for operation in the 868-870MHz band in Europe, it combine full screening with internal
filtering to ensure EMC compliance by minimising spurious radiation and susceptibility. The TX3B and
matching RX3A will suit one-to-one and multi-node wireless links in such applications as car and
building security, EPOS and inventory tracking, remote industrial process monitoring and data
networks. Because of their small size and low power requirements, both modules are ideal for use in
portable, battery-powered applications such as hand-held terminals.
Applications
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Tracing and asset tracking systems
Handheld terminals
Meter reading systems
Industrial telemetry and telecommand
Data loggers
In-building environmental monitoring and control
Security and fire alarms
Vehicle data up/download
sales@radiometrix.com
TX3B - Short Technical Overview
