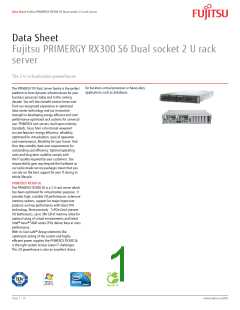

Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Data Sheet
Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack
server
The 2 U virtualization powerhouse
for business-critical processes or heavy-duty
applications such as databases.
The PRIMERGY RX Rack Server family is the perfect
platform to form dynamic infrastructures for your
business processes today and in the coming
decade. You will thus benefit several times over
from our recognized experience in optimized
data center technology and our innovative
strength in developing energy-efficient and cost/
performance-optimized rack systems for universal
use. PRIMERGY rack servers, built upon industry
standards, focus from a functional viewpoint
on core features: energy efficiency, reliability,
optimized for virtualization, ease of operation
and maintenance, flexibility for your future. And
thus they notably meet your requirements for
outstanding cost efficiency. Optimal operating
costs and long-term usability comply with
the IT quality required by your customers. Our
responsibility goes way beyond the hardware as
our tailor-made service packages mean that you
can rely on the best support for your IT during its
whole lifecycle.
PRIMERGY RX300 S6
The PRIMERGY RX300 S6 is a 2 U rack server which
has been optimized for virtualization purposes. It
provides high, scalable I/O performance, extensive
memory options, support for major hypervisor
products and top performance with latest CPU
technology. More precisely: 7xPCIe Gen2 prevent
I/O bottlenecks, up to 384 GB of memory allow for
optimal sizing of virtual environments and latest
Intel® Xeon® 5600 series CPUs deliver best-in class
performance.
With its Cool-safe™ design elements like
optimized cooling of the system and highly
efficient power supplies the PRIMERGY RX300 S6
is the right system to face Green IT challenges.
This 2U powerhouse is also an excellent choice
Page 1 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Features and Benefits
Main Features
Benefits
Designed for highest performance needs
„ Intel® Xeon® Processor 5600 Series with up to 6 core operation
(up to 12 threads per socket with Hyper Threading), 12 MB shared
cache, Internal Memory Management Unit (3 channels of DDR3
memory) and Intel® Turbo Boost Optimization
„ Enhanced productivity thanks to latest CPU technology
Designed for highest energy efficiency
„ Highly efficient power supply units with 92% efficiency and Cool-
safe™ system design
„ Energy-efficient operations reduce stress not only for the data
center cooling system but also for the budget
Designed for highest reliability
„ Hot-plug and redundant fans and power supplies, enhanced
memory protection levels, modular RAID 5/6 option
Optimized for virtualization
„ System reliability and highly available data even for your most
demanding application scenarios
„ up to 384 GB state-of the art DDR3 main memory, 7 PCIe Gen 2, SAS
2.0 support, support for latest virtualization technology
Solutions for server management
„ Provides the performance and scalability to meet the demands of
virtualized environments
„ ServerView Suite - Proven tools for the efficient management of
physical and virtual resources throughout the entire lifecycle:
perfect installation - stable operations - secure updates - exact
maintenance - easy integration into third party environments
„ The key to high-level IT benefits and reduced operational and
service costs: greater reliability, lower downtimes and improved
service quality
Page 2 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Technical details
PRIMERGY RX300 S6
Housing types
Rack
Rack
Rack
Storage drive architecture
6x 3.5” SAS/SATA
8x 2.5” SAS/SATA/SSD
12x 2.5” SAS/SATA/SSD
Mainboard
Mainboard type
Chipset
D 2619-N
Intel® 5520
Processor quantity and type
1 - 2 x Intel® Xeon® processor E5500 series / Intel® Xeon® processor E5600 series / Intel® Xeon® processor L5600
series / Intel® Xeon® processor X5600 series
Processor
Intel® Xeon® processor E5503
(2C/2T, 2.00 GHz, SLC: 4 x 256 KB, TLC: 4 MB, Turbo: No, 4.8 GT/s, Mem bus: 800 MHz, 80 W)
Intel® Xeon® processor E5603
(4C/4T, 1.60 GHz, SLC: -, TLC: 4 MB, Turbo: No, 4.8 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5606
(4C/4T, 2.13 GHz, SLC: -, TLC: 8 MB, Turbo: No, 4.8 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5607
(4C/4T, 2.26 GHz, SLC: -, TLC: 8 MB, Turbo: No, 4.8 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5620
(4C/8T, 2.40 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 1/1/2/2, 5.86 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5630
(4C/8T, 2.53 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 1/1/2/2, 5.86 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5640
(4C/8T, 2.66 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 1/1/2/2, 5.86 GT/s, Mem bus: 1066 MHz, 80 W)
Intel® Xeon® processor E5645
(6C/12T, 2.40 GHz, SLC: -, TLC: 12 MB, Turbo: 1/1/1/1/2/2, 5.86 GT/s, Mem bus: 1333 MHz, 80 W)
Intel® Xeon® processor E5649
(6C/12T, 2.53 GHz, SLC: -, TLC: 12 MB, Turbo: 1/1/1/1/2/2, 5.86 GT/s, Mem bus: 1333 MHz, 80 W)
Intel® Xeon® processor L5630
(4C/8T, 2.13 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 1/1/2/2, 5.86 GT/s, Mem bus: 1066 MHz, 40 W)
Intel® Xeon® processor L5640
(6C/12T, 2.26 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 2/2/3/3/4/4, 6.4 GT/s, Mem bus: 1333 MHz, 60 W)
Intel® Xeon® processor X5647
(4C/8T, 2.93 GHz, SLC: -, TLC: 12 MB, Turbo: 1/1/2/2, 5.86 GT/s, Mem bus: 1066 MHz, 130 W)
Intel® Xeon® processor X5650
(6C/12T, 2.66 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 2/2/2/2/3/3, 6.4 GT/s, Mem bus: 1333 MHz, 95 W)
Intel® Xeon® processor X5660
(6C/12T, 2.80 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 2/2/2/2/3/3, 6.4 GT/s, Mem bus: 1333 MHz, 95 W)
Intel® Xeon® processor X5667
(4C/8T, 3.06 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 2/2/3/3, 6.4 GT/s, Mem bus: 1333 MHz, 95 W)
Intel® Xeon® processor X5675
(6C/12T, 3.06 GHz, SLC: -, TLC: 12 MB, Turbo: 2/2/2/2/3/3, 6.4 GT/s, Mem bus: 1333 MHz, 95 W)
Intel® Xeon® processor X5677
(4C/8T, 3.46 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 1/1/2/2, 6.4 GT/s, Mem bus: 1333 MHz, 130 W)
Intel® Xeon® processor X5687
(4C/8T, 3.60 GHz, SLC: -, TLC: 12 MB, Turbo: 1/1/2/2, 6.4 GT/s, Mem bus: 1333 MHz, 130 W)
Intel® Xeon® processor X5690
(6C/12T, 3.46 GHz, SLC: -, TLC: 12 MB, Turbo: 1/1/1/1/2/2, 6.4 GT/s, Mem bus: 1333 MHz, 130 W)
Memory slots
18 (9 DIMMs per CPU, 3 channels with 3 slots per channel)
Memory slot type
DIMM (DDR3)
Memory capacity (min. - max.)
2 GB - 384 GB
Page 3 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Memory protection
Advanced ECC
Memory Scrubbing
SDDC (Chipkill™)
Hot-spare memory support
Memory Mirroring support
Memory notes
Memory Mirroring with identical modules in each of 2 channels (2 modules per bank), Hot-spare or Performance
mode with identical modules in all three channels (3 per bank)
Memory Modules Independent Mode
2 GB (1 module(s) 2 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
2 GB (1 module(s) 2 GB) DDR3, unbuffered, ECC, 1333 MHz, PC3-10600, DIMM
2 GB (1 module(s) 2 GB) DDR3 LV, unbuffered, ECC, 1333 MHz, PC3-10600, DIMM
4 GB (1 module(s) 4 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
4 GB (1 module(s) 4 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
8 GB (1 module(s) 8 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
8 GB (1 module(s) 8 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
16 GB (1 module(s) 16 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
16 GB (1 module(s) 16 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
32 GB (1 module(s) 32 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
Memory Modules Mirrored Mode
4 GB (2 module(s) 2 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
8 GB (2 module(s) 4 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
8 GB (2 module(s) 4 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
16 GB (2 module(s) 8 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
16 GB (2 module(s) 8 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
32 GB (2 module(s) 16 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
64 GB (2 module(s) 32 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
Memory Modules Spare or Performance 6 GB (3 module(s) 2 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
Mode
12 GB (3 module(s) 4 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
12 GB (3 module(s) 4 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
24 GB (3 module(s) 8 GB) DDR3, registered, ECC, 1333 MHz, PC3-10600, DIMM
24 GB (3 module(s) 8 GB) DDR3 LV, registered, ECC, 1333 MHz, PC3-10600, DIMM
48 GB (3 module(s) 16 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
96 GB (3 module(s) 32 GB) DDR3, registered, ECC, 1066 MHz, PC3-8500, DIMM
Interfaces
USB ports
10 x USB 2.0 (3x front, 4x rear, 2x internal for backup devices plus 1x USB stick)
2 x VGA (thereof 1x front optional)
Graphics (15-pin)
Serial 1 (9-pin)
Serial 2 (9-pin)
LAN / Ethernet (RJ-45)
Service LAN (RJ45)
1 x serial RS-232-C, usable for iRMC or system or shared
1 x serial RS-232-C
2 x Gbit/s Ethernet
1 x dedicated service LAN port for iRMC S2 (10/100 Mbit/s)
Service LAN traffic can be switched to shared onboard Gbit LAN port
Onboard or integrated Controller
RAID controller
Integrated RAID 0/1 or RAID 5/6 controller for SAS base units (occupies one PCIe slot, if at least 1 HDD is configured).
See under Components RAID controller
SATA Controller
LAN Controller
ICH10B, with two SATA channels for DVD + backup
Intel® 82575EB , 2 x 10/100/1000 Mbit/s Ethernet (I/O acceleration), VT-c (I/O acceleration and VMDq), PXE boot via
LAN from PXE server, iSCSI boot (also diskless) via onboard LAN
Remote Management Controller
Trusted Platform Module (TPM)
Integrated Remote Management Controller (iRMC S2, 32 MB attached memory incl. graphics controller), IPMI 2.0
compatible
Infineon / separate module; TCG V1.2 compliant (option)
Slots
PCI-Express 2.0 x4 (mech. x8)
PCI-Express 2.0 x8
Slot Notes
5 x Low profile
2 x Low profile , both are notched x8 slot as well for x16 cards
Two of four PCI-Express Gen2 x4 slots can be used as x8, if neighbour slot is empty.
One PCIe Gen2 x4 slot may be occupied with a modular RAID controller if configured.
Page 4 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Accessible drive bays
Notes accessible drives
1 x 5.25/0.5-inch for CD-RW/DVD
1 x 3.5/0.5-inch for ServerView Local Service Panel or Local Service Display
All possible options described in relevant system configurator.
Drive bays (Base unit specific)
Storage drive bays
6 x 3.5-inch hot-plug SAS/SATA
8 x 2.5-inch hot-plug SAS/SATA
12 x 2.5-inch hot-plug SAS/SATA
Optional accessible drives
1x 3.5/1.6-inch bay for backup devices
(occupies 2x 3.5-inch HDD)
General system information
Number of fans
5
Fan configuration
Hot-plug
Operating panel
Operating buttons
On/off switch
NMI button
Reset button
Status LEDs
System status (orange / yellow)
Identification (blue)
Hard disks access (green)
Power (amber / green)
At system rear side:
System status (orange / yellow)
Identification (blue)
LAN connection (green)
LAN speed (green / yellow)
Service display
Optional:
ServerView Local Service Panel (LSP)
ServerView Local Service Display (LSD)
BIOS
BIOS features
ROM based setup utility
Recovery BIOS
BIOS settings save and restore
Local BIOS update from USB device
Online update tools for main Windows and Linux versions
Local and remote update via ServerView Update Manager
SMBIOS V2.4
Remote PXE boot support
Remote iSCSI boot support
Page 5 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Operating Systems and Virtualization Software
Certified or supported operating
Microsoft® Hyper-V™ Server 2008 R2
systems and virtualization software
Microsoft® Windows Server® 2008 R2 Datacenter
Microsoft® Windows Server® 2008 R2 Enterprise
Microsoft® Windows Server® 2008 R2 Standard
Microsoft® Windows® Web Server 2008 R2
Microsoft® Windows HPC Server® 2008 R2 Suite
Microsoft® Windows® Small Business Server 2011 Premium Add-On
Microsoft® Windows® Small Business Server Standard 2011
Microsoft® Windows® Server 2008 Datacenter
Microsoft® Windows® Server 2008 Enterprise
Microsoft® Windows® Server 2008 Standard
Microsoft® Windows® Web Server 2008
Microsoft® Windows® Small Business Server 2008 Standard
Microsoft® Windows® Small Business Server 2008 Premium
Microsoft® Windows Server® 2003 Enterprise Edition
Microsoft® Windows Server® 2003 Standard Edition
Microsoft® Windows Server® 2003 Web Edition
VMware vSphere™ 5.0 Embedded
VMware vSphere™ 5.0
VMware vSphere™ 4.1
VMware vSphere™ 4.1 Embedded
VMware vSphere™ 4.1 Installable
VMware vSphere™ 4.0
VMware vSphere™ 4.0 Embedded
VMware vSphere™ 4.0 Installable
Novell® SUSE Linux Enterprise Server 11
Novell® SUSE Linux Enterprise Server 10
Novell® SUSE Linux Enterprise Server 10 with XEN
Red Hat® Enterprise Linux 6
Red Hat® Enterprise Linux 5
Red Hat® Enterprise Linux 5 with XEN
Citrix® XenServer®
Oracle® VM 3.0
Operating system release link
Operating system notes
http://docs.ts.fujitsu.com/dl.aspx?id=a9e600b9-e4cb-4f48-aa41-632f69058421
Support of other Linux derivatives on demand
Server Management
Standard
ServerView Suite - Deploy
SV Installation Manager
SV Scripting Toolkit
SV Deployment Manager (30-day trial version)
ServerView Suite - Control
SV Operations Manager incl. PDA and ASR & R
(Prefailure and Analysis; Automatic Server Recovery and Restart)
SV Performance Management
SV Power Management
SV RAID Manager
ServerView Suite - Maintain
SV Remote Management (iRMC)
SV Update Management (BIOS, Firmware, Windows Drives and SV Agents)
SV Asset Management
SV Online Diagnostics
ServerView Suite - Integrate
SV Integration packs e.g. for Microsoft System Center, Nagios, HP, SIM, HP NNM, IBM Tivoli, Altiris
Deployment Solutions and others
Page 6 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Server Management
Option
ServerView Suite - Deploy
SV Deployment Manager (full version)
ServerView Suite - Maintain
iRMC Advanced Pack incl. Advanced Video Redirection (AVR) and Remote Storage
ServerView Suite - Dynamize
SV Virtual-IO Manager (VIOM)
SV Resource Orchestrator Virtual Edition (ROR VE)
SV Resource Orchestrator Cloud Edition (ROR CE)
ServerView Suite - Integrate
SV Integration pack for Fujitsu ManageNow® solution
Server Management notes
Regarding Operating System dependencies for ServerView Suite software Products see dedicated Product Data sheets.
Dimensions / Weight
Rack (W x D x H)
Mounting Depth Rack
Height Unit Rack
19” rackmount
482.6 mm (Bezel) / 445mm (Body) x 770 x 85.9 mm
735 mm
2 U
Yes
Weight
up to 25 kg
Weight notes
Actual weight may vary depending on configuration
Rack integration kit as option
Rack integration kit
Environmental
Operating ambient temperature
Operating relative humidity
Operating environment
Operating environment Link
Noise emission
10 - 35°C
10 - 85 % (non condensing)
FTS 04230 – Guideline for Data Center (installation locations)
http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Measured according to ISO 7779 and declared according to ISO 9296
45 dB(A) (idle) / 45 dB(A) (operating)
Sound pressure (LpAm)
Sound power (LWAd; 1B = 10dB)
6.2 B (idle) / 6.2 B (operating)
Electrical values
Power supply configuration
Max. output of single power supply
Power supply efficiency
hot-plug power supply as standard, redundancy as option (1 + 1 redundancy)
800 W
92%
Hot-plug power supply redundancy
Rated voltage range
Yes
100 V - 240 V
Rated frequency range
47 Hz - 63 Hz
Rated current max.
8.0 A – 3.5 A (100 V / 240 V)
4.2 A - 1.4 A (100 V / 240 V)
504 W
Rated current in basic configuration
Active power (max. configuration)
Apparent power (max. configuration)
Heat emission
513 VA
1814.4 kJ/h (1719.7 BTU/h)
The following Energy Star Familiy configuration options use less energy and reduce greenhouse gas emissions:
RX300 S6 E-Star Fam1
http://ts.fujitsu.com/products/standard_servers/e_efficient.html
Compliance
Germany
Europe
GS
CE Class A *
USA/Canada
CSAc/us
FCC Class A
Global
CB
RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronical equipment)
Japan
China
VCCI
CCC
Page 7 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
Compliance
Australia/New Zealand
Compliance notes
C-Tick
There is general compliance with the safety requirements of all European countries and North America. National
approvals required in order to satisfy statutory regulations or for other reasons can be applied for on request.
* Warning:
This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.
Compliance link
http://sp.ts.fujitsu.com/sites/certificates/
Components
Storage disks
SSD SAS, 6 Gb/s, 400 GB, SLC, hot-plug, 2.5-inch, enterprise
SSD SAS, 6 Gb/s, 200 GB, SLC, hot-plug, 2.5-inch, enterprise
SSD SAS, 6 Gb/s, 100 GB, SLC, hot-plug, 2.5-inch, enterprise
HDD SATA, 3 Gb/s, 500 GB, 7200 rpm, hot-plug, 3.5-inch, business critical
HDD SATA, 3 Gb/s, 500 GB, 7200 rpm, hot-plug, 2.5-inch, business critical
HDD SATA, 3 Gb/s, 250 GB, 7200 rpm, hot-plug, 2.5-inch, business critical
HDD SATA, 3 Gb/s, 160 GB, 7200 rpm, hot-plug, 3.5-inch, economic
HDD SATA, 3 Gb/s, 2 TB, 7200 rpm, hot-plug, 3.5-inch, business critical
HDD SATA, 3 Gb/s, 1 TB, 7200 rpm, hot-plug, 3.5-inch, business critical
HDD SATA, 3 Gb/s, 1 TB, 7200 rpm, hot-plug, 2.5-inch, business critical
HDD SAS, 6 Gb/s, 900 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 600 GB, 15000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 6 Gb/s, 600 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 450 GB, 15000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 6 Gb/s, 450 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 15000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 146 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 73 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise
Backup Drives
DDS Gen5 (for 3.5-inch HDD bay), 36 GB, 3 MB/s, half height, USB 2.0
DDS Gen5 3.5”, 36 GB, 3 MB/s, half height, USB 2.0
RDX Drive, 160 GB, 320 GB, 500 GB, 1 TB , 25 MB/s, half height, USB 2.0
Optical drives
Blu-ray Disc™ Triple Writer, (6x BD-ROM; 8x DVD; 24x CD), slimline, SATA I
DVD Super Multi, (8xDVD/DVD+RW, 6xDVD-RW, 5xDVD-RAM; 24xCD/CD-R, 16xCD-RW), slimline, SATA I
SCSI / SAS Controller
SCSI Ctrl. 320 MB 1x int /1x ext
SAS Ctrl. 6 Gb 8 ports ext. PCIe Gen2 x8
SAS Ctrl. 3 Gb 4 ports int. / 4 ports ext.
RAID Controller
Integrated RAID 5/6 Ctrl., HDD SAS 6 Gb, Fujitsu , 8 ports int.
RAID level: 0, 1, 10, 5, 50, 6, 60, 512 MB Cache, Optional BBU (based on LSI SAS2108)
Integrated RAID 0/1 Ctrl., SAS/SATA 6 Gb, Fujitsu , 8 ports int.
RAID level: 0, 1, 10, No BBU support (based on LSI SAS2008)
Integrated RAID 0/1 Ctrl., SAS/SATA 3 Gb, 8 ports int.
RAID level: 0, 1, 1E, No BBU support (based on LSI 1068e)
Fibre Channel controller
Fibre Channel Host Bus Adapter 1 x 8 Gb Qlogic QLE2560 MMF LC-style
Fibre Channel Host Bus Adapter 2 x 8 Gb Qlogic QLE2562 MMF LC-style
Fibre Channel Host Bus Adapter 1 x 8 Gb Emulex LPe1250 MMF LC-style
Fibre Channel Host Bus Adapter 2 x 8 Gb Emulex LPe12002 MMF LC-style
Page 8 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
LAN Controller
Converged Network Adapter 2 x 10 Gb Emulex OCe10102
Ethernet Ctrl. 1 x 1 Gb Intel® Gigabit CT Desktop Adapter
Ethernet Ctrl. 1 x 1 Gb Intel® PRO/1000 PF Server Adapter
Ethernet Ctrl. 1 x 1 Gb Intel® PRO/1000 PT Server Adapter
Ethernet Ctrl. 2 x 10 Gb Fujitsu Eth Ctrl 2x10Gbit PCIe x8 D2755 SFP+ lp
Ethernet Ctrl. 2 x 1 Gb Fujitsu Eth Ctrl 2x1Gbit PCIe x4 D2735-2 Cu
Ethernet Ctrl. 4 x 1 Gb Fujitsu Eth Ctrl 4x1Gbit PCIe x4 D2745 Cu
InfiniBand HCA 1 x 40 Gb Mellanox
InfiniBand HCA 2 x 40 Gb Mellanox
LAN Controller notes
Ethernet Ctrl 1 x 1 Gb Intel® Gigabit CT Desktop Adapter requires RHEL 4.8 or higher
NVIDIA® Quadro® NVS 300 LP, PCIe x1, 2x DVI/VGA
Graphics add on cards (optional)
Rack infrastructure
Cable Arm 2U for PCR M1 S and 3rd party racks
Rackmount kit full extraction (760mm), tool less mounting
Rackmount kit full extraction (760mm), tool less mounting
Cable Management for asym. 19-inch PRIMECENTER Racks
Cable Management Arm 2U for PRIMECENTER- and 3rd-party racks
Warranty
Standard Warranty
3 years
Service level
On-site Service (depending on country)
Maintenance and Support Services - the perfect extension
Recommended Service
Service Lifecycle
7x24, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
5 years
Service Weblink
http://www.fujitsu.com/fts/services
Page 9 / 10
www.fujitsu.com/fts
Data Sheet Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server
More information
Fujitsu platform solutions
More information
Copyrights
In addition to Fujitsu PRIMERGY RX300 S6,
Fujitsu provides a range of platform solutions.
They combine reliable Fujitsu products with
the best in services, know-how and worldwide
partnerships.
Learn more about Fujitsu PRIMERGY RX300
S6, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
All rights reserved, including intellectual
property rights. Changes to technical data
reserved. Delivery subject to availability. Any
liability that the data and illustrations are
complete, actual or correct is excluded.
Designations may be trademarks and/or
copyrights of the respective manufacturer,
the use of which by third parties for their
own purposes may infringe the rights of such
owner.
www.fujitsu.com/fts
Dynamic Infrastructures
Fujitsu green policy innovation
With the Fujitsu Dynamic Infrastructures
approach, Fujitsu offers a full portfolio of IT
products, solutions and services, ranging
from clients to datacenter solutions, Managed
Infrastructure and Infrastructure as-a-
Service. How much you benefit from Fujitsu
technologies and services depends on the
level of cooperation you choose. This takes IT
flexibility and efficiency to the next level.
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to resolve
issues of environmental energy efficiency
through IT.
For further information see http://www.fujitsu.
com/fts/resources/navigation/terms-of-use.
html
Copyright © Fujitsu Technology Solutions
Please find further information at http://www.
fujitsu.com/global/about/environment/
Disclaimer
Technical data are subject to modification and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective manufacturer, the use of which
by third parties for their own purposes may
infringe the rights of such owner.
Computing Products
www.fujitsu.com/global/services/computing/
Software
www.fujitsu.com/software/
Contact
FUJITSU LIMITED
All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability.
Any liability that the data and illustrations are complete, actual or correct is excluded.
Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their
own purposes may infringe the rights of such owner.
Website: www.fujitsu.com
2012-04-04 CE-EN
For further information see http://www.fujitsu.com/fts/resources/navigation/terms-of-use.html
Copyright © Fujitsu Technology Solutions
Page 10 / 10
www.fujitsu.com/fts
厂商 型号 描述 页数 下载

RUBYCON

 		RX30 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 4 页

ETC

 		RX30000 RX4000安装|用户手册[ 10/2001 ]\n[ RX4000 Installation | User＇s Manual[10/2001] ] 111 页

RICHCO

 		RX3030-0 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

RICHCO

 		RX3030-4 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

ETC

 		RX3034B70W 双极NPN UHF /微波Transisitor\n[ Bipolar NPN UHF/Microwave Transisitor ] 5 页

RUBYCON

 		RX30_1 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 2 页

PTC

 		RX3140 RX3140低功耗IF接收机IC[ RX3140 Low Power IF Receiver IC ] 9 页

TE

 		RX314005 电源PCB继电器[ Power PCB Relay ] 4 页

TE

 		RX314005C 电源PCB继电器[ Power PCB Relay ] 4 页

TE

 		RX314012 电源PCB继电器[ Power PCB Relay ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.257522s
