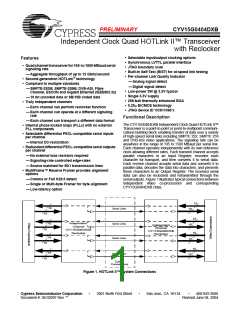

PRELIMINARY
CYV15G0404DXB
Independent Clock Quad HOTLink II™ Transceiver
with Reclocker
• Selectable input/output clocking options
• Synchronous LVTTL parallel interface
• JTAG boundary scan
• Built-In Self-Test (BIST) for at-speed link testing
• Per-channel Link Quality Indicator
— Analog signal detect
Features
• Quadchanneltransceiverfor195-to1500-MBaudserial
signaling rate
— Aggregate throughput of up to 12 Gbits/second
• Second-generation HOTLink® technology
• Compliant to multiple standards
— Digital signal detect
• Low-power 3W @ 3.3V typical
• Single 3.3V supply
• 256-ball thermally enhanced BGA
• 0.25µ BiCMOS technology
• JTAG device ID ‘0C811069’x
— SMPTE-292M, SMPTE-259M, DVB-ASI, Fibre
Channel, ESCON and Gigabit Ethernet (IEEE802.3z)
—10 bit uncoded data or 8B/10B coded data
• Truly independent channels
— Each channel can perform reclocker function
— Each channel can operate at a different signaling
rate
Functional Description
—Each channel can transport a different data format
The CYV15G0404DXB Independent Clock Quad HOTLink II™
Transceiver is a point-to-point or point-to-multipoint communi-
cations building block enabling transfer of data over a variety
of high-speed serial links including SMPTE 292, SMPTE 259
and DVB-ASI video applications. The signaling rate can be
anywhere in the range of 195 to 1500 MBaud per serial link.
Each channel operates independently with its own reference
clock allowing different rates. Each transmit channel accepts
parallel characters in an Input Register, encodes each
character for transport, and then converts it to serial data.
Each receive channel accepts serial data and converts it to
parallel data, decodes the data into characters, and presents
these characters to an Output Register. The received serial
data can also be reclocked and retransmitted through the
serial outputs. Figure 1 illustrates typical connections between
independent video co-processors and corresponding
CYV15G0404DXB chips.
• Internal phase-locked loops (PLLs) with no external
PLL components
• Selectable differential PECL-compatible serial inputs
per channel
— Internal DC-restoration
• Redundant differential PECL-compatible serial outputs
per channel
— No external bias resistors required
— Signaling-rate controlled edge-rates
—Source matched for 50Ω transmission lines
• MultiFrame™ Receive Framer provides alignment
options
— Comma or Full K28.5 detect
— Single or Multi-byte Framer for byte alignment
— Low-latency option
10
10
Serial Links
10
10
10
10
Independent
Channel
CYV15G0404DXB
10
10
Serial Links
Serial Links
10
10
Independent
Channel
CYV15G0404DXB
10
10
Reclocker
Reclocker
10
10
Serial Links
10
10
Cable
Connections
Figure 1. HOTLink II™ System Connections
Cypress Semiconductor Corporation
Document #: 38-02097 Rev. **
•
3901 North First Street
•
San Jose, CA 95134
•
408-943-2600
Revised June 04, 2004
CYV15G0404DXB
PRELIMINARY
The CYV15G0404DXB satisfies the SMPTE-259M and
SMPTE-292M compliance as per SMPTE EG34-1999 Patho-
logical Test Requirements.
characters, 8B/10B decoded, and checked for transmission
errors. Recovered decoded characters are then written to an
internal Elasticity Buffer, and presented to the destination host
system.
As a second-generation HOTLink device, the CYV15G0404DXB
extends the HOTLink family with enhanced levels of integration
and faster data rates, while maintaining serial-link compatibility
(data, command, and BIST) with other HOTLink devices. The
transmit (TX) section of the CYV15G0404DXB Quad HOTLink II
consists of four independent byte-wide channels. Each channel
can accept either 8-bit data characters or preencoded 10-bit
transmission characters. Data characters may be passed from
the Transmit Input Register to an integrated 8B/10B Encoder
to improve their serial transmission characteristics. These
encoded characters are then serialized and output from dual
Positive ECL (PECL) compatible differential transmission-line
drivers at a bit-rate of either 10- or 20-times the input reference
clock for that channel.
The integrated 8B/10B encoder/decoder may be bypassed for
systems that present externally encoded or scrambled data at
the parallel interface.
The parallel I/O interface may be configured for numerous
forms of clocking to provide the highest flexibility in system
architecture. In addition to clocking the transmit path with a
local reference clock, the receive interface may also be
configured to present data relative to a recovered clock or to a
local reference clock.
Each transmit and receive channel contains an independent
BIST pattern generator and checker. This BIST hardware
allows at-speed testing of the high-speed serial data paths in
each transmit and receive section, and across the intercon-
necting links.
The receive (RX) section of the CYV15G0404DXB Quad
HOTLink II consists of four independent byte-wide channels.
Each channel accepts a serial bit-stream from one of two
PECL-compatible differential line receivers, and using a
completely integrated Clock and Data Recovery PLL, recovers
the timing information necessary for data reconstruction. Each
recovered bit-stream is deserialized and framed into
The CYV15G0404DXB is ideal for port applications where
different data rates and serial interface standards are
necessary for each channel. Some applications include multi-
format routers and switchers.
