RX3930

型号:

RX3930

描述:

低功耗ISM频段FM / FSK接收器IC[ Low Power ISM-band FM/FSK Receiver IC ]

品牌:

ETC[ ETC ]

页数:

8 页

PDF大小:

129 K

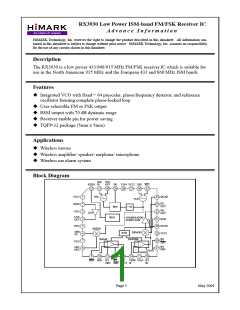

RX3930 Low Power ISM-band FM/FSK Receiver IC
A d v a n c e I n f o r m a t i o n
the wireless IC company
HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information con-
tained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility
for the use of any circuits shown in this datasheet.
Description
The RX3930 is a low power 433/868/915 MHz FM/FSK receiver IC which is suitable for
use in the North American 915 MHz and the European 433 and 868 MHz ISM bands.
Features
! Integrated VCO with fixed ÷ 64 prescaler, phase/frequency detector, and reference
oscillator forming complete phase-locked loop
! User selectable FM or FSK output
! RSSI output with 70 dB dynamic range
! Receiver enable pin for power saving
! TQFP-32 package (5mm x 5mm)
Applications
! Wireless mouse
! Wireless amplifier/ speaker/ earphone/ microphone
! Wireless car alarm system
Block Diagram
OSC OSC
RXEN IN
OUT DO VSS4 VCC2 RES RES
32
31
30
29
28
27
26
25
VCC1
RXIN
VSS1
OSC
QUAD
1
2
3
4
5
6
7
8
24
23
22
21
20
19
18
17
VCO
IF2
OUT
PFD
÷ 64
FM
OUT
LNA
LNA
OUT
BIAS
COMPARATOR/
AUDIO AMP
RSSI
VSS2
MUTE
MIXER
MIX
IN
DEMOD
LIMITER
RSSI
VCC3
IFAMP
IF2
DEC
VSS3
IF2
DEC
MIX
OUT
9
10
11
12
13
14
15
16
IFIN IFIN IF1
IF1
IF1 VREF VSS5 IF2
DEC DEC OUT IF
IN
Page 1
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Package and Pin Assignment: TQFP-32
2
4
2
3
2
2
2
1
2
0
1
9
1
8
1
7
25
26
27
28
29
30
31
32
16
15
14
13
12
11
10
9
RES
RES
IF2IN
VSS5
VCC2
VSS4
VREFIF
IF1OUT
IF1DEC
IF1DEC
IFIN
DO
OSCOUT
OSCIN
RXEN
IFIN
1
2
3
4
5
6
7
8
Dimensions in mm
Symbols
Dimensions in inch
nom.
min.
nom.
max.
1.20
min.
max.
A
0.047
A1
0.05
0.15
0.002
0.006
1.00
0.22
A2
b
0.95
0.17
0.09
1.05
0.27
0.20
0.037
0.007
0.003
0.039
0.009
0.041
0.011
0.008
C
D1
D
4.90
6.80
4.90
6.80
5.00
7.00
5.00
7.00
5.10
7.20
5.10
7.20
0.193
0.267
0.193
0.267
0.197
0.275
0.197
0.275
0.201
0.283
0.201
0.283
E1
E
e
L
0.50(typ)
0.60
0.02(typ)
0.024
0.45
0.75
0.018
0.029
0.039(ref.)
L1
1.00(ref.)
θ1
0°
3.5°
7°
0°
3.5°
8°
ccc
0.008
0.003
Page 2
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Pin Descriptions
Number
Name
VCC1
I/O
Description
1
2
POWER
Supply DC bias for RF amplifier
RF amplifier input
RXIN
I
GND
O
3
VSS1
Ground for RF amplifier
4
LNAOUT
VSS2
LNA output
5
GND
I
Ground for 40dB IF limiting amplifier
RF input to RF Mixer
6
MIXIN
VSS3
7
GND
O
Ground for RF Mixer
8
MIXOUT
IFIN
IF output from RF Mixer
9
I
IF input (required 10nF DC blocking capacitor)
Same as pin 9 except non-inverting node amplifier input
10
11
12
13
14
15
IFIN
I
IF1DEC
IF1DEC
IF1OUT
VREFIF
VSS5
I/O
I/O
O
DC feedback for 40dB limiting amplifier (required 100nF bypass capacitor)
See pin 11
IF output from the 40 dB limiting amplifier
O
DC voltage reference for the IF limiting amplifier (required 0.1 µF capacitor)
Ground for 60dB IF limiting amplifier
GND
Inverting input to the 60dB limiting amplifier (required 10nF DC blocking
capacitor)
16
17
IF2 IN
I
DC feedback node for the 60dB limiting amplifier (required 100nF bypass
capacitor)
IF2DEC
I/O
18
19
IF2DEC
VCC3
I/O
See pin 17
POWER
Supply DC bias to the 60dB IF limiting amplifier
Select FM, FSK, or mute at the FM OUT pin. (to Ground: FSK OUTPUT;
floating: FM OUTPUT; to Vcc: muting)
20
MUTE
I
21
22
23
24
25
26
27
28
29
RSSI
FMOUT
IF2OUT
QUAD
RES
O
O
Proportional DC voltage (0.5V~2.5V) output
Demodulated output
O
IF output from the 60dB limiting strip
FM demodulator input (not AC coupled)
Supply DC voltage to VCO
I
I/O
RES
I/O
See pin 25
VCC2
VSS4
DO
POWER
GND
I/O
Supply DC bias to the VCO, prescaler, and PLL
Ground shared by the VCO, prescaler, and PLL
Output of the charge pump, and input to the VCO
Page 3
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Number
30
Name
OSCOUT
OSCIN
I/O
I/O
I/O
Description
Connected to the reference oscillator transistor base
31
Connected to the emitter of the reference oscillator transistor
Power up or down the RX3930. (logic high powers up the receiver and PLL;
logic low powers down circuit to stand by mode)
32
RXEN
I
Page 4
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Absolute Maximum Ratings
VSS = 0 V
Parameter
Symbol
Rating
Unit
V
VCC1
VCC2
Supply voltage
VSS – 0.5 to VSS + 5.5
TOPR
TSTG
TSLD
tSLD
Operating temperature range
Storage temperature range
Soldering temperature range
Soldering time range
–40 to 85
–40 to 150
255
°C
°C
°C
s
10
Recommended Operating Conditions
VSS = 0 V
Value
Parameter
Symbol
Unit
min.
2.7
typ.
3.6
3.6
3.6
max.
5.0
VCC1
VCC2
VCC3
TA
V
V
V
Supply voltage range
Operating temperature
2.7
5.0
2.7
5.0
–10
25
60
°C
Page 5
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Receiver Characteristics
(VCC1, VCC2, VCC3 = 2.7 to 5.0 V, VSS = 0 V, RXEN = high, TA = –10 to 60 °C unless otherwise noted)
Value
Parameter
Symbol
Condition
Unit
min.
300
typ.
max.
1000
Input RF frequency range
MHz
BWIF = 150 KHz,
fRF = 915 MHz,
SNR = 8 dB
Psens
Sensitivity
LO leakage
–97
–55
dBm
dBm
αLO
Electrical Characteristics
(VCC1, VCC2, VCC3 = 2.7 to 5.0 V, VSS = 0 V, RXEN = high, TA = –10 to 60 °C, fRF = 915 MHz unless other-
wise noted)
Value
Parameter
Symbol
Condition
Unit
min.
typ.
max.
Power supply
VCC1 supply voltage
VCC2 supply voltage
VCC3 supply voltage
Total dc current (normal operation)
Total dc current (stand-by mode)
LNA
VCC1
VCC2
VCC3
IDC
2.7
2.7
2.7
3.6
3.6
3.6
10
5.0
5.0
5.0
V
V
V
mA
µA
Istandby
RXEN = low
1
Power gain
GLNA
Matched to 50 Ω
17
dB
dB
Noise figure
NFLNA
3.8
Input third-order intermodulation intercept
point
IIP3LNA
–8
dBm
Mixer
GC
Conversion power gain
Noise figure (SSB)
Matched to 50 Ω
7
dB
dB
NFMIX
17
Input third-order intermodulation intercept
point
IIP3MIX
–15.5
dBm
VCO
Frequency range
External varactor
300
1000
MHz
Page 6
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Value
typ.
Parameter
Symbol
Condition
Unit
min.
–40
max.
PLL
N-divider ratio
64
Reference frequency
Charge pump current
Lock time
fREF
ICP
17
40
MHz
µA
PLL’s lock time set by
bandwidth of external
loop filter
τlock
10
ms
IF amplifier
Frequency range
Input impedance
Output impedance
Limiter
0.1
0.1
10.7
330
330
25
25
MHz
Zin,IF
Zout,IF
Frequency range
Input impedance
Output impedance
RSSI
10.7
330
330
MHz
Zin,IF
Zout,IF
RSSI dynamic range
RSSI dc output range
FM/FSK Demodulator
Demodulated output level (audio)
FSK output duty ratio
70
dB
V
Rload = 51 KΩ
0.5
40
2.5
60
VOD
mVrms
%
70
50
Page 7
May 2001
A d v a n c e I n f o r m a t i o n
RX3930
the wireless IC company
Application Circuit (906 MHz)
*:Alpha
smv1233-11
47N
3.3N
10K
*
10
2.7K
VCC
Ctrim
47P
10N
2.7P
100P
3.9N
27
14.31818MHz
RXEN
100P
3.9N
**:
10.7MHz
discriminator
32
31
30
29
28
26
25
CDF-107B
15K
**
RXEN
DO VSS4 VCC2 RES RES
OSC OSC
47P
10N
IN
OUT
VCC
1
24
VCC1
QUAD
10N
2.2P
12N
IF2
OUT
RXIN
VSS1
2
3
4
5
6
7
8
23
22
21
20
19
18
17
RXIN
22P
FM
OUT
FMOUT
LNA
OUT
8.2N
RSSI
51K
RSSI
VCC
47P
100P
10P
MUTE
10N
VSS2
MUTE
MIX
IN
VCC3
VCC
10N
IF2
DEC
47P
10N
VSS3
MIX
OUT
IF2
DEC
10uA
VCC
IF1
IF1
IF1
VREF
DEC DEC OUT IF
IF2
IN
IFIN IFIN
VSS5
15
10N
10N
47P
9
10
11
12
13
14
16
10N
10N
10N 10N
10N
LT 10.7MS3
0 = 10.7MHz
BW = 180KHz
f
Page 8
May 2001
