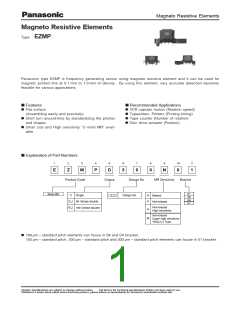

Magneto Resistive Elements
■ Packing Methods
Part No.
Standard Quantity
3600 pcs./Box
Style
Tray
Tray
Tray
Weight (g/pcs.)
EZMP1111101
EZMP11111S8/SA
EZMP11111U1
5.6
1.1
0.9
15000 pcs./Box
15000 pcs./Box
■ Application Examples
1. Detection of revolutions
(1)Detection of position
Rotator
w
EZM detects the spot where has been mag-
netized on a rotator.
Magnetized
spot
S
N
EZM
0
90 180 270 360
1 cycle
(2)Detection of rotation angle
The circumference of a rotar has been mag-
netized in such a manner in the right figure.
EZM detects a rotation angle by analizing
wave froms through a differential and integral
circuit and by a up-down counter.
Rotator
Magnet
w
(3)Detection of number of rotations.
EZM
N
S
N
S
N
S
N
S
N
S
Angle
Cautions for Safety
1. Solder at 260 ûC or lower within 10 seconds.
2. Do not apply any mechanical shock to the sensing surface.
3. Do not use the components once dropped on the floor.
4. Do not use any corrosive adhesive.
5. Do not wash in solvents.
6. This catalog shows the quality and performance of a unit component. For quality assurance, exchange the de-
livery specification with us. Before adoption, be sure to evaluated and verify the product moun-ting it in your.
■ Examples of Applications
● To sense movement without touching
● To sense a very small signal from a Hall element (Hall IC)
● To sense a loose signal from Hall element (Hall IC)
●
●
To get more stabilized output voltage from ring head
To substitute for optical sensor in dusty circumstances
● To sense at a higher speed than an optical sensor
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/ or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
