EZM11600GCBCMS

型号:

EZM11600GCBCMS

品牌:

SCHNEIDER[ SCHNEIDER ELECTRIC ]

页数:

2 页

PDF大小:

57 K

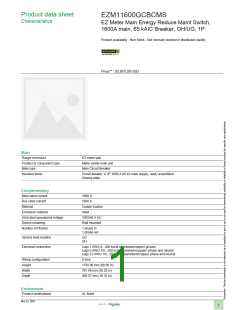

Product data sheet
EZM11600GCBCMS
Characteristics
EZ Meter Main Energy Reduce Maint Switch,
1600A main, 65 kAIC Breaker, OH/UG, 1P
Product availability : Non-Stock - Not normally stocked in distribution facility
Price** : 52,870.28 USD
Main
Range of product
Product or component type
Main type
EZ meter-pak
Meter center main unit
Main Circuit Breaker
Included Items
Circuit breaker 1) 2P 1600 A 65 kA main supply, ready assembled
Closing plate
Complementary
Main rated current
Bus rated current
Material
1600 A
1200 A
Copper busbar
Steel
Enclosure material
[Ue] rated operational voltage
Device mounting
Number of Phases
120/240 V AC
Wall mounted
1 phase in
1 phase out
Service feed location
Electrical connection
UG
OH
Lugs 1 AWG 6...300 kcmil aluminium/copper) ground
Lugs 6 AWG 1/0...750 kcmil aluminium/copper) phase and neutral
Lugs 12 AWG 1/0...250 kcmil aluminium/copper) phase and neutral
Wiring configuration
Height
3-wire
1750.06 mm (68.90 in)
767.08 mm (30.20 in)
465.07 mm (18.31 in)
Width
Depth
Environment
Product certifications
UL listed
Mar 23, 2020
1
Enclosure Rating
NEMA 3R
Ordering and shipping details
Category
00020 - EZ METER-PAK
Discount Schedule
GTIN
DE4
00785901553045
No
Returnability
Offer Sustainability
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is
known to the State of California to cause Carcinogen & Reproductive harm. For more information go
to www.p65warnings.ca.gov
EU RoHS Directive
Under investigation
2
