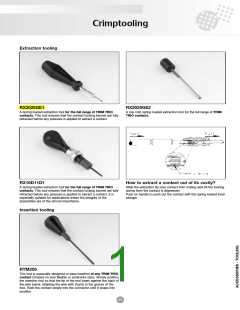

Crimptooling
Extraction tooling
RX2025GE1
A spring loaded extraction tool for the full range of TRIM TRIO
contacts. This tool ensures that the contact locking louvres are fully
retracted before any pressure is applied to extract a contact.
RX2025GE2
A low cost spring loaded extraction tool for the full range of TRIM
TRIO contacts.
RX16D11D1
How to extract a contact out of its cavity?
A spring loaded extraction tool for the full range of TRIM TRIO
contacts. This tool ensures that the contact locking louvres are fully
retracted before any pressure is applied to extract a contact. It is
especially suitable for applications where the integrity of the
assemblies are of the utmost importance.
Slide the extraction tip over contact from mating side till the locking
spring from the contact is depressed.
Push on handle to push out the contact with the spring loaded inner
plunger.
Insertion tooling
RTM205
This tool is especially designed to ease insertion of any TRIM TRIO
contact crimped on very flexible or small wire sizes. Simply position
the insertion tool so that the tip of the tool bears against the back of
the wire barrel, retaining the wire with thumb in the groove of the
tool. Push the contact slowly into the connector until it snaps into
position.
