EZM3800GCBA20

型号:

EZM3800GCBA20

品牌:

SCHNEIDER[ SCHNEIDER ELECTRIC ]

页数:

2 页

PDF大小:

101 K

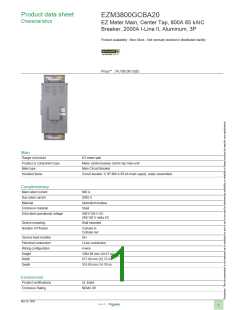

Product data sheet
EZM3800GCBA20
Characteristics
EZ Meter Main, Center Tap, 800A 65 kAIC
Breaker, 2000A I-Line II, Aluminum, 3P
Product availability : Non-Stock - Not normally stocked in distribution facility
Price** : 74,195.00 USD
Main
Range of product
Product or component type
Main type
EZ meter-pak
Meter centre busway centre tap main unit
Main Circuit Breaker
Included Items
Circuit breaker 1) 3P 800 A 65 kA main supply, ready assembled
Complementary
Main rated current
Bus rated current
Material
800 A
2000 A
Aluminium busbar
Steel
Enclosure material
[Ue] rated operational voltage
208Y/120 V AC
240/120 V delta AC
Device mounting
Wall mounted
Number of Phases
3 phase in
3 phase out
Service feed location
Electrical connection
Wiring configuration
Height
OH
I-Line connection
4-wire
1093.98 mm (43.07 in)
577.09 mm (22.72 in)
374.90 mm (14.76 in)
Width
Depth
Environment
Product certifications
UL listed
Enclosure Rating
NEMA 3R
Mar 23, 2020
1
Ordering and shipping details
Category
00020 - EZ METER-PAK
Discount Schedule
Returnability
DE4
No
Offer Sustainability
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is
known to the State of California to cause Carcinogen & Reproductive harm. For more information go
to www.p65warnings.ca.gov
EU RoHS Directive
Under investigation
2
