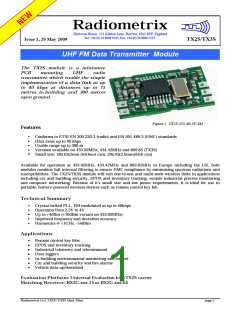

Radiometrix
Hartcran House, 231 Kenton Lane, Harrow, HA3 8RP, England
Tel: +44 (0) 20 8909 9595, Fax: +44 (0) 20 8909 2233
Issue 1, 20 May 2009
TX2S/TX3S
UHF FM Data Transmitter Module
The TX2S module is a miniature
PCB mounting UHF radio
transmitter which enable the simple
implementation of a data link at up
to 40 kbps at distances up to 75
metres in-building and 300 metres
open ground.
Figure 1: TX2S-433-40-3V-SM
Features
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Conforms to ETSI EN 300 220-3 (radio) and EN 301 489-3 (EMC) standards
Data rates up to 40 kbps
Usable range up to 300 m
Versions available on 433.92MHz, 434.42MHz and 869.85 (TX3S)
Small size: 20x10x2mm (without can), 20x10x2.6mm(with can)
Available for operation at 433.92MHz, 434.42MHz and 869.85MHz in Europe including the UK, both
modules combine full internal filtering to ensure EMC compliance by minimising spurious radiations and
susceptibilities. The TX2S/TX3S module will suit one-to-one and multi-node wireless links in applications
including car and building security, EPOS and inventory tracking, remote industrial process monitoring
and computer networking. Because of it’s small size and low power requirements, it is ideal for use in
portable, battery-powered wireless devices such as remote control key fob.
Technical Summary
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Crystal-locked PLL, FM modulated at up to 40kbps
Operation from 2.2V to 4V
Up to +4dBm (+10dBm variant on 433.92MHz)
Improved frequency and deviation accuracy
Harmonics @ <1GHz, -54dBm
Applications
•
•
•
•
•
•
•
Remote control key fobs
EPOS and inventory tracking
Industrial telemetry and telecommand
Data loggers
In-building environmental monitoring and control
Car and building security and fire alarms
Vehicle data up/download
Evaluation Platform: Universal Evaluation kit +TX2S carrier
Matching Receiver: RX2G-xxx-15 or RX2G-xxx-64
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 1
Functional description
The TX2S transmitter module is a crystal based PLL controlled FM transmitter operating between 2.2V
and 4V and is available on European licence exempt UHF frequencies. The TX2S module is type approved
to EN 300 220-3 for European use and delivers nominally +0dBm at 7mA. The module measures 20 x 10 x
2 mm.
5
VCC 2.2 -- 4V
433.92 MHz
band pass
filter
ref
osc
35kHz
LPF
buffer
32
÷
φ
1
V C O
4
RF out
TXD
Loop
Filter
2
RF gnd
3
0V
Fig. 2: TX2S block diagram
Fig. 3: TX2S pinout
Fig 4: physical dimensions
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 2
Pin description:
RF GROUND (pins 2)
RF ground, internally connected to the module screen and pin 3 (0V). These pins should be directly
connected to the RF return path - e.g. coax braid, main PCB ground plane etc.
RF OUT
(pin 1)
50Ω RF output to the antenna. Internally DC-isolated. See antenna section of apps notes for details of
suitable antennas.
VCC
(pin 5)
+2.2V to +4V DC supply. Max ripple content 0.1VP-P
.
GROUND
(pin 3)
DC supply ground. Internally connected to pins 2 & 3.
DATA (pin 4)
DC-coupled modulation input. Accepts serial digital data at 0V to 4V levels.
Absolute maximum ratings
Survival Maximums:
Exceeding the values given below may cause permanent damage to the module.
Operating temperature-
Storage temperature
-20°C to +70°C
-40°C to +100°C
TX2S, all variants
Vcc (pin 5)
-0.3V to +4.0V
Data input (pin 4)
-0.3V to +4.0V
RF out (pin 1)
±50V DC 10dBm RF
Performance Specifications: TX2S transmitter.
(Temperature = 20C unless stated)
pin min.
typ.
max. units
notes
DC LEVELS
supply voltage
5
2.2
3.0
4.0
V
CURRENT & RF POWER
TX2S-433-40-3V
Supply current @ Vcc = 3V
5
1
6
0
7
+2
10
+4
mA
dBm
RF power
@ Vcc = 3V
1
RF
harmonics @ < 1GHz
harmonics @ > 1GHz
initial frequency accuracy
overall frequency accuracy
1
1
-
-
-
-60
-40
+/-10
+/-10
-54
-30
+20
+25
dBm
dBm
kHz
kHz
1
1
-20
-25
-
FM deviation (+/-)
Modulation bandwidth @ -3dB
-
-
20
DC
27
-
35
20
kHz
kHz
modulation distortion (THD)
power up time to full RF
-
-
-
-
5
1
10
1.5
%
ms
Note: 1. Measured into a 50Ω load.
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 3
Power supply requirement
The ripple/noise on the supply rail should be below 10mVp-p to avoid problems. If the quality of the supply
is in doubt, it is recommended that a 10µF low-ESR tantalum or similar capacitor be added between the
module supply pin (Vcc) and ground, together with a 10Ω series feed resistor between the Vcc pin and the
supply rail.
The TX2S incorporates a low voltage shutoff circuit, which prevents any possibility of erratic operation by
disabling the RF output if the supply voltage drops below 2.2V (±5%). This feature is self-resetting, i.e.
restoring the supply to greater than 2.2V will immediately restore full RF output from the module.
TX2S modulation requirements
The module will produce the specified FM deviation with a TXD input to pin 4 of 2 to 4V amplitude, i.e. 0V
"low", 4V "high. Where standard 2-level digital data is employed with a logic "low" level of 0V ±0.2V, the
logic "high" level applied to TXD may be any value between +2V and +4V for correct operation.
Module mounting considerations
Good RF layout practice should be observed – in particular, any ground return required by the antenna or
feed should be connected directly to the RF GND pin at the antenna end of the module, and not to the 0V
pin which is intended as a DC ground only. All connecting tracks should be kept as short as possible to
avoid any problems with stray RF pickup.
If the connection between module and antenna does not form part of the antenna itself, it should be made
using 50Ω microstrip line or coax or a combination of both. It is desirable (but not essential) to fill all
unused PCB area around the module with ground plane.
Warning: DO NOT wash the module. It is not hermetically sealed.
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 4
Antenna requirements
Three types of integral antenna are recommended and approved for use with the module:
0.5 mm enameled copper wire
close wound on 3.2 mm diameter former
RF
433 MHz = 24 turns
A. Helical antenna
Feed point 15% to 25% of total loop length
track width = 1mm
RF-GND
4 to 10 cm2 inside area
C2
C1
RF
C3
C4
B. Loop antenna
16.4cm
wire, rod, PCB-track or a combination
of these three
RF
433 MHz = 16.4 cm total from RF pin.
C. Whip antenna
Fig.5: Antenna
A
helical
**
**
***
**
B
loop
C
whip
***
***
*
Ultimate performance
Easy of design set-up
Size
Immunity proximity effects
Range open ground to similar antenna
(for TX2S-433-40-3V & RX2G-433-15)
*
*
**
***
100m
*
200m
300m
Antenna selection chart
A) Helical
Wire coil, connected directly to pin 2, open circuit at other end. This antenna
is
very
efficient given it's small size (20mm x 4mm dia.). The helical is a high Q antenna, trim the
wire length or expand the coil for optimum results. The helical de-tunes badly with
proximity to other conductive objects.
B) Loop
C) Whip
A loop of PCB track tuned by a fixed or variable capacitor to ground at the 'hot' end and fed
from pin 2 at a point 20% from the ground end. Loops have high immunity to proximity de-
tuning.
This is a wire, rod, PCB track or combination connected directly to pin 2 of the module.
Optimum total length is 15.5cm (1/4 wave @ 433MHz). Keep the open circuit (hot) end well
away from metal components to prevent serious de-tuning. Whips are ground plane
sensitive and will benefit from internal 1/4 wave earthed radial(s) if the product is small
and plastic cased
The antenna choice and position directly controls the system range. Keep it clear of other metal in the
system, particularly the 'hot' end. The best position by far, is sticking out the top of the product. This is
often not desirable for practical/ergonomic reasons thus a compromise may need to be reached. If an
internal antenna must be used try to keep it away from other metal components, particularly large ones
like transformers, batteries and PCB tracks/earth plane. The space around the antenna is as important as
the antenna itself
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 5
Duty Cycle requirements
The duty cycle is defined as the ratio, expressed as a percentage, of the maximum transmitter “on” time on
one or more carrier frequencies, relative to a one hour period. Where an acknowledgement message is
required, the additional transmitter “on” time shall be included.
There is a 10% duty cycle restriction on 433.050-434.790 MHz band in most of the EU member states.
The TX2S-433 is an RF module intended to be incorporated into a wide variety of applications and
finished products, Radiometrix has no control over the end use of the TX2S-433.The harmonised band
433.050 to 434.790 MHz as detailed in Annex 1 Band E of CEPT/ERC Recommendation 70-03 (which can
be downloaded at http://www.ero.dk/scripts/docmanag98/dm.dll/QueryDoc?Cat=Recommendation)
has list of countries where Duty Cycle restriction apply.
Module users should, therefore, ensure that they comply with the stated Duty Cycle requirements of the
version of CEPT/ERC Recommendation 70-03 in place at the time of incorporation of the TX2S-433 into
their product. It should be noted that the stated Duty Cycle must not be exceeded otherwise any approval
granted for the TX2S-433 will be invalidated.
Variants and ordering information
The TX2S is manufactured in several variants depending on their operating frequency:
The standard frequency is 433.92MHz.
TX2S-433-40-3V
TX2S-434-40-3V
TX3S-869-40-3V
433.92MHz
434.42MHz
869.85MHz
The standard TX2S is supplied with mounting pins but without the metal shield. A version
without mounting pins, suitable for surface mount assembly, is also available. For other
variants, please contact sales department.
Matching receivers:
RX2G-433-15
RX2G-433-64
RX2A-433-10
RX2A-433-64
433.92MHz, 15kb/s
433.92MHz, 64kb/s
433.92MHz, 10kb/s
433.92MHz, 64kb/s
RX2G-434-15
RX2G-434-64
RX2A-434-10
RX2A-434-64
434.42MHz, 15kb/s
434.42MHz, 64kb/s
434.42MHz, 10kb/s
434.42MHz, 64kb/s
RX3G-869.85-15
RX3G-869.85-64
RX3A-869.85-10
RX3A-869.85-64
869.85MHz, 15kb/s
869.85MHz, 64kb/s
869.85MHz, 10kb/s
869.85MHz, 64kb/s
Evaluation Platform: Universal Evaluation kit +TX2S carrier
Radiometrix Ltd, TX2S/TX3S Data Sheet
page 6
Radiometrix Ltd
Hartcran House
231 Kenton Lane
Harrow, Middlesex
HA3 8RP
ENGLAND
Tel: +44 (0) 20 8909 9595
Fax: +44 (0) 20 8909 2233
sales@radiometrix.com
www.radiometrix.com
Copyright notice
This product data sheet is the original work and copyrighted property of Radiometrix Ltd. Reproduction in whole or
in part must give clear acknowledgement to the copyright owner.
Limitation of liability
The information furnished by Radiometrix Ltd is believed to be accurate and reliable. Radiometrix Ltd reserves the
right to make changes or improvements in the design, specification or manufacture of its subassembly products
without notice. Radiometrix Ltd does not assume any liability arising from the application or use of any product or
circuit described herein, nor for any infringements of patents or other rights of third parties which may result from
the use of its products. This data sheet neither states nor implies warranty of any kind, including fitness for any
particular application. These radio devices may be subject to radio interference and may not function as intended if
interference is present. We do NOT recommend their use for life critical applications.
The Intrastat commodity code for all our wireless radio modules is: 8542 6000
R&TTE Directive
After 7 April 2001 the manufacturer can only place finished product on the market under the provisions of the
R&TTE Directive. Equipment within the scope of the R&TTE Directive may demonstrate compliance to the
essential requirements specified in Article 3 of the Directive, as appropriate to the particular equipment.
Further details are available on The Office of Communications (Ofcom) web site:
http://www.ofcom.org.uk/radiocomms/ifi/
Information Requests
Ofcom
European Radiocommunications Office (ERO)
Peblingehus
Riverside House
Nansensgade 19
2a Southwark Bridge Road
London SE1 9HA
Tel: +44 (0)845 456 3000 or 020 7981 3040
Fax: +44 (0)20 7783 4033
information.requests@ofcom.org.uk
DK 1366 Copenhagen
Tel. +45 33896300
Fax +45 33896330
ero@ero.dk
www.ero.dk
厂商 型号 描述 页数 下载

TE

 		RX2 电源PCB继电器[ Power PCB Relay ] 3 页

RADIOMETRIX

 		RX2-433 UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-14-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-14-5V 超高频无线电遥测发射模块[ UHF Radio Telemetry Transmit Module ] 11 页

RADIOMETRIX

 		RX2-433-160-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-160-5V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-5V 超高频无线电遥测发射模块[ UHF Radio Telemetry Transmit Module ] 11 页

RADIOMETRIX

 		RX2-433-40-B UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-TR UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.233995s
