NZT749

型号：

NZT749

描述：

PNP电流驱动器晶体管[ PNP Current Driver Transistor ]

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

3 页

PDF大小：

40 K

下载PDF手册

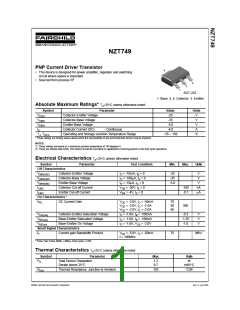

NZT749
PNP Current Driver Transistor
4
•
This device is designed for power amplifier, regulator and switching
circuit where speed is important.
•
Sourced from process 5P.
3
2
1
SOT-223
1. Base 2, 4. Collector 3. Emitter
Absolute Maximum Ratings* T =25°C unless otherwise noted
a
Symbol
Parameter
Value
-25
Units
V
V
V
V
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current (DC)
CEO
-35
V
CBO
EBO
-5.0
V
I
- Continuous
-4.0
A
C
T , T
Operating and Storage Junction Temperature Range
- 55 ~ 150
°C
J
STG
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations
Electrical Characteristics T =25°C unless otherwise noted
a
Symbol
Parameter
Test Condition
Min.
Max.
Units
Off Characteristics
V
V
V
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Cut-off Current
Emitter Cut-off Current
I
I
I
= -10mA, I = 0
-25
-35
V
V
(BR)CEO
(BR)CBO
(BR)EBO
CBO
C
C
E
B
= -100µA, I = 0
E
= -10µA, I = 0
-5.0
V
C
I
I
V
V
= -30V, I = 0
-100
-0.1
nA
µA
CB
EB
E
= -4V, I = 0
EBO
C
On Characteristics *
h
DC Current Gain
V
V
V
= -2.0V, I = -50mA
70
80
65
FE
CE
CE
CE
C
= -2.0V, I = -1.0A
300
C
= -2.0V, I = -2.0A
C
V
V
V
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter On Voltage
I
I
I
= -1.0A, I = -100mA
-0.3
-1.25
-1.0
V
V
V
CE(sat)
BE(sat)
BE(on)
C
C
C
B
= -1.0A, I = -100mA
B
= -1.0A, V = -2.0V
CE
Small Signal Characteristics
Current gain Bandwidth Product
f
V
= -5.0V, I = -50mA
75
MHz
T
CE
C
f = 100MHz
* Pulse Test: Pulse Width ≤ 300µs, Duty Cycle ≤ 2.0%
Thermal Characteristics T =25°C unless otherwise noted
a
Symbol
Parameter
Max.
Units
P
Total Device Dissipation
Derate above 25°C
1.2
9.7
W
mW/°C
D
R
Thermal Resistance, Junction to Ambient
103
°C/W
θJA
©2004 Fairchild Semiconductor Corporation
Rev. A, July 2004
Package Dimensions
SOT-223
3.00 ±0.10
MAX1.80
+0.04
–0.02
0.06
2.30 TYP
4.60 ±0.25
0.70 ±0.10
°
~10
°
0
+0.10
–0.05
(0.95)
(0.95)
0.25
6.50 ±0.20
Dimensions in Millimeters
©2004 Fairchild Semiconductor Corporation
Rev. A, July 2004
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not
intended to be an exhaustive list of all such trademarks.
FAST®
FASTr™
FPS™
FRFET™
GlobalOptoisolator™
GTO™
ISOPLANAR™
LittleFET™
MICROCOUPLER™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
Power247™
SuperFET™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
A
CEx™
PowerSaver™
PowerTrench®
QFET®
ActiveArray™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
QS™
QT Optoelectronics™
Quiet Series™
RapidConfigure™
RapidConnect™
µSerDes™
TinyLogic®
HiSeC™
TINYOPTO™
TruTranslation™
UHC™
EcoSPARK™
I2C™
MSXPro™
OCX™
OCXPro™
E2CMOS™
i-Lo™
ImpliedDisconnect™
EnSigna™
FACT™
FACT Quiet Series™
UltraFET®
OPTOLOGIC®
OPTOPLANAR™
PACMAN™
POP™
SILENT SWITCHER® VCX™
SMART START™
SPM™
Across the board. Around the world.™
The Power Franchise®
Programmable Active Droop™
Stealth™
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY
LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR
CORPORATION.
As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, or (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in significant injury to the user.
2. A critical component is any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or In
Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
©2004 Fairchild Semiconductor Corporation
Rev. I11
