CYW2325ZIT

型号：

CYW2325ZIT

品牌：

CYPRESS[ CYPRESS ]

页数：

10 页

PDF大小：

155 K

下载PDF手册

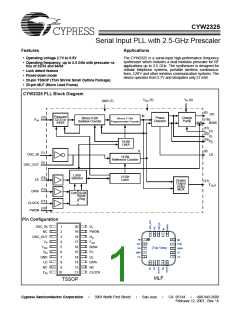

1CYW2325
CYW2325
Serial Input PLL with 2.5-GHz Prescaler
Features
Applications
• Operating voltage 2.7V to 5.5V
The CYW2325 is a serial-input high-performance frequency
synthesizer which includes a dual modulus prescaler for RF
applications up to 2.5 GHz. The synthesizer is designed for
cellular telephone systems, portable wireless communica-
tions, CATV and other wireless communication systems. The
device operates from 2.7V and dissipates only 21 mW.
• Operating frequency: up to 2.5 GHz with prescaler ra-
tios of 32/33 and 64/65
• Lock detect feature
• Power-down mode
• 20-pin TSSOP (Thin Shrink Small Outline Package)
• 20-pin MLF (Micro Lead Frame)
CYW2325 PLL Block Diagram
V
(5)
V (4)
P
GND (7)
CC
(6)
DO
fp
Prescaler
32/33 or
64/65
(10)
Phase
Detector
Charge
Pump
Binary 6-Bit
Swallow Counter
Binary 11-Bit
Programmable Counter
F
(16)
IN
BISW
(15)
FC
(20)
r
(18)
18-Bit
Latch
p
fr
(8)
(1)
(3)
OSC_IN
LD
14-Bit
Reference Counter
OSC_OUT
Latch
Selector
15-Bit
Latch
(14)
(13)
LE
Divider
(17)
Output
(fr/fp)
MUX
F
OUT
DATA
Cntrl 19-Bit
Shift
Reg
(11)
(19)
CLOCK
PWDN
Pin Configuration
OSC_IN
NC
1
2
20
19
18
17
16
15
14
13
12
11
r
PWDN
OSC_OUT
3
p
1
2
3
4
5
15
14
13
12
11
Vp
φp
V
4
F
out
P
Vcc
Do
Fout
BISW
FC
V
5
BISW
FC
CC
(Top View)
D
6
GND
LD
O
LE
GND
7
LE
LD
8
DATA
NC
NC
9
F
10
CLOCK
IN
MLF
TSSOP
Cypress Semiconductor Corporation
•
3901 North First Street
•
San Jose
•
CA 95134
•
408-943-2600
February 12, 2001. Rev. *A
CYW2325
Pin Definitions
Pin
No.
(TSSOP)
Pin
No.
(MLF)
Pin
Type
Pin Name
Pin Description
OSC_IN
1
18
I
Oscillator Input: This input has a VCC/2 threshold and CMOS logic level
sensitivity.
OSC_OUT
VP
3
4
5
20
1
O
P
P
Oscillator Output
Charge Pump Rail Voltage: This supply for charge pump. Must be > VCC
.
VCC
2
Power Supply Connection for PLL: When power is removed from VCC
all latched data is lost.
DO
6
3
O
Charge Pump Output: The phase detector gain is IP/2π. Sense polarity
can be reversed by setting FC LOW (pin 15).
GND
LD
7
8
4
5
G
O
Analog and Digital Ground Connection: This pin must be grounded.
Lock Detect Pin: This output is HIGH with narrow LOW pulses when the
loop is locked.
FIN
10
11
7
8
I
I
Input to Prescaler: Maximum frequency 2.5 GHz.
CLOCK
Data Clock Input: One bit of data is loaded into the Shift Register on the
rising edge of this signal.
DATA
LE
13
14
10
11
I
I
Serial Data Input
Load Enable: On the rising edge of this signal, the data stored in the Shift
Register is latched into the counters and configuration controls.
FC
15
16
12
13
I
Phase Sense Control for Phase Detector with Internal Pull-up: When
pulled LOW, the polarity of the Phase Detector is reversed.
BISW
O
Analog Switch Output: Connects to output of charge pump when LE is
HIGH.
FOUT
17
18
14
15
O
O
Monitor Point for Phase Detector Input
External Charge Pump Output: Open drain N-Channel FET, pull-up re-
P
sistor required.
PWDN
19
16
I
Power-Down Pin with Internal Pull-up: When pin is HIGH, device is in
normal state. When pin is LOW, device is in power-down mode. When
device enters power-down mode the charge pump is in the High-Imped-
ance condition.
20
17
O
External Change Pump: (CMOS logic output).
R
NC
2, 9, 12
6, 9, 19
No Connect
2
CYW2325
only. Operation of the device at these or any other conditions
above those specified in the operating sections of this specifi-
cation is not implied. Maximum conditions for extended peri-
ods may affect reliability.
Absolute Maximum Ratings
Stresses greater than those listed in this table may cause per-
manent damage to the device. These represent a stress rating
Parameter
VCC or VP
VOUT
Description
Power Supply Voltage
Rating
–0.5 to +6.5
–0.5 to VCC+0.5
±15
Unit
V
Output Voltage
V
IOUT
Output Current
mA
°C
°C
TL
Lead Temperature
Storage Temperature
+260
TSTG
–55 to +150
Always turn off power before adding or removing devices from
system.
Handling Precautions
Devices should be transported and stored in antistatic con-
tainers.
Protect leads with a conductive sheet when handling or trans-
porting PC boards with devices.
These devices are static sensitive. Ensure that equipment and
personnel contacting the devices are properly grounded.
If devices are removed from the moisture protective bags for
more than 36 hours, they should be baked at 85°C in a mois-
ture free environment for 24 hours prior to assembly in less
than 24 hours.
Cover workbenches with grounded conductive mats.
Recommended Operating Conditions
Parameter
Description
Power Supply Voltage
Test Condition
Rating
2.7 to 5.5
VCC to +5.5
–40 to +85
Unit
V
VCC
VP
Charge Pump Voltage
Operating Temperature
V
TA
Ambient air at 0 CFM flow
°C
3
CYW2325
Electrical Characteristics: VCC = 3.0V, VP = 3.0V, TA = –40°C to +85°C, Unless otherwise specified
Parameter
Description
Power Supply Current
Power-down Current
Test Condition
Pin
Min.
Typ.
Max.
Unit
mA
ICC
IPD
FIN
VCC
VCC
FIN
8
6
µA
Power-down, VCC = 3.0V
100
Maximum Operating
Frequency
100
2500
GHz
FOSC
Oscillator Input Frequency No load on OSC_OUT
With OSC_OUT loaded
OSC_IN
5
5
45
25
10
MHz
MHz
MHz
Fφ
Phase Detector
Frequency
PFIN
Input Sensitivity
VCC = 2.7V
VCC = 5.5V
FIN
–15
–10
4
4
dBm
dBm
VP–P
µA
V
VOSC
IIH, IIL
VIH
Oscillator Input Sensitivity
Oscillator Input Current
High Level Input Voltage
Low Level Input Voltage
High Level Input Current
Low Level Input Current
High Level Output Voltage
Low Level Output Voltage
IDO, Source Current
OSC_IN
0.5
–100
100
VCC = 5.0V
DATA,
CLOCK,
LE
VCC * 0.8
VIL
VCC * 0.2
V
µA
µA
V
IIH
–10
–10
2.2
1
1
10
10
IIL
VCC = 3.0V, IOH = –1mA
VOH
VOL
IDO(SO)
FO
DO
VCC = 3.0V, IOL = 1mA
0.4
V
VP = 3.0V, VDO = VP/2
VP = 5.0V, VDO = VP/2
–3.7
–4.1
mA
mA
IDOH(SI)
IDO, Sink Current
VP = 3.0V, VDO = VP/2
VP = 5.0V, VDO = VP/2
DO
3.7
4.1
mA
mA
∆IDO
IDO Charge Pump Sink
and Source Mismatch
VDO = VP/2
[IIDO(SI)I – IIDO(SO)I]/
[1/2*{IIDO(SI)]I+IIDO(SO)I}]*100%
5
%
–40°C<T<85°C, VDO = VP/2[1]
5
%
IDO vs T
IDO-tri
Charge Pump Current
Variation vs. Temperature
nA
Charge Pump High-
Impedance Leakage
Current
±2
Note:
1. IDOVS T; Charge pump current variation vs. temperature.
[IIDO(SI)@TI – IIDO(SI)@25° CI]/IIDO(SI)@25°CI * 100% and
[IIDO(SO)@TI – IIDO(SO)@25°CI]/IIDO(SO)@25°CI *100%.
4

CYW2325
Timing Waveforms
Phase Characteristics
For normal operation, the FC pin is used to select the output polarity of the
phase detector. Both the internal and any external charge pump are affected.
(1)
Depending upon VCO characteristics, FC pin should be set accordingly:
When VCO characteristics are like (1), FC should be set HIGH or OPEN
CIRCUIT:
VCO
Output
Frequency
When VCO characteristics are like (2), FC should be set LOW.
When FC is set HIGH or OPEN CIRCUIT, Fout pin is set to the reference
divider output, Fr. When FC is set LOW, Fout pin is set to the programmable
divider output Fp.
(2)
VCO Input Voltage
Phase Comparator Sense
Phase Detector Output Waveform
F
F
R
P
tw
tw
LD
DO Charge Pump Output Current Waveform
F
F
R
P
tw
tw
D
o
ID
O
High-Impedance State
5
CYW2325
Timing Waveforms (continued)
Serial Data Input Timing Waveform[2, 3, 4, 5]
//
//
//
//
PD = MSB
PRE
B1
A7
CNT2
CNT1 = LSB
DATA
//
//
CLOCK
t5
t4
t3
t2
t1
//
//
//
//
LE
t6
Serial Data Input
Data is input serially using the DATA, CLOCK, and LE pins.
Two control bits direct data into the locations given in Table 1.
Table 1. Control Configuration
CNT
Function
1
0
Reference Counter: R = 3 to 16383, set prescaler ratio PRE =0:64/65, PRE=1:32/33
Program Counter: A = 0 to 63, B = 3 to 2047
Table 2. Shift Register Configuration[6]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Reference Counter and Configuration Bits
CNT R1
R2
R3
R4
R5
R6
R7
R8
R9 R10 R11 R12 R13 R14 PRE
Programmable Counter Bits
CNT A1
A2
A3
A4
A5
A6
A7
B1
B2
B3
B4
B5
B6
B7
B8
B9 B10 B11
Bit(s) Name
CNT
Function
Control Bit: Directs programming data to reference or programmable counters.
Reference Counter Setting Bits: 14 bits, R = 3 to 16383.[7]
Prescaler Divide Bit: LOW = 64/65 and HIGH = 32/33.
Swallow Counter Divide Ratio: A = 0 to 63.
R1–R14
PRE
A1–A7
B1–B11
Notes:
Programmable Counter Divide Ratio: B = 3 to 2047.[7]
2. t1–t6 = t > 50 ns.
3. CLOCK may remain HIGH after latching in data.
4. DATA is shifted in with the MSB first.
5. For DATA definitions, refer to Table 2.
6. The MSB is loaded in first.
7. Low count ratios may violate frequency limits of the phase detector.
6








CYW2325
Table 3. 6-Bit Swallow Counter (A) Truth Table[8]
Divide Ratio A
A7
X
A6
0
A5
0
A4
0
A3
0
A2
0
A1
0
0
1
X
0
0
0
0
0
1
:::
:::
X
:::
1
:::
1
:::
1
:::
1
:::
1
:::
0
62
63
X
1
1
1
1
1
1
Table 4. 11-Bit Programmable Counter (B) Truth Table[9]
Divide Ratio B
B11
0
B10
0
B9
0
B8
0
B7
0
B6
0
B5
0
B4
0
B3
B2
1
B1
1
3
4
0
1
0
0
0
0
0
0
0
0
0
0
:::
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
0
2046
2047
1
1
1
1
1
1
1
1
1
1
1
Table 5. 14-Bit Programmable Reference Counter Truth Table[9]
Divide Ratio R
R14
0
R13
0
R12
0
R11
0
R10
0
R9
0
R8
0
R7
0
R6
R5
0
R4
0
R3
0
R2
1
R1
3
4
0
0
1
0
0
0
0
0
0
0
0
0
0
0
1
0
:::
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
1
:::
0
16382
16383
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Ordering Information[10]
Package
Name
Ordering Code
Package Type
Tape and Reel Option
ZI
LFI
20-pin TSSOP (0.173” wide)
20-pin MLF (4 mm x 4 mm)
CYW2325
TR
Notes:
8. B is greater than or equal to A.
9. Divide ratio less than 3 is prohibited. The divide ratio can be calculated using the following equation:
fvco = {(P * B) + A} * fosc / R where (A < B)
fvco: Output frequency of the external VCO.
fosc: The crystal reference oscillator frequency.
A: Preset divide ratio of the 6-bit swallow counter.
B: Preset ratio of the 11-bit programmable counter (3 to 2047).
P: Preset divide ratio of the dual modulus prescaler.
R: Preset ratio of the 15-bit programmable reference counter (3 to 16383).
The divide ratio N = (P * B) + A.
10. Operating temperature range: –40°C to +85°C.
Document #: 38-00920-*A
7



CYW2325
Examples
Charge Pump Current vs Do Voltage
5.0
4.0
Vp = 3V
Vp = 5V
3.0
2.0
1.0
1
0.0
-1.0
-2.0
-3.0
-4.0
Vp = 3V
Vp = 5V
2
3
4
-5.0
0.0
1.0
2.0
3.0
4.0
5.0
Do Voltage (V)
Vp
(V)
3V
3V
5V
5V
Icp
Marker
Number
Marker 1
Marker 2
Marker 3
Marker 4
Input
Frequency
100 MHz
1000 MHz
1800 MHz
2500 MHz
(mA)
3.60
-3.65
4.15
-4.10
S11 (
)
Ω
Source
Sink
Source
Sink
501 - j688
36 - j158
30 - j98
20 - j38
Figure 2. Input Impedance
VCC=2.7V to 5.5V
Figure 1. Charge Pump Current
FIN=100 MHz to 2700 MHz
-85 dBc
Offset
Frequency
1 KHz
Phase noise
(dBc/Hz)
-80
Re fe re nce
S pur
250 K Hz
Le ve l
(dBc/Hz )
-85
10 KHz
-86
100 KHz
-115
Figure 4. Re fe re nce S pur
Figure 3. Phase Noise
vs Offset Frequency
8
CYW2325
Package Diagram
20-Pin Thin Shrink Small Outline Package (TSSOP, 0.173” wide)
9
CYW2325
Package Diagram
20-Pin Micro Lead Frame Package (MLF 4 mm X 4 mm)
2X
0.25
C A
A
D
10
D/2
4
0.05
C
4X P
M
D1
b
0.10
D2/2
C A
B
A
R
A1
A3
D2
D1/2
A2
2X
8.
N
N
0.25
C B
4X P
5
6
E1/2
E/2
1
2
3
1
2
3
0.50 DIA.
(Ne-1)Xe
REF.
4X Q
E1
E
B
E2
E2/2
L
0.20
C B
0
2X
e
C
0.20
C A
SEATING
PLANE
(Nd-1)Xe
REF.
2X
TOP VIEW
C
C
BOTTOM VIEW
11
C
C
A1
L
L
b
4
SECTION "C-C"
SCALE: NONE
e
e
TERMINAL TIP
FOR ODD TERMINAL/SIDE
FOR EVEN TERMINAL/SIDE
S
Y
1. DIE THICKNESS ALLOWABLE IS 0.305mm MAXIMUM(.012 INCHES MAXIMUM)
2. DIMENSIONING & TOLERANCES CONFORM TO ASME Y14.5M. - 1994.
COMMON
NOTES:
M
B
O
N
DIMENSIONS
O
T
E
L
MIN.
NOM.
MAX.
1.00
0.05
3. N IS THE NUMBER OF TERMINALS.
Nd IS THE NUMBER OF TERMINALS IN X-DIRECTION &
-
0.00
-
0.85
A
A1
A2
A3
0.01
0.65
0.20 REF.
11
0.80
Ne IS THE NUMBER OF TERMINALS IN Y-DIRECTION.
4. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED
BETWEEN 0.20 AND 0.25mm FROM TERMINAL TIP.
D
D1
E
E1
4.00 BSC
3.75 BSC
4.00 BSC
3.75 BSC
5. THE PIN #1 IDENTIFIER MUST BE EXISTED ON THE TOP SURFACE OF THE
PACKAGE BY USING INDENTATION MARK OR OTHER FEATURE OF PACKAGE BODY.
6. EXACT SHAPE AND SIZE OF THIS FEATURE IS OPTIONAL.
7. ALL DIMENSIONS ARE IN MILLIMETERS.
12
0.60
0
P
0.24
0.13
0.42
0.17
0.50 BSC
20
0.23
R
e
N
Nd
Ne
L
8. THE SHAPE SHOWN ON FOUR CORNERS ARE NOT ACTUAL I/O.
9. PACKAGE WARPAGE MAX 0.05mm.
3
3
3
5
5
10. APPLIED FOR EXPOSED PAD AND TERMINALS.
EXCLUDE EMBEDDING PART OF EXPOSED
PAD FROM MEASURING.
0.50
0.18
0.30
1.55
1.55
0.60
0.23
0.40
1.70
1.70
0.75
0.30
0.65
1.85
1.85
b
Q
4
D2
E2
11. APPLIED ONLY FOR TERMINALS.
© Cypress Semiconductor Corporation, 2001. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
厂商 型号 描述 页数 下载

CYPRESS

 		CYW134MOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134MOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

SPECTRALINEAR

 		CYW137OXC FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SPECTRALINEAR

 		CYW137OXCT FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SILICON

 		CYW150 [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXC [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXCT [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

CYPRESS

 		CYW15G0101DXB 单通道的HOTLink II ™收发器[ Single-channel HOTLink II⑩ Transceiver ] 39 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.251703s
