0RP4-80E1A0G

型号：

0RP4-80E1A0G

品牌：

BEL[ BEL FUSE INC. ]

页数：

13 页

PDF大小：

378 K

下载PDF手册

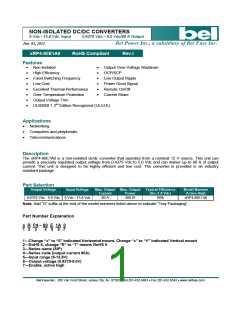

NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
xRP4-80E1A0
RoHS Compliant
Rev.I
Features
Non-Isolated
Output Over-Voltage Shutdown
OCP/SCP
High Efficiency
Fixed Switching Frequency
Low Cost
Low Output Ripple
Power Good Signal
Remote On/Off
Excellent Thermal Performance
Over Temperature Protection
Output Voltage Trim
Current Share
UL60950-1 2nd Edition Recognized (UL/cUL)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The xRP4-80E1A0 is a non-isolated dc/dc converter that operates from a nominal 12 V source. This unit can
provide a precisely regulated output voltage from 0.8375 Vdc to 5.0 Vdc and can deliver up to 80 A of output
current. This unit is designed to be highly efficient and low cost. The converter is provided in an industry
standard package.
Part Selection
Output Voltage
Input Voltage
Max. Output Max. Output Typical Efficiency
Model Number
Active High
Current
Power
(Vo=1.8 Vdc)
0.8375 Vdc - 5.0 Vdc 5 Vdc - 13.8 Vdc
80 A
400 W
90%
xRP4-80E1A0
Note: Add “G” suffix at the end of the model numbers listed above to indicate “Tray Packaging”.
Part Number Explanation
x R P4 – 80 E 1A 0
1 2
3
4
5
6 7
1---Change “x” to “0” indicated Horizontal mount, Change “x” to “V” indicated Vertical mount
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name (SIP)
4---Series code (output current 80A)
5---Input range (5-13.8V)
6---Output voltage (0.8375-5.0V)
7---Enable, active high
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage (continuous)
Output Enable Terminal Voltage
Ambient Temperature
-0.3 V
-
15 V
-0.3 V
0 C
-
-
-
15 V
70 C
125 C
Storage Temperature
-55 C
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
Vo≤ 2.5 V
Vo > 2.5 V
5 V
1.8*Vo
12 V
12 V
13.8 V
13.8 V
Input Current (full load)
-
-
48 A
With simulated source impedance of 1
uH, 5 Hz to 20 MHz. Use a 1000
uF/16 V electrolytic capacitor with
ESR=0.1 ohm max, at 100 kHz at
25°C.
Input Reflected Ripple Current (pk-pk)
-
20 mA
35 mA
Input Reflected Ripple Current (rms)
-
5 mA
10 mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Under Voltage Threshold
-
-
-
-
1 A2s
4.8 V
4.5 V
4.6 V
4.3 V
Note: All specifications are typical at 25 C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Notes
Output Voltage Set Point
Vo≥1 V
Vo＜1 V
-1.5 % Vo
-10 mV
-
-
+1.5 % Vo
+10 mV
Vin=Vinmin, Io=Iomax
Load Regulation
Line Regulation
Vo≥2.5 V
Vo＜2.5 V
-
-
-
-
0.6% Vo
12 mV
Vo≥2.5 V
Vo＜2.5 V
-
-
-
-
0.6% Vo
9 mV
Regulation Over Temperature
-
-
0.02% Vo/C
(0 C to +70 C)
Output Current Range
0 A
-
80 A
Output DC Current Limit
Total Regulation
90 A
110 A
150 A
Vo≥2.5 V
Vo＜2.5 V
Output Ripple and Noise (pk-pk)
-
-
-
-
2 % Vo
15 mV
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=1.5 V
Vo=1.0 V
-
-
-
-
-
-
-
-
-
-
-
-
80 mV
80 mV
60 mV
60 mV
50 mV
50 mV
Test conditions:
0-20 MHz BW, with a 1 µF
ceramic capacitor and a 10 uF
Tantalum cap at output.
Vo=0.8375 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Notes
Output Ripple and Noise (rms)
Vo=5.0 V
-
-
-
-
-
-
-
-
-
-
-
-
40 mV
40 mV
30 mV
30 mV
25 mV
25 mV
Test conditions:
Vo=3.3 V
Vo=2.5 V
Vo=1.5 V
Vo=1.0 V
0-20 MHz BW, with a 1 µF
ceramic capacitor and a 10 uF
Tantalum cap at output.
Vo=0.8375 V
Rise Time
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=1.5 V
Vo=1.0 V
Vo=0.8375 V
-
-
-
-
-
-
8.4 mS
6.6 mS
5.6 mS
4.6 mS
4.4 mS
4.3 mS
10 mS
8.0 mS
8.0 mS
6.0 mS
6.0 mS
6.0 mS
Turn On Time
Vo=5.0 V
-
-
-
-
-
-
10 mS
8.8 mS
7.8 mS
6.8 mS
6.6 mS
6.4 mS
15 mS
15 mS
12 mS
10 mS
10 mS
10 mS
Vo=3.3 V
Vo=2.5 V
Vo=1.5 V
Vo=1.0 V
Vo=0.8375 V
9 V≤Vin≤13.8 V
0.8375 V ≤ Vo ≤ 5 V
5 V≤Vin<9 V
0 W≤ Po ≤
-
-
400 W
Output Power
0 W ≤ Po ≤
-
-
-
-
-
(Vin*80)/1.8 W 0.8375 V ≤ Vo ≤ Vin/1.8
Overshoot at Turn on and off
Output Capacitance
0.5%
470 uF
4700 uF
ESR≥1 mΩ
Transient Response
0% ~ 50% Max Load
-
-
-
-
-
-
-
-
300 mV
Test conditions:
di/dt = 2.5 A/uS; Vin =12 V,
Co=4700uF;
Settling Time
50% ~ 0% Max Load
Settling Time
180 uS
300 mV
180 uS
Vo=All
Note: All specifications are typical at 25 C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Notes
Efficiency
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
91%
89%
88%
86%
85%
81%
79%
70%
95%
93%
92%
90%
89%
86%
83%
75%
-
-
-
-
-
-
-
-
Measured at Vin=12 V, full load.
Vo=1.2 V
Vo=1.0 V
Vo=0.8375 V
Switching Frequency
Output Voltage Trim Range
-
250 kHz
-
-
0.8375 V
5 V
Trim pin is open, Vo = 0.8375 V.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
General Specifications (continued)
Parameter
Min
Typ
Max
Notes
Over Voltage Protection
110% Vo,set
-
115%Vo,set
130%Vo,set Vin=12 V, Io=full load.
-
Over Temperature Protection
105 C
MTBF
2,198,818 hours
Dimensions
Inches (L × W × H)
2.58 x 1.25 x 0.648
0RP4-80E1A0
Millimeters (L × W × H)
65.53 x31.75 x 16.46
Dimensions
Weight
Inches (L × W × H)
Millimeters (L × W × H)
2.58 x 1.25 x 0.61
65.53 x31.75 x 15.44
VRP4-80E1A0
-
42 g
-
Note: All specifications are typical at 25 C unless otherwise stated.
Control Specifications
Parameter
Min
Typ
Max
Notes
Remote On/Off (Active High)
Signal Low (Unit Off)
Signal High (Unit On)
Current Source/Sink
-0.3 V
2 V
-
-
-
0.8 V
Vin,max
3.3 mA
Remote On/Off pin is open, unit is on.
0 mA
PwGood (PowerGood)
2.4 V
-
-
-
-
5.25 V
2 mA
0.4 V
4 mA
PwGood = High = Power
Good
-
0 V
-
PwGood = Low = Power
Not Good
Output Trim Equation
The Trim resistor should be connected between the Trim+ pin and Trim- pin.
Vout
Module
Trim+
Trim–
trim
Rtrim
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
Efficiency Curve
Efficiency Curve
0.95
0.9
0.95
0.9
0.85
0.8
5V
5 V
0.85
0.8
0.75
0.7
12 V
13.8 V
12 V
13.8 V
0.65
0.6
0.75
0.7
0.55
8
20
40
60
80
8
20
40
60
80
Output Current(A)
Output Current(A)
Vout =0.8375 V
Vout =1.2 V
Efficiency Curve
Efficiency Curve
0.95
0.93
0.91
0.89
0.87
0.85
0.83
0.81
0.79
0.77
0.75
0.98
0.96
0.94
0.92
0.9
0.88
0.86
0.84
0.82
0.8
5 V
5 V
12 V
13.8 V
12 V
13.8 V
8
20
40
60
80
8
20
40
60
80
Output Current(A)
Output Current(A)
Vout =1.8 V
Vout =2.5 V
Efficiency Curve
Efficiency Curve
0.98
0.96
0.94
0.92
0.9
0.98
0.96
0.94
0.92
0.9
6 V
9 V
12 V
13.2 V
12 V
0.88
0.86
0.84
0.82
0.8
0.88
0.86
0.84
0.82
0.8
13.8 V
8
20
40
60
80
8
20
40
60
80
Output Current(A)
Output Current(A)
Vout =3.3 V
Vout =5.0 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curves
Vin=12 V, Vo=0.8375 V
Vin=12 V, Vo=1.2 V
Vin=12 V, Vo=3.3 V
Vin=12 V, Vo=5.0 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveforms
12 Vdc input, 0.8375 Vdc/80 A output
12 Vdc input, 1.0 Vdc/80 A output
12 Vdc input, 1.5 Vdc/80 A output
12 Vdc input, 1.8 Vdc/80 A output
12 Vdc input, 2.5 Vdc/80 A output
12 Vdc input, 3.3 Vdc/80 A output
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveforms (continued)
12 Vdc input, 5 Vdc/80 A output
Note: Ripple and noise at full load, 0-20 MHz BW, with a 10 uF tantalum cap and a 1uF ceramic cap at the
output, and Ta=25 deg C.
Transient Response Waveforms
Vout= 0.8375 V 0%-50% Load Transients
Vout=0.8375 V 50%-0% Load Transients
Vout=1.2 V 0%-50% Load Transients
Vout=1.2 V 50%-0% Load Transients
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Transient Response Waveforms (continued)
Vout=1.5 V 0%-50% Load Transients
Vout=1.5 V 50%-0% Load Transients
Vout=1.8 V 50%-0% Load Transients
Vout=2.5 V 50%-0% Load Transients
Vout= 1.8 V 0%-50% Load Transients
Vout=2.5 V 0%-50% Load Transients
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Transient Response Waveforms (continued)
Vout=3.3 V 0%-50% Load Transients
Vout=3.3 V 50%-0% Load Transients
Vout=5 V 0%-50% Load Transients
Vout=5 V 50%-0% Load Transients
Note: Transient response at di/dt = 2.5 A/uS, with extemal electrolytic cap 4700 uF, and Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
0RP4-80E1A0
Pin Connections
Pin
Function
Pin
Function
1
2
Trim+
No Pin
GND
14
15
16
17
18
19
20
21
22
23
24
25
26
Vin
Vout
Vout
GND
Vout
GND
Vout
3
4
PwGOOD
Trim-
5
6
Ishare
GND
7
8
GND
GND
Vout
9
Enable
Sense-
Sense+
Vin
10
11
12
13
GND
Vout
Mech. Support
Mech. Support
Vin
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline (continued)
VRP4-80E1A0
Pin Connections
Pin
Function
Pin
Function
1
2
Trim+
No Pin
GND
13
14
15
16
17
18
19
20
21
22
23
24
Vin
Vin
3
Vout
Vout
GND
Vout
GND
Vout
4
PwGOOD
Trim-
5
6
Ishare
GND
7
8
GND
9
Enable
Sense-
Sense+
Vin
GND
Vout
GND
Vout
10
11
12
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
5 Vdc - 13.8 Vdc Input
0.8375 Vdc – 5.0 Vdc/80 A Output
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
YF Sun
YF Sun
YF Sun
YF Sun
YF Sun
YF Sun
2010-07-08
2010-09-03
2010-09-14
2011-01-06
2011-01-28
2011-03-01
A
B
C
D
E
F
First Release
Update output capacitance in output specifications
Add mechanical outline of VRP4-80E1A0
Update TD
Update TD
Update the notes of remote on/off
Update rise time, turn on time and add output power in output
specifications
2011-03-22
2011-05-05
G
H
YF Sun
YF Sun
Update TD curve drawing under the condition of Vo=5.0V.
1. Add UL60950-1 2nd Edition Recognized (UL/cUL) in the first page.
2. Update weight in general specifications.
2011-06-02
I
YF Sun
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 060211
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RP2-40E1A0 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1A0G [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-15 ] 10 页

BEL

 		0RP2-40E1A1 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1A1G [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-15 ] 10 页

BEL

 		0RP2-40E1AC 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1ACG [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-13 ] 10 页

BEL

 		0RP2-50E1A0 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-50E1A1 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 13 页

BEL

 		0RP2-50E2A0 [ DC-DC Regulated Power Supply Module ] 16 页

BEL

 		0RP2-50E2A0G [ DC-DC Regulated Power Supply Module ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.179126s
