TXN31111D100000

型号：

TXN31111D100000

品牌：

EMCORE[ EMCORE CORPORATION ]

页数：

30 页

PDF大小：

438 K

下载PDF手册

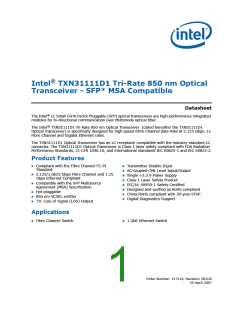

Intel® TXN31111D1 Tri-Rate 850 nm Optical
Transceiver - SFP* MSA Compatible
Datasheet
The Intel® LC Small Form Factor Pluggable (SFP) optical transceivers are high-performance integrated
modules for bi-directional communication over Multimode optical fiber.
The Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver (called hereafter the TXN31111D1
Optical Transceiver) is specifically designed for high-speed Fibre Channel data links at 2.125 Gbps, 1x
Fibre Channel and Gigabit Ethernet rates.
The TXN31111D1 Optical Transceiver has an LC receptacle compatible with the industry-standard LC
connector. The TXN31111D1 Optical Transceiver is Class 1 laser safety compliant with FDA Radiation
Performance Standards, 21 CFR 1040.10, and international standards IEC 60825-1 and IEC 60825-2.
Product Features
„ Compliant with the Fibre Channel FC-PI
„ Transmitter Disable Input
„ AC-coupled CML Level Input/Output
„ Single +3.3 V Power Supply
Standard
„ 2.125/1.0625 Gbps Fibre Channel and 1.25
Gbps Ethernet Compliant
„ Class 1 Laser Safety Product
„ Compatible with the SFP Multisource
„ IEC/UL 60950-1 Safety Certified
„ Designed and verified as RoHS compliant
„ China RoHS compliant with 30-year EFUP
„ Digital Diagnostics Support
Agreement (MSA) Specification
„ Hot pluggable
„ 850 nm VCSEL emitter
„ TTL Loss of Signal (LOS) Output
Applications
„ Fibre Channel Switch
„ 1 GbE Ethernet Switch
Order Number: 317116, Revision: 001US
25-April-2007
Legal Lines and Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS
OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING
TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for
use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the
presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel
or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.
Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different
processor families. See http://www.intel.com/products/processor_number for details.
The Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible may contain design defects or errors known as errata which may
cause the product to deviate from published specifications. Current characterized errata are available on request.Contact your local Intel sales office or
your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2007, Intel Corporation. All Rights Reserved.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
2
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Contents
1.0 Introduction..............................................................................................................7
2.0 Specifications............................................................................................................8
2.1
2.2
Maximum Ratings and Recommended Operating Conditions ......................................8
Electrical Characteristics.......................................................................................9
3.0 Electrical Interface.................................................................................................. 12
4.0 Termination............................................................................................................. 14
4.1
4.2
Types of I/O Interfaces ...................................................................................... 14
CML Termination............................................................................................... 14
5.0 SFP Timing Parameters ........................................................................................... 16
6.0 Digital Diagnostic Monitoring Interface ................................................................... 17
6.1
6.2
6.3
6.4
Overview of Digital Diagnostic Monitoring Interface................................................ 17
General Memory Map Descriptions....................................................................... 18
Alarm and Warning Fields for 2-Wire Interface Address A2h .................................... 19
A/D Fields for 2-Wire Interface Address A2h.......................................................... 21
7.0 Mechanical Specification.......................................................................................... 22
8.0 Regulatory Compliance............................................................................................ 23
8.1
8.2
8.3
8.4
8.5
Electromagnetic Compatibility Compliance ............................................................ 23
Safety Compliance............................................................................................. 24
Lead-Free Conformance ..................................................................................... 25
Compliance with Restriction of Hazardous Substances (RoHS) ................................. 25
Management Methods on Control of Pollution from Electronic Information Products
(a.k.a. China RoHS)........................................................................................... 26
Product Certification Markings and Compliance Statements ..................................... 27
8.6
9.0 Ordering Information .............................................................................................. 28
10.0 Acronyms ................................................................................................................ 29
Figures
1
2
3
4
Electrical Interface Pin Numbers and Names ................................................................ 12
Circuit Diagram for CML Termination on Receiver Output............................................... 14
Circuit Diagram for CML Termination on Transmitter Input............................................. 15
SFP Mechanical Specifications.................................................................................... 22
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
3
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Tables
1
2
3
4
5
6
7
8
9
Absolute Maximum Ratings......................................................................................... 8
Recommended Operating Conditions............................................................................ 8
Electrical Characteristics – Power and Current ............................................................... 9
Electrical Characteristics – Transmitter......................................................................... 9
Electrical Characteristics – Receiver ............................................................................10
Electrical Characteristics – 2-Wire Interface .................................................................10
Fiber Length Specifications ........................................................................................10
Optical Specifications – Transmitter ............................................................................11
Optical Specifications – Receiver.................................................................................11
10 Plug Sequence: Pin Engagement Sequence during Hot Plugging......................................12
11 Timing Parameters for SFP Management......................................................................16
12 Memory Map – 2-Wire Address Range Descriptions .......................................................18
13 Alarm and Warning Fields – 2-Wire Address A2h, Address 0-95 ......................................19
14 A/D Fields – 2-Wire Address A2h, Addresses 96-109 .....................................................21
15 A/D Status/Control Bits – 2-Wire Address A2h, Address 110...........................................21
16 Electromagnetic Compatibility Compliance ..................................................................23
17 Safety Compliance....................................................................................................24
18 Lead-Free 2nd-Level Interconnect Markings ..................................................................25
19 Hazardous Substances Table......................................................................................26
20 Product Certification Markings and Compliance Statements ............................................27
21 Ordering Information ................................................................................................28
22 Acronyms................................................................................................................29
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
4
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Revision History
Date
Revision
Description
18-April-2007
001
Initial release of document
§ §
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
5
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
6
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
1.0
Introduction
The Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
(called hereafter the TXN31111D1 Optical Transceiver) is specifically designed for
high-speed Fibre Channel and Gigabit Ethernet links at up to 2.125 Gbps (2x Fibre
Channel rate).
This document discusses the following TXN31111D1 Optical Transceiver topics:
• Section 2.0, “Specifications” on page 8
• Section 3.0, “Electrical Interface” on page 12
• Section 4.0, “Termination” on page 14
• Section 5.0, “SFP Timing Parameters” on page 16
• Section 6.0, “Digital Diagnostic Monitoring Interface” on page 17
• Section 7.0, “Mechanical Specification” on page 22
• Section 8.0, “Regulatory Compliance” on page 23
• Section 9.0, “Ordering Information” on page 28
• Section 10.0, “Acronyms” on page 29
For information on standards that apply to the TXN31111D1 Optical Transceiver, see
the following references:
• “Diagnostic Monitoring Interface for Optical Xcvrs”. SFF Document Number
SFF-8472, Revision 9.3.
• IEEE Std 802.3, 2002 Edition, Clause 38, PMD Type 1000BASE-SX. IEEE Standards
Department, 2002
• IEEE Std 802.3z, 1998 Edition. Gigabit Interface Converter (GBIC) Ethernet
Standard.
• Small Form-Factor Pluggable (SFP) Transceiver Multisource Agreement (MSA)
• Telcordia Technologies* GR-63 Section 4.2
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
25-April-2007
Order Number: 317116, Revision: 001US
7
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
2.0
Specifications
Specifications include the following:
• Section 2.1, “Maximum Ratings and Recommended Operating Conditions” on
page 8
• Section 2.2, “Electrical Characteristics” on page 9
• Section , “Table 5 lists the TXN31111D1 Optical Transceiver receiver electrical
characteristics. Table 6 lists the TXN31111D1 Optical Transceiver 2-Wire Interface
electrical characteristics. Optical Specifications” on page 10
2.1
Maximum Ratings and Recommended Operating
Conditions
Table 1 lists the absolute maximum ratings for the TXN31111D1 Optical Transceiver.
Table 1.
Absolute Maximum Ratings
Parameter
Symbol
Min
Typ
Max
Units
Notes
Storage Temperature
Relative Humidity
Supply Voltage
T
-40
5
–
–
–
–
–
85
°C
%
–
s
RH
95
4
–
V T, R
cc
-0.5
–
V
–
Data AC Voltage
TD+ and TD-
Vi
2.2
Vpp
V
Differential
–
Control Input Voltage
-0.5
Vcc + 0.3
Caution:
Exceeding these values may cause permanent damage. Functional
operation under these conditions is not implied.
Table 2 lists the recommended operating conditions. (Minimum and maximum values
listed in Table 3 through Table 9 apply over the recommended operating conditions
specified in Table 2.)
Table 2.
Recommended Operating Conditions
Parameter
Symbol
Min
Typ
Max
Units
Case Temperature
Supply Voltage
Data Rate
T
-20
2.97
–
3.3
–
85
°C
c
V T, R
cc
3.63
2.125
VDC
Gbps
–
1.0625
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
8
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
2.2
Electrical Characteristics
The minimum and maximum values in this section apply over the following
recommended temperature and voltage range (from Table 2, “Recommended Operating
Conditions” on page 8).
-20 °C < Tc < 85 °C, 3.0 V < Vcc < 3.6 V
Table 3 lists the TXN31111D1 Optical Transceiver electrical characteristics for power
and current.To be updated once "total current" info is availableTable 4 lists the
Table 3.
Electrical Characteristics – Power and Current
Parameter
Symbol
Min
Typ
Max
Units Notes
170
–
mA
mA
mW
T = 20°C, V = 3.3 V
c cc
Supply Current
l
–
cc
220
800
–
–
Power Dissipation
Pdiss
–
–
570
10 kHz to 4 MHz
with supply filter
Supply Noise Rejection
100
–
–
–
mV
Hot plugging of the
TXN31111D1 Optical
Transceiver results in the
inrush current of no more
than 30 mA greater than the
steady state value.
Inrush Current
–
–
30
mA
TXN31111D1 Optical Transceiver transmitter electrical characteristics.
Table 4.
Electrical Characteristics – Transmitter
Parameter
Symbol
Min
Typ
Max
Units
Notes
CML Input (Single Ended)
CML Input (Differential)
–
–
250
500
–
–
1100
2200
mVpp
mVpp
AC coupled inputs
Peak-to-peak voltage
Input Impedance
(differential)
Z
V
85
2
100
–
115
Ω
V
V
V
V
–
–
–
IN
IH
TX_DISABLE input voltage -
High
V
+ 0.3
cc
TX_DISABLE input voltage -
Low
V
0
–
0.6
IL
TX_Fault Output Voltage -
High
Vcc +
0.3
IOH = 40 µA,
1 TTL Unit Load
V
2.0
0
–
OH
TX_Fault Output Voltage -
Low
IOL = -1.6 mA,
1 TTL Unit Load
V
–
0.8
OL
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
9
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Table 5 lists the TXN31111D1 Optical Transceiver receiver electrical characteristics.
Table 5.
Electrical Characteristics – Receiver
Parameter
Symbol
Min
Typ
Max
Units
Notes
CML Output (Single Ended)
CML Output (Differential)
CML Output rise/fall time
–
–
–
250
500
–
300
600
–
500
1000
150
mVpp
mVpp
ps
AC-coupled outputs
Peak-to-peak voltage
20% - 80%
Output Impedance
(differential)
Zout
–
85
0
100
–
115
0.8
Ω
V
V
–
I
= -1.6 mA,
OL
TTL LOS Output - Low
TTL LOS Output - High
1 TTL Unit Load
V
+
0.3
I
40 μA,
OL =
CC
V
2.0
–
OH
1 TTL Unit Load
Deterministic Jitter
Total Jitter
DJ
TJ
170
266
ps
ps
–
–
–
–
Table 6 lists the TXN31111D1 Optical Transceiver 2-Wire Interface electrical
characteristics. Optical Specifications
Table 6.
Electrical Characteristics – 2-Wire Interface
Parameter
Symbol
Min
Typ
Max
Units
Notes
V
+
CC
V
2.5
0
–
–
–
V
V
Ω
With Serial ID
–
OH
0.3
MOD_DEF (0:2)
V
0.5
–
OL
Measured to RGND/
TGND
NC
100 K
Table 7 lists the TXN31111D1 Optical Transceiver fiber length specifications.
Table 7.
Fiber Length Specifications
Parameter
Symbol
Min
Typ
Max
Units
Notes
1.0625,
1.25,
2.125
Data rate
BR
Gbps
1
4
Bit Error Rate
BER
L
10-12
500
300
2
3
50 µm/125 µm MMF
2
2
–
–
m
m
300
150
2
3
62.5 µm/125 µm MMF
L
NOTES:
1. 1000BASE-SX compatible per IEEE802.3 and 1x and 2x Fibre Channel compatible per FC-PI-2
2. Data rates at 1000BASE-SX Gigabit Ethernet and 1.0625 Gbps
3. Data rates at 2.125 Gbps Fibre Channel.
4. Data rate at 2.125 Gbps with 27 - 1 PRBS pattern.
Table 8 lists the TXN31111D1 Optical Transceiver transmitter optical specifications.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
10
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Table 8.
Optical Specifications – Transmitter
Parameter
Symbol
Min
Typ
Max
Units
Notes
Optical Transmit Power
(50 or 62.5 µm MMF)
Popt
-8
-5
-1.1
dBm
Average launch power
Optical Center Wavelength
Spectral Width
830
–
850
–
860
0.85
–
nm
nm
–
–
RMS
pk-pk
–
Optical Modulation Amplitude
Relative Intensity Noise
OMA
RIN
247
–
–
µW
–
-118
dB/Hz
Deterministic Jitter
Total Jitter
DJ
TJ
80
ps
ps
–
–
–
–
–
–
227
20 - 80% values,
measured unfiltered
Output Rise/Fall Time
tR, tF
130
ps
Eye Mask: Compliant with eye mask requirements of Fibre Channel – Physical Interfaces (FC-PI-2)
specifications, IEEE 802.3z* Gigabit Ethernet 1000 BASE-SX standard
Table 9 lists the TXN31111D1 Optical Transceiver receiver optical specifications.
Table 9.
Optical Specifications – Receiver
Parameter
Symbol
Min
Typ
Max
Units
Notes
Optical Input
Wavelength
–
770
–
860
nm
–
1.0625, 1.25, and 2.125 Gbps
Test conditions:
Receiver Sensitivity
Pr
-18
-20
–
dBm
•
•
•
10-12 BER
9 dB ER input
27 - 1 PRBS
Compliant with Fibre Channel – Physical Interfaces (FC-PI-2) specifications, IEEE
802.3z Gigabit Ethernet 1000 BASE-SX standard
Stressed Sensitivity
Receiver Overload
Optical Return Loss
–
–
–
–
0
–
dBm
dB
–
–
ORL
12
Measured on transition -
low to high
LOS - Asserted
Pa
-29
–
–
dB
Measured on transition -
high to low
LOS - De-asserted
LOS - Hysteresis
Pd
–
1
–
–
-17
5
dBm
dB
Pa - Pd
–
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
11
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
3.0
Electrical Interface
Figure 1 shows the TXN31111D1 Optical Transceiver electrical interface pin numbers
and names.
Figure 1.
Electrical Interface Pin Numbers and Names
B3242-01
Table 10 lists the plug sequence to follow during hot plugging, as well as pin functions.
Table 10.
Plug Sequence: Pin Engagement Sequence during Hot Plugging (Sheet 1 of 2)
Pin
Number
Plug
Sequence
Pin Name
Pin Function
Notes
1
2
V T
Transmitter Ground
1
3
–
ee
Transmitter Fault
Indication
TX_FAULT
Note 1
Note 2: Transmitter disables on high
or open
3
TX_DISABLE
Transmitter Disable
3
4
5
MOD_DEF (2)
MOD_DEF (1)
MOD_DEF (0)
RATE SELECT
LOS
Module Definition 2
Module Definition 1
Module Definition 0
–
3
3
3
3
3
1
1
1
Note 3: Wire Serial ID interface
Note 3: Wire Serial ID interface
6
Note 3: Ground
7
Note 4
8
Loss of Signal
Note 5
9
V
R
R
R
Receiver Ground
Receiver Ground
Receiver Ground
–
–
–
ee
10
11
V
ee
V
ee
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
12
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Table 10.
Plug Sequence: Pin Engagement Sequence during Hot Plugging (Sheet 2 of 2)
Pin
Number
Plug
Sequence
Pin Name
Pin Function
Notes
Inverted Received Data
out
12
13
RD-
RD+
3
3
Note 6
Note 6
Non-Inverted Received
Data out
14
15
V
R
Receiver Ground
Receiver Power
1
2
2
1
3
3
1
–
ee
V R
Note 7
Note 7
–
cc
16
V T
Transmitter Power
Transmitter Ground
Non-inverted Data In
Inverted Data In
Transmitter Ground
cc
17
V T
ee
18
TD+
TD-
Note 8
Note 8
–
19
20
V T
ee
NOTES:
1. TX FAULT is an open collector output that is pulled up with a 4.7 K - 10 K W resistor on the host board. Use
a pull-up voltage between 2.0 V and V T, R+0.3 V.
cc
•
•
Low: Indicates normal operation. In the low state, the output is pulled to < 0.8 V.
High: Indicates a laser fault.
2. TX DISABLE is an input used to shut down the transmitter optical output. It is pulled up within the
TXN31111D1 Optical Transceiver with a 4.7 K - 10 K W resistor. The states are as follows:
•
•
•
Low (0 - 0.6 V): Transmitter Enabled
(>0.8, <2.0 V): Undefined
High (2.0 - 3.465 V): Transmitter Disabled
3. MOD-DEF 0, 1, 2: These pins are definition pins for the TXN31111D1 Optical Transceiver. They are pulled
up with a 4.7 K - 10 K W resistor on the host board. Use a pull-up voltage between 2.0 V and V T,
cc
R+0.3 V.
•
MOD-DEF 0 is grounded by the TXN31111D1 Optical Transceiver to indicate the TXN31111D1 Optical
Transceiver is present.
•
•
MOD-DEF 1 is the clock line of a two-wire serial interface for serial ID.
MOD-DEF 2 is the data line of a two-wire serial interface for serial ID.
4. RATE SELECT: This signal function is not implemented in the TXN31111D1 Optical Transceiver. The
TXN31111D1 Optical Transceiver is rate agile – that is, it meets the specifications for 1.0625 Gbps to
2.125 Gbps data rates without the use of a rate-select pin.
5. LOS (Loss of Signal) is an open collector output that is pulled up with a 4.7K – 10KW resistor on the host
board.
•
•
When low, this output indicates normal operation. In the low state, the output is pulled to < 0.8V.
When high, this output indicates the received optical power is below the worst-case receiver sensitivity
(as defined by the standard in use).
6. RD-/+ are the differential receiver outputs. They are AC-coupled 100 W differential lines that are
terminated with 100 W (differential) at the user SerDes. The AC coupling is performed inside the
TXN31111D1 Optical Transceiver and is therefore not required on the host board.
7. V R and V T are the receiver and transmitter power supplies. Their values, which are listed in Table 2,
cc
cc
“Recommended Operating Conditions” on page 8, are defined at the SFP connector pin. Maximum supply
current is listed in Table 3, “Electrical Characteristics – Power and Current” on page 9. Hot plugging of the
TXN31111D1 Optical Transceiver results in the inrush current listed in Table 3, “Electrical Characteristics –
Power and Current” on page 9.
8. TD-/+ are the differential transmitter inputs. They are AC-coupled differential lines with 100 W differential
termination inside TXN31111D1 Optical Transceiver. The AC coupling is performed inside the TXN31111D1
Optical Transceiver and is therefore not required on the host board.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
25-April-2007
Order Number: 317116, Revision: 001US
13
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
4.0
Termination
4.1
Types of I/O Interfaces
The TXN31111D1 Optical Transceiver has the following types of I/O interfaces.
• CML interface
• TTL interface
High-speed I/Os use the CML interface, while control signals use the TTL interface.
Proper termination of I/Os is required for good signal integrity. If I/Os (particularly the
CML I/Os) are not terminated properly, then jitter increases significantly due to
reflection from impedance mismatches.
4.2
CML Termination
Figure 2 shows a circuit diagram for the CML termination for the TXN31111D1 Optical
Transceiver receiver output. The TXN31111D1 Optical Transceiver has built in AC-
coupling capacitors, which help prevent a direct current path from the TXN31111D1
Optical Transceiver power supply to the SerDes input. (A direct current path could
damage the ESD diodes on the SerDes.)
• Internal termination. For the TXN31111D1 Optical Transceiver receiver output,
the SerDes interface provides an internal termination resistor.
• External termination. For the proper external termination of the SerDes
interface, refer to the SerDes specification.
Figure 2.
Circuit Diagram for CML Termination on Receiver Output
3.3 V
50 Ω
AC-coupling
capacitor
100
Ω
Receiver Output
SerDes Input
B3243-02
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
14
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Figure 3 shows a circuit diagram for the CML termination for the TXN31111D1 Optical
Transceiver transmitter input.
Internal termination. The TXN31111D1 Optical Transceiver transmitter input has an
internal 100 Ω termination between two inputs. AC-coupling capacitors are also built into
the TXN31111D1 Optical Transceiver.
Figure 3.
Circuit Diagram for CML Termination on Transmitter Input
3.3 V
AC-Coupling
Capacitor
100 Ω
Transmitter Input
SerDes Output
B3244-02
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
15
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
5.0
SFP Timing Parameters
Table 11 lists the timing parameters for SFP management.
Table 11.
Timing Parameters for SFP Management
Parameter
Symbol
Min
Max
Unit
Conditions
Time from rising edge of TX_DISABLE
to when the optical output falls below
10% of nominal
TX_DISABLE assert time
t_off
–
10
µs
Time from falling edge of TX_DISABLE
to when the modulated optical output
rises above 90% of nominal
TX_DISABLE negate time
t_on
–
1
ms
Time to initialize includes
reset of TX_FAULT
Time from power on or negation of
TX_FAULT using TX_DISABLE
t_init
t_fault
–
–
300
100
ms
µs
TX_FAULT Assert Time
TX Disable to reset
Time from fault to TX_FAULT ON
Time TX Disable must be held high to
reset TX_FAULT
t_reset
10
–
µs
RX_LOS Assert time
RX_LOS De-assert time
Serial ID Clock Rate
t_loss_on
t_loss_off
f_serial_clock
100
100
100
µs
Time from LOS state to RX_LOS assert
Time from non-LOS state to RX_LOS
de-assert
–
µs
–
kHz
–
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
16
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
6.0
Digital Diagnostic Monitoring Interface
This section includes the following topics:
• Section 6.1, “Overview of Digital Diagnostic Monitoring Interface” on page 17
• Section 6.2, “General Memory Map Descriptions” on page 18
• Section 6.3, “Alarm and Warning Fields for 2-Wire Interface Address A2h” on
page 19
• Section 6.4, “A/D Fields for 2-Wire Interface Address A2h” on page 21
6.1
Overview of Digital Diagnostic Monitoring Interface
The TXN31111D1 Optical Transceiver supports the 2-wire serial communication
protocol. The TXN31111D1 Optical Transceiver has a digital diagnostic monitoring
interface that is an extension of the serial ID interface defined in the Gigabit Interface
Converter (GBIC) specification and the SFP Transceiver MultiSource Agreement (MSA)
referenced in Section 1.0, “Introduction” on page 7.
• Standard SFP serial ID interface. The standard SFP serial ID interface (the
memory map for which is in Table 12, “Memory Map – 2-Wire Address Range
Descriptions” on page 18) provides access to identification information using the 8-
bit address 1010000X (A0h). The serial identification information describes
information such as the following for the TXN31111D1 Optical Transceiver:
capabilities, standard interfaces, and manufacturer information.
• Digital diagnostic monitoring interface. The digital diagnostic monitor interface
(the memory map for which is in Table 12, “Memory Map – 2-Wire Address Range
Descriptions” on page 18) is an extension of the standard serial ID interface. This
interface, which uses the 8-bit address 1010001X (A2h) reserved for optical
transceivers, allows real-time access to device-operating parameters while leaving
unchanged the original serial ID memory map A0h. The digital diagnostic
monitoring interface is backward compatible with both the GBIC specification and
the SFP MSA.
Note:
For details on the 2-wire addresses A0h and A2h, refer to the SFF-8472 document
referenced in Section 1.0, “Introduction” on page 7.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
25-April-2007
Order Number: 317116, Revision: 001US
17
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
6.2
General Memory Map Descriptions
Table 12 lists descriptions of address ranges for the serial ID memory map.
• The 2-wire address A0h contains serial ID information defined by the SFP MSA.
• The 2-wire address A2h contains data related to the digital diagnostics, defined by
the SFF-8472 document referenced in Section 1.0, “Introduction” on page 7.
Table 12.
Memory Map – 2-Wire Address Range Descriptions
2-Wire Address 1010000X (A0h)
2-Wire Address 1010001X (A2h)
Address
Range
Address Range Description
(Standard Serial ID Information)
Address
Range
Address Range Description
(Digital Diagnostics Information)
Alarm and Warning (40 bytes)
0-39
For details, see Table 13, “Alarm and Warning
Fields – 2-Wire Address A2h, Address 0-95”.
0-95
Serial ID Defined SFP MSA (96 bytes)
Vendor Specific / Calibration Constants
(56 bytes)
40-95
For details, see Table 13, “Alarm and Warning
Fields – 2-Wire Address A2h, Address 0-95”.
Real Time Digital Diagnostics Interface
(24 bytes)
For details, see the following:
•
Table 14, “A/D Fields – 2-Wire Address
A2h, Addresses 96-109” on page 21
96-119
96-127
Vendor Specific (32 bytes)
•
Table 15, “A/D Status/Control Bits – 2-
Wire Address A2h, Address 110” on
page 21
120-127
128-247
248-255
Vendor Specific (8 bytes)
User Writable EEPROM (120 bytes)
Vendor Specific (8 bytes)
128-255
Reserved in SFP MSA (128 bytes)
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
18
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
6.3
Alarm and Warning Fields for 2-Wire Interface Address
A2h
Table 13 is a more detailed memory map of the 2-wire interface address A2h for the
Alarm and Warning fields, address range 0 to 95.
Table 13.
Alarm and Warning Fields – 2-Wire Address A2h, Address 0-95 (Sheet 1 of 2)
Data
Address
Field Size
(Bytes)
Field Name
Field Description
Base ID Fields
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Temperature High alarm
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
1
LSB
2
Temperature Low alarm
3
LSB
4
Temperature High Warning
5
LSB
6
Temperature Low Warning
7
LSB
8
Vcc High Alarm
9
LSB
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Vcc Low Alarm
LSB
Vcc High Warning
LSB
Vcc Low Warning
LSB
Bias High Alarm
LSB
Bias Low Alarm
LSB
Tx Bias High Warning
LSB
Tx Bias Low Warning
LSB
Tx Power High Alarm
LSB
Tx Power Low Alarm
LSB
Tx Power High Warning
LSB
Tx Power Low Warning
LSB
Rx Power High Alarm
LSB
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
19
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Table 13.
Alarm and Warning Fields – 2-Wire Address A2h, Address 0-95 (Sheet 2 of 2)
Data
Address
Field Size
(Bytes)
Field Name
Field Description
34
35
1
1
Rx Power Low Alarm
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
MSB at low address
–
LSB
36
1
Rx Power High Warning
LSB
37
1
38
1
Rx Power Low Warning
LSB
39
1
40-55
56-95
16
40
Vendor-Specific
Calibration Constants
–
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
20
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
6.4
A/D Fields for 2-Wire Interface Address A2h
Table 14 lists descriptions of the analog-to-digital (A/D) fields for the 2-wire interface
address A2h, data addresses 96 to 109.
Table 14.
A/D Fields – 2-Wire Address A2h, Addresses 96-109
Field
Data
Size
Field Name
Field Description
Address
(Bytes)
Signed 2's complement integer ºC (-40 to +125).
Based on internal temperature measurement.
96
1
Temperature MSB
97
98
1
1
Temperature LSB
Vcc MSB
Fractional part of temperature (count/256)
Internally measured supply voltage in transceiver.
Voltage reading is full 16-bit value × 100 µVolt.
99
100
1
1
1
1
1
1
1
4
Vcc LSB
(Yields range of 0 to 6.55V)
TX Bias MSB
TX Bias LSB
TX power MSB
TX power LSB
RX Power MSB
RX Power LSB
Reserved
Measured Laser Bias Current in mA.
Bias current is full 16-bit value × 2 µA.
(Full range of 0 to +131 mA)
101
102
Measure TX output power in mW.
TX power is full 16-bit value × 0.1 µW.
(Full range of -40 to +8.2 dBm)
103
104
Measured RX input power in mW.
RX power is full 16-bit value × 0.1 µW.
(Full range of -40 to +8.2dBm)
105
106-109
–
Table 15 lists descriptions of the A/D status/control bits for the 2-wire interface address
A2h, data address 110.
Table 15.
A/D Status/Control Bits – 2-Wire Address A2h, Address 110
Data
Address
Bit
Bit Name
Bit Description
110
110
110
2
1
0
Tx Fault
LOS
Digital State of Tx Fault Output
Digital State of LOS
Data Ready Bar
Indicates transceiver has achieved power up and is ready.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
21
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
7.0
Mechanical Specification
Figure 4 shows the TXN31111D1 Optical Transceiver SFP mechanical specifications. The
dimensions comply with the SFP Multisource Agreement (MSA).
Note:
Aqueous wash is not applicable for this product.
Figure 4.
SFP Mechanical Specifications
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
22
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
8.0
Regulatory Compliance
This section discusses the following topics:
• Section 8.1, “Electromagnetic Compatibility Compliance” on page 23
• Section 8.2, “Safety Compliance” on page 24
• Section 8.3, “Lead-Free Conformance” on page 25
• Section 8.4, “Compliance with Restriction of Hazardous Substances (RoHS)” on
page 25
• Section 8.5, “Management Methods on Control of Pollution from Electronic
Information Products (a.k.a. China RoHS)” on page 26
• Section 8.6, “Product Certification Markings and Compliance Statements” on
page 27
8.1
Electromagnetic Compatibility Compliance
Table 16 lists emissions and immunity regulations with which the TXN31111D1 Optical
Transceiver complies when tested in a representative chassis.
Table 16.
Electromagnetic Compatibility Compliance
Requirement
Regulation
Performance Level
•
•
FCC rules, Part 15,
subpart B
EN 55022
Meets Class B limits with a minimum
6 dB margin
Electromagnetic interference (EMI)
± 2 kV contact discharge to connector
electrical pins with no degradation in
performance or loss of function
JEDEC JESD22-A114-B
Human Body Model
•
•
± 15 kV air discharge
± 8 kV contact discharge to face
plate
Electrostatic discharge (ESD)
Meets Level B test criteria (that is, no
degradation of performance or loss of
function occurs).
EN 61000-4-2
Note: Actual ESD may vary, depending
on system configuration.
10 V/m from 80 MHz to 1 GHz with no
degradation of performance or loss of
function
Radio frequency electromagnetic
field (Radiated immunity)
EN 61000-4-3,
Level A test criteria
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
23
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
8.2
Safety Compliance
Table 17 lists and describes the relevant safety regulations with which the TXN31111D1
Optical Transceiver complies.
Table 17.
Safety Compliance
Requirement
Regulation
Title
UL 60950-1
Information Technology Equipment – Safety - Part 1:
General Requirements (USA and Canada)
CSA C22.2 No. 60950-1
EN 60950-1+A11
Information Technology Equipment – Safety - Part 1:
General Requirements (European Union)
Product Safety
Information Technology Equipment – Safety - Part 1:
General Requirements (International)
IEC 60950-1
Compliant with the fire resistance requirements of
Telcordia Technologies Generic Requirements GR-63-CORE
document for discrete electronic components.
GR-63-CORE Section 4.2,
Clause 4.2.3.1
Title 21 Chapter I Subchapter J –
Radiological Health Part 1040:
21CFR1040.10
Performance Standards for Light-Emitting Products
Safety of Laser Products - Part 1:
EN 60825-1+A1 +A2
IEC 60825-1+A1 +A2
EN 60825-2
Equipment Classification, Requirements and User's Guide
Laser Safety
Safety of Laser Products - Part 1:
Equipment Classification, Requirements and User's Guide
Safety of Laser Products - Part 2:
Safety of Optical Fiber Communication Systems
Safety of Laser Products - Part 2:
Safety of Optical Fiber Communication Systems
IEC 60825-2
Caution:
This device is a Class 1 laser product for use only under the recommended operating
conditions and ratings specified in this document.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
24
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
8.3
Lead-Free Conformance
The TXN31111D1 Optical Transceiver uses a lead-free assembly, although certain
discrete components within the assembly may contain lead, being necessary for either
component performance or reliability. The TXN31111D1 Optical Transceiver is referred
to as a “Lead-free 2nd Level Interconnect.” The enclosure, circuit board substrate, and
the solder connections from the circuit board to the components (second-level
connections) are all lead-free.
Table 18 lists various forms of the “Lead-Free 2nd Level Interconnect” marking for the
TXN31111D1 Optical Transceiver and accompanying collateral.
Table 18.
Lead-Free 2nd-Level Interconnect Markings
Description
Marking
Lead-Free 2nd Level Interconnect:
The Lead-Free 2nd Level Interconnect
symbol is used to identify electrical and
electronic assemblies and components
in which the lead (Pb) concentration
level in the circuit board substrate and
the solder connections from the circuit
board to the components (second-level
interconnect) are not greater than 0.1%
by weight (1000 ppm).
or
or
Note: Any of the three symbols
shown may be used, as space
permits.
8.4
Compliance with Restriction of Hazardous Substances
(RoHS)
This product complies with the European Union directive for Restriction of Hazardous
Substances (RoHS) – Restriction on the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment, Directive 2002/95/EC plus amendments.
However, certain discrete components do contain lead (an RoHS-restricted substance)
in amounts that exceed threshold concentration levels. This product uses the following
applicable RoHS technology exemptions:
• Lead in optical and filter glass
• Lead in glass of electronic components
Note: RoHS implementation details are subject to change.
This product is RoHS 6 compliant, defined as complying with the restriction for all six
listed substances by meeting strict threshold levels for those substances or through the
use of the applicable exemptions listed above.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
25-April-2007
Order Number: 317116, Revision: 001US
25
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
8.5
Management Methods on Control of Pollution from
Electronic Information Products (a.k.a. China RoHS)
关于符合中国《电子信息产品污染控制管理办法》的声明
Table 19.
Hazardous Substances Table
产品中有毒有害物质的名称及含量
有毒有害物质或元素 (Hazardous Substance)
多溴二苯醚
(PBDE)
铅
(Pb)
汞
(Hg)
镉
(Cd)
多溴联苯
(PBB)
部件名称
(Parts)
六价铬
(Cr(VI))
集成光电器件
Integrated optical circuit board
×
○
○
○
○
○
○
○
○
○
○
assembly
金属盒件
Metal enclosure
○
○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T 11363-
2006标准规定的限量要求以下。
○：Indicates that this hazardous substance contained in all homogeneous materials of this part is below the
limit requirement in SJ/T 11363-2006.
×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T 11363-
2006标准规定的限量要求。
×：Indicates that this hazardous substance contained in at least one of the homogeneous materials of this
part is above the limit requirement in SJ/T 11363-2006.
对销售之日的所售产品,本表显示我公司供应链的电子信息产品可能包含这些物质。注意：在所售产
品中可能会也可能不会含有所有所列的部件。
This table shows where these substances may be found in the supply chain of our electronic information
products, as of the date of sale of the enclosed product. Note that some of the component types listed above
may or may not be a part of the enclosed product.
除非另外特别的标注,此标志为针对所涉及产品的环保使用期限标志.此环保使用
期限只适用于产品在产品手册中所规定的条件下工作.
The Environment-Friendly Use Period (EFUP) for all enclosed products and their parts are per
the symbol shown here, unless otherwise marked. The Environment-Friendly Use Period is
valid only when the product is operated under the conditions defined in the product manual.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
26
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
8.6
Product Certification Markings and Compliance
Statements
Table 20 lists the TXN31111D1 Optical Transceiver product certification markings and
compliance statements.
Table 20.
Product Certification Markings and Compliance Statements
Origin and Description
Markings and Compliance Statements
Markings
CE mark.
The CE (Conformité Européene*) mark indicates compliance
to the European Union Low Voltage directive (2006/95/EC,
formerly 73/23/EEC).
TÜV Rheinland type approval mark for components and
subassemblies for the European Union.
The Technischer Überwachungsverein* (TÜV – German for
“Technical Inspection Association”) Rheinland type approval
mark is for components and subassemblies for the European
Union.
Where space does not permit, the smaller alternate TÜV
mark (see the next row in this table) may be used.
Alternate TÜV mark:
TÜV Rheinland type approval mark for components and
subassemblies for the European Union – Alternate.
This alternate mark may be used where space constraints
exist that do not permit use of the TUV Rheinland mark in
the previous row of this table.
UL Recognized Component mark for the USA and Canada.
China Environmental Friendly Use Period (EFUP) mark,
where 30 in the marking denotes 30 years.
Compliance Statements
Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50,
dated July 26, 2001.
USA Food and Drug Administration (FDA), Center for
Devices and Radiological Health compliance statement.
Alternate FDA compliance statement:
USA FDA, Center for Devices and Radiological Health
Complies with FDA performance standards for
laser products except for deviations pursuant
to Laser Notice No. 50, dated July 26, 2001.
compliance statement – Alternate.
Use the alternate statement listed, as needed.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
27
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
9.0
Ordering Information
Table 21 lists ordering information for the TXN31111D1 Optical Transceiver.
Table 21.
Ordering Information
MM
Number
Product Number
Description
Tri-rate 2/1 Gbps Fibre Channel and Gigabit Ethernet SFP module with
digital diagnostics feature compliant to RoHS 6
TXN31111D100xxx1
886003
1. The last 3 characters of the part number ("xxx") are used to designate customer-specific customization.
The Intel standard part has "000" as the last three characters.
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
28
25-April-2007
Order Number: 317116, Revision: 001US
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
10.0
Acronyms
Table 22.
Acronyms
Acronym
Meaning
A/D
Analog-to-Digital
BER
CFR
CML
EMI
Bit Error Rate
Code of Federal Relations
Current Mode Logic
Electro-Magnetic Interference
Electro-Static Discharge
European Union
ESD
EU
FC-PI
FCC
FDA
GBIC
IEC
Fibre Channel – Physical Interfaces
Federal Communications Commission
Food and Drug Administration
GigaBit Interface Converter
International Electrotechnical Commission
Institute of Electrical and Electronics Engineers
Loss of Signal
IEEE
LOS
MMF
MSA
NRZ
Pb
Multimode Fiber
Multisource Agreement
Non-Return to Zero
Lead
PCB
PRBS
RFI
Printed Circuit Board
Pseudo Random Bit Sequence
Radio Frequency Immunity
Small Form-Factor
SFF
SFP
Small Form-Factor Pluggable
Small Computer System Interface
Synchronous Optical Network
Transmitter Optical Sub-Assembly
Transistor-Transistor Logic
Technischer Überwachungsverein
Underwriter Laboratories*
Vertical Cavity Surface Emitting Laser
SCSI
SONET
TOSA
TTL
TUV
UL
VCSEL
§ §
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
25-April-2007
Order Number: 317116, Revision: 001US
Datasheet
29
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Intel® TXN31111D1 Tri-Rate 850 nm Optical Transceiver - SFP* MSA Compatible
Datasheet
30
25-April-2007
Order Number: 317116, Revision: 001US
厂商 型号 描述 页数 下载

STMICROELECTRONICS

 		TXN05 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN0510 [ SILICON CONTROLLED RECTIFIER,50V V(DRM),10A I(T),TO-220 ] 1 页

STMICROELECTRONICS

 		TXN0512 高浪涌能力高通态电流高稳定性和可靠性[ HIGH SURGE CAPABILITY HIGH ON-STATE CURRENT HIGH STABILITY AND RELIABILITY ] 5 页

STMICROELECTRONICS

 		TXN0512/F5 [ 12A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

STMICROELECTRONICS

 		TXN054 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN056 [ SILICON CONTROLLED RECTIFIER,50V V(DRM),5A I(T),TO-220 ] 5 页

STMICROELECTRONICS

 		TXN058 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN058/F2 [ 8A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

STMICROELECTRONICS

 		TXN058G 可控硅整流器器[ Silicon controlled rectifiers ] 5 页

STMICROELECTRONICS

 		TXN058G/F5 [ 8A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.213382s
