CYU001M16OFFA-85BVI

型号：

CYU001M16OFFA-85BVI

品牌：

CYPRESS[ CYPRESS ]

页数：

14 页

PDF大小：

181 K

下载PDF手册

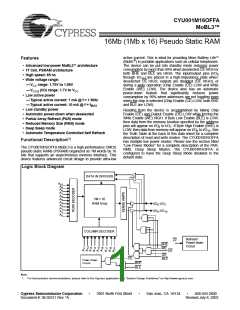

CYU001M16OFFA
MoBL3™
16Mb (1Mb x 16) Pseudo Static RAM
active current. This is ideal for providing More Battery Life
(MoBL®) in portable applications such as cellular telephones.
The device can be put into standby mode reducing power
consumption by more than 99% when deselected CE HIGH or
both BHE and BLE are HIGH. The input/output pins (I/O0
through I/O15) are placed in a high-impedance state when:
deselected CE HIGH, outputs are disabled (OE HIGH), or
during a write operation (Chip Enable (CE) LOW and Write
Enable (WE) LOW). The device also has an automatic
power-down feature that significantly reduces power
consumption by 99% when addresses are not toggling even
when the chip is selected (Chip Enable (CE) LOW, both BHE
and BLE are LOW).
Features
• Advanced low-power MoBL3 architecture
• 1T Cell, PSRAM architecture
• High speed: 85 ns
• Wide voltage range:
— VCC range: 1.70V to 1.95V
— VCCQ (I/O) range: 1.7V to VCC
• Low active power
— Typical active current: 1 mA @ f = 1 MHz
— Typical active current: 10 mA @ f = fMAX
• Low standby power
• Automatic power-down when deselected
• Partial Array Refresh (PAR) mode
• Reduced Memory Size (RMS) mode
• Deep Sleep mode
Reading from the device is accomplished by taking Chip
Enable (CE) and Output Enable (OE) LOW while forcing the
Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW,
then data from the memory location specified by the address
pins will appear on I/O0 to I/O7. If Byte High Enable (BHE) is
LOW, then data from memory will appear on I/O8 to I/O15. See
the Truth Table at the back of this data sheet for a complete
description of read and write modes. The CYU001M16OFFA
has multiple low power modes. Please see the section titled
“Low Power Modes” for a complete description of the PAR,
• Automatic Temperature Controlled Self Refresh
Functional Description[1]
The CYU001M16OFFA MoBL3 is a high-performance CMOS
pseudo static RAMs (PSRAM) organized as 1M words by 16
bits that supports an asynchronous memory interface. This
device features advanced circuit design to provide ultra-low
RMS, Deep Sleep Modes. The CYU001M16OFFA is
configured to have the Deep Sleep Mode disabled in the
default state.
Logic Block Diagram
DATA IN DRIVERS
A
10
A
9
8
7
6
5
4
3
2
1
0
A
A
A
A
A
1M x 16
RAM Array
I/O –I/O
0
7
A
A
A
I/O –I/O
8
15
A
COLUMN DECODER
Refresh/
Power-down
Circuit
ZZ
BHE
WE
CE
OE
BLE
CE
Power -Down
Circuit
BHE
BLE
Note:
1. For best-practice recommendations, please refer to the Cypress application note “System Design Guidelines” on http://www.cypress.com.
Cypress Semiconductor Corporation
Document #: 38-05311 Rev. *A
•
3901 North First Street
•
San Jose, CA 95134
•
408-943-2600
Revised July 8, 2003
CYU001M16OFFA
MoBL3™
Pin Configuration[2, 3, 4, 5]
FBGA
Top View
1
2
4
3
5
6
A
A
A
2
ZZ
I/O
OE
BLE
0
1
A
B
C
A
A
I/O BHE
8
CE
I/O
4
3
0
A
A
6
I/O I/O
I/O
2
5
10
1
9
V
A
V
I/O
I/O
3
A
CCQ
D
E
F
SS
7
11
17
V
DNU
A
16
V
CC
SSQ
I/O
I/O
12
4
A
A
15
I/O
I/O
5
I/O
I/O
6
14
13
14
A
A
G
H
I/O
A
WE I/O
7
13
12
15
19
A
A
9
A
11
A
A
NC
10
8
18
Notes:
2. DNU pins are to be left floating or tied to V.
3. VSSQ is the ground pin for the I/O drivers. It should be connected to ground of the system.
4. Pin H6 is the address expansion pin for the 32M density.
5. ZZ pin is referred to as CE2 on other vendor data sheets.
Document #: 38-05311 Rev. *A
Page 2 of 14
CYU001M16OFFA
MoBL3™
Programming the PAR Register
Partial Array Refresh Register
The PAR register contains five bits: A4 (most significant bit)
down to A0 (least significant). To set the PAR register, the ZZ
pin must be enabled (ZZ LOW). Once this is done, the chip
enable (CE) is forced LOW, while the address bits, A0 through
A4, are set to the desired PAR state. Then the control signals,
WE, BLE, and BHE are all enabled and the state of the
address bits A0 through A4 is written into the register. Please
refer to the “PAR Register Update — Timing Waveform” for
proper programming of the PAR register. The different
possible configurations of the PAR register is shown in the
table below. Note that each bit has a default setting upon
power-up.
This device has an internal register that controls the operating
modes. This register is called the Partial Array Refresh
Register, or PAR Register. Based on the contents of this
register, the PSRAM can turn on or off various sections of
memory, or cab be used in a reduced memory size, or
enable/disable the Deep Sleep Mode.
PAR Register Description
Reserved
ZZ Enable Deep Sleep
Array On/Off on ZZ
A3
PAR Top/Btm Selection PAR Memory Selection
A21–A5
A4
A2
A1
A0
Bit(s)
Name
Description
21–5
4
Reserved
Reserved
0 – Deep Sleep Enabled
ZZ Enable Deep Sleep
1 – Deep Sleep Disabled (Default)
3
2
Array On/Off on ZZ
0 – PAR Mode (Default)
1 – RMS Mode
PAR Top/Bottom Half Selection
PAR Memory Selection
0 – Bottom (Default)
1 – Top
1–0
00 – Full Array (16M — Default)
01 – 3/4 Array (12M)
10 – 1/2 Array (8M)
11 – 1/4 Array (4M)
PAR Register Update — Timing Waveform[10]
t
WC
Five Lower-order address bits (A4–A0) Define PAR Register
ADDRESS
CE
t
SCE
t
ZZCE
t
t
HA
AW
t
t
ZZBE
BW
BHE/BLE
WE
t
SA
t
PWE
t
ZZWE
ZZ
t
ZZMIN
Notes:
6. IH(MAX) = VCCQ + 0.2V for pulse durations less than 20 ns.
7. VIL(MIN) = –1V for pulse durations less than 20 ns.
8. Overshoot and undershoot specifications are characterized and are not 100% tested.
V
9. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at VCC = VCC (typ) and TA = 25C.
10. The timing values for the PAR Register Update are shown in the “Partial Array Mode Timing” table and “Switching Characteristics” table.
Document #: 38-05311 Rev. *A
Page 3 of 14
CYU001M16OFFA
MoBL3™
low. Once ZZ returns high in this mode, the PSRAM goes back
to operating in full address refresh. The protocols shown on
the “PAR Register Description Table” and in the “PAR Register
Update — Timing Waveform” will have to be followed to turn
on/off this mode of operation. Once the PAR register is
updated, all future PAR accesses will use the contents of the
PAR register when ZZ returns low. If the customer wants to
change the PAR space, the PAR register must be updated per
the instruction in the “PAR Register Description Table” section
of this data sheet.
Low-Power Modes
The CYU001M16OFFA provides four distinct operation modes
for reducing standby power:
1. reduced memory size operation
2. partial array refresh
3. deep sleep mode
4. temperature controlled self refresh.
Reduced Memory Size Operation
If the PAR register is not updated after power-up, the PSRAM
will be in its default state. In the default state, the whole
memory array will be refreshed.
In this mode, the device can be operated as a reduced size
PSRAM. For example, one could operate the 16M PSRAM as
a 4M or a 8M memory block. The protocol to turn on/off the
sections of the memory is described in the PAR register
description. The RMS mode can be enabled by having the
appropriate setting in the PAR register. The mode is effective
once ZZ goes high and remains in the RMS mode until full
array is restored by accessing the PAR register again.
Deep Sleep Mode
In this mode, the data integrity in the PSRAM is not
guaranteed. This mode can be disabled by writing 1 into bit
5(A4) of the PAR register. At any point of time, the Deep Sleep
Mode can be enabled by driving ZZ low and then changing bit
A4 to 0. Once this is done, the PSRAM enters the deep sleep
mode. The device stays in the deep sleep mode until ZZ is
driven High. Once the PSRAM enters the Deep Sleep Mode,
the content of the PAR register is destroyed and the PAR
register would go into the default state upon normal operation.
At power up, all four sections of the die are activated and the
PSRAM enters into its default state of full memory size and
refresh space.
Partial Array Refresh
The PAR mode allows customers to turn off sections of the die
in the stand-by mode to save standby current. The 16M
MoBL3 is divided into four 4M sections allowing certain
sections to be active (i.e., refreshed). The PAR mode also
allows a customer to go into a low-power mode with ZZ tied
low and keeps the data in a certain section of memory.
Temperature Controlled Refresh
The device has an automatic temperature controlled refresh
circuitry. This allows the device to adjust the refresh rate based
on the junction temperature of the device. The number of
refreshes are in proportion to the temperature. This allows the
standby current to decrease at lower temperatures. Please
see the section on Thermal Characteristics for the junction
temperature calculation.
In the PAR, the PSRAM will only refresh certain portions of the
memory, as configured by the user. This mode is only for
standby operation, and is applicable as long as ZZ remains
Partial Array Refresh — Entry/Exit[11]
Partial Array Mode/
Deep Sleep Mode
ZZ
1us
suspend
t
R
t
CDR
CE or
BLE / BHE
Partial Array Mode Timings [12, 13]
Parameter
Description
Min.
Max.
Unit
µs
tZZWE
tCDR
tR
ZZ LOW to WE LOW
Chip Deselect to ZZ LOW
1
0
ns
Operation Recovery Time (Deep Sleep Mode only)
Deep Sleep Mode Time
200
µs
tZZMIN
tZZCE
10
0
µs
ZZ LOW to CE LOW
1
1
µs
tZZBE
ZZ LOW to BHE/BLE LOW
0
µs
Notes:
11. OE and the data pins are in a “don’t care” state while the device is in Partial Array mode.
12. All other timing parameters are as shown in the switching characteristics section.
13.
tR applies only in the Deep Sleep mode.
Document #: 38-05311 Rev. *A
Page 4 of 14
CYU001M16OFFA
MoBL3™
Variable Address Space — Address Patterns
Partial Array Refresh Mode (A3 = 0, A4 = 1)
A2 A1, A0
Refresh Section
One-fourth of the Die
Half of the Die
Address
00000h – 3FFFFh (A19 = A18 = 0)
00000h – 7FFFFh (A19 = 0)
Size
Density
4M
0
0
0
1
1
1
11
10
01
11
10
01
256K x 16
512K x 16
768K x 16
256K x 16
512K x 16
768K x 16
8M
Three-fourths of the Die
One-fourth of the Die
Half of the Die
00000h – BFFFFh (A19: A18 ≠ 11)
C0000h – FFFFFh (A19 = A18 = 0)
80000h – FFFFFh (A19 = 1)
12M
4M
8M
Three-fourths of the Die
40000h – FFFFFh (A19: A18 ≠ 00)
Reduced Memory Size Mode (A3 = 1, A4 = 1)
00000h – 3FFFFh (A19 = A18 = 0)
00000h – 7FFFFh (A19 = 0)
12M
0
0
0
0
1
1
1
1
11
10
01
00
11
10
01
00
One-fourth of the Die
Half of the Die
256K x 16
512K x 16
768K x 16
1M x 16
4M
8M
Three-fourths of the Die
Full Die
00000h – BFFFFh (A19: A18 ≠ 11)
00000h – FFFFFh
12M
16M
4M
One-fourth of the Die
Half of the Die
C0000h – FFFFFh (A19 = A18 = 1)
80000h – FFFFFh (A19 = 1)
256K x 16
512K x 16
768K x 16
1M x 16
8M
Three-fourths of the Die
Full Die
40000h – FFFFFh (A19: A18 ≠ 00)
00000h – FFFFFh
12M
16M
Document #: 38-05311 Rev. *A
Page 5 of 14
CYU001M16OFFA
MoBL3™
Memory Block Split
Bottom Address Range
0
1
0
1
1/4 Address Space Refresh
1/2 Address Space Refresh
Active Address Space:
Active Address Space:
A0 - A18
A<19> = <0>
A0 - A17
A<18, 19> = <0, 0>
0
1
0
1
3/4 Address Space Refresh
Active Address Space:
Full Address Space Refresh
Active Address Space:
A0 - A19
A<18, 19> = <0, 0>, <1, 0>, <0, 1>
A0 - A19
A<18, 19> = <X, X>
Top Address Range
0
1
0
1
1/4 Address Space Refresh
Active Address Space:
A0 - A17
1/2 Address Space Refresh
Active Address Space:
A0 - A18
A<19> = <1>
A<18, 19> = <1, 1>
0
0
1
1
Full Address Space Refresh
Active Address Space:
A0 - A19
A<18, 19> = <X, X>
3/4 Address Space Refresh
Active Address Space:
A0 - A19
A<18, 19> = <1, 0>, <0, 1>, <1, 1>
Document #: 38-05311 Rev. *A
Page 6 of 14
CYU001M16OFFA
MoBL3™
DC Input Voltage[6,7,8] ........................................ −0.3V to 2.25V
Maximum Ratings
Output Current into Outputs (LOW)............................. 20 mA
(Above which the useful life may be impaired. For user guide-
lines, not tested.)
Static Discharge Voltage...........................................> 2001V
(per MIL-STD-883, Method 3015)
Storage Temperature .................................–65°C to +150°C
Latch-up Current.....................................................> 200 mA
Ambient Temperature with
Power Applied.............................................–55°C to +125°C
Operating Range
Supply Voltage to Ground Potential .................−0.3V to 2.25V
DC Voltage Applied to Outputs
in High-Z State[6,7,8] ............................................−0.3V to 2.25V
Range Ambient Temperature (TA)
VCC
1.7V to 1.7V to
1.95V VCC
VCCQ
Industrial
−25°C to +85°C
Product Portfolio
Power Dissipation
Operating, Icc (mA)
VCC Range(V)
f = 1 MHz f = fMAX
Standby, ISB2 (µA)
Speed
Product
Min.
1.7
Typ.
1.8
Max.
1.95
1.95
(ns)
Typ.[9]
Max.
Typ.[9]
Max.
25
Typ.[9]
Max.
100
CYU001M16OFFAU
CYU001M16OFFAS
85
1
1
5
5
10
10
50
1.7
1.8
85
25
50
125
DC Electrical Characteristics (Over the Operating Range)
CYU001M16OFFA
Parameter
Description
Test Conditions
Min.
Typ.[9]
Max.
Unit
VOH
Output HIGH Voltage
IOH = −0.1 mA
VCCQ
0.8
*
V
VOL
VIH
VIL
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
IOL = 0.1 mA
VCCQ
*0.2
V
V
V
VCCQ
0.8
*
VCCQ
0.2
+
−0.2
VCCQ
*0.2
IIX
Input Leakage Current
Output Leakage Current
GND < VI < VCCQ
−1
−1
+1
+1
µA
µA
IOZ
ICC
GND < VO < VCCQ, Output Disabled
VCC Operating Supply
Current
f = fMAX = 1/tRC
f = 1 MHz
Vcc = 1.95V, IOUT
0mA, CMOS level
=
10
1
25
mA
5
ISB1
Automatic CE Power-down CE > VCCQ − 0.2V,
Current − CMOS Inputs VIN > VCCQ − 0.2V, VIN < 0.2V,
f = fMAX(Address and Data Only),
f = 0 (OE, WE, BHE and BLE)
S
U
50
50
125
100
µA
µA
ISB2
Automatic CE Power-down CE > VCCQ − 0.2V,
Current − CMOS Inputs VIN > VCCQ − 0.2V or VIN < 0.2V,
S
U
50
50
125
100
f = 0, VCC=1.95V
Capacitance[14]
Parameter
Description
Test Conditions
Max.
Unit
CIN
Input Capacitance
TA = 25°C, f = 1 MHz
VCC = VCC(typ)
6
8
pF
pF
COUT
Output Capacitance
Thermal Resistance[14]
Parameter
Description
Test Conditions
FBGA
55
Unit
θJA
Thermal Resistance (Junction to Ambient)
Thermal Resistance (Junction to Case)
Still Air, soldered on a 3 x 4.5 inch, two-layer
printed circuit board
°C/W
°C/W
θJC
16
Note:
14. Tested initially and after design or process changes that may affect these parameters.
Document #: 38-05311 Rev. *A
Page 7 of 14
CYU001M16OFFA
MoBL3™
AC Test Loads and Waveforms
R1
ALL INPUT PULSES
90%
10%
VCC
OUTPUT
VCC
GND
90%
10%
Rise Time = 1 V/ns
Fall Time = 1 V/ns
R2
30 pF
INCLUDING
JIG AND
SCOPE
Equivalent to:
THÉVENIN EQUIVALENT
RTH
OUTPUT
VTH
Parameters
1.8V I/O
10800
10800
5400
Unit
W
R1
R2
W
RTH
VTH
W
0.90
V
Switching Characteristics (Over the Operating Range) [15]
CYU001M16OFFA
Min. Max.
Parameter
Read Cycle
Description
Unit
tRC
Read Cycle Time
85
10
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAA
Address to Data Valid
85
tOHA
tACE
Data Hold from Address Change
CE LOW to Data Valid
85
35
tDOE
tLZOE
tHZOE
tLZCE
tHZCE
tDBE
OE LOW to Data Valid
OE LOW to Low Z16,17, 19]
OE HIGH to High Z16,17, 19]
CE LOW to Low Z16,17, 19]
CE HIGH to High Z16,17, 19]
BLE/BHE LOW to Data Valid
Address Skew
5
25
10
25
85
10
tSK
tLZBE
tHZBE
Write Cycle[18]
tWC
BLE/BHE LOW to Low Z[16,17, 19]
BLE/BHE HIGH to High-Z[16,17, 19]
5
25
Write Cycle Time
85
75
75
0
ns
ns
ns
ns
ns
ns
tSCE
CE LOW to Write End
Address Set-up to Write End
Address Hold from Write End
Address Set-up to Write Start
WE Pulse Width
tAW
tHA
tSA
0
tPWE
65
1000
Notes:
15. Test conditions assume signal transition time of 1V/ns or higher, timing reference levels of VCCQ(typ)/2, input pulse levels of to VCCQ(typ), and output loading of
the specified IOL/IOH and 30-pF load capacitance.
16. At any given temperature and voltage condition, tHZCE is less than tLZCE, tHZBE is less than tLZBE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any
given device.
17. tHZOE, tHZCE, tHZBE and tHZWE transitions are measured when the outputs enter a high-impedance state.
18. The internal write time of the memory is defined by the overlap of WE, CE = VIL, BHE and/or BLE =VIL. All signals must be ACTIVE to initiate a write and any
of these signals can terminate a write by going INACTIVE. The data input set-up and hold timing should be referenced to the edge of the signal that terminates
the write.
19. High-Z and Low-Z parameters are characterized and are not 100% tested.
Document #: 38-05311 Rev. *A
Page 8 of 14
CYU001M16OFFA
MoBL3™
Switching Characteristics (Over the Operating Range)(continued)[15]
CYU001M16OFFA
Min. Max.
Parameter
Description
BLE/BHE LOW to Write End
Unit
ns
tBW
75
30
0
tSD
Data Set-up to Write End
Data Hold from Write End
WE LOW to High Z16,17, 19.]
WE HIGH to Low Z16,17, 19.]
ns
tHD
ns
tHZWE
tLZWE
25
ns
10
ns
Switching Waveforms
[20]
Read Cycle 1 (Address Transition Controlled)
tRC
ADDRESS
tSK
t
AA
t
OHA
DATA OUT
PREVIOUS DATA VALID
DATA VALID
Read Cycle No. 2 (OE Controlled)[20]
ADDRESS
t
RC
CE
tSK
t
t
HZCE
ACE
OE
t
HZOE
t
DOE
LZOE
BHE/BLE
t
t
HZBE
t
DBE
t
LZBE
HIGH
IMPEDANCE
HIGH IMPEDANCE
DATA OUT
DATA VALID
t
LZCE
Note:
20. WE is HIGH for Read Cycle.
Document #: 38-05311 Rev. *A
Page 9 of 14
CYU001M16OFFA
MoBL3™
Switching Waveforms(continued)
Write Cycle No. 1(WE Controlled)[18, 19, 21, 22, 23]
t
WC
ADDRESS
CE
t
SCE
t
SK
t
t
HA
AW
t
t
SA
PWE
WE
t
BW
BHE/BLE
OE
t
t
SD
HD
DATA
DATA I/O
VALID
IN
23
NOTE
t
HZOE
Write Cycle No. 2 (CE Controlled)[18, 19, 21, 22, 23]
t
WC
ADDRESS
t
SCE
CE
tSA
t
t
HA
AW
t
PWE
WE
t
BW
BHE/BLE
OE
t
t
SD
HD
VALID
DATA
DATA I/O
NOTE 23
IN
t
HZOE
Notes:
21. Data I/O is high impedance if OE = VIH
.
22. If CE goes HIGH simultaneously with WE HIGH, the output remains in a high-impedance state.
23. During the DON’T CARE period in the DATA I/O waveform, the I/Os are in output state and input signals should not be applied.
Document #: 38-05311 Rev. *A
Page 10 of 14
CYU001M16OFFA
MoBL3™
Switching Waveforms(continued)
Write Cycle No. 3 (WE Controlled, OE LOW)[22, 23]
t
WC
ADDRESS
CE
t
SCE
t
BW
BHE/BLE
t
t
HA
AW
t
SA
t
PWE
WE
t
t
HD
SD
DATAI/O
DATA VALID
IN
t
LZWE
t
HZWE
Write Cycle No. 4 (BHE/BLE Controlled, OE LOW)[22, 23]
t
WC
ADDRESS
CE
t
SCE
t
t
HA
AW
tBW
BHE/BLE
WE
t
SA
tPWE
t
t
HD
SD
DATA I/O
VALID
DATAIN
NOTE 23
Document #: 38-05311 Rev. *A
Page 11 of 14
CYU001M16OFFA
MoBL3™
Truth Table[25]
CE ZZ WE OE BHE BLE
Inputs/Outputs
High Z
Mode
Deselect/Power-Down
Deselect/Power-Down
Deep Sleep Mode
Read
Power
H
X
X
L
H
H
L
X
X
L
X
X
X
L
X
H
X
L
X
H
X
L
Standby (ISB
Standby (ISB
Deep Sleep Current (ICCDS
Active (ICC
Active (ICC
)
High Z
)
[24]
High Z
)
H
H
H
H
Data Out (I/O0–I/O15
)
)
L
L
H
L
Data Out (I/O0–I/O7); Read
I/O8–I/O15 in High Z
)
L
H
H
L
L
H
Data Out (I/O8–I/O15); Read
I/O0–I/O7 in High Z
Active (ICC)
L
L
L
L
L
H
H
H
H
H
H
H
H
L
H
H
H
X
X
L
H
L
L
L
H
L
L
High Z
High Z
High Z
Output Disabled
Active (ICC
Active (ICC
Active (ICC
)
Output Disabled
Output Disabled
)
)
L
Data In (I/O0–I/O15
)
Write (Upper Byte and Lower Byte) Active (ICC
)
L
H
Data In (I/O0–I/O7);
I/O8–I/O15 in High Z
Write (Lower Byte Only) Active (ICC)
L
H
L
X
L
H
Data In (I/O8–I/O15); Write (Upper Byte Only)
I/O0 –I/O7 in High Z
Active (ICC)
Ordering Information
Speed
Package
Operating
Range
(ns)
Ordering Code
CYU001M16OFFA-85BVI
zzzzzzz-85BVI
Name
BV48A
BV48A
Package Type
85
48-ball Fine Pitch BGA (6.0 x 8.0 x 1.0 mm)
48-ball Fine Pitch BGA (6.0 x 8.0 x 1.0 mm)
Industrial
Industrial
85
Notes:
24. This assumes that the Deep Sleep Mode is enabled in the PAR register.
25. H = VIH, L = VIL, X = Don’t Care
Document #: 38-05311 Rev. *A
Page 12 of 14
CYU001M16OFFA
MoBL3™
Package Diagram
48-Lead VFBGA (6 x 8 x 1 mm) BV48A
51-85150-*B
MoBL is a registered trademark, and MoBL2, MoBL3, MoBL4, and More Battery Life are trademarks, of Cypress Semiconductor.
All product and company names mentioned in this document are the trademarks of their respective holders.
Document #: 38-05311 Rev. *A
Page 13 of 14
© Cypress Semiconductor Corporation, 2003. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
CYU001M16OFFA
MoBL3™
Document History Page
Document Title: CYU001M16OFFA 16Mb (1Mb x 16) Pseudo Static RAM
Document Number: 38-05311
Orig. of
REV. ECN NO. Issue Date Change
Description of Change
**
117415
127140
09/12/02
07/15/03
HRT New Data Sheet
*A
HRT Changed data sheet status from Preliminary to Final
Changed marketing part number from CY81U016X16B9A to CYU001M16OFFA
Included typical values for ICC @ f =1 Mhz, f = fmax and Isb2
Added two power bins: S: Super Low and U: Ultra Low
Modified Isb2 Max. S Bin: 125 µA and U Bin: 100 µA
Changed the Tsk spec from 15 ns Max.to 10 ns Max.
Document #: 38-05311 Rev. *A
Page 14 of 14
厂商 型号 描述 页数 下载

CYPRESS

 		CYU01M16SCCU 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 12 页

CYPRESS

 		CYU01M16SCCU-70BVXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 12 页

CYPRESS

 		CYU01M16SCE 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

CYPRESS

 		CYU01M16SCEU-70BVXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

CYPRESS

 		CYU01M16SCEU-70BVXIT [ Pseudo Static RAM, 1MX16, 70ns, CMOS, PBGA48, 6 X 8 MM, 1 MM HEIGHT, LEAD FREE, VFBGA-48 ] 11 页

CYPRESS

 		CYU01M16SCG 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

CYPRESS

 		CYU01M16SCG-70BVXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

CYPRESS

 		CYU01M16SFCU 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 12 页

CYPRESS

 		CYU01M16SFCU-70BVXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 12 页

CYPRESS

 		CYU01M16SFE 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.204671s
