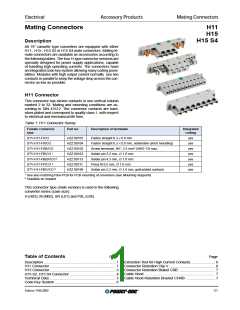

Electrical
Accessory Products
Mating Connectors
Mating Connectors
H11
H15
Description
H15 S4
All 19" cassette type converters are equipped with either
H11-, H15-, H15 S2 or H15 S4 male connectors. Mating fe-
male connectors are available as accessories according to
the following tables. The four H-type connector versions are
specially designed for power supply applications, capable
of handling high operating currents. The connectors have
an integrated code key system allowing many coding possi-
bilities. Modules with high output current normally use two
contacts in parallel to keep the voltage drop across the con-
nector as low as possible.
H11 Connector
This connector has eleven contacts in one vertical column
marked 2 to 32. Mating and mounting conditions are ac-
cording to DIN 41612. The connector contacts are hard-
silver-plated and correspond to quality class 1, with respect
to electrical and mechanical life time.
Table 1: H11 Connector Survey
Female connector
type
Part no.
Description of terminals
Integrated
coding
STV-H11-F/CO
HZZ 00101
HZZ 00104
HZZ 00102
HZZ 00103
HZZ 00113
HZZ 00111
HZZ 00199
Faston straight 6.3 × 0.8 mm
yes
yes
yes
yes
yes
yes
yes
STV-H11-FS/CO
STV-H11-FSR/CO
STV-H11-FB/CO 1
STV-H11-FBER/CO 2
STV-H11-FP/CO 2
STV-H11-FBG/CO 2
Faston straight 6.3 × 0.8 mm, solderable (short moulding)
Screw terminals, 90°, 2.5 mm2 (AWG 13) max,
Solder pin 5.2 mm, 1.6 mm
Solder pin 4.3 mm, 1.0 mm
Press fit 6.5 mm, 1.0 mm
Solder pin 5.2 mm, 1.6 mm, gold-plated contacts
1 See also matching Flexi-PCB for PCB mounting of converters (see Mounting Supports)
2 Available on request
This connector type (male version) is used in the following
converter series (case size):
H (H02), M (M02), SR (L01) and PSL (L04).
Table of Contents
Page
Page
Description ....................................................................... 1
H11 Connector ................................................................. 1
H15 Connector ................................................................. 3
H15 S2, H15 S4 Connector ............................................. 4
Technical Data.................................................................. 5
Code Key System ............................................................ 6
Extraction Tool for High Current Contacts ........................ 6
Connector Retention Clip V.............................................. 6
Connector Retention Braket CRB .................................... 7
Cable Hood ...................................................................... 7
Cable Hood Retention Bracket CHRB ............................. 7
Edition 1/06.2002
1/1
Electrical
Accessory Products
Mating Connectors
Mechanical Dimensions
All dimensions in mm, tolerances ±0.2 mm unless otherwise specified
European
Projection
95
90
10 x 7.62 = 76.2
7.62
12042
Fig. 1
84.8
H11 frontal view, relating to figures below
Coding wedge
4
12038
K
I
H
G
F
Fig. 2
STV-H11-F/CO,
2
5
8
11
14
17
20
23
26
Faston cable terminals 6.3 × 0.8 mm
12043
Fig. 3
STV-H11-FS/CO,
K
I
H
G
F
Faston cable terminals 6.3 × 0.8 mm,
solderable (short moulding)
12044
K
I
H
G
F
Fig. 4
2
5
8
11
14
17
20
23
26
29
32
STV-H11-FSR/CO,
screw terminals (max. 2.6 mm2/AWG 13)
Fig. 5
STV-H11-FB/CO,
soldering pins
5.08
2
5
8
11 14 17 20 23 26 29 32
X = 5.2 Y = Ø 1.6
X = 5.2 Y = Ø 1.6
X = 4.3 Y = Ø 1.0
X = 6.5 Y = Ø 1.0
STV-H11-FBG/CO,
soldering pins
STV-H11-FBER/CO,
soldering pins
2.8±0.1
5.63
Y
10 x 7.62 = 76.2
90±0.1
Footprint for PCB-layout
STV-H11-FP/CO,
press insert pins
Edition 1/06.2002
2/1
Electrical
Accessory Products
Mating Connectors
H15 Connector
This connector has fifteen contacts in two vertical columns
marked 4 to 32 and is designed to meet DIN 41612. The
connector contacts are hardsilver-plated and correspond to
quality class 1, with respect to electrical and mechanical life
time.
This connector type (male version) is used in the following
converter series (case size):
PSS (S01), S (S02), Q (Q01) and for PSK (K01) and K
(K02) only for output current ≤18 A.
Table 2: H15 Connector Survey
Female connector
type
Part no.
Description of terminals
Integrated
coding
STV-H15-F/CO
HZZ 00106
HZZ 00107
HZZ 00112
HZZ 00117
HZZ 00197
Faston straight 6.3 × 0.8 mm
yes
no
STV-H15-FSR
Screw terminals, 90°, 2.5 mm2 (AWG 13) max.
Solder pin 4.0 mm, 1.6 mm
STV-H15-FB/CO
STV-H15-FP/CO 1
STV-H15-FBG/CO 1
yes
yes
yes
Press fit 4.5 mm, 1.0 mm (double pin version)
Solder pin 4.0 mm, 1.6 mm, gold-plated contacts
STV-H15-FWS/CO
HZZ 00114
Solder pin 10.1 mm, 1.6 mm, 90° bent contacts
yes
1 Available on request
Mechanical Dimensions
All dimensions in mm, tolerances ±0.2 mm unless otherwise specified
European
Projection
95
90
12046
Fig. 6
H15 frontal view,
relating to figures below
84.9
12039
Fig. 7
STV-H15-FSR,
Screw terminals, no coding
STV-H15-F/CO,
Faston cable terminals 6.3 × 0.8 mm
(identical dimensions, but not shown)
84
14.8
12047
Fig. 8
STV-H15-FB/CO,
soldering pins
2.8
1.6
5.08
8.17
14 × 5.08 = 71.12
90
Footprint for PCB-layout
Edition 1/06.2002
3/1
Electrical
Accessory Products
Mating Connectors
12053
min.
10.1
7.62
14 x 5.08
3.5
88.9
6
Fig. 9
STV-H15-FWS/CO
Solder pins for pcb mounting
H15 S2, H15 S4 Connector
This special connector is a derivative of the H15 having
seven standard contacts as above, combined with two
(H15 S2) or four (H15 S4) high current contacts according
to DIN 41626. The high current contacts are specially de-
signed to handle currents from 20 A up to 40 A. They corre-
spond to quality class 1, with respect to electrical and me-
chanical life time. The contact material is high quality Beryl-
lium-Copper (CuBe treated) with a gold-plated surface.
circuits between the cable terminals, especially in applica-
tions with high vibration environment. Heat shrink sleeves
might be necessary for further isolation purposes or to keep
clearance and creepage distances at specified levels.
An Extraction Tool allows removal of the high current con-
tacts for replacement (see: Extraction Tool).
Caution: The use of an adequate cable strain relief de-
vice (e.g. Cable Hood etc.) is essential in order to protect
the high current contact jacks from damage. Never
screw, solder or manipulate these contacts when the
connector is plugged into the male connector! The use
of highly flexible cables is strongly recommended.
To install the high current contacts carefully follow the as-
sembly instructions. It is extremely important to solder ca-
bles, screw cable terminals or heat shrink sleeves to high
current jacks first, before inserting them into the moulding.
Paralleled converters should preferably be interconnected
on current bars or at a star point.
This connector type (male version) is used in the following
converter series (case size):
Using screw versions, the two outer high current jacks may
be inserted at a 90° angle in order to prevent possible short
PSK (K01), K (K02) and P with output current ≥20 A.
Table 3: H15 S2/S4 Connector Survey
Female connector
type
Part no.
Description of terminals
coding
Integrated
STV-H15 S2-F/CO
HZZ 00115
HZZ 00116
HZZ 00105
HZZ 00110
HZZ 00109
HZZ 00108
11 Faston straight 6.3 × 0.8 mm, set of 2 solder jacks 1
11 Faston straight 6.3 × 0.8 mm, set of 2 screw jacks 1
7 Faston straight 6.3 × 0.8 mm, set of 4 solder jacks 1
7 Faston straight 6.3 × 0.8 mm, set of 4 screw jacks 1
7 screw terminals, 90°, 2.5 mm2, set of 4 solder jacks 1
7 screw terminals, 90°, 2.5 mm2, set of 4 screw jacks 1
yes
yes
yes
yes
yes
yes
STV-H15 S2-FSF/CO
STV-H15 S4-F/CO
STV-H15 S4-FSF/CO
STV-H15 S4-FLS/CO
STV-H15 S4-FSR/CO
1 Spare set of high current jacks are available on request
Delivery content: H15 S2 (S4) moulding, two (four) high current jacks and assembly instructions. Screw versions also
include four M4 screws with washers and heat shrink sleeves.
Mechanical Dimensions
All dimensions in mm, tolerances ±0.2 mm unless otherwise specified
European
Projection
95
90
12054
84.9
Fig. 10
STV-H15 S2-FSF/CO
Faston cable terminals and two high
current screw terminals (solder termi-
nals see H15 S4)
13
Edition 1/06.2002
4/1
Electrical
Accessory Products
Mating Connectors
95
90
12048
Fig. 11
H15 S4 frontal view,
relating to figures below
84.9
12.4
12040
Fig. 12
STV-H15 S4-FLS/CO,
screw terminals and four high current
soldering terminals
STV-H15 S4-FSR/CO,
screw terminals and four high current
screw terminals (not shown)
Ø 3.5
40.5
84.9
14.8
12.4
12049
Fig. 13
STV-H15 S4-FSF/CO,
Faston cable terminals and four high
current screw terminals
STV-H15 S4-F/CO
7.6
4
Faston cable terminals and four high
current soldering terminals (not shown)
41.6
13
Technical Data
Table 4: Connector data
Type
H11
H15
H15 S2/H15 S4
Standard
High current
Mechanical data
Number of poles
Mating cycles
11
15
11/7
500
2/4
500
500
80 N
500
90 N
Insertion/withdrawal forces max.
Electrical data
90 N
10/1.6 N
Clearance distance contact/ground
Creepage distance contact/contact
Test voltage Vrms
≥4.5 mm
≥8.0 mm
3100
≥4.5 mm
≥8.0 mm
3100
≥4.5 mm
≥8.0 mm
3100
Operation voltage V AC
500
500
500
Operation current
per contact
TA 20°C
TA 70°C
TA 95°C
20 A
17 A
14 A
15 A
12 A
9 A
15 A
12 A
9 A
40 A
35 A
25 A
Contact resistance
≤8 mΩ
≤8 mΩ
≤8 mΩ
≤1 mΩ
Isolation resistance at 100 V DC
Miscellaneous data
Operating temperature
Contact surface
≥1012 Ω
≥1012 Ω
≥1012 Ω
–55...125°C
6 µm Ag
–55...125°C
6 µm Ag
–55...125°C
6 µm Ag 1.3 µm Au
Moulding material
Flammability
PBTP/PC
PBTP/PC
PBTP
UL 94V-0/UL 94 V-1
UL 94 V-0/UL 94 V-1
UL 94 V-0
Approvals
Edition 1/06.2002
5/1
Electrical
Accessory Products
Mating Connectors
Code Key System
An efficient coding system is of great importance and can-
not be valued highly enough in complex electronic systems.
Since power supplies handle high currents and voltages
any false connection could not only be extremely danger-
ous but also quite costly.
12041
8
2
5
11
14
17
20
23
26
29
32
This integrated polarizing system allows effortless coding
by the simple insertion of Coding Wedges into the female
connector mouldings. The corresponding counter-parts, i.e.
the coding tabs of the male moulding just have to be broken
off to match the right female part. Major advantages are
high mechanical stability and ease of handling. The H11
connectors have 10 and the H15 connectors have 8 coding
positions. Using 4 coding wedges results in 210 (H11) re-
spectively 70 (H15) different coding possibilities. Coding
wedges are available as accessories to female connectors
with the following part number:
K
I
H
G
F
Coding tab
Coding wedge
4
K
I
H
G
F
2
5
8
11
14
17
20
23
26
29
32
Description:
Delivery content: 5 pcs.
Part Number:
Coding wedge (Codierkeil)
Fig. 14
Integrated code key system
HZZ 00202
Extraction Tool
for High Current Contacts
High current plugs and jacks can be disassembled from the
moulding by means of a special Extraction Tool (H15 S2,
H15 S4). Holding the extraction tool over the centre of the
connector's female contact the outer part of the extraction
tool should be fed between the moulding and the outside of
the female contact itself. This releases the spring clip fixing
the contacts, in order to pull the contacts out of their mould-
ing for replacement. If the operation is performed correctly
very little force is required. Extreme care should be taken
since incorrect procedure and excessive force could dam-
age the tool and/or connector.
Fig. 15
Extraction tool
This tool is available as an accessory for both screw or sol-
der high current contacts.
Note: In order to avoid damage never manipulate high cur-
rent contacts when plugged-in!
Description:
Part Number:
Extraction Tool
HZZ 00150
Connector retention clips (unlocked)
Connector Retention Clip V
The retention clip V is an accessory which guarantees se-
cure connection even under severe vibration, as for exam-
ple in mobile applications. One connector retention system
fits to almost all units and all of the aforementioned connec-
tor types.
The following converter series are delivered with pre-
punched holes in the back plate for fast field-mounting of
retention clips:
H, M, K, PSK, S, PSS and T (Q series only in combination
with Mounting Plate Q, see Mounting Supports)
Description:
Retention Clips V
Delivery content: 2 pcs.
Part Number:
HZZ 01209
Connector retention clips (locked)
Fig. 16
Connector retention clip
Edition 1/06.2002
6/1
Electrical
Accessory Products
Mating Connectors
Connector Retention Bracket CRB
An alternative to the above mentioned retention clip V is the
connector retention bracket. They are attached to the back
plate by one screw each with a torque of 20 to
30 Ncm.
Table 5: Connector Retention Bracket Survey
Connector
series
Type
Part number
Delivery
content
H, M
K, PSK
S, PSS
T
CRB-HKMS
HZZ 01216
2 brackets
2 screws
2 washers
Q, P
PC
CRB-Q
HZZ 01217
Cable Hood
A cable connector housing or Cable Hood is available for all
female H15, H15 S2 and H15 S4 type connectors with
faston connectors (Not suited for screw terminals). It serves
as a strain relief, isolates connections and protects cables.
20.2
Description:
KSG-H15/H15 S4
Delivery content: Housing shell, cable duct with covers,
cable clip, cable boot and screws
Part number:
HZZ 00141
If using the cable hood together with retention clips a spe-
cial version is available, where both sides of the hood are
slightly modified in order to allow for insertion of the clips.
The cable hood with retention clips has been tested to with-
stand vibrations according to IEC 86-2-6: 5 g, 6 directions,
2.5 hours per axis.
Modification for use with Retension Clip
110
Description:
KSG-H15/H15 S4-V
Delivery content: Housing shell, cable duct with covers,
Fig. 17
Cable hood for H15 and H15 S4 connectors
cable clip, cable boot and screws
Part Number:
HZZ 00142
Cable Hood Retention Bracket CHRB
The cable hood can also be fixed to the converter case
with two U-shaped cable hood retention brackets.
Available for:
Description:
H, M, K, S, PSK, PSS, T Series
CHRB-KSG
Delivery content: Two brackets with two screws
Part number:
HZZ 01218
Edition 1/06.2002
7/1
厂商 型号 描述 页数 下载

POWER-ONE

 		HZZ00101 卡式风格配套连接器[ Cassette Style Mating Connectors ] 9 页

BEL

 		HZZ00102 [ Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Screw Terminal ] 7 页

BEL

 		HZZ00102-G [ Board Euro Connector, 11 Contact(s), 1 Row(s), Female, Screw Terminal, ] 10 页

BEL

 		HZZ00103 [ Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal ] 7 页

BEL

 		HZZ00103-G [ Board Euro Connector, 11 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ] 10 页

BEL

 		HZZ00104 [ Board Euro Connector, 11 Contact(s), 1 Row(s), Female ] 7 页

BEL

 		HZZ00105 [ Board Euro Connector, 11 Contact(s), 2 Row(s), Female ] 7 页

BEL

 		HZZ00106 [ Board Euro Connector, 15 Contact(s), 2 Row(s), Female ] 7 页

BEL

 		HZZ00106-G [ Board Euro Connector, 15 Contact(s), 2 Row(s), Female, ] 10 页

BEL

 		HZZ00107 [ 暂无描述 ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.185913s
