SZA1015TT

型号：

SZA1015TT

品牌：

PHILIPS[ PHILIPS SEMICONDUCTORS ]

页数：

20 页

PDF大小：

101 K

下载PDF手册

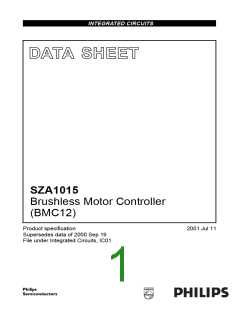

INTEGRATED CIRCUITS
DATA SHEET
SZA1015
Brushless Motor Controller
(BMC12)
Product specification
2001 Jul 11
Supersedes data of 2000 Sep 19
File under Integrated Circuits, IC01
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
FEATURES
It uses a 5 V supply for the internal control circuit and a
5 to 12 V supply for the motor driver.
• Direct full bridge driving system
The switching PWM output is highly efficient resulting in a
low power dissipation for forward torque acceleration as
well as for reverse torque brake (PWM controlled reverse
torque).
• No external series resistor required in motor supply line
• Adjustable output current up to 2.1 A (over 20X DVD
and over 50X CD)
• D-MOSFET output with a total on-resistance of 0.7 Ω
(typical)
Sensitive Hall sensor amplifiers with a very low offset are
integrated which can operate on very small Hall signals.
• PWM controlled commutation
The current limiter circuit requires no external series
resistor in the power ground which increases efficiency.
The limiting current can be adjusted by means of an
external resistor at pin RLIM (not in series with motor
supply line). The current limiter is active during
accelerating as well as during braking.
• Internal compensation for EMF of motor
(EMF regenerator)
• Start/stop function with built-in power saving circuit
• Hall amplifiers with a minimum input level of 25 mV
• Built-in frequency generator (FG output)
• Adjustable motor current limiter
The EMF voltage of the motor is internally measured and
is used to compensate for the PWM commutation.
A scaling factor can be set by means of an external
resistor at pin REMF.
• Built-in thermal shutdown
• Reverse torque brake function (full bridge)
• Built-in reverse rotation protection circuit
• 32 mA Hall bias circuit
The tacho-generator can be used to measure the
rotational speed of the disk. It shows the triple frequency
of the Hall signals.
• Few external components
• Interfaces to 3 V and 5 V logic
A thermal shutdown circuit with a small hysteresis protects
the IC from overheating.
• Package with very low thermal resistance from junction
to heatsink (reflowable die pad).
A heatsink at the bottom of the chip with a very low thermal
resistance enables effective cooling.
GENERAL DESCRIPTION
The start/stop function reduces current consumption of
the IC to a minimum when the motor is stopped (stop
mode) and also turns off the Hall sensor bias in the stop
mode.
The BMC12 is a 3-phase Brushless Motor Controller
(BMC) for Hall commutated spindle motors in CD and DVD
drives suitable for DVD speeds over 20X and CD speeds
over 50X.
ORDERING INFORMATION
PACKAGE
TYPE
NUMBER
NAME
DESCRIPTION
VERSION
SZA1015TT
HTSSOP32
plastic, heatsink thin shrink small outline package; 32 leads;
body width 6.1 mm; lead pitch 0.65 mm
SOT549-1
2001 Jul 11
2
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
QUICK REFERENCE DATA
SYMBOL
VDD
PARAMETER
MIN.
4.5
TYP.
5.0
MAX.
5.5
UNIT
supply voltage
V
VDDM
IDDM
Rds(on)
Ptot
motor supply voltage
motor current
4.5
−
12.0
−
14.5
2.1
−
V
A
D-MOSFET on-resistance (high or low)
total power dissipation
−
0.35
−
Ω
W
−
3.0
85
Tamb
ambient temperature
0
−
°C
2001 Jul 11
3
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
BLOCK DIAGRAM
GM1T8
d
2001 Jul 11
4
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
PINNING
SYMBOL PIN
DESCRIPTION
VSSA
BIAS
ROSC
REMF
RLIM
FG
1
2
3
4
5
6
7
8
motor control ground supply
Hall element bias
handbook, halfpage
V
COSC
i.c.
1
2
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
SSA
external resistor for internal oscillator
external resistor for EMF regeneration
external resistor for current limiting
frequency generator output
output current control pin
BIAS
ROSC
REMF
RLIM
FG
WN
WP
VN
3
4
5
EC
VP
6
ECR
output current control reference
voltage pin
EC
UN
7
i.c.
9
internally connected (leave
open-circuit)
ECR
i.c.
UP
8
SZA1015
V
9
DD
CP1
CP2
CAPY
VDDM
W
10 booster capacitor connection 1
11 booster capacitor connection 2
12 booster output
CP1
START
10
11
12
13
14
15
16
CP2
V
DDM
13 motor supply voltage
14 motor terminal W
CAPY
U
V
GND
V
DDM
GND
VDDM
GND
n.c.
15 ground supply
W
16 motor supply voltage
17 ground supply
GND
n.c.
GND
V
DDM
18 not connected
MGT189
V
19 motor terminal V
GND
U
20 ground supply
21 motor terminal U
VDDM
START
VDD
UP
22 motor supply voltage
23 start/stop control pin
24 system supply voltage
25 positive Hall input U
26 negative Hall input U
27 positive Hall input V
28 negative Hall input V
29 positive Hall input W
30 negative Hall input W
Fig.2 Pin configuration.
UN
VP
VN
WP
WN
i.c.
31 internally connected (leave
open-circuit)
COSC
32 external capacitor for internal oscillator
2001 Jul 11
5
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
FUNCTIONAL DESCRIPTION
Motor control
handbook, halfpage
V
M1
The control input voltage EC is converted into a digital
value (DC) by the ADC where voltage ECR is the midpoint
reference for EC (see Fig.3).
I
MACC
R
M
V
(I
×
M
)
RM
2
I
+
MBR
V
EMF
2
−
+
V
EMF
2
−
I
= −I
I
= 0
I
= +I
M LIM
handbook, halfpage
M
LIM
M
R
M
V
(I
×
)
RM
M
2
forward torque
(+D
reverse torque brake
)
(−D
)
MGT191
V
C
C
M2
E
= 0 V
E
= E
E
= 2 × E
C CR
C
C
CR
Fig.4 Simplified motor schematic.
MGT190
Fig.3 Motor control.
handbook, halfpage
The gain from input voltage (EC) to motor current (IM) is
V
V
DDM
M1
ILIM/ECR (A/V). The motor current can be determined with
V
EMF
2
ILIM
V
RM
V
the following formula: IM
=
× (E C – E CR)
----------
ECR
M
The maximum motor current ILIM is set by the motor
current limiter. When the rotational speed of the motor has
become zero the motor current is switched off and all
driver outputs (pins U, V and W) are connected to ground.
This prevents the motor of spinning backwards.
V
DDM
2
k
V
RM
V
EMF
2
V
Internal motor voltage generation
M2
ω (rad/s)
The simplified motor schematic in Fig.4 shows the series
resistance and back-EMF voltage of the motor.
MGT192
Fig.5 Motor voltage when accelerating.
If we assume that IMACC is used to accelerate and IMBR is
used to brake we can draw two pictures shown in Figs 5
(accelerate) and 6 (brake).
2001 Jul 11
6
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
MGT194
100
handbook, halfpage
handbook, halfpage
V
DDM
% of I
MAX
V
EMF
2
80
60
40
20
V
M
V
V
V
M1
RM
RM
V
DDM
2
k
V
M2
V
EMF
2
ω (rad/s)
MGT193
0
0
10
20
30
40
50
R
(kΩ)
LIM
Fig.6 Motor voltage when actively braking.
ROSC = 47 kΩ.
Fig.7 Maximum output current as a function of
RLIM
.
The BMC12 regenerates VEMF and superimposes
VM (0 ≤ IM ≤ ILIM) which depends on the EC (gain) input
voltage. VRM (IM) can be positive (accelerate) or negative
(brake).
The formula to determine the limiting current is as follows:
RLIM
Motor current limiting function
ILIM
=
× I
MAX
-------------
ROSC
The maximum motor current is determined with the
VDDM
following formula: IMAX
=
-------------------------------------------------------
motor + Rswitches(min)
R
Back-EMF regeneration
The back-EMF voltage is internally regenerated. The ratio
between REMF and ROSC can be used to scale the internal
EMF regeneration. The value of resistor REMF depends on
the type of motor (k-factor, number of pole pairs) and the
motor supply voltage used. This is shown in the following
ILIM is a fraction of the maximum motor current IMAX
During accelerating and braking the motor current will not
exceed the limiting current set by RLIM
.
.
k × 2.6 × 103 × ROSC
formula: REMF
=
------------------------------------------------------
N
PP × VDDM
For noise reduction the Hall signals are internally filtered.
2001 Jul 11
7
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
FG generator
Start/stop function
The FG generator output shows a frequency which
depends on the number of Hall signals (three) and the
number of pole pairs (NPP). The formula to determine the
At pin START = LOW, the BMC12 can be set to a power
saving mode, reducing the current consumption. In the
power saving mode the outputs will be in 3-state.
FG
3 × NPP
motor frequency is as follows: fmotor
=
-------------------
DC-DC converter
The on-board DC-DC converter generates a voltage of
approximately 2 × VDDM − 1.2 V with a maximum voltage
of 19.3 V typical (internal clamp circuit). This voltage is
used internal to switch the upper drivers of the U, V and W
outputs.
The FG has an open-drain output for easy interfacing to
3 V and 5 V logic.
Thermal shutdown
The thermal shutdown block sets all outputs to 3-state
mode if the junction temperature of the BMC12 exceeds
155 °C (typical). There is a hysteresis of 15 °C (typical)
between the temperatures at which the thermal shutdown
activates and deactivates. As soon as the thermal
shutdown deactivates, the commutation control continues
its operation.
Oscillator
The RC oscillator uses two external components
(ROSC and COSC) to fix its frequency. To ensure a stable
oscillator frequency the oscillator and ROSC both use a
reference current made by the current reference block.
The nominal frequency is 3 MHz with ROSC = 47 kΩ
(2% tolerance) and COSC = 100 pF (5% tolerance). The
values of the external components for the oscillator are
fixed. The oscillator can be overruled by applying a 3 MHz
clock to pin COSC (ROSC is used to determine
ILIM and REMF and should always be connected).
2001 Jul 11
8
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
UP-UN
WP-WN
VP-VN
(3)
(1)
12 V
(4)
U
0 V
12 V
V
(2)
0 V
12 V
W
0 V
MGT196
(1) In this example, a PWM output signal with a 25% duty cycle is drawn as a thin line. The average motor voltage (drawn with a thicker line width) is
25% × VDDM, i.e. 3.0 V. At the opposite side of the coil (in this drawing pin W) the duty cycle is 75%, so the average voltage on pin W is 9.0 V. The
differential voltage over the motor pins then is: 9 − 3 = 6 V.
(2) There is still a current flowing from pin U into the motor. The lower flyback diode starts conducting, and causes a flyback voltage of around 0.7 V
below GND, until the current is zero.
(3) There is still a current flowing from the motor into pin U. The upper flyback diode starts conducting, and causes a flyback voltage of around 0.7 V
above VDDM, until the current is zero.
(4) During this phase, the driver output is 3-state. Because there is no current flowing through pin U, the back-EMF of the motor is seen.
Fig.8 Phase condition of Hall input and output voltage (motor running with EC > ECR).
2001 Jul 11
9
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
VDD
PARAMETER
MIN.
−0.5
MAX.
+6.5
UNIT
supply voltage
V
VDDM
IDDM
Ptot
motor supply voltage
motor current
−0.5
−
+15
2.1
V
A
total power dissipation
storage temperature
ambient temperature
−
3.0
W
Tstg
−55
0
+150
85
°C
°C
Tamb
MGT197
4
handbook, halfpage
P
tot
(W)
3
2
1
0
0
50
100
150
T
(°C)
amb
The IC is thermally connected with its heatsink to an external heatsink at ambient temperature, with
a total thermal resistance of 35 K/W (10 K/W junction to case plus 25 K/W case to surrounding).
Fig.9 Maximum dissipation as a function of the ambient temperature.
THERMAL CHARACTERISTICS
SYMBOL
Rth(j-c)
PARAMETER
VALUE
UNIT
thermal resistance from junction to case
10
K/W
CHARACTERISTICS
VDD = 5 V; VDDM = 12 V; GND = 0 V; Tamb = 25 °C; ROSC = 47 kΩ, COSC = 100 pF; unless otherwise specified.
SYMBOL
Supplies
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
VDD
supply voltage
4.5
5.0
5.5
V
V
A
VDDM
IDDM
motor supply voltage
motor current
4.5
12.0
14.5
2.1
−
−
2001 Jul 11
10
-------

-
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
SYMBOL
IDD
PARAMETER
supply current
CONDITIONS
MIN.
TYP.
MAX.
UNIT
mA
START = HIGH
START = LOW
−
−
15
−
IDD(q)
quiescent current in power saving
mode
−
1
mA
Ptot
total power dissipation
ambient temperature
−
−
−
3.0
85
W
Tamb
0
°C
Hall amplifier inputs (pins UN, UP, VN, VP, WN and WP)
VIO
input offset voltage
input voltage range
−3.5
0
−
−
−
+3.5
4.0
−
mV
V
Vi
Vi(dif)(p-p)
Hall amplifier input voltage
(peak-to-peak value)
25
mV
Hall elements bias (pin BIAS)
Ibias
bias current
bias voltage
−
−
−
32
mA
V
Vbias
Ibias = 32 mA
note 1
0.1
0.5
Oscillator
fosc
oscillator frequency
−
3.0
−
MHz
Thermal shutdown circuit
TSD
thermal shutdown operating
temperature
140
155
170
°C
Power switches
Rds(on)
D-MOSFET on-resistance (high or VDDM = 12 V
0.25
0.35
0.35
0.50
0.50
0.71
Ω
Ω
low)
VDDM = 5 V
Booster
VCAPY
booster output voltage
note 2
note 3
19
19.3
19.6
V
Torque control (pins EC and ECR)
VECR
VEC
reference voltage on pin ECR
torque control voltage on pin EC
1.2
0
1.8
2.5
V
V
−
VDD
Digital input (pin START)
VIH
VIL
HIGH-level input voltage
LOW-level input voltage
2.0
−
−
−
V
V
−
0.8
Open-drain output (pin FG)
VOL
LOW-level output voltage
IO = 2 mA
−
−
0.5
V
Notes
fosc
1. The PWM frequency is: fPWM
=
33
2. Clamping level with VDDM = 12 V.
3. The maximum useful range of the control input voltage EC is 0 to 2 × ECR (midpoint reference voltage).
When EC = ECR, then no torque is applied to the motor. The conversion characteristic does not have a ‘dead zone’.
2001 Jul 11
11
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
APPLICATION INFORMATION
V
DDM
+12 V
+5 V
13, 16, 22
24
U
V
21
19
14
V
DD
START
ECR
motor
from
microcontroller
23
8
3 V or 5 V
W
100 Ω
FG
EC
+5 V
+5 V
6
7
SZA1015
signals to/from
decoder
UP
UN
25
26
UP
UN
HU
HU
CP1
10
VP
VN
10 nF
22 nF
27
28
VP
VN
CP2
11
12
HV
HV
Hall
elements
CAPY
WP
WN
29
30
WP
WN
HW
HW
GND
15, 17, 20
V
SSA
BIAS
1
2
BIAS
4
5
3
32
REMF
RLIM
ROSC COSC
(1)
R
47
kΩ
(1)
R
100 pF
LIM
EMF
MGT198
(1) For selection of the resistors REMF and RLIM see Chapter “Functional description”.
Fig.10 Typical application diagram.
2001 Jul 11
12
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
INTERNAL PIN CONFIGURATION
R
= 150 to 350 Ω
R
= 150 to 350 Ω
START (pin 23)
on
on
UP (pin 25)
VP (pin 27)
WP (pin 29)
UN (pin 26)
5 pF
5 pF
5 pF
5 pF
VN (pin 28)
WN (pin 30)
5 pF
3.4
pF
3.4
pF
BIAS (pin 2)
'on' when
START is active
5 pF
V
DDM
EC (pin 7)
ECR (pin 8)
U (pin 21)
V (pin 19)
W (pin 14)
100 kΩ
MGT199
GND
Fig.11 Input and output equivalent circuits.
2001 Jul 11
13
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
PACKAGE OUTLINE
HTSSOP32: plastic, heatsink thin shrink small outline package; 32 leads; body width 6.1 mm;
lead pitch 0.65 mm
SOT549-1
E
A
D
X
c
H
v
M
A
y
heatsink side
E
D
h
Z
32
17
A
(A )
3
E
2
A
h
A
1
pin 1 index
θ
L
p
L
detail X
1
16
w
M
b
e
p
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions).
A
(1)
(2)
UNIT
A
A
A
b
c
D
D
E
E
e
H
L
L
p
v
w
y
Z
θ
1
2
3
p
h
h
E
max.
8o
0o
0.15 0.95
0.05 0.85
0.30 0.20 11.10 5.10 6.20 3.60
0.19 0.09 10.90 4.90 6.00 3.40
8.30
7.90
0.75
0.50
0.78
0.48
mm
1.10
0.25
0.65
1.00
0.20 0.10
0.10
Notes
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.
2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.
REFERENCES
OUTLINE
EUROPEAN
PROJECTION
ISSUE DATE
VERSION
IEC
JEDEC
EIAJ
99-03-04
SOT549-1
2001 Jul 11
14
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
SOLDERING
If wave soldering is used the following conditions must be
observed for optimal results:
Introduction to soldering surface mount packages
• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our “Data Handbook IC26; Integrated Circuit Packages”
(document order number 9398 652 90011).
• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint
longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;
There is no soldering method that is ideal for all surface
mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.
– smaller than 1.27 mm, the footprint longitudinal axis
must be parallel to the transport direction of the
printed-circuit board.
Reflow soldering
The footprint must incorporate solder thieves at the
downstream end.
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.
Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.
Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Wave soldering
Manual soldering
Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.
Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.
To overcome these problems the double-wave soldering
method was specifically developed.
When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.
2001 Jul 11
15
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
Suitability of surface mount IC packages for wave and reflow soldering methods
SOLDERING METHOD
PACKAGE
BGA, LFBGA, SQFP, TFBGA
WAVE
not suitable
REFLOW(1)
suitable
HBCC, HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS
PLCC(3), SO, SOJ
not suitable(2)
suitable
suitable
suitable
LQFP, QFP, TQFP
not recommended(3)(4) suitable
not recommended(5)
suitable
SSOP, TSSOP, VSO
Notes
1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”.
2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).
3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.
4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.
5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.
2001 Jul 11
16
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
DATA SHEET STATUS
PRODUCT
DATA SHEET STATUS(1)
STATUS(2)
DEFINITIONS
Objective data
Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Preliminary data
Qualification
This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Product data
Production
This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Changes will be
communicated according to the Customer Product/Process Change
Notification (CPCN) procedure SNW-SQ-650A.
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
DEFINITIONS
DISCLAIMERS
Short-form specification
The data in a short-form
Life support applications
These products are not
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips
Semiconductors customers using or selling these products
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
at these or at any other conditions above those given in the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Right to make changes
Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
the use of any of these products, conveys no licence or title
under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.
Application information
Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
no representation or warranty that such applications will be
suitable for the specified use without further testing or
modification.
2001 Jul 11
17
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
NOTES
2001 Jul 11
18
Philips Semiconductors
Product specification
Brushless Motor Controller (BMC12)
SZA1015
NOTES
2001 Jul 11
19
Philips Semiconductors – a worldwide company
Argentina: see South America
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,
Tel. +61 2 9704 8141, Fax. +61 2 9704 8139
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773
Pakistan: see Singapore
Belgium: see The Netherlands
Brazil: see South America
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 68 9211, Fax. +359 2 68 9102
Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. +48 22 5710 000, Fax. +48 22 5710 001
Portugal: see Spain
Romania: see Italy
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Colombia: see South America
Czech Republic: see Austria
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,
Tel. +45 33 29 3333, Fax. +45 33 29 3905
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. +27 11 471 5401, Fax. +27 11 471 5398
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615 800, Fax. +358 9 6158 0920
France: 7 - 9 Rue du Mont Valérien, BP317, 92156 SURESNES Cedex,
Tel. +33 1 4728 6600, Fax. +33 1 4728 6638
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 2353 60, Fax. +49 40 2353 6300
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Hungary: Philips Hungary Ltd., H-1119 Budapest, Fehervari ut 84/A,
Tel: +36 1 382 1700, Fax: +36 1 382 1800
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Taiwan: Philips Semiconductors, 5F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2451, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
60/14 MOO 11, Bangna Trad Road KM. 3, Bagna, BANGKOK 10260,
Tel. +66 2 361 7910, Fax. +66 2 398 3447
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813
Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
Tel. +39 039 203 6838, Fax +39 039 203 6800
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057
MIDDLESEX UB3 5BX, Tel. +44 208 730 5000, Fax. +44 208 754 8421
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Tel. +1 800 234 7381, Fax. +1 800 943 0087
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Uruguay: see South America
Vietnam: see Singapore
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 3341 299, Fax.+381 11 3342 553
Middle East: see Italy
For all other countries apply to: Philips Semiconductors,
Marketing Communications, Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN,
The Netherlands, Fax. +31 40 27 24825
Internet: http://www.semiconductors.philips.com
72
SCA
© Philips Electronics N.V. 2001
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
753503/02/pp20
Date of release: 2001 Jul 11
Document order number: 9397 750 08543
厂商 型号 描述 页数 下载

SIRENZA

 		SZA-2044 2.0-2.7 GHz的5V 1W功率放大器[ 2.0-2.7 GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-2044Z 2.0-2.7 GHz的5V 1W功率放大器[ 2.0-2.7 GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-3044 2.7-3.8GHz 5V 1W功率放大器[ 2.7-3.8GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-3044Z 2.7-3.8GHz 5V 1W功率放大器[ 2.7-3.8GHz 5V 1W Power Amplifier ] 8 页

SIRENZA

 		SZA-5044 4.9 - 5.9 GHz的5V电源功放[ 4.9 - 5.9 GHz 5V Power Amplifier ] 7 页

SIRENZA

 		SZA-5044Z 4.9 - 5.9 GHz的5V电源功放[ 4.9 - 5.9 GHz 5V Power Amplifier ] 7 页

SIRENZA

 		SZA-6044 5.1 5.9 GHz的1/4瓦功率放大器的有源偏置[ 5.1- 5.9 GHz 1/4 Watt Power Amplifier with Active Bias ] 6 页

SEOUL

 		SZA05A0A ž电源指示灯 - 超高光通量输出，高亮度[ Z Power LED - Super high Flux output and high Luminance ] 21 页

ARCH

 		SZA100-12S [ Open Frame Switching Power Supply ] 5 页

ARCH

 		SZA100-15S [ Open Frame Switching Power Supply ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.214852s
