HZM6.2ZMWA

型号:

HZM6.2ZMWA

品牌:

HITACHI[ HITACHI SEMICONDUCTOR ]

页数:

6 页

PDF大小:

34 K

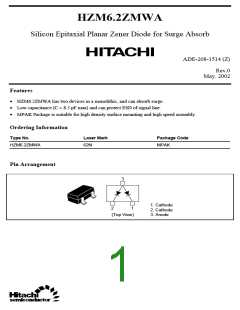

HZM6.2ZMWA
Silicon Epitaxial Planar Zener Diode for Surge Absorb
ADE-208-1514 (Z)
Rev.0
May. 2002
Features
HZM6.2ZMWA has two devices in a monolithic, and can absorb surge.
Low capacitance (C = 8.5 pF max) and can protect ESD of signal line.
MPAK Package is suitable for high density surface mounting and high speed assembly.
Ordering Information
Type No.
Laser Mark
Package Code
HZM6.2ZMWA
62N
MPAK
Pin Arrangement
3
1. Cathode
2. Cathode
3. Anode
2
1
(Top View)
HZM6.2ZMWA
Absolute Maximum Ratings
(Ta = 25°C)
Item
Symbol
Pd *
Tj
Value
200
Unit
mW
°C
Power dissipation
Junction temperature
Storage temperature
Note: Two device total, See Fig.2.
150
Tstg
55 to +150
°C
Electrical Characteristics*1
(Ta = 25°C)
Item
Symbol Min
Typ
Max
6.50
3
Unit Test Condition
Zener voltage
Reverse current
Capacitance
VZ
IR
5.90
V
IZ = 5 mA, 40 ms pulse
VR = 5.5 V
µA
pF
C
rd
8.5
60
VR = 0 V, f = 1 MHz
IZ = 5 mA
Dynamic resistance
ESD-Capability *2
13
kV
C = 150 pF, R = 330 , Both forward and
reverse direction 10 pulse
Notes: 1. Per one device.
2. Failure criterion ; IR > 3 µA at VR = 5.5 V.
Rev.0,May. 2002, page 2 of 6
HZM6.2ZMWA
Main Characteristics
10–2
250
200
150
100
50
1.0mm
Cu Foil
10–3
10–4
10–5
10–6
Printed circuit board
×
×
25 62 1.6t mm
Material:
Glass Epoxy Resin+Cu Foil
0
0
2
4
6
8
10
0
50
Ambient Temperature Ta (°C)
Fig.2 Power Dissipation vs. Ambient Temperature
100
150
200
Zener Voltage VZ (V)
Fig.1 Zener current vs. Zener voltage
104
PRSM
t
Ta = 25°C
nonrepetitive
103
102
10
1.0
10–5
10–4
10–3
10–2
10–1
1.0
Time t (s)
Fig.3 Surge Reverse Power Ratings
Rev.0, May. 2002, page 3 of 6
HZM6.2ZMWA
Main Characteristics (cont)
104
103
102
10
1.0
102
101
1.0
10
102
103
Time t (s)
Fig.4 Transient Thermal Impedance *
Note: Measurement value by forward bias.
Rev.0,May. 2002, page 4 of 6
HZM6.2ZMWA
Package Dimensions
As of January, 2002
Unit: mm
+ 0.10
0.06
+ 0.10
0.05
0.16
30.4
0 0.1
(0.95) (0.95)
1.9 ± 0.2
+ 0.3
0.1
2.8
Hitachi Code
JEDEC
MPAK
JEITA
Mass (reference value)
Conforms
0.011 g
Rev.0, May. 2002, page 5 of 6
HZM6.2ZMWA
Disclaimer
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Sales Offices
Hitachi, Ltd.
Semiconductor & Integrated Circuits
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: (03) 3270-2111 Fax: (03) 3270-5109
URL
http://www.hitachisemiconductor.com/
For further information write to:
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive Whitebrook Park
Hitachi Europe Ltd.
Electronic Components Group
Hitachi Asia Ltd.
Hitachi Tower
16 Collyer Quay #20-00
Singapore 049318
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower
San Jose,CA 95134
Lower Cookham Road
World Finance Centre,
Tel: <1> (408) 433-1990 Maidenhead
Fax: <1>(408) 433-0223 Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Tel : <65>-6538-6533/6538-8577
Fax : <65>-6538-6933/6538-3877
URL : http://semiconductor.hitachi.com.sg
Harbour City, Canton Road
Tsim Sha Tsui, Kowloon Hong Kong
Tel : <852>-2735-9218
Fax: <44> (1628) 585200
Fax : <852>-2730-0281
URL : http://semiconductor.hitachi.com.hk
Hitachi Asia Ltd.
(Taipei Branch Office)
4/F, No. 167, Tun Hwa North Road
Hung-Kuo Building
Taipei (105), Taiwan
Tel : <886>-(2)-2718-3666
Fax : <886>-(2)-2718-8180
Telex : 23222 HAS-TP
URL : http://www.hitachi.com.tw
Hitachi Europe GmbH
Electronic Components Group
Dornacher Straße 3
D-85622 Feldkirchen
Postfach 201, D-85619 Feldkirchen
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Copyright © Hitachi, Ltd., 2002. All rights reserved. Printed in Japan.
Colophon 6.0
Rev.0,May. 2002, page 6 of 6
