0RHB-C5T05LG

型号：

0RHB-C5T05LG

品牌：

BEL[ BEL FUSE INC. ]

页数：

6 页

PDF大小：

257 K

下载PDF手册

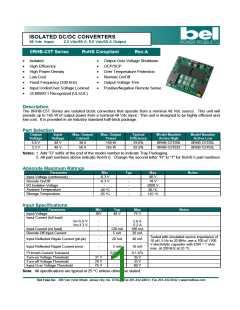

ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
0RHB-C5T Series
RoHS Compliant
Rev.A
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
Output Over Voltage Shutdown
OCP/SCP
High Efficiency
High Power Density
Low Cost
Over Temperature Protection
Remote On/Off
Fixed Frequency (330 kHz)
Input Under/Over Voltage Lockout
UL60950-1 Recognized (UL/cUL)
Output Voltage Trim
Positive/Negative Remote Sense
Description
The 0RHB-C5T Series are isolated dc/dc converters that operate from a nominal 48 Vdc source. This unit will
provide up to 165 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and
low cost. It is provided in an industry standard half-brick package.
Part Selection
Output
Input
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
Voltage
5.0 V
3.3 V
48 V
48 V
30 A
50 A
150 W
165 W
93.0%
92.5%
0RHB-C5T050
0RHB-C5T033
0RHB-C5T05L
0RHB-C5T03L
Notes: 1. Add “G” suffix at the end of the model number to indicate Tray Packaging.
2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Remote On/Off
Min
-0.3 V
-0.3 V
-
-40 °C
-55 °C
Typ
Max
80 V
18 V
2000 V
85 °C
125 °C
Notes
-
-
-
-
-
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
36V
48 V
75 V
Input Current (full load)
Vo=5.0 V
Vo=3.3 V
-
-
-
-
-
5.0 A
5.2 A
180 mA
20 mA
Input Current (no load)
Remote Off Input Current
120 mA
5 mA
Tested with simulated source impedance of
10 uH, 5 Hz to 20 MHz; use a 100 uF /100
V electrolytic capacitor with ESR = 1 ohm
max. at 200 kHz at 25 °C.
Input Reflected Ripple Current (pk-pk)
-
20 mA
40 mA
Input Reflected Ripple Current (rms)
I2t Inrush Current Transient
-
-
5 mA
10 mA
0.05 A2s
0.1 A2s
Turn-on Voltage Threshold
Turn-off Voltage Threshold
Input Over Voltage Threshold
31 V
29 V
76 V
-
-
-
35 V
33 V
80 V
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
Output Specifications
Parameter
Min
Typ
Max
Notes
Output Voltage Set Point
Vo=5.0 V
Vo=3.3 V
4.925 V
3.250 V
5.000 V
3.300 V
5.075 V
3.350 V
Vin=48 V, Io=50% load
Line Regulation
Load Regulation
Vo=5.0 V
Vo=3.3 V
-
-
±5 mV
±3 mV
±10 mV
±7 mV
Vo=5.0 V
Vo=3.3 V
-
-
±10 mV
±7 mV
±20 mV
±15 mV
Regulation Over Temperature
(-40 °C to +85 °C)
-
-
±45 mV
±30 mV
±75 mV
±50 mV
Vo=5.0 V
Vo=3.3 V
Output Current
Vo=5.0 V
Vo=3.3 V
0 A
0 A
-
-
30 A
50 A
Current Limit Threshold
Vo=5.0 V
Vo=3.3 V
32 A
55 A
38 A
65 A
3 A2s
45 A
75 A
5 A2s
Short Circuit Surge Transient
Ripple and Noise (rms)
-
Test conditions:
Vo=5.0 V
Vo=3.3 V
-
-
25 mV
15 mV
50 mV
30 mV
0-20MHz BW, with a
1uF ceramic capacitor
and a 10uF Tantalum
capacitor at the output.
Ripple and Noise (pk-pk)
Vo=5.0 V
Vo=3.3 V
-
-
70 mV
55 mV
140 mV
100 mV
Turn on Time
-
-
15 mS
0%
20 mS
5%
Overshoot at Turn on
Output Capacitance
Vo=5.0 V
Vo=3.3 V
0 uF
0 uF
-
-
10000 uF
20000 uF
Transient Response
-
-
-
-
-
-
-
-
Overshoot
250 mV
250 uS
250 mV
250 uS
100 mV
200 uS
100 mV
200 uS
400 mV
400 uS
400 mV
400 uS
200 mV
300 uS
200 mV
300 uS
75% ~ 50%
Max Load
Settling Time
Vo=5.0 V
Test conditions: di/dt =
0.1 A/uS, Vin=48 V with
a 1 uF ceramic
capacitor and a 10 uF
Tantalum capacitor at
the output.
Overshoot
50% ~ 75%
Max Load
Settling Time
Overshoot
75% ~ 50%
Max Load
Settling Time
Vo=3.3 V
Overshoot
50% ~ 75%
Max Load
Settling Time
Note: All specifications are typical at nominal input, full load at 25 °C unless noted.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
General Specifications
Parameter
Min
Typ
Max
Notes
Efficiency
Vo=5.0 V
Vo=3.3 V
90%
90%
93.0%
92.5%
-
-
Vin=48V, full load , Ta=25°C
Switching Frequency
Isolation capacitance
300 kHz
330 kHz
1500 pF
360 kHz
-
-
Output Voltage Trim Range
Over Temperature Protection
Over Voltage Protection 1
80% Vo
-
120 °C
130% Vo
-
110% Vo
-
-
-
-
-
Input to Output Isolation Voltage 2
2000 V
Calculated Per Bell Core SR-332 (IO =
Nominal; Ta = 25 °C)
MTBF
TBD
Dimensions
Inches
2.28 x 2.4 x 0.42
millimeters
57.51 x 60.98 x 10.67
Weight
-
76 g
-
Notes: All specifications are typical at 25 °C unless otherwise stated.
1. OVP is tested under 48 Vin and full load with photo coupler short. The output will be latched off if the
output voltage exceeds over voltage specification. To turn the converter on requires either cycling
the ON/OFF pin or power to the converter.
2. Isolation between input and output is basic isolation, test duration is 60 seconds.
Control Specifications
Parameter
Min
Typ
Max
Notes
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
-0.3 V
2.4 V
-0.3 V
2.4 V
-
-
-
-
0.8 V
18 V
0.8 V
18 V
The remote on/off pin open, Unit
off.
Active Low
Active High
The remote on/off pin open, Unit
on.
Output Trim Equations
Equations for calculating the trim resistor (in kΩ) are shown below. The Trim Down resistor should be connected
between the Trim pin and Ground pin. The Trim Up resistor should be connected between the Trim pin and the
Vout. Only one of the resistors should be used for any given application.
100
Rtrimdown =
[
− 2 kΩ
]
Vout
Trim
GND
delta
Module
Module
(100 + delta)⋅Vo −122.5
1.225⋅delta
Rtrimdown
Rtrimup
Rtrimup =
− 2[kΩ
]
Notes:
Vout
Trim
GND
(
Vo _ req −Vo
)
×100
delta =
[%]
Vo
Vo_req=Desired(trimmed) output voltage[V]
Output voltage Vo=3.304 V for 3.3 V; Vo=5.008 V for 5 V.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
Efficiency Data
Efficiency Curve
Efficiency Curve
94%
90%
86%
82%
78%
74%
70%
94%
90%
86%
82%
78%
74%
70%
36 V
48 V
75 V
36 V
48 V
75 V
5
10 15 20 25 30 35 40 45 50
Output Current (A)
5
10
15
20
25
30
Output Current (A)
0RHB-C5T03x
0RHB-C5T05x
Thermal Derating Curves
0RHB-C5T03x
0RHB-C5T05x
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
Ripple and Noise Waveforms
Ripple and noise at full load 3.3 V/50 A output
Ripple and noise at full load 5.0 V/30 A output
Note: Ripple and noise at 48 V input, with a 1 uF ceramic capacitor and a 10 uF tantalum capacitor at the output
and Ta=25 deg C,.
Transient Response Waveforms
Vout=3.3 V, 50% to 75% Load Transients
Vout=3.3 V, 75% to 50% Load Transients
Vout=5.0 V, 50% to 75% Load Transients
Vout=5.0 V, 75% to 50% Load Transients
Note: Transient Response is tested at di/dt=0.1 A/us (Vo=3.3 V), di/dt=0.5 A/us (Vo=5.0 V), Vin=48 V, Ta=25°C,
with a 1 µF ceramic capacitor and a 10 µF tantalum capacitor at the output.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
48 Vdc Input
3.3 Vdc/50 A, 5.0 Vdc/30 A Output
Mechanical Outline
Pin Connections
pin#
function
pin size
0.04"
pin#
6
7
8
9
function
N/A
+Sense
Trim
-Sense
N/A
-Output
pin size
1
2
3
4
5
-Input
N/A
On/Off
+Input
+Output
0.04"
0.04"
0.04"
0.04"
0.04"
0.08"
10
11
0.08"
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2007 Bel Fuse Inc. Specifications subject to change without notice. 030307
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
