0RHB-C0Q150G

型号：

0RHB-C0Q150G

品牌：

BEL[ BEL FUSE INC. ]

页数：

8 页

PDF大小：

199 K

下载PDF手册

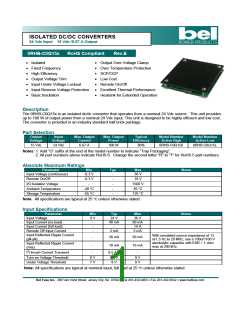

ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
0RHB-C0Q15x
RoHS Compliant
Rev.E
• Isolated
•
•
•
•
•
•
•
Output Over Voltage Clamp
Over Temperature Protection
SCP/OCP
• Fixed Frequency
• High Efficiency
• Output Voltage Trim
• Input Under Voltage Lockout
• Input Reverse Voltage Protection
• Basic Insulation
Low Cost
Remote On/Off
Excellent Thermal Performance
Heatsink for Extended Operation
Description
The 0RHB-C0Q15x is an isolated dc/dc converter that operates from a nominal 24 Vdc source. This unit provides
up to 100 W of output power from a nominal 24 Vdc input. This unit is designed to be highly efficient and low cost.
The converter is provided in an industry standard half brick package.
Part Selection
Output
Input
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
Voltage
15 Vdc
24 Vdc
6.67 A
100 W
86%
0RHB-C0Q150
0RHB-C0Q15L
Notes: 1. Add “G” suffix at the end of the model number to indicate “Tray Packaging”.
2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage (continuous)
-0.3 V
-
36 V
Remote On/Off
-0.3 V
-
-
-
-
-
18 V
1500 V
85 °C
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
-40 °C
-55 °C
125 °C
Note: All specifications are typical at 25 °C unless otherwise stated.
Input Specifications
Parameter
Min
9 V
-
-
-
Typ
24 V
40 mA
-
Max
36 V
60 mA
14 A
Notes
Input Voltage
Input Current (no load)
Input Current (full load)
Remote Off Input Current
2 mA
5 mA
Input Reflected Ripple Current
(pk-pk)
With simulated source impedance of 12
uH, 5 Hz to 20 MHz; use a 100uF/100 V
electrolytic capacitor with ESR = 1 ohm
max at 200 kHz.
-
30 mA
50 mA
Input Reflected Ripple Current
(rms)
I2t Inrush Current Transient
-
-
10 mA
18 mA
-
0.5 A2s
Turn-on Voltage Threshold
Under Voltage Threshold
8 V
7 V
8.5 V
8 V
9 V
9 V
Note: All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Output Specifications
Parameter
Min
Typ
Max
Notes
Output Voltage Set Point
14.7 V
15.0 V
15.3 V
Vin=24 V, Io=80%Load
Line Regulation
Load Regulation
-
-
0.01%Vo
0.02%Vo
0.1%Vo
0.2%Vo
Regulation Over Temperature
-
0.003%Vo/C
0.005%Vo/C
6.67 A
(-40 °C to 85 °C)
Output Current1
0.667 A
7 A
-
Current Limit Threshold
(VO= 90% VO, nom)
12 A
15 A
Ripple and Noise (rms)
Ripple and Noise (pk-pk)
-
-
60 mV
-
-
0-20MHz BW, with a 1µF
ceramic capacitor and a 10uF
Tantalum capacitor at output.
150 mV
Turn on Time
10 mS
20 mS
5 mS
0%
40 mS
-
Rise Time
-
-
Overshoot at Turn on
Output Capacitance
3%
0 uF
-
1000 uF
Transient Response
Overshoot
Settling Time
Overshoot
-
-
-
-
500 mV
800 mV
300 uS
800 mV
300 uS
50% ~ 75% Max
Load
di/dt=0.1 A/us, Vin=24
Vdc, Ta=25 °C, and 1 uF
ceramic capacitor and a
10 uF Aluminum capacitor
at output.
200 uS
500 mV
200 uS
VO=15 V
75% ~ 50% Max
Load
Settling Time
Notes: 1. No damage to the module will occur when the output is operated at less than minimum load. However
the output voltage may contain a low frequency component that may exceed output noise specifications.
2. All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Notes
Efficiency
83%
86%
-
Vin=24 V, full load
Switching Frequency
Isolation Capacitance
Output Voltage Trim Range
Remote Sense
-
325 kHz
-
-
-
3900 pF
7.5 V
-
16.5 V
10%
-
The voltage regulated by trim and remote
sense should be between 7.5 V to 16.5 V.
-
-
-
Over Temperature Protection
Over Voltage Protection
120 ℃
115 %
-
135 %
Vin=24 V, Io=full load
Calculated Per Bell Core SR-332 (Vin=24
V, Vo=15 V, Io=80%, Ta = 25 °C)
MTBF
2,254,824 hours
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.4 x 2.28 x 0.55
60.96 x 57.91 x 13.96
Weight
-
83 g
-
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Control Specifications
Parameter
Min
Typ
Max
Notes
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Source/Sink
-0.3 V
3 V
-
-
-
-
-
1 V
18 V
1 V
The remote on/off pin open, Unit
Off.
Active Low
Active High
-0.3 V
3 V
The remote on/off pin open, Unit
On.
18 V
0.5 mA
0 mA
Output Trim Equations
1. Output Voltage Adjustement by applying external voltage. The Vtrim must add at Trim and Sense(-), the
output voltage measure must between at Sense(+) and Sense(-).
Trim test circuit
Trim curve
Vout(+)
V(+)
Sense+
Trim
Control
+
Vtrim
Case
V(-)
-
Sense-
Vout(-)
2. Output Voltage Adjustement by applying external resistor
The Trim down resistor should be connected between the Trim pin and Sense(+) pin. The Trim up resistor
should be connected between the Trim pin and the Sense(-). Only one of the resistors should be used for any
given application. The output voltage measure must between at Sense(+) and Sense(-).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Output Trim Equations (continued)
Trim down test circuit
1000
900
800
700
600
500
400
300
200
100
0
Vout(+)
V(+)
Sense+
Control
Rtrimdown
Trim
Case
V(-)
Sense-
Vout(-)
7.5
8.25
9
9.75
10.5
11.25
12
12.75
13.5
14.25
15
Adjusted output voltage Vo,adj (V)
12.7⋅ Vo_ req−2.5
(
)
Rtrimdown =
−8.2 kΩ
[
]
Vo −Vo _req
Trim up test circuit
1000
900
800
700
Vout(+)
V(+)
Sense+
600
500
400
300
200
100
0
Control
Trim
Rtrimup
Case
Sense-
V(-)
Vout(-)
15
15.15
15.3
15.45
15.6
15.75
15.9
16.05
16.2
16.35
16.5
Adjusted output voltage Vo,adj(V)
31.75
Rtrimup =
−8.2 kΩ
[ ]
Vo _ req −Vo
Note: Vo_req=Desired(trimmed) output voltage[V]
Output voltage Vo=15.014 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Efficiency Data
Efficiency Curve
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
9 V
24 V
36 V
0.67
1.67
3.34
5.00
6.67
Output Current(A)
Thermal Derating Curve
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Ripple and Noise Waveforms
9 Vdc input, 15 Vdc/6.67 A output
24 Vdc input, 15 Vdc/6.67 A output
36 Vdc input, 15 Vdc/6.67 A output
Note: Ripple and noise at full load, with a 1uF ceramic capacitor at output, and Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Transient Response Waveforms
Vout=15 V, 50% to 75% Load Transients
Vout=15 V, 75% to 50% Load Transients
Note: Transient Response at di/dt=0.1 A/us, Vin=24 Vdc, Ta=25°C, with a 1µF ceramic capacitor at output.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
24 Vdc Input 15 Vdc /6.67 A Output
Mechanical Outline
Pin Connections
Pin Function Pin Size Pin Function
Pin Size
1
2
3
4
-
Vin(+)
Control
Case
Vin(-)
-
0.079’’
0.039’’
0.039’’
0.079’’
-
5
6
7
8
9
Vo(-)
Sense(-)
Trim
Sense(+)
Vo(+)
0.079’’
0.039’’
0.039’’
0.039’’
0.079’’
Notes: 1. Pin 3 must be connected to GND.
2. Pin 6 must be connected to Vo(-).
3. Leave pin 7 open for normal voltage.
4. Pin 8 must be connected to Vo(+).
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2008 Bel Fuse Inc. Specifications subject to change without notice. 052208
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
