SZWN5A0A

型号:

SZWN5A0A

品牌:

SEOUL[ Seoul Semiconductor ]

页数:

17 页

PDF大小:

424 K

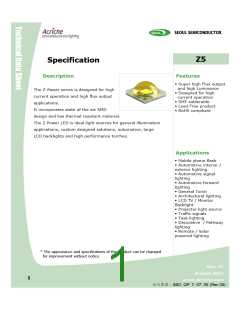

Z5
Specification
Description
Features
• Super high Flux output
and high Luminance
• Designed for high
current operation
• SMT solderable
• Lead Free product
• RoHS compliant
The Z-Power series is designed for high
current operation and high flux output
applications.
It incorporates state of the art SMD
design and low thermal resistant material.
The Z Power LED is ideal light sources for general illumination
applications, custom designed solutions, automotive, large
LCD backlights and high performance torches.
Applications
• Mobile phone flash
• Automotive interior /
exterior lighting
• Automotive signal
lighting
• Automotive forward
lighting
• General Torch
• Architectural lighting
• LCD TV / Monitor
Backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative / Pathway
lighting
• Remote / Solar
powered lighting
* The appearance and specifications of the product can be changed
for improvement without notice.
Rev. 01
August 2011
1
www.Acriche.com
: SSC- QP- 7- 07- 25 (Rev.00)
Outline dimensions
Top View
Bottom View
Circuit
Side View
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is 0.1mm
Rev. 01
August 2011
2
www.Acriche.com
Characteristics of Z5 (Part no : SZWN5A0A)
1. Neutral white
1-1 Electro-Optical characteristics at 350mA
Value
Typ
85
Parameter
Symbol
Unit
Min
Max
[1]
[2]
V
Luminous Flux
lm
K
[3]
Correlated Color Temperature
CRI
CCT
Ra
-
4000
-
-
-
80
-
[4]
Forward Voltage
VF
3.3
12
4
V
Thermal resistance (J to S)
View Angle
R
K /W
deg.
J-S
2
½
120
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Symbol
Value
Unit
IF
V
700
5
mA
V
Reverse Voltage
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Pd
Tj
2.8
W
ºC
ºC
ºC
-
145(@ IF 700mA)
-40 ~ +85
Topr
Tstg
-
-40 ~ +100
[5]
ESD Sensitivity
8,000V HBM
*Notes :
[1] SSC maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integrating sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate : 0.005, CCT 5% tolerance.
[4] Tolerance is 0.06V on forward voltage measurements
[5] A zener diode is included to protect the product from ESD.
Rev. 01
August 2011
www.Acriche.com
3

Temperature Characteristics Points
T
a
Ceramic
Lens
T
j
Ts
T
b
Solder
Metal-PCB
T
a
Color Spectrum TA=25
1.00
0.75
0.50
0.25
0.00
400
500
600
700
800
Wavelength (nm)
Rev. 01
August 2011
www.Acriche.com
4
Forward Current Characteristics
Forward Voltage vs. Forward Current, Ta=25
1000
800
600
400
200
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Forward Voltage [V]
Forward Current vs. Normalized Relative Luminous Flux, Ta=25
Rev. 01
August 2011
5
www.Acriche.com
Junction Temperature Characteristics
Relative Light Output vs. Junction Temperature at IF=350mA, Ta=25
1.0
0.8
0.6
0.4
0.2
0.0
40
60
80
100
120
140
Forward Voltage Shift vs. Junction Temperature at IF=350mA, Ta=25
0.00
-0.05
-0.10
-0.15
-0.20
-0.25
20
40
60
80
100
120
140
160
Junction Temperature [oC]
Rev. 01
August 2011
6
www.Acriche.com
Radiation pattern
0
1.0
0.8
0.6
0.4
0.2
0.0
30
60
90
-80
-60
-40
-20
0
Angle(deg.)
Maximum Forward Current vs. Ambient Temperature
800
600
Rth=15K/W
Rth=20K/W
400
200
0
145
0
30
60
90
120
Ambient Temperature(C)
Rev. 01
August 2011
7
www.Acriche.com
Binning Structure
IF=350mA, Ta=25
0.42
0.40
0.38
0.36
0.34
3700K
BBL
4000K
E9
E1
4200K
E8
E0
E2
4500K
D9
4700K
E3
E5
D8
D0
D1
D3
D5
D7
E4
E6
E7
D2
D4
D6
0.34
0.36
0.38
0.40
CIE X
* Note
Red area is ANSI bin.
Rev. 01
August 2011
8
www.Acriche.com
Color & Binning
COLOR RANK
<IF=350mA, Ta=25 >
CIE x
CIE y
CIE x
CIE y
0.3548
0.3536
0.3625
0.3641
0.3641
0.3625
0.3714
0.3736
0.3536
0.3524
0.3608
0.3625
0.3625
0.3608
0.3692
0.3714
0.3524
0.3512
0.3590
0.3608
0.3736
0.3646
0.3711
0.3804
0.3804
0.3711
0.3775
0.3874
0.3646
0.3555
0.3616
0.3711
0.3711
0.3616
0.3677
0.3775
0.3555
0.3465
0.3521
0.3616
0.3608
0.3590
0.3670
0.3692
0.3512
0.3497
0.3575
0.3590
0.3590
0.3575
0.3650
0.3670
0.3562
0.3548
0.3641
0.3661
0.3661
0.3641
0.3736
0.3760
0.3616
0.3521
0.3578
0.3677
0.3465
0.3385
0.3441
0.3521
0.3521
0.3441
0.3489
0.3578
0.3826
0.3736
0.3804
0.3900
0.3900
0.3804
0.3874
0.3974
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
Rev. 01
August 2011
* Measurement Uncertainty of the Color Coordinates :
0.01
9
www.Acriche.com
COLOR RANK
<IF=350mA, Ta=25 >
CIE x
CIE y
CIE x
CIE y
0.3736
0.3714
0.3842
0.3869
0.3869
0.3842
0.3970
0.4006
0.3714
0.3692
0.3813
0.3842
0.3842
0.3813
0.3934
0.3970
0.3692
0.3670
0.3783
0.3813
0.3874
0.3775
0.3855
0.3958
0.3958
0.3855
0.3935
0.4044
0.3775
0.3677
0.3751
0.3855
0.3855
0.3751
0.3825
0.3935
0.3677
0.3578
0.3646
0.3751
0.3813
0.3783
0.3898
0.3934
0.3670
0.3650
0.3758
0.3783
0.3783
0.3758
0.3863
0.3898
0.3760
0.3736
0.3869
0.3902
0.3902
0.3869
0.4006
0.4044
0.3751
0.3646
0.3716
0.3825
0.3578
0.3489
0.3550
0.3646
0.3646
0.3550
0.3610
0.3716
0.3974
0.3874
0.3958
0.4067
0.4067
0.3958
0.4044
0.4160
E0
E1
E2
E3
E4
E5
E6
E7
E8
E9
Rev. 01
August 2011
* Measurement Uncertainty of the Color Coordinates :
0.01
10
www.Acriche.com
Luminous Flux & Forward Voltage
T1
T2
U1
71~ 80
80~ 91
91~ 100
VF [V]
Rev. 01
August 2011
11
www.Acriche.com
Labeling
Rank :
1
2
3
# # # #
4
QUANTITY : 1000
Lot No : # # # # # # # # #
SSC PART NUMBER : SZWN5A0A
SZWN5A0A
Rank
#
1
#
2
#
3
#
4
- #1 : Luminous Flux : LF [lm]
- #2#3 : Color Coordinates : x, y
- #4 : Forward Voltage : VF [V]
Rev. 01
August 2011
12
www.Acriche.com
Emitter Carrier & Reel Packaging
CATHODE MARK
22
13
Rev. 01
August 2011
13
www.Acriche.com
Recommended solder pad
SOLDER PAD
ISOLATION
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] This drawing without tolerances are for reference only
Rev. 01
August 2011
14
www.Acriche.com
Reflow Soldering Conditions / Profile
Tm : Reflow machine setting temp (max 30 sec.)
Ts : Surface temp of PCB (max)
260
Ts : Surface temp of PCB (recommend)
Ts : Surface temp of PCB (min)
240
220
200
Cooling
-5 °C/sec
Rising
5 °C/sec
Pre-heating
180
150
0
Time
[Hr]
* Caution
1. Reflow soldering should not be done more than one time.
2. Repairs should not be done after the LEDs have been soldered. When
repair is unavoidable, suitable tools must be used.
3. Die slug is to be soldered.
4. When soldering, do not put stress on the LEDs during heating.
5. After soldering, do not warp the circuit board.
6. Recommend to use a convection type reflow machine with 7 ~ 8 zones.
Rev. 01
August 2011
15
www.Acriche.com
Precaution for use
• Storage
To avoid the moisture penetration, we recommend storing Z Power LEDs in a dry box
with a desiccant . The recommended storage temperature range is 5C to 30C and a maximum
humidity of 50%.
• Use Precaution after Opening the Packaging
Use proper SMD techniques when the LED is to be soldered dipped as separation of the lens may
affect the light output efficiency.
Pay attention to the following:
a. Soldering should be done immediately after opening the package (within 24Hrs).
b. Required conditions after opening the package
- Sealing
- Temperature : 5 ~ 40
Humidity : less than 30%
c. If the package has been opened more than 1 week or the color of the desiccant changes,
components should be dried for 10-12hr at 60 5
• Do not apply mechanical force or excess vibration during the cooling process to normal
temperature after soldering.
• Do not rapidly cool device after soldering.
• Components should not be mounted on warped (non coplanar) portion of PCB.
• Radioactive exposure is not considered for the products listed here in.
• Gallium arsenide is used in some of the products listed in this publication. These products are
dangerous if they are burned or shredded in the process of disposal. It is also dangerous to
drink the liquid or inhale the gas generated by such products when chemically disposed of.
• This device should not be used in any type of fluid such as water, oil, organic solvent and etc.
When washing is required, IPA (Isopropyl Alcohol) should be used.
• When the LEDs are in operation the maximum current should be decided after measuring the
package temperature.
• LEDs must be stored properly to maintain the device. If the LEDs are stored for 3 months or
more after being shipped from SSC, a sealed container with a nitrogen atmosphere should be used
for storage.
• The appearance and specifications of the product may be modified for improvement without
notice.
• Long time exposure of sunlight or occasional UV exposure will cause lens discoloration.
• The slug is isolated from anode electrically.
Therefore, we recommend that you don’t isolate the heat sink.
• Attaching LEDs, do not use adhesives that outgas organic vapor.
Rev. 01
August 2011
16
www.Acriche.com
Handling of Silicone resin LEDs
The Z-Power LED is encapsulated with a silicone resin for the highest flux efficiency.
Notes for handling:
• Avoid touching silicone resin parts especially with sharp tools such as Pincette
(Tweezers)
• Avoid leaving fingerprints on silicone resin parts.
• Silicone resin will attract dust so use covered containers for storage.
• When populating boards in SMT production, there are basically no restrictions
regarding the form of the pick and place nozzle, except that excessive mechanical
pressure on the surface of the resin must be prevented.
• It is not recommend to cover the silicone resin of the LEDs with other resin
(epoxy, urethane, etc)
Rev. 01
August 2011
17
www.Acriche.com
厂商 型号 描述 页数 下载

SEOUL

SZW05A0A [ Single Color LED, Pure White, T-1, 2.9mm, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN ] 19 页

SEOUL

SZW05A0B [ Single Color LED, ] 22 页

SEOUL

SZW07A0A [ Single Color LED, Pure White, 5.5mm, ROHS COMPLIANT, SMD, 8 PIN ] 23 页

SEOUL

SZWW05A0A [ Single Color LED, Warm White, T-1, 2.9mm, ROHS COMPLIANT, SMD, 3 PIN ] 16 页

SEOUL

SZWW4A0A [ Single Color LED, Warm White, 4.4mm, ROHS COMPLIANT, SMD, 2 PIN ] 20 页

SEOUL

SZWW5A0B [ Single Color LED ] 22 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.221954s
