IXTU1R4N60P

型号:

IXTU1R4N60P

品牌:

IXYS[ IXYS CORPORATION ]

页数:

4 页

PDF大小:

92 K

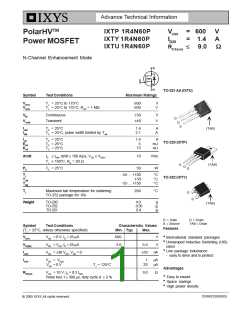

Advance Technical Information
PolarHVTM
Power MOSFET
IXTP 1R4N60P
IXTY 1R4N60P
IXTU 1R4N60P
VDSS = 600 V
ID25 = 1.4 A
RDS(on) 9.0
Ω
N-Channel Enhancement Mode
TO-251 AA (IXTU)
Symbol
TestConditions
Maximum Ratings
VDSS
VDGR
TJ = 25°C to 175°C
TJ = 25°C to 175°C; RGS = 1 MΩ
600
600
V
V
V
Continuous
Transient
30
40
V
V
GS
G
D
S
VGSM
ID25
IDM
TC = 25°C
TC = 25°C, pulse width limited by TJM
1.4
2.1
A
A
(TAB)
IAR
EAR
EAS
TC = 25°C
TC = 25°C
TC = 25°C
1.4
5
75
A
mJ
mJ
TO-220 (IXTP)
dv/dt
PD
IS IDM, di/dt 100 A/μs, VDD VDSS
TJ 150°C, RG = 20 Ω
,
10
V/ns
(TAB)
G
D
TC = 25°C
50
W
S
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
TO-252 (IXTY)
TL
Maximum tab temperature for soldering
TO-252 package for 10s
260
°C
G
S
Weight
TO-220
TO-252
TO-251
4.0
0.35
0.4
g
g
g
(TAB)
G = Gate
D = Drain
S = Source
TAB = Drain
Symbol
TestConditions
Characteristic Values
Features
(TJ = 25°C, unless otherwise specified)
Min. Typ.
Max.
z International standard packages
z Unclamped Inductive Switching (UIS)
rated
z Low package inductance
- easy to drive and to protect
VDSS
VGS(th)
IGSS
VGS = 0 V, ID = 25 μA
VDS = VGS, ID = 25 μA
VGS = 30 VDC, VDS = 0
600
V
V
3.0
5.5
50
nA
IDSS
VDS = VDSS
VGS = 0 V
1
20
μA
μA
TJ = 125°C
Advantages
RDS(on)
VGS = 10 V, ID = 0.5 ID25
Pulse test, t 300 μs, duty cycle d 2 %
9.0
Ω
z
Easy to mount
z
Space savings
High power density
z
DS99253(09/05)
© 2005 IXYS All rights reserved
IXTP 1R4N60P IXTY 1R4N60P
IXTU 1R4N60P
Symbol
gfs
TestConditions
Characteristic Values
TO-220 (IXTP) Outline
(TJ = 25°C, unless otherwise specified)
Min.
Typ.
Max.
VDS= 20 V; ID = 0.5 ID25, pulse test
VGS = 0 V, VDS = 25 V, f = 1 MHz
0.7
1.1
S
Ciss
Coss
Crss
140
17
pF
pF
pF
2.4
td(on)
tr
td(off)
tf
10
16
25
16
ns
ns
ns
ns
VGS = 10 V, VDS = 0.5 VDSS, ID =0.5 ID25
RG = 50 Ω (External)
Pins: 1 - Gate
3 - Source
2,4 - Drain
Qg(on)
Qgs
5.2
nC
nC
nC
VGS= 10 V, VDS = 0.5 VDSS, ID = 0.5 ID25
1.34
5.2
Qgd
RthJC
2.5 K/W
RthCS
RthCS
(TO-220)
(TO-251)
0.25
1.0
K/W
K/W
Source-Drain Diode
Characteristic Values
(TJ = 25°C, unless otherwise specified)
Symbol
IS
TestConditions
Min.
typ.
Max.
VGS = 0 V
1.4
A
A
V
ISM
Repetitive
4
TO-252 AA (IXTY) Outline
VSD
IF = IS, VGS = 0 V,
1.5
Pulse test, t 300 μs, duty cycle d 2 %
trr
IF = 1.5 A, -di/dt = 100 A/μs
500
ns
Dim.
Millimeter
Inches
Min.
Max.
Min.
Max.
A
A1
2.19
0.89
2.38
1.14
.086
0.35
.094
.045
Dim. Millimeter
Min. Max.
Inches
Min.
b
b1
b2
0.64
0.76
5.21
0.89
1.14
5.46
.025
.030
.205
.035
.045
.215
Max.
A
A1
2.19
0.89
2.38
1.14
0.086
0.035
0.094
0.045
c
c1
0.46
0.46
0.58
0.58
.018
.018
.023
.023
A2
b
0
0.64
0.13
0.89
0
0.005
0.035
0.025
D
5.97
6.22
.235
.245
b1
b2
0.76
5.21
1.14
5.46
0.030
0.205
0.045
0.215
E
e
e1
6.35
2.28
4.57
6.73
BSC
BSC
.250
.090
.180
.265
BSC
BSC
c
c1
0.46
0.46
0.58
0.58
0.018
0.018
0.023
0.023
H
17.02
17.78
.670
.700
D
D1
5.97
4.32
6.22
5.21
0.235
0.170
0.245
0.205
L
L1
L2
8.89
1.91
0.89
9.65
2.28
1.27
.350
.075
.035
.380
.090
.050
1. Gate
2. Drain
3. Source
4. Drain
E
E1
6.35
4.32
6.73
5.21
0.250
0.170
0.265
0.205
e
e1
2.28BSC
4.57BSC
0.090BSC
0.180BSC
H
L
9.40 10.42
0.370
0.020
0.410
0.040
0.51
1.02
L1
L2
L3
0.64
0.89
2.54
1.02
1.27
2.92
0.025
0.035
0.100
0.040
0.050
0.115
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYSMOSFETs andIGBTsarecovered by
oneormoreofthefollowingU.S.patents:
4,835,592
4,850,072
4,881,106
4,931,844
5,017,508
5,034,796
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123B1
6,306,728 B1
6,404,065B1
6,534,343
6,583,505
6,683,344
6,710,405B2
6,710,463
6,727,585
6,759,692
IXTP 1R4N60P IXTY 1R4N60P
IXTU 1R4N60P
Fig. 1. Output Characteristics
Fig. 2. Extended Output Characteristics
@ 25
º
C
@ 25 C
º
1.4
1.2
1
2.2
2
V
GS
= 10V
8V
V
GS
= 10V
8V
1.8
1.6
1.4
1.2
1
7V
7V
0.8
0.6
0.4
0.2
0
6V
5V
6V
0.8
0.6
0.4
0.2
0
5V
0
2
4
6
8
10
12
14
16
30
2
0
3
6
9
12 15 18 21 24 27 30
VD S - Volts
VD S - Volts
Fig. 3. Output Characteristics
@ 125
Fig. 4. RDS(on Normalized to 0.5 ID25
)
º
C
Value vs. Junction Temperature
1.4
1.2
1
3.00
2.75
2.50
2.25
2.00
1.75
1.50
1.25
1.00
0.75
0.50
V
= 10V
8V
GS
V
GS
= 10V
7V
6V
0.8
0.6
0.4
0.2
0
I
= 1.4A
D
I
= 0.7A
D
5V
0
5
10
15
20
25
-50 -25
0
25
50
75
100 125 150
VD S - Volts
TJ - Degrees Centigrade
Fig. 6. Drain Current vs. Case
Temperature
Fig. 5. RDS(on) Normalized to
0.5 ID25 Value vs. ID
2.6
2.4
2.2
2
1.6
V
= 10V
GS
1.4
1.2
1
T = 125 C
º
J
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
º
T = 25 C
J
0.8
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
-50
-25
0
25
50
75
100 125 150
I D - Amperes
TC - Degrees Centigrade
© 2005 IXYS All rights reserved
IXTP 1R4N60P IXTY 1R4N60P
IXTU 1R4N60P
Fig. 8. Transconductance
Fig. 7. Input Admittance
1.8
1.6
1.4
1.2
1
2
1.8
1.6
1.4
1.2
1
TJ = -40ºC
25
º
º
C
C
125
T =125 C
º
J
º
25 C
0.8
0.6
0.4
0.2
0
0.8
0.6
0.4
0.2
0
-40
º
C
4
0.4
0
4.5
5
5.5
6
6.5
7
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
VG S - Volts
I D - Amperes
Fig. 9. Source Current vs.
Source-To-Drain Voltage
Fig. 10. Gate Charge
4.5
4
10
9
8
7
6
5
4
3
2
1
0
V
= 300V
DS
I
I
= 0.7A
D
G
3.5
3
= 10mA
2.5
2
T = 125 C
º
J
1.5
1
T = 25 C
º
J
0.5
0
0.5
0.6
0.7
0.8
0.9
1
0
1
2
Q G - NanoCoulombs
3
4
5
VS D - Volts
Fig. 12. Maximum Transient Thermal
Re sis tance
Fig. 11. Capacitance
10.0
1000
100
10
f = 1MHz
C
C
iss
1.0
oss
C
rss
30
1
0.1
0.00001 0.0001
5
10
15
20
VD S - Volts
25
35
40
0.001
0.01
0.1
1
Pulse Width - Seconds
