0RPF-20A1AB

型号：

0RPF-20A1AB

品牌：

BEL[ BEL FUSE INC. ]

页数：

11 页

PDF大小：

391 K

下载PDF手册

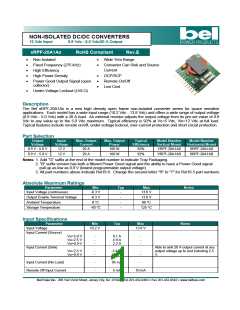

NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
xRPF-20A1Ax
RoHS Compliant
Rev.E
•
•
•
•
•
Non-Isolated
•
•
Wide Trim Range
Fixed Frequency (275 kHz)
High Efficiency
Converter Can Sink and Source
Current
High Power Density
•
•
•
OCP/SCP
Power Good Output Signal (open
collector)
Remote On/Off
Low Cost
•
Under-Voltage Lockout (UVLO)
Description
The Bel xRPF-20A1Ax is a new high density open frame non-isolated converter series for space sensitive
applications. Each model has a wide input range (10.2 Vdc - 13.8 Vdc) and offers a wide range of output voltage
(0.9 Vdc - 5.0 Vdc) with a 20 A load. An external resistor adjusts the output voltage from its pre-set value of 0.9
Vdc to any value up to the 5.0 Vdc maximum. Typical efficiency is 92% at Vo=5 Vdc, Vin=12 Vdc at full load.
Typical features include remote on/off, under-voltage lockout, over-current protection and short circuit protection.
Part Selection
Output
Input
Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Vertical Mount
Model Number
Horizontal Mount
Voltage
0.9 V - 5.0 V
0.9 V - 5.0 V
12 V
12 V
20 A
20 A
100 W
100 W
92%
92%
VRPF-20A1A0
VRPF-20A1AB
0RPF-20A1A0
0RPF-20A1AB
Notes: 1. Add “G” suffix at the end of the model number to indicate Tray Packaging.
2. “B” suffix version has both a filtered Power Good signal and the ability to have a Power Good signal
pull up as low as 0.9 V (lowest programmable output voltage).
3. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage (continuous)
-0.3 V
-
13.8 V
Output Enable Terminal Voltage
Ambient Temperature
-0.3 V
0 °C
-
-
-
13.8 V
80 °C
Storage Temperature
-40 °C
125 °C
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
10.2 V
-
13.8 V
Input Current (Source)
Vo=5.0 V
Vo=2.5 V
Vo=0.9 V
-
-
-
9.1 A
4.9 A
2.2 A
-
-
-
Input Current (Sink)
Able to sink 20 A output current at any
output voltage up to and including 2.5
V.
Vo=2.5 V
Vo=0.9 V
-
-
-3.44 A
-0.97 A
-
-
Input Current (No Load)
Remote Off Input Current
-
-
95 mA
5 mA
-
10 mA
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Input Specifications (continued)
Parameter
Min
Typ
Max
Notes
Input Reflected Ripple Current (pk-pk)
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
-
-
-
-
280 mA
250 mA
200 mA
150 mA
350 mA
320 mA
280 mA
250 mA
Tested with simulated source
impedance of 1.5 uH 5Hz to 20 MHz,
and 2 × 270 uF/16 V Oscon
capacitors (ESR ≤ 20 mΩ) at the
input
Input Reflected Ripple Current (rms)
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
-
-
-
-
80 mA
70 mA
45 mA
40 mA
120 mA
100 mA
80 mA
60 mA
External Input Capacitance
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
540 uF
9.0 V
-
8.5 V
7.0 V
9.5 V
8.3 V
7.6 V
Note: All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Notes
Output Voltage Set Point
-2.5%Vo,set
-
2.5%Vo,set Vin=12 V, lo=lomax, full load
Over all operating input voltage, resistive
load, and temperature conditions
Output Voltage Set Point
Load Regulation
-3.5%Vo,set
-
3.5%Vo,set
Vo=5.0 V
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
-
-
-
-
-
-
-
-
0.4%Vo,set
0.4%Vo,set Io=Iomin to Iomax
0.5%Vo,set
1%Vo,set
Line Regulation
-
-
0.5%Vo,set Vin=Vinmin to Vinmax
Output Ripple and Noise (pk-pk)
Vo=5.0 V
Tested at 0-20 MHz BW, with a
-
-
-
-
65 mV
60 mV
55 mV
45 mV
80 mV
75 mV
70 mV
55 mV
680 uF/6.3 V Oscon capacitor (ESR ≤ 12
mΩ), 10uF/16V Tantalum capacitor, and
10nF ceramic capacitor at the output.
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
Output Ripple and Noise (rms)
Vo=5.0 V
-
-
-
-
18 mV
15 mV
15 mV
10 mV
25 mV
25 mV
20 mV
15 mV
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
Output Current
0 A
25 A
-
-
-
-
20 A
Current Limit Threshold
Short Circuit Surge Transient
40 A
0.1 A2s
Turn on Time
-
-
5 mS
10 mS
3%Vo
Overshoot at Turn on
0%Vo
Output Capacitance
Vo=5.0 V
680 uF
680 uF
680 uF
-
-
-
5080 uF
7840 uF
11000 uF
Vo=2.5 V
Vo=0.9 V
Transient Response
-
-
-
-
50% ~ 75% Max Load
100 mV
40 uS
150 mV
80 uS
di/dt=2.5 A/uS; Vin=12 V; with a 680 uF/6.3
V Oscon capacitor (ESR ≤ 12 mΩ),
10 uF/16 V Tantalum capacitor and 10 nF
ceramic capacitor at the output.
Settling Time
75% ~ 50% Max Load
Settling Time
VO=0.9 V-
5.0 V
100 mV
40 uS
150 mV
80 uS
Note: All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
General Specifications
Parameter
Min
Typ
Max
Notes
Efficiency (Current Source)
Vo=5.0 V
89%
86%
83%
65%
92%
89%
86%
69%
-
-
-
-
Vo=3.3 V
Vo=2.5 V
Vo=0.9 V
Measured at Vin=12 V, full load.
Efficiency (Current Sink)
Switching Frequency
Vo=2.5 V
Vo=0.9 V
79%
60%
240 kHz
82%
63%
275 kHz
-
-
310 kHz
Output Voltage Trim Range
0.9 V
-
5.0 V
Vo=0.9 V when the Trim pin is open.
Calculated Per Bell Core SR-332 (IO =
Nominal; Ta = 25 °C)
MTBF
5,570,000 hours
Dimensions
VRPF-20A1Ax
Inches (L × W × H)
1.2 x 1.1 x 0.457
Millimeters (L × W × H)
30.48 x 27.94 x 11.6
Dimensions
0RPF-20A1Ax
Inches (L × W × H)
1.2 x 1.1 x 0.508
30.48 x 27.94 x 12.91
15 g
Millimeters (L × W × H)
Weight
-
-
Note: All specifications are typical at 25 °C unless otherwise stated.
Control Specifications
Parameter
Min
Typ
Max
Notes
Remote On/Off pin open, unit on.
xRPF-20A1AB
Remote On/Off
Signal Low (Unit Off)
Signal High (Unit On)
Power Good
-0.3 V
2.4 V
-
-
0.8 V
13.8 V
Power Good Levels
Power Good Delay 1
0.9 V
-
-
-
-
20 mS
Notes: All specifications are typical at 25 °C unless otherwise stated.
1. The power good signal is an open collector output. When the output of the module reaches 90% of the
nominal set point, the power good pin is set high.
Output Trim Equations
Equation for calculating the trim resistor (in kΩ) given the desired adjusted voltage (Vadj) is shown below. The
Trim Up resistor should be connected between the Trim pin and Ground. Trim values should not be less than
280Ω.
Vout
1.17
ModuleTrim
Rtrim =
Rtrim
Vadj − 0.9
GND
Equation for calculating the trim voltage (in V) given the desired adjusted voltage (Vadj) is shown below. The
Trim Up voltage should be connected between the Trim pin and Ground.
Vout
Rs×(1.3Vt −1.17)
1.17 − Rs× (Vadj − 0.9)
Rt
Module
Trim
Rt =
Vt
Rs
GND
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Efficiency Data
5.0V Vout(SOURCE)
93.0%
90.0%
87.0%
84.0%
81.0%
78.0%
10.2V
12.0V
13.8V
2.0
5.0
10.0
15.0
20.0
Output Current (A)
2.5V Vout(SOURCE)
91.0%
88.0%
85.0%
82.0%
79.0%
76.0%
73.0%
10.2V
12.0V
13.8V
2.0
5.0
10.0
15.0
20.0
Output Current (A)
0.9V Vout(SOURCE)
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
55.0%
50.0%
10.2V
12.0V
13.8V
2.0
5.0
10.0
15.0
20.0
Output Current (A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Thermal Derating Curves
Vo=5 V; Vin=12 V
Vo=2.5 V; Vin=12 V
Vo=0.9 V; Vin=12 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Ripple and Noise Waveforms
12 V input, 5.0 V output
12 V input, 2.5 V output
12 V input, 0.9 V output
Note: Ripple and noise at full load, 0-20MHz BW, with 680 uF/6.3 V Oscon cap, 10 uF/16 V Tan cap and 10 nF
ceramic cap at the output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Transient Response Waveforms
75% to 50% load step, 5.0 Vdc output
50% to 75% load step, 5.0 Vdc output
50% to 75% load step, 2.5 Vdc output
50% to 75% load step, 0.9 Vdc output
75% to 50% load step, 2.5 Vdc output
75% to 50% load step, 0.9 Vdc output
Note: Transient response at di/dt=2.5 A/uS, with a 680 uF/6.3 V Oscon cap, a 10 uF/16 V Tan cap and a 10 nF
ceramic cap at the output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Power Good (PG) Waveforms for xRPF-20A1AB
Vpu (External pull up voltage )
Rext
PG Signal
Vc(t)
1. Cint is fixed, Cint=100 pF
2. Rext and Cext can be
ajusted by customer.
Cint
C
ex t
IL (Load on
PG signal )
3. IL is the load on PG signal
GND
t
−
Rext *(Cint +Cext
)
Vc(t) = (Vpu − IL * Rext ) − (Vpu − IL * Rext )*e
Typical Start-up Using Remote ON/OFF
(Vin=12.0 V, Vout=0.9 V, Io=20 A)
PG Ripple and Noise
(Vin=12.0 V, Vout=0.9 V, Io=20 A)
CH1:Output Voltage CH2:PG CH4:Remote ON/OFF
Typical Start-up Using Remote ON/OFF
(Vin=12.0 V, Vout=1.2 V, Io=20 A)
PG Ripple and Noise
(Vin=12.0 V, Vout=1.2 V, Io=20 A)
CH1:Output Voltage CH2:PG CH4:Remote ON/OFF
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Power Good (PG) Waveforms for xRPF-20A1AB (continued)
Typical Start-up Using Remote ON/OFF
(Vin=12.0 V, Vout=3.3 V, Io=20 A)
PG Ripple and Noise
(Vin=12.0 V, Vout=3.3 V, Io=20 A)
CH1:Output Voltage CH2:PG CH4:Remote ON/OFF
Typical Start-up Using Remote ON/OFF
(Vin=12.0 V, Vout=5.0 V, Io=20 A)
PG Ripple and Noise
(Vin=12.0 V, Vout=5.0 V, Io=20 A)
CH1:Output Voltage CH2:PG CH4:Remote ON/OFF
Note: Waveforms above derived under the following conditions: Vpu=Vout, Rext=510 ohms, no external
capacitor or load applied.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Mechanical Outline
VRPF-20A1Ax
Pin Connections
Pin
Function
1
Vout
Vout
2
3
Vout
4
Trim
5
Remote On/Off
Power Good
Ground
Ground
Reserved
Vin
6
7
8
9
10
11
Vin
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
12 Vdc Input
0.9 Vdc - 5.0 Vdc/20 A Output
Mechanical Outline (continued)
0RPF-20A1Ax
Pin Connections
Pin
Function
1
2
Vout
Vout
3
Vout
4
Trim
5
6
7
8
Remote On/Off
Power Good
Ground
Ground
Pwrgd_set
Vin
Vin
Support Pin
Support Pin
9
10
11
12
13
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2008 Bel Fuse Inc. Specifications subject to change without notice. 011708
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RP2-40E1A0 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1A0G [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-15 ] 10 页

BEL

 		0RP2-40E1A1 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1A1G [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-15 ] 10 页

BEL

 		0RP2-40E1AC 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-40E1ACG [ DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, ROHS COMPLIANT PACKAGE-13 ] 10 页

BEL

 		0RP2-50E1A0 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 10 页

BEL

 		0RP2-50E1A1 非隔离式DC / DC转换器[ NON-ISOLATED DC/DC CONVERTERS ] 13 页

BEL

 		0RP2-50E2A0 [ DC-DC Regulated Power Supply Module ] 16 页

BEL

 		0RP2-50E2A0G [ DC-DC Regulated Power Supply Module ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.271617s
