TXN311110100000

型号：

TXN311110100000

品牌：

EMCORE[ EMCORE CORPORATION ]

页数：

31 页

PDF大小：

378 K

下载PDF手册

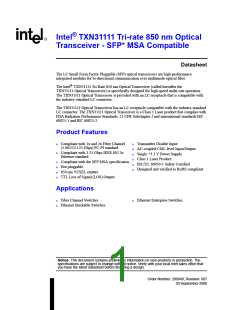

Intel® TXN31111 Tri-rate 850 nm Optical
Transceiver - SFP* MSA Compatible
Datasheet
The LC Small Form Factor Pluggable (SFP) optical transceivers are high-performance
integrated modules for bi-directional communication over multimode optical fiber.
The Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver (called hereafter the
TXN31111 Optical Transceiver) is specifically designed for high-speed multi-rate operation.
The TXN31111 Optical Transceiver is provided with an LC receptacle that is compatible with
the industry-standard LC connector.
The TXN31111 Optical Transceiver has an LC receptacle compatible with the industry-standard
LC connector. The TXN31111 Optical Transceiver is a Class 1 Laser product that complies with
FDA Radiation Performance Standards, 21 CFR Subchapter J and international standards IEC
60825-1 and IEC 60825-2.
Product Features
n
Compliant with 1x and 2x Fibre Channel
(1.0625/2.125 Gbps) FC-PI standard
Compliant with 1.25 Gbps IEEE 802.3z
Ethernet standard
Compliant with the SFP MSA specification
Hot pluggable
850 nm VCSEL emitter
n
n
n
n
n
n
Transmitter Disable Input
AC-coupled CML level Input/Output
Single +3.3 V Power Supply
Class 1 Laser Product
IEC/UL 60950-1 Safety Certified
Designed and verified as RoHS compliant
n
n
n
n
n
TTL Loss of Signal (LOS) Output
Applications
n
n
Fibre Channel Switches
Ethernet Stackable Switches
n
Ethernet Enterprise Switches
Notice: This document contains preliminary information on new products in production. The
specifications are subject to change without notice. Verify with your local Intel sales office that
you have the latest datasheet before finalizing a design.
Order Number: 280049, Revision: 007
20-September-2006
Legal Lines and Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES
RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or
in nuclear facility applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the
presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by
estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.
The TXN31111 Optical Transceiver may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2006, Intel Corporation. All Rights Reserved.
20-September-2006
2
Datasheet
Intel® TXN31111 Tri-rate 850 nm Optical Transceiver - SFP* MSA Compatible
Order Number: 280049, Revision: 007
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Contents
1.0 Introduction....................................................................................................................................6
2.0 Specifications ................................................................................................................................7
2.1
2.2
2.3
Maximum Ratings and Recommended Operating Conditions..............................................7
Specifications – Electrical.....................................................................................................9
Specifications – Optical ......................................................................................................10
3.0 Electrical Interface.......................................................................................................................12
4.0 Termination..................................................................................................................................14
4.1
4.2
Types of I/O Interfaces .......................................................................................................14
CML Termination ................................................................................................................15
5.0 SFP Timing Parameters ..............................................................................................................17
6.0 Serial Identification .....................................................................................................................18
6.1
6.2
6.3
6.4
Identifier..............................................................................................................................20
Connector ...........................................................................................................................21
Encoding.............................................................................................................................21
Transceiver.........................................................................................................................22
7.0 Mechanical Specification............................................................................................................25
8.0 Regulatory Compliance ..............................................................................................................26
8.1
8.2
8.3
8.4
8.5
Electromagnetic Compatibility Compliance ........................................................................26
Safety Compliance..............................................................................................................27
Lead-Free Conformance.....................................................................................................28
Compliance with Restriction of Hazardous Substances .....................................................28
Product Certification Markings and Compliance Statements..............................................29
9.0 Ordering Information...................................................................................................................30
10.0 Acronyms.....................................................................................................................................31
Figures
1
2
3
4
Diagram of Host Board Connector Block Pin Numbers and Names...........................................12
Circuit Diagram for CML Termination on Receiver Output .........................................................15
Circuit Diagram for CML Termination on Transmitter Input........................................................16
SFP Mechanical Specifications ..................................................................................................25
Datasheet
20-September-2006
Intel® TXN31111 Tri-rate 850 nm Optical Transceiver - SFP* MSA Compatible
Order Number: 280049, Revision: 007
3
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Tables
1
2
3
4
5
6
7
8
9
Absolute Maximum Ratings..........................................................................................................7
Recommended Operating Conditions ..........................................................................................7
Electrical Characteristics ..............................................................................................................8
Transmitter – Electrical Specifications..........................................................................................9
Receiver – Electrical Specifications..............................................................................................9
Fiber Length Specifications ........................................................................................................10
Optical Specifications – Transmitter...........................................................................................10
Receiver – Optical Specifications...............................................................................................11
Plug Sequence: Pin Engagement Sequence During Hot Plugging ............................................12
10 Timing Parameters for SFP Management..................................................................................17
11 Serial Identification Field Descriptions........................................................................................18
12 Identifier Values..........................................................................................................................20
13 Connector Values.......................................................................................................................21
14 Encoding Codes .........................................................................................................................21
15 Transceiver Codes .....................................................................................................................22
16 Option Values.............................................................................................................................23
17 Date Code ..................................................................................................................................24
18 Electromagnetic Compatibility Compliance ...............................................................................26
19 Safety Compliance .....................................................................................................................27
20 Lead-Free 2nd-Level Interconnect Markings...............................................................................28
21 Product Certification Markings and Compliance Statements .....................................................29
22 Ordering Information...................................................................................................................30
23 Acronyms....................................................................................................................................31
20-September-2006
4
Datasheet
Intel® TXN31111 Tri-rate 850 nm Optical Transceiver - SFP* MSA Compatible
Order Number: 280049, Revision: 007
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Revision History
Date
Revision
Description
Title page change
Added standard references on Table 1.0 “Introduction” on page 6
Modified Table 3 “Electrical Characteristics” on page 8
Modified Table 5 “Receiver – Electrical Specifications” on page 9
Modified Table 6 “Fiber Length Specifications” on page 10
Modified Table 7 “Optical Specifications – Transmitter” on page 10
Modified Table 6 “Fiber Length Specifications” on page 10
20-Sept-2006
007
Title change
24-May- 2006
006
Table 7 “Optical Specifications – Transmitter” on page 10 -Corrected document-only error - Output
Rise/Fall Time.
•
•
•
•
•
Modified Title Page:
Modified datasheet description on Page 1
Rearranged the Product Features and Applications sections on Page 1.
Added first paragraph under Section 2.0, “Specifications” on page 7.
Modified Table 1 “Absolute Maximum Ratings” on page 7:
Removed Operating Temperature and Note 1.
Added Caution note.
•
•
Modified Table 5 “Receiver – Electrical Specifications” on page 9: Added total jitter TJ
parameter.
25-Aug-2005
005
Modified Table 8 “Receiver – Optical Specifications” on page 11: Added "Stressed Sensitivity
Compliant with Fibre Channel – Physical Interfaces (FC-PI-2) specs, IEEE 802.3z* Gigabit
Ethernet 1000 BASE-SX standard."
•
•
Modified Section 7.0, “Mechanical Specification” on page 25: Added “Note: Aqueous wash is
not applicable for this product.”
Modified Table 21 “Product Certification Markings and Compliance Statements” on page 29:
Modified Electromagnetic Interference (EMI) Performance to: “Module meets FCC class B.
System margins depend on the PCB layout of customer board and chassis designs.
14 Jan 2005
17 Nov 2004
004
003
Modified Table 3 “Electrical Characteristics” on page 8: added Power Dissipation values.
Replaced Figure 4 “SFP Mechanical Specifications” with a corrected drawing.
Updated the Transmitter Values for Max Field:
–Single Ended, was 1100
–Differential, was 2200
–Output rise/fall time, was 115
17 Aug 2004
29 Jun 2004
002
001
Updated the Receiver Values:
–Max:Total Jitter row was TBD
–Min:Receiver Sensitivity was -22, -20, LOS - Asserted was -30, LOS - Hysteresis not defined
–Typ:Receiver Sensitivity was -19, -17
Initial document release
Datasheet
20-September-2006
Intel® TXN31111 Tri-rate 850 nm Optical Transceiver - SFP* MSA Compatible
Order Number: 280049, Revision: 007
5
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
1.0
Introduction
The Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver (called hereafter the TXN31111
Optical Transceiver) is specifically designed for high-speed data links at 2.125 Gbps (2x Fibre
Channel rate).
This document discusses the following TXN31111 Optical Transceiver topics:
• Section 2.0, “Specifications” on page 7
• Section 3.0, “Electrical Interface” on page 12
• Section 4.0, “Termination” on page 14
• Section 5.0, “SFP Timing Parameters” on page 17
• Section 6.0, “Serial Identification” on page 18
• Section 7.0, “Mechanical Specification” on page 25
• Section 8.0, “Regulatory Compliance” on page 26
• Section 9.0, “Ordering Information” on page 30
• Section 10.0, “Acronyms” on page 31
For information on standards that apply to the TXN31111 Optical Transceiver, see the following
references:
• IEEE Std 802.3, 2002 Edition, Clause 38, PMD Type 1000BASE-SX. IEEE Standards
Department, 2002
• IEEE Std 802.3z, 1998 Edition. Gigabit Interface Converter (GBIC) Ethernet Standard.
• Small Form-Factor Pluggable (SFP) Transceiver Multisource Agreement (MSA)
• Telcordia Technologies* GR-63 Section 4.2
•
20-Sept-2006
6
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
2.0
Specifications
Specifications include the following:
• Section 2.1, “Maximum Ratings and Recommended Operating Conditions” on page 7
• Section 2.2, “Specifications – Electrical” on page 9
• Section 2.3, “Specifications – Optical” on page 10
2.1
Maximum Ratings and Recommended Operating
Conditions
Table 1 lists the absolute maximum ratings for the TXN31111 Optical Transceiver.
Table 1. Absolute Maximum Ratings
Parameter
Symbol
Min.
Max.
Unit
Notes
Storage Temperature
Relative Humidity
TS
RH
-40
5
85
°C
%
–
95
4
–
Module Supply Voltage
Data AC Voltage
VCCT, R
TD+, TD-
VI
-0.5
–
V
–
Differential
–
2.6
VPP
V
Control Input Voltage
-0.5
VCC + 0.3
Caution:
Exceeding these values may cause permanent damage. Functional operation
under these conditions is not implied. Exposure to maximum rating conditions
for extended periods may affect device reliability.
Table 2 lists the recommended operating conditions. (Minimum and maximum values listed in
Table 3 through Table 8 apply over the recommended operating conditions specified in Table 2.)
Table 2. Recommended Operating Conditions
Parameter
Symbol
Min.
Typ.
Max.
Unit
Case Temperature
Module Supply Voltage
Data Rate
TC
-20
2.97
–
3.3
–
85
3.63
2.5
°C
VCCT, R
VDC
Gbps
1.0625
–
Datasheet
20-Sept-2006
7
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 3 lists the TXN31111 Optical Transceiver electrical characteristics.
Table 3. Electrical Characteristics
Parameter
Symbol
ICC
ICC
Min.
Typ.
Max.
Units
Notes
–
150
180
mA
TC = 25 °C, VCC = 3.3 V
Supply Current
-20° C < TC < 85° C,
2.97 V < VCC < 3.63 V
–
–
–
500
–
200
726
–
mA
mW
-20° C < TC < 85° C,
2.97 V < Vcc < 3.63 V
Power Dissipation
Pdiss
–
10 kHz to 4 MHz with
supply filter
Supply Noise Rejection
100
mV
mA
Inrush Current
Hot plugging of the
TXN3111101 Optical
Transceiver results in
the inrush current of no
more than 30 mA
–
–
–
30
greater than the steady
state value.
20-Sept-2006
8
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
2.2
Specifications – Electrical
Table 4 lists the TXN31111 Optical Transceiver transmitter electrical specifications.
Table 4. Transmitter – Electrical Specifications
Parameter
Symbol
Min.
Typ.
Max.
Units
Notes
CML Input (Single Ended)
CML Input (Differential)
–
–
200
400
–
–
1000
2000
mVpp
mVpp
AC Coupled Input
Peak to Peak Voltage
Input Impedance
(differential)
ZIN
85
2
100
–
115
VCC+0.3
0.8
Ω
V
V
V
V
–
–
–
TX_DISABLE input
voltage - High
VIH
VIL
TX_DISABLE input
voltage - Low
0
–
TX_Fault Output Voltage -
High
IOH = 40μA, 1 TTL Unit
VOH
VOL
2.0
0
–
VCC + 0.3
0.8
Load
TX_Fault Output Voltage -
Low
IOH = -1.69 mA, 1 TTL
Unit Load
–
Table 5 lists the TXN31111 Optical Transceiver receiver electrical specifications.
Table 5. Receiver – Electrical Specifications
Parameter
Symbol
Min.
Typ.
Max.
Units
Notes
CML Output (Single Ended)
CML Output (Differential)
CML Output (Rise/Fall Time)
–
–
–
275
550
–
350
700
–
600
1200
150
mVpp
mVpp
ps
AC Couple Outlets
Peak to Peak Voltage
20% - 80%
Output Impedance
(Differential)
ZOUT
VIL
85
0
100
–
115
0.8
Ω
V
V
–
IOH = -1.69 mA, 1 TTL
Unit Load
TTL LOS Output - Low
TTL LOS Output - High
VCC
0.3
+
IOH = 40μA, 1 TTL Unit
VOH
2.0
–
Load
Deterministic Jitter
Total Jitter
DJ
TJ
–
–
–
–
47
ps
ps
132
–
VCC
0.3
+
VOH
VOL
NC
2.5
0
–
–
–
V
V
Ω
With Serial ID
–
MOD_DEF ( 0-2)
0.5
–
Measured to RGND/
TGND
100 K
Datasheet
20-Sept-2006
9
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
2.3
Specifications – Optical
Table 6 lists the TXN31111 Optical Transceiver fiber length specifications.
Table 6. Fiber Length Specifications
Parameter
Symbol
Min.
Typ.
Max. Units
Notes
0.5
0.5
500
m
BER < 1.0E -12 @ 2.125 Gbps
BER < 1.0E -12 @ 1.0625 Gbps
50 μm/125μm MMF
–
–
1000
0.5
0.5
300
m
BER < 1.0E -12 @ 2.125 Gb/s
BER < 1.0E -12 @ 1.0625 Gb/s
62.5 μm/125 μm MMF
–
–
500
Table 7 lists the TXN31111 Optical Transceiver transmitter optical specifications.
Table 7. Optical Specifications – Transmitter
Parameter
Symbol
Min.
Typ.
Max.
Units
Notes
Optical Transmit Power
Optical Center
Popt
λ
-8
830
–
-5
850
–
-4
dBm
nm
–
–
860
0.85
Spectral Width
Uλ
nm
RMS
Optical Modulation
Amplitude
OMA
250
–
–
μW
pk-pk
Extinction Ratio
Relative Intensity Noise
Deterministic Jitter
Total Jitter
ER
RIN
DJ
9
–
–
–
–
–
–
–
–
-118
30
dB
dB/Hz
ps
–
–
–
–
TJ
65
ps
20 - 80% values,
measured
Output Rise/Fall Time
t
R, tF
–
–
150
ps
unfiltered
Note: Eye Mask: Compliant with eye mask requirements of Fibre Channel – Physical Interfaces (FC-PI-2)
specifications, IEEE 802.3z* Gigabit Ethernet 1000 BASE-SX standard
20-Sept-2006
10
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 8 lists the TXN31111 Optical Transceiver receiver optical specifications.
Table 8. Receiver – Optical Specifications
Parameter
Symbol
Min.
Typ.
Max.
Units
Notes
Optical Input
Wavelength
–
770
–
860
nm
–
Receiver
Overload
–
–
–
0
dBm
–
1.0625 Gbps
Test conditions:
Pr
-19
-22
–
dBm
•
•
•
10-12 BER
9 dB ER input
27 - 1 PRBS
Receiver
Sensitivity
2.125 Gb/s
Test conditions:
Pr
-17
-20
–
dBm
•
•
•
10-12 BER
9 dB ER input
27 - 1 PRBS
Compliant with Fibre Channel – Physical Interfaces (FC-PI-2) specifications, IEEE
802.3z* Gigabit Ethernet 1000 BASE-SX standard
Stressed
Sensitivity
Optical Return
Loss
ORL
Pa
12
–
–
–
–
dB
dB
–
Measured on transition –
low to high
LOS - Asserted
-29
LOS -
De-asserted
Measured on transition –
high to low
Pd
–
1
–
–
-17
5
dBm
dB
LOS - Hysteresis
Pa - Pd
–
Datasheet
20-Sept-2006
11
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
3.0
Electrical Interface
Figure 1 shows the TXN31111 Optical Transceiver electrical interface pin numbers and names.
Figure 1.
Diagram of Host Board Connector Block Pin Numbers and Names
Table 9 lists the plug sequence to follow during hot plugging, as well as pin functions.
Table 9. Plug Sequence: Pin Engagement Sequence During Hot Plugging (Sheet 1 of 2)
Plug
Sequence
Pin
Name
eeT
Function
Notes
1
2
V
Transmitter Ground
1
–
1
Transmitter Fault
Indication
TX_FAULT
3
3
4
TX_DISABLE
Transmitter Disable
3
3
3
3
3
3
1
1
1
2: Module Disables on high or open
MOD_DEF (2) Module Definition 2
MOD_DEF (1) Module Definition 1
MOD_DEF (0) Module Definition 0
3: Wire Serial ID interface
5
3: Wire Serial ID interface
6
3: Grounded Module
7
RATE SELECT
LOS
–
4
5
6
6
6
8
Loss of Signal
Receiver Ground
Receiver Ground
Receiver Ground
9
VeeR
10
11
Vee
Vee
R
R
20-Sept-2006
12
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 9. Plug Sequence: Pin Engagement Sequence During Hot Plugging (Sheet 2 of 2)
Plug
Sequence
Pin
Name
Function
Notes
Inverted Received Data
out
12
13
RD-
3
7
Non-Inverted Received
Data out
RD+
3
7
6
14
15
VeeR
Receiver Ground
Receiver Power
1
2
2
1
3
3
1
Vcc
R
3.3 V +/- 10% (See also Note 8.)
16
Vcc
T
T
Transmitter Power
Transmitter Ground
Non-inverted Data In
Inverted Data In
3.3 V +/- 10% (See also Note 8.)
17
Vee
6
9
9
6
18
TD+
TD-
19
20
Vee
T
Transmitter Ground
NOTES:
1. TX FAULT is an open collector/drain output that is pulled up with a 4.7 K - 10 K Ω resistor on the host
board. Use a pull-up voltage between 2.0 V and VccT, R+0.3 V.
•
•
Low: Indicates normal operation. In the low state, the output is pulled to < 0.8 V.
High: Indicates a laser fault.
2. TX DISABLE is an input used to shut down the transmitter optical output. It is pulled up within the
TXN31111 Optical Transceiver with a 4.7K - 10K Ω resistor. The states are as follows:
•
•
•
Low (0 - 0.6V): Transmitter Enabled
(>0.8, <2.0V): Undefined
High (2.0 - 3.465V): Transmitter Disabled
3. MOD-DEF 0,1,2: These pins are the definition pins for the TXN31111 Optical Transceiver. They are pulled
up with 4.7K - 10K Ω resistor on the host board. Use a pull-up voltage between 2.0V and VccT, R + 0.3V.
•
MOD-DEF 0 is grounded by the TXN31111 Optical Transceiver to indicate the TXN31111 Optical
Transceiver is present.
•
•
MOD-DEF 1 is the clock line of a two-wire serial interface for serial ID.
MOD-DEF 2 is the data line of a two-wire serial interface for serial ID.
4. RATE SELECT: This signal function not implemented in the TXN31111 Optical Transceiver. The
TXN31111 Optical Transceiver is rate agile – that is, it meets the specifications for 1.0625 Gbps to 2.5
Gbps data rates without the use of a rate-select pin.
5. LOS (Loss of Signal) has an internal 8K pull-up resistor to VccR. While LOS is defined per the SFP MSA,
•
•
When low, this output indicates normal operation. In the low state, the output is pulled to < 0.8V.
When high, this output indicates the received optical power is below the worst-case receiver sensitivity
(as defined by the standard in use).
6. RD-/+ are the differential receiver outputs. They are AC-coupled 100 Ω differential lines that are terminated
with 100 Ω (differential) at the user SerDes. The AC coupling is performed inside the TXN31111 Optical
Transceiver and is therefore not required on the host board.
7. VccR and VccT: are the receiver and transmitter power supplies. Their values, which are listed in Table 2,
“Recommended Operating Conditions” on page 7, are defined at the SFP connector pin. Maximum supply
current is listed in Table 3, “Electrical Characteristics” on page 8. Hot plugging of the TXN31111 Optical
Transceiver result in the inrush current listed in Table 3, “Electrical Characteristics” on page 8.
8. TD-/+: are the differential transmitter inputs. They are AC-coupled differential lines with 100 Ω differential
termination inside the TXN31111 Optical Transceiver. The AC coupling is done inside the TXN31111
Optical Transceiver and is therefore not required on the host board.
Datasheet
20-Sept-2006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
13
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
4.0
Termination
4.1
Types of I/O Interfaces
The TXN31111 Optical Transceiver has the following types of I/O interfaces.
• CML interface
• TTL interface
High-speed I/Os use the CML interface, while control signals use the TTL interface. Proper
termination of I/Os is required for good signal integrity. If I/Os (particularly the CML I/Os) are not
terminated properly, then jitter increases significantly due to reflection from impedance
mismatches.
20-Sept-2006
14
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
4.2
CML Termination
Figure 2 shows a circuit diagram for the CML termination for the TXN31111 Optical Transceiver
receiver output. The TXN31111 Optical Transceiver has built in AC-coupling capacitors, which
help prevent a direct current path from the TXN31111 Optical Transceiver power supply to the
SerDes input. (A direct current path could damage the ESD diodes on the SerDes.)
• Internal termination. For the TXN31111 Optical Transceiver receiver output, the SerDes
interface provides an internal termination resistor.
• External termination. For the proper external termination of the SerDes interface, refer to the
SerDes specification.
Figure 2.
Circuit Diagram for CML Termination on Receiver Output
3.3 V
50 Ω
AC-coupling
capacitor
100
Ω
Receiver Output
SerDes Input
B3243-02
Datasheet
20-Sept-2006
15
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Figure 3 shows a circuit diagram for the CML termination for the TXN31111 Optical Transceiver
transmitter input.
Internal termination. The TXN31111 Optical Transceiver transmitter input has an internal 100 Ω
termination between two inputs. AC-coupling capacitors are also built into the TXN31111 Optical
Transceiver.
Figure 3.
Circuit Diagram for CML Termination on Transmitter Input
3.3 V
AC-Coupling
Capacitor
100 Ω
Transmitter Input
SerDes Output
B3244-02
20-Sept-2006
16
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
5.0
SFP Timing Parameters
Table 10 lists thetiming parameters for SFP management.
Table 10. Timing Parameters for SFP Management
Parameter
Symbol
Min.
Max.
Unit Conditions
Time from rising edge of
TX_DISABLE assert time
t_off
–
10
µs
TX_DISABLE to when the optical
output falls below 10% of nominal
Time from falling edge of
TX_DISABLE to when the modulated
optical output rises above 90% of
nominal
TX_DISABLE negate time
t_on
–
1
ms
Time to initialize includes
reset of TX_FAULT
Time from power on or negation of
TX_FAULT using TX_DISABLE
t_init
t_fault
t_reset
–
–
300
100
–
ms
µs
µs
TX_FAULT Assert Time
TX Disable to reset
Time from fault to TX_FAULT ON
Time TX Disable must be held high to
reset TX_FAULT
10
Time from LOS state to RX_LOS
assert
RX_LOS Assert time
t_loss_on
t_loss_off
–
–
100
100
µs
µs
Time from non-LOS state to RX_LOS
de-assert
RX_LOS De-assert time
Time from rising or falling edge of
Rate Select input until receiver
bandwidth is in conformance with
appropriate specification
Rate-Select Change time
Serial ID Clock Rate
t_ratesel
–
–
10
µs
f_serial_clock
100
KHz
–
Datasheet
20-Sept-2006
17
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
6.0
Serial Identification
Table 11 lists the definitions from the different data stored in the TXN31111 Optical Transceiver
EEPROM.
Table 11. Serial Identification Field Descriptions (Sheet 1 of 3)
Field Size
(Bytes)
Data Address
Name of Field
Description of Field
Base of Fields
0
1
1
1
1
8
1
1
1
Identifier
Type of serial identifier (see Table 12)
Extended identifier of type of serial transceiver
Connector (see Table 13)
Ext. Identifier
Connector
Transceiver
Encoding
2
3-10
11
12
13
Optical Compatibility (see Table 15)
Code for serial encoding algorithm (see Table 14)
Nominal bit rate, units of 100Mbps
–
BR, Nominal1
Reserved
Link Length supported for 9/125 µm fiber, units of
km
14
15
16
17
1
1
1
1
Length (9µ) - km2
Length (9µ)3
Link Length supported for 9/125 µm fiber, units of
100 m
Link Length supported for 50/125 µm fiber, units of
10 m
Length (50µ)4
Length (62.5µ)5
Link Length supported for 62.5/125 µm fiber, units
of 10 m
18
19
1
1
Length (Copper)6
Reserved
Link Length supported for copper, units of meters
–
20-35
36
16
1
Vendor name7
SFP vendor name (ASCII)
–
Reserved
37-39
40-55
3
Vendor OUI8
Vendor PN9
SFP vendor IEEE company ID
Part number provided by SFP vendor (ASCII)
16
Revision level for part number provided by vendor
(ASCII)
56-59
4
Vendor rev10
60-62
63
3
1
Reserved
–
CC_BASE11
Check code for Base ID fields (address 0 to 62)
Extended ID Fields
Indicates which optional SFP signals are
implemented (see Table 16)
64-65
2
Options12
66
1
1
BR, Max13
BR, Min14
Upper bit rate margin, units of %
Lower bit rate margin, units of %
Serial number provided by vendor (ASCII)
Vendor manufacturing date code (see Table 17)
–
67
68-83
84-91
92-94
16
8
Vendor SN15
Date Code 16
Reserved
3
20-Sept-2006
18
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 11. Serial Identification Field Descriptions (Sheet 2 of 3)
Field Size
(Bytes)
Data Address
Name of Field
Description of Field
Check code for the Extended ID fields (address 64
to 94)
95
1
CC_EXT
Vendor Specific ID Fields
96-127
128-511
512-n
32
384
–
Read-only
Reserved
–
Vendor specific data, read only
Vendor specific
–
NOTES:
1. The nominal bit rate (BR, nominal) is specified in units of 100 Mbps, rounded off to the nearest 100 Mbps.
The bit rate includes bits necessary to encode and delimit the signal, and bits carrying data information.
A value of zero indicates that the bit rate is not specified and must be determined from the transceiver
technology. The actual information transfer rate depends on the encoding of the data, as defined by the
encoding value.
2. In addition to EEPROM data from the original GBIC definition, this value specifies the link length that is
supported by the SFP while operating in compliance with the applicable standards using single-mode fiber.
This value is in units of kilometers. A value of 255 means that the SFP supports a link length greater than
254 km. A value of zero means that the SFP does not support single-mode fiber or that the length
information must be determined from the transceiver technology.
3. This value specifies the link length that is supported by the SFP while operating in compliance with the
applicable standards using single-mode fiber. This value is in units of 100 meters. A value of 255 means
that the SFP supports a link length greater than 25.4 km. A value of zero indicates that the SFP does not
support single-mode fiber, or the length information must be determined from the transceiver technology.
4. This value specifies the link length that is supported by the SFP while operating in compliance with the
applicable standards using 50 µm multi-mode fiber. This value is in units of 10 meters. A value of 255
means that the SFP supports a link length greater than 2.54 km. A value of zero indicates that the SFP
does not support 50 µm multimode fiber, or the length information must be determined from the transceiver
technology.
Datasheet
20-Sept-2006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
19
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 11. Serial Identification Field Descriptions (Sheet 3 of 3)
Field Size
(Bytes)
Data Address
Name of Field
Description of Field
5. This value specifies the link length that is supported by the SFP while operating in compliance with the
applicable standards using 62.5 µm multi-mode fiber. This value is in units of 10 meters. A value of 255
means that the SFP supports a link length greater than 2.54 km. A value of zero indicates that the SFP
does not support 62.5 µm multi-mode fiber or that the length information must be determined from the
transceiver technology. It is common for the SFP to support both 50 µm and 62.5 µm fiber.
6. This value specifies the minimum link length that is supported by the SFP while operating in compliance
with the applicable standards using copper cabling. This value is in units of 1 meter. A value of 255 means
that the SFP supports a link length greater than 254 meters. A value of zero means that the SFP does not
support copper cables or that the length information must be determined from the transceiver technology.
Further information about the cable design, equalization, and connectors is usually required to guarantee
meeting a particular length requirement.
7. The vendor name is a 16-character field that contains ASCII characters, left-aligned and padded on the
right with ASCII spaces (20h). The vendor name is the full name of the corporation, a commonly accepted
abbreviation of the name of the corporation, the SCSI company code for the corporation, or the stock
exchange code for the corporation. At least one of the vendor names or the vendor OUI fields contain valid
serial data.
8. The vendor organizationally unique identifier field (vendor OUI) is a 3-byte field that contains the IEEE
Company Identifier for the vendor. A value of zero in the 3-byte field indicates that the Vendor OUI is
unspecified.
9. The vendor part number (vendor PN) is a 16-byte field that contains ASCII characters, left-aligned and
padded on the right with ASCII spaces (20h), defining the vendor part number or product name. A value of
all zeros in the 16-byte field indicates that the vendor PN is unspecified.
10.The vendor revision number (vendor rev) is a 4-byte field that contains ASCII characters, left-aligned and
padded on the right with ASCII spaces (20h), defining the vendor product revision number. A value of all
zeros in the 4-byte field indicates that the vendor PN is unspecified.
11.The check code is a one-byte code that can be used to verify that the first 64 bytes of serial information in
the SFP is valid. The check code is the low order 8 bits of the sum of the contents of all the bytes from byte
0 to 62, inclusive.
12.The bits in the option field specify the options implemented in the SFP as described in Table 16, “Option
Values” on page 23.
13.The upper bit rate limit at which the SFP still meets its specifications (BR, max) is specified in units of 1%
above the nominal bit rate. A value of zero indicates that this field is not specified.
14.The lower bit rate limit at which the SFP still meets its specifications (BR, min) is specified in units of 1%
below the nominal bit rate. A value of zero indicates that this field is not specified.
15.The vendor serial number (vendor SN) is a 16-character field that contains ASCII characters, left aligned
and padded on the right with ASCII spaces (20h), defining the vendor serial number for the SFP. A value of
all zeros in the 16-byte field indicates that the vendor PN is unspecified.
16.The date code is an 8-byte field that contains the vendor date code in ASCII characters. The date code is
mandatory. The date code is in a format specified in Section 17, “Date Code” on page 24.
6.1
Identifier
The identifier value specifies the physical device described by the serial information. This value is
included in the serial data. Table 12 shows the defined identifier values.
Table 12. Identifier Values
Value
Description of Physical Device
00h
Unknown or unspecified
GBIC
01h
02h
Module/connector soldered to motherboard
SFP transceiver
03h
04-7Fh
80-FFH
Reserved
Vendor specific
20-Sept-2006
20
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
6.2
Connector
The connector value indicates the external connector provided on the interface. This value is
included in the serial data. Table 13 shows the defined connector values.
Table 13. Connector Values
Value
Description of Physical Device
00h
01h
Unknown or unspecified
SC
02h
Fibre Channel Style 1 copper connector
03h
Fibre Channel Style 2 copper connector
04h
BNC/TNC
05h
Fibre Channel Coaxial headers
06h
Fibre Jack
LC
07h
08h
MT-RJ
09h
MU
0Ah
SG
0Bh
Optical Pigtail
Reserved
HSSDC II
Copper Pigtail
Reserved
Vendor specific
0C-1Fh
20h
21h
22-7Fh
80-FFh
NOTE: 01h-05h are not SFP compatible, and are
included for compatibility with GBIC standards.
6.3
Encoding
The encoding value indicates the serial encoding mechanism that is the nominal design target of the
TXN31111 Optical Transceiver. Table 14 shows the defined encoding values.
Table 14. Encoding Codes
Value
Description of Physical Device
00h
Unspecified
8B10B
01h
02h
4B5B
03h
NRZ
04h
Manchester
Reserved
05h-FFh
Datasheet
20-Sept-2006
21
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
6.4
Transceiver
Table 15 defines the method to interpret the transceiver type for the TXN31111 Optical Transceiver
and its associated compatibility options.
Table 15. Transceiver Codes (Sheet 1 of 2)
Description of
Transceiver
Description of
Transceiver
Data
Bit (Note 1)
Data Addr
Bit (Note 1)
Reserved Standard Compliance Codes
Fiber Channel Link Length
Very Long
Distance (V)
3
4
7-0
7-4
Reserved
7
7
7
6
Reserved
Short Distance (S)
Intermediate
Distance (S)
SONET
Compliance
Codes
7
7
5
4
4
4
3
2
Reserved
Long Distance (L)
OC-48 long
reach
Fiber Channel Transmit Technology
OC-48
4
1
intermediate
reach
7
3-2
Reserved
OC-48 short
reach
Longwave Laser
(LC)
4
5
0
7
7
7
1
0
Electrical inter-
enclosure (EL)
Reserved
OC-12 single
mode long
reach
Electrical inter-
enclosure (EL)
5
5
6
5
8
8
7
6
OC-12 single
mode
intermediate
reach
Shortwave Laser
w/o OFC (SL)
OC-12 short
mode
intermediate
reach
Shortwave laser w/
OFC (SL)
5
4
8
5
Longwave laser
(LL)
5
5
3
2
Reserved
8
8
4
OC-3, single
mode long
reach
0-3
Reserved
OC-3, single
mode
intermediate
reach
5
5
1
0
OC-3, single
mode short
reach
Fibre Channel Transmission Media
Twin Axel Pair
(TW)
9
7
20-Sept-2006
22
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 15. Transceiver Codes (Sheet 2 of 2)
Description of
Transceiver
Description of
Transceiver
Data
Bit (Note 1)
Data Addr
Bit (Note 1)
Shielded twisted
pair (TP)
9
6
Miniature coax
(MI)
9
9
9
5
4
3
6
6
7-4
Reserved
Video coax (TV)
Multi-mode, 62.5µ
(M6)
3
2
1000BASE-T
Multi-mode, 50µ
(M5)
6
1000BASE-CX
9
2
6
6
1
0
1000BASE-LX
1000BASE-SX
9
9
1
0
Reserved
Single mode (SM)
Fibre Channel Speed
10
10
10
10
10
10
7-5
4
Reserved
400 MBytes/Sec
Reserved
3
2
200 MBytes/Sec
Reserved
1
0
100 MBytes/Secc
Note: Bit 7 is the high order bit and is transmitted first in each byte.
Table 16 defines the method to interpret and the optional SFP signals that are implemented in the
TXN31111 Optical Transceiver.
Table 16. Option Values
Value
64
Bit
7-0
Description of Physical Device
Reserved
Reserved
65
7-6
RATE_SELECT is implemented if a bit is set. Active control of the rate select pin is
required to change rates. If a bit is not set, no control of the pin is required. In all cases,
compliance with multiple rate standards should be determined by the Transceiver Codes
in Bytes 4,5,6, and 10. (See Table 15)
65
5
65
65
4
3
TX_DISABLE is implemented and disables the serial output.
TX_FAULT signal implemented. (Reset is defined in Section 4.0, “Termination” on
page 14.)
Loss of signal is defined per the SFP MSA.
Signal Detect is implemented, the signal is inverted.
65
2
NOTE: This is not standard SFP behavior.
Loss of signal implemented (see Table 8)
Reserved
65
65
1
0
Datasheet
20-Sept-2006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
23
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Table 17 defines the method to interpret the manufacturing date stored in the EEPROM Date Code
section.
Table 17. Date Code
Data Address Description of Field
84-85
86-87
88-89
90-91
ASCII code, two low order digits of year (00 = 2000)
ASCII code, digits of month (01 = Jan through 12 = Dec)
ASCII code, day of month (01-31)
ASCII code, vendor specific lot code, may be blank
20-Sept-2006
24
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
7.0
Mechanical Specification
Figure 4 shows the mechanical specifications of the TXN31111 Optical Transceiver. The
dimensions comply with the SFP Multisource Agreement. All dimensions are in millimeters.
Note:
Aqueous wash is not applicable for this product
Figure 4.
SFP Mechanical Specifications
Datasheet
20-Sept-2006
25
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
8.0
Regulatory Compliance
This section discusses the following topics:
• Section 8.1, “Electromagnetic Compatibility Compliance” on page 26
• Section 8.2, “Safety Compliance” on page 27
• Section 8.3, “Lead-Free Conformance” on page 28
• Section 8.4, “Compliance with Restriction of Hazardous Substances” on page 28
• Section 8.5, “Product Certification Markings and Compliance Statements” on page 29
8.1
Electromagnetic Compatibility Compliance
Table 18 lists emissions and immunity regulations with which the TXN31111 Optical Transceiver
complies when tested in a representative chassis.
Table 18.
Electromagnetic Compatibility Compliance
Requirement
Regulation
Performance Level
•
•
FCC rules, Part 15,
subpart B
Meets Class B limits with a minimum
6 dB margin
Electromagnetic interference (EMI)
EN 55022
± 2 kV contact discharge to connector
electrical pins with no degradation in
performance or loss of function
JEDEC JESD22-A114-B
Human Body Model
•
•
± 8 kV air discharge
Electrostatic discharge (ESD)
± 4 kV contact discharge to face plate
EN 61000-4-2
Meets Level A test criteria (that is, no
degradation of performance or loss of
function occurs)
10 V/m from 80 MHz to 1 GHz with no
degradation of performance or loss of
function
Radio frequency electromagnetic
field (Radiated immunity)
EN 61000-4-3,
level A test criteria
20-Sept-2006
26
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
8.2
Safety Compliance
Table 19 lists and describes the relevant safety regulations with which the TXN31111 Optical
Transceiver complies.
Table 19.
Safety Compliance
Requirement
Regulation
Title
UL 60950-1:2003 /
Information Technology Equipment – Safety - Part 1:
General Requirements (USA and Canada)
CSA C22.2 No. 60950-1-03
Information Technology Equipment – Safety - Part 1:
General Requirements (European Union)
Product Safety
EN 60950-1:2002
IEC 60950-1:2001
Information Technology Equipment – Safety - Part 1:
General Requirements (International)
Title 21 Chapter I Subchapter J –
21CFR1040.10
Radiological Health Part 1040:
Performance Standards for Light-Emitting Products
Safety of Laser Products - Part 1:
Equipment Classification, Requirements and User's Guide
EN 60825-1: 1994 +A1 +A2
IEC 60825-1: 1993 +A1 +A2
EN 60825-2: 2000
Laser Safety
Safety of Laser Products - Part 1:
Equipment Classification, Requirements and User's Guide
Safety of Laser Products - Part 2:
Safety of Optical Fiber Communication Systems
Safety of Laser Products - Part 2:
Safety of Optical Fiber Communication Systems
IEC 60825-2: 2000
Datasheet
20-Sept-2006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
27
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
8.3
Lead-Free Conformance
The TXN31111 Optical Transceiver uses a lead-free assembly, although certain discrete
components within the assembly may contain lead, being necessary for either component
performance or reliability. The TXN31111 Optical Transceiver is referred to as a “Lead-free 2nd
Level Interconnect.” The enclosure, circuit board substrate, and the solder connections from the
circuit board to the components (second-level connections) are all lead-free.
Table 20 lists various forms of the “Lead-Free 2nd Level Interconnect” marking for the TXN31111
Optical Transceiver and accompanying collateral.
Table 20.
Lead-Free 2nd-Level Interconnect Markings
Description
Marking
Lead-Free 2nd Level Interconnect:
The Lead-Free 2nd Level Interconnect
symbol is used to identify electrical and
electronic assemblies and components
in which the lead (Pb) concentration
level in the circuit board substrate and
the solder connections from the circuit
board to the components (second-level
interconnect) are not greater than 0.1%
by weight (1000 ppm).
or
or
Note: Any of the three symbols
shown may be used, as space
permits.
8.4
Compliance with Restriction of Hazardous Substances
This product complies with the European Union directive for Restriction of Hazardous Substances
(RoHS) – Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment, Directive 2002/95/EC plus amendments.
However, certain discrete components do contain lead (a RoHS-restricted substance) in amounts
that exceed threshold concentration levels. This product uses the following applicable RoHS
technology exemptions:
• Lead in optical and filter glass, and
• Lead in glass of electronic components
Note:
RoHS implementation details are subject to change.
20-Sept-2006
28
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
8.5
Product Certification Markings and Compliance Statements
Table 21 lists the TXN31111 Optical Transceiver product certification markings and compliance
statements.
Table 21.
Product Certification Markings and Compliance Statements
Origin and Description
Markings and Compliance Statements
Markings
CE mark.
The CE (Conformité Européene*) mark indicates
compliance to the European Union Low Voltage directive
(73/23/EEC).
TÜV Rheinland type approval mark for components and
subassemblies for the European Union.
The Technischer Überwachungsverein* (TÜV – German for
“Technical Inspection Association”) Rheinland type approval
mark is for components and subassemblies for the
European Union.
Where space does not permit, the smaller alternate TÜV
mark (see the next row in this table) may be used.
TÜV Rheinland type approval mark for components and
subassemblies for the European Union – Alternate.
Alternate TÜV mark:
This alternate mark may be used where space constraints
exist that do not permit use of the TUV Rheinland mark in
the previous row of this table.
UL Recognized Component mark for the USA and Canada.
Compliance Statements
Complies with 21CFR 1040.10 and 1040.11
except for deviations pursuant to Laser Notice
No. 50, dated July 26, 2001.
USA Food and Drug Administration (FDA), Center for
Devices and Radiological Health compliance statement.
Alternate FDA compliance statement:
USA FDA, Center for Devices and Radiological Health
Complies with FDA performance standards for
laser products except for deviations pursuant to
Laser Notice No. 50, dated July 26, 2001.
compliance statement – Alternate.
Use the alternate statement listed, as needed.
Datasheet
20-Sept-2006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
29
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
9.0
Ordering Information
Table 22 lists ordering information for the RoHS-compliant TXN3111101 Optical Transceiver.
Table 22. Ordering Information
Part Number
Intel® TXN311110100xxx
Note:
Description
Tri-rate 2/1 Gbps Fibre Channel and Gigabit Ethernet SFP module1
1. The last 3 characters of the part number ("xxx") are used to designate customer-specific
customizations. The Intel standard part has "000" as the last three characters.
20-Sept-2006
30
Datasheet
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
10.0
Acronyms
Table 23.
Acronyms
Acronym
Meaning
BER
CFR
CML
EMI
Bit Error Rate
Code of Federal Relations
Current Mode Logic
Electro-Magnetic Interference
Electro-Static Discharge
European Union
ESD
EU
FC-PI
FCC
FDA
GBIC
IEC
Fiber Channel – Physical Interfaces
Federal Communications Commission
Food and Drug Administration
GigaBit Interface Converter
International Electrotechnical Commission
Institute of Electrical and Electronics Engineers
Loss of Signal
IEEE
LOS
MMF
MSA
NRZ
Pb
Multi-Mode Fiber
Multisource Agreement
Non-Return to Zero
Lead
PCB
PRBS
RFI
Printed Circuit Board
Pseudo Random Bit Sequence
Radio Frequency Immunity
Small-Form Factor
SFF
SCSI
SONET
TOSA
TTL
Small Computer System Interface
Synchronous Optical Network
Transmitter Optical Sub-Assembly
Transistor-Transistor Logic
Technischer Überwachungsverein
Underwriter Laboratories*
Vertical Cavity Surface Emitting Laser
TUV
UL
VCSEL
§ §
Datasheet
20-Sept-2006
31
Intel® TXN31111 Tri-Rate 850 nm Optical Transceiver
Order Number: 280049, Revision: 006
厂商 型号 描述 页数 下载

STMICROELECTRONICS

 		TXN05 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN0510 [ SILICON CONTROLLED RECTIFIER,50V V(DRM),10A I(T),TO-220 ] 1 页

STMICROELECTRONICS

 		TXN0512 高浪涌能力高通态电流高稳定性和可靠性[ HIGH SURGE CAPABILITY HIGH ON-STATE CURRENT HIGH STABILITY AND RELIABILITY ] 5 页

STMICROELECTRONICS

 		TXN0512/F5 [ 12A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

STMICROELECTRONICS

 		TXN054 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN056 [ SILICON CONTROLLED RECTIFIER,50V V(DRM),5A I(T),TO-220 ] 5 页

STMICROELECTRONICS

 		TXN058 晶闸管[ THYRISTORS ] 4 页

STMICROELECTRONICS

 		TXN058/F2 [ 8A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

STMICROELECTRONICS

 		TXN058G 可控硅整流器器[ Silicon controlled rectifiers ] 5 页

STMICROELECTRONICS

 		TXN058G/F5 [ 8A, 50V, SCR, TO-220, TO-220, 3 PIN ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.232185s
