CYW20737S

型号：

CYW20737S

品牌：

CYPRESS[ CYPRESS ]

页数：

24 页

PDF大小：

1338 K

下载PDF手册

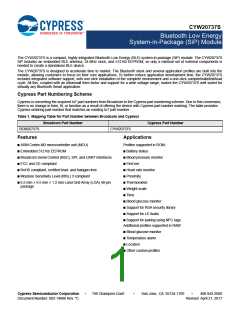

CYW20737S
Bluetooth Low Energy
System-in-Package (SiP) Module
The CYW20737S is a compact, highly integrated Bluetooth Low Energy (BLE) system-in-package (SiP) module. The CYW20737S
SiP includes an embedded BLE antenna, 24 MHz clock, and 512 Kb EEPROM, so only a minimal set of external components is
needed to create a standalone BLE device.
The CYW20737S is designed to accelerate time to market. The Bluetooth stack and several application profiles are built into the
module, allowing customers to focus on their core applications. To further reduce application development time, the CYW20737S
includes integrated software support, with one-click installation of the complete environment and a one-click compile/build/link/load
cycle. All this, coupled with an ultrasmall form factor and support for a wide voltage range, makes the CYW20737S well suited for
virtually any Bluetooth Smart application.
Cypress Part Numbering Scheme
Cypress is converting the acquired IoT part numbers from Broadcom to the Cypress part numbering scheme. Due to this conversion,
there is no change in form, fit, or function as a result of offering the device with Cypress part number marking. The table provides
Cypress ordering part number that matches an existing IoT part number.
Table 1. Mapping Table for Part Number between Broadcom and Cypress
Broadcom Part Number
Cypress Part Number
BCM20737S
CYW20737S
Features
Applications
■ ARM Cortex-M3 microcontroller unit (MCU)
■ Embedded 512 Kb EEPROM
Profiles supported in ROM:
■ Battery status
■ Broadcom Serial Control (BSC), SPI, and UART interfaces
■ FCC and CE compliant
■ Blood pressure monitor
■ Find me
■ RoHS compliant, certified lead- and halogen-free
■ Moisture Sensitivity Level (MSL) 3 compliant
■ Heart rate monitor
■ Proximity
■ 6.5 mm × 6.5 mm × 1.2 mm Land Grid Array (LGA) 48-pin
■ Thermometer
package
■ Weight scale
■ Time
■ Blood glucose monitor
■ Support for RSA security library
■ Support for LE Audio
■ Support for pairing using NFC tags
Additional profiles supported in RAM:
■ Blood glucose monitor
■ Temperature alarm
■ Location
■ Other custom profiles
Cypress Semiconductor Corporation
Document Number: 002-14888 Rev. *C
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised April 21, 2017
CYW20737S
Figure 1. CYW20737S BLE SiP Block Diagram
VBAT/VDDIO
CYW20737S
Antenna
Bandpass
Filter
UART
SPI/I2C
CYW20737S
Bluetooth Low Energy
System-on-Chip with
Infrared
ARM ® Cortex™ M3-based
Microprocessor Core
ADC
24 MHz
XTAL
GPIOs
PWM
32.768 kHz
Oscillator
(optional)
EEPROM
512 Kb I2C
IoT Resources
Cypress provides a wealth of data at http://www.cypress.com/internet-things-iot to help you to select the right IoT device for your
design, and quickly and effectively integrate the device into your design. Cypress provides customer access to a wide range of
information, including technical documentation, schematic diagrams, product bill of materials, PCB layout information, and software
updates. Customers can acquire technical documentation and software from the Cypress Support Community website
(http://community.cypress.com/).
Document Number: 002-14888 Rev. *C
Page 2 of 24
CYW20737S
Contents
1. Functional Description .................................................4
1.1 External Reset .......................................................4
1.2 32.768 kHz Oscillator ............................................4
2. Pin Map and Signal Descriptions ................................5
3. Electrical Specifications ............................................10
4. RF Specifications .......................................................11
5. ADC Specifications ....................................................12
6. Timing and AC Characteristics .................................13
6.1 SPI Timing ...........................................................13
6.2 BSC Interface Timing ..........................................14
6.3 UART Timing .......................................................15
7. PCB Design and Manufacturing Recommendations 16
7.1 Pad and Solder Mask Opening Dimensions ........16
7.2 PCB Layout Recommendations ..........................16
7.3 PCB Stencil ............................................................... 17
7.4 Solder Reflow ......................................................17
8. Packaging and Storage Information .........................18
9. Mechanical Information .............................................20
10. Ordering Information ................................................22
Document History ..........................................................23
Document Number: 002-14888 Rev. *C
Page 3 of 24
CYW20737S
1. Functional Description
1.1 External Reset
External reset timing for the CYW20737S is illustrated in Figure 2.
Figure 2. External Reset Timing
Pulse width
>20 µs
RESET_N
Crystal
warm‐up
delay:
~ 5 ms
Baseband Reset
Crystal Enable
Start reading EEPROM and
firmware boot
1.2 32.768 kHz Oscillator
The CYW20737S includes a standard Pierce oscillator. The oscillator circuit includes a comparator with hysteresis on the output to
create a single-ended digital output. The hysteresis eliminates chatter when the input is near the comparator threshold (~100 mV).
The oscillator circuit can is designed for a 32 kHz or 32.768 kHz crystal oscillator, and can also be driven by an external clock input
with a similar frequency. Characteristics for a 32 kHz oscillator are defined in Table 2.
Table 2. 32 kHz Crystal Oscillator Characteristics
Parameter
Output frequency
Symbol
Conditions
Min.
Typ.
Max.
Unit
Foscout
Ftol
Tstartup
Pdrv
–
Crystal-dependent
–
–
–
32.768
–
–
kHz
ppm
µs
Frequency tolerance
Start-up time
100
–
–
500
–
Crystal drive level
For crystal selection
For crystal selection
For crystal selection
0.5
–
–
µW
kΩ
Crystal series resistance
Crystal shunt capacitance
Rseries
Cshunt
–
70
1.3
–
–
pF
Document Number: 002-14888 Rev. *C
Page 4 of 24


CYW20737S
2. Pin Map and Signal Descriptions
The CYW20737S pin map is shown in Figure 3.
Figure 3. CYW20737S (TOP View)
The signal name, type, and description of each pin in the CYW20737S is listed in Table 3 on page 6. The symbols shown under
I/O Type indicate pin directions (I/O = bidirectional, I = input, O = output) and the internal pull-up/pull-down characteristics (PU = weak
internal pull-up resistor and PD = weak internal pull-down resistor), if any.
Document Number: 002-14888 Rev. *C
Page 5 of 24

CYW20737S
Table 3. Pin Descriptions
Pin
Name
I/O Type
Description
Default direction: Input.
After POR state: Input floating.
Drain current: 16 mA
GPIO: P27
PWM1
1
I
Alternate function: MOSI (master and slave) for SPI_2
2
GND
VBAT
GND
GND
I
GND
3
Battery supply input.
4
GND
GND
GND
GND
GND
GND
–
GND
5
GND
GND
6
GND
GND
7
GND
GND
8
GND
GND
9
GND
GND
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Reserved
GND
Leave floating
GND
GND
GND
GND
GND
GND
GND
GND
I
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
UART_RX
UART_TX
GND
UART_RX. This pin is pulled low through an internal 10 kΩ resistor.
O, PU
GND
I/O, PU
I/O, PU
GND
GND
UART_TX
GND
SCL
SCL I/O, PU clock signal for an external I2C device
SDA
SDA I/O, PU data signal for an external I2C device
GND
GND
GND
GND
Default direction: Input.
After POR state: Input floating.
This pin is tied to the WP pin of the embedded EEPROM.
Requires an external 10K pull-up
25
GPIO: P1
I
Test mode control. Pull this pin high to invoke test mode; leave it floating if not used.
This pin is connected to GND through an internal 10 kΩ resistor.
26
27
TMC
I
RESET_N
I/O PU
Active-low system reset with open-drain output
Document Number: 002-14888 Rev. *C
Page 6 of 24
CYW20737S
Table 3. Pin Descriptions (Cont.)
Pin
Name
I/O Type
Description
Default direction: Input.
After POR state: Input floating.
Alternate functions:
■ A/D converter input
28
GPIO: P0
I
■ Peripheral UART TX (PUART_TX)
■ MOSI (master and slave) for SPI_2
■ IR_RX
■ 60Hz_main
29
30
GND
GND
I
GND
Default direction: Input.
After POR state: Input floating.
Alternate functions:
GPIO: P3
■ Peripheral UART CTS (PUART_CTS)
■ SPI_CLK (master and slave) for SPI_2
Default direction: Input.
After POR state: Input floating.
Alternate functions:
31
GPIO: P2
I
■ Peripheral UART RX (PUART_RX)
■ SPI_CS (slave only) for SPI_2
■ SPI_MOSI (master only) for SPI_2
Default direction: Input.
After POR state: Input floating.
Alternate functions:
32
33
GPIO: P4
GPIO: P8
I
I
■ Peripheral UART RX (PUART_RX)
■ MOSI (master and slave) for SPI_2.
■ IR_TX
Default direction: Input.
After POR state: Input floating.
Alternate functions: A/D converter input.
Default direction: Input.
After POR state: Input floating.
Alternate functions:
■ A/D converter input
34
GPIO: P33
I
■ MOSI (slave only) for SPI_2
■ Auxiliary clock output (ACLK1)
■ Peripheral UART RX (PUART_RX)
Document Number: 002-14888 Rev. *C
Page 7 of 24
CYW20737S
Table 3. Pin Descriptions (Cont.)
Pin
Name
I/O Type
Description
Default direction: Input.
After POR state: Input floating.
Alternate functions:
■ A/D converter input
35
GPIO: P32
I
■ SPI_CS (slave only) for SPI_2.
■ Auxiliary clock output (ACLK0)
■ Peripheral UART TX (PUART_TX)
Default direction: Input.
After POR state: Input floating.
Alternate functions:
36
GPIO: P25
I
I
■ MISO (master and slave) for SPI_2
■ Peripheral UART RX (PUART_RX)
Default direction: Input.
After POR state: Input floating.
Alternate functions:
37
38
GPIO: P24
NC
■ SPI_CLK (master and slave) for SPI_2
■ Peripheral UART TX (PUART_TX)
No Connection (N/C).
NC
I
Default Direction: Input
After POR State: Input Floating
Drain current: 16 mA
GPIO: P13
PWM3
Alternate function: A/D converter input
Default direction: Input.
After POR state: Input floating.
Drain current: 16 mA
39
Alternate functions:
GPIO: P28
PWM2
I
■ A/D converter input
■ LED1
■ IR_TX
Default direction: Input.
After POR state: Input floating.
Alternate function: A/D converter input
GPIO: P14
PWM2
I
I
Default direction: Input.
After POR state: Input floating.
Alternate functions:
40
GPIO: P38
GPIO: P15
■ A/D converter input
■ MOSI (master and slave) for SPI_2
■ IR_TX
Default direction: Input.
After POR state: Input floating.
Alternate functions:
41
I
■ A/D converter input
■ IR_RX
■ 60 Hz_main
Document Number: 002-14888 Rev. *C
Page 8 of 24
CYW20737S
Table 3. Pin Descriptions (Cont.)
Pin
Name
I/O Type
Description
Default direction: Input.
After POR state: Input floating.
Drain current: 16 mA
GPIO: P26
PWM0
42
I
Alternate function: SPI_CS (slave only) for SPI_2
Default direction: Input.
After POR state: Input floating.
Alternate functions:
GPIO: P12
XTALO32K
GPIO: P11
I
O
I
■ A/D converter input
■ XTALO32K
43
Low-power oscillator (LPO) output.
Alternate functions:
P12
P26
Default direction: Input.
After POR state: Input floating.
Alternate functions:
■ A/D converter input
■ XTALI32K
44
Low-power oscillator (LPO) input.
Alternate functions:
XTALI32K
I
■ P11
■ P27
GND
45
46
47
48
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Document Number: 002-14888 Rev. *C
Page 9 of 24
CYW20737S
3. Electrical Specifications
Absolute maximum ratings are defined in Table 4.
Table 4. Absolute Maximum Ratings
Parameter
Supply power
Min.
NA
–40
0
Max.
3.63
125
±2
Unit
V
Storage temperature
°C
%
Voltage ripple
Power supply (VBAT absolute maximum rating)
1.62
3.63
V
Power for the CYW20737S module is provided by the host through the power pins.
Table 5. Voltage
Symbol
Parameter
Min.
1.62
Typ.
Max.
3.63
Unit
VBAT
Battery voltage
–
V
Table 6. Current Consumption
Operating Mode
Condition
Nominal
Maximum
Unit
Receive
Transmit
Sleep
Receiver and baseband are both operating, 100%
Transmitter and baseband are both operating, 100%
Wake in < 5 ms
24.0
24.0
55.0
2.0
28.0
mA
mA
µA
28.0
60.0
2.5
Deep Sleep
Wake on interrupt
µA
Note: All measurements taken at 25°C
Based on the current measurements in Table 6 on page 10, CYW20737S peak power values are:
■ RX: 101.6 mW
■ TX: 101.6 mW
■ Sleep mode: 217.8 µW
■ Deep Sleep mode: 9.1 µW
Document Number: 002-14888 Rev. *C
Page 10 of 24


CYW20737S
4. RF Specifications
CYW20737S receiver specifications are defined in Table 7.
Table 7. Receiver Specifications
Parameter
Mode and Conditions
Min.
Typ.
Max.
Unit
Frequency range
–
2402
–
2480
MHz
RX sensitivity (standard)
Packets: 200
–
–94
–
dBm
Payload: PRBS 9
Length: 37 Bytes
Dirty Transmitter: off.
PER: 30.8%
Maximum input
–
–10
–
–
dBm
Note: All measurements taken at 3.0V (default voltage)
RF transmitter specifications are defined in Table 8.
Table 8. Transmitter Specifications
Parameter
Min.
Typ.
Max.
Unit
Transmitter
Frequency rangea
2402
–20
–
–
–
2480
MHz
dBm
dBm
dB
Output power adjustment range
Output power
4
–
–
2
Output power variation
–
2.5
LO Performance
Frequency Drift
Initial carrier frequency tolerance
–
–
±150
kHz
Frequency drift
Drift rate
–
–
–
–
±50
20
kHz
kHz/50 µs
Frequency Deviation
Average deviation in payload
(sequence: 00001111)
225
185
–
–
–
2
275
–
kHz
kHz
MHz
Average deviation in payload
(sequence: 10101010)
Channel spacing
–
a. This parameter is taken from the Bluetooth 4.0 specification.
Document Number: 002-14888 Rev. *C
Page 11 of 24


CYW20737S
5. ADC Specifications
CYW20737S ADC specifications are defined in Table 9.
Table 9. ADC Specifications
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Unit
Number of input channels
Channel switching rate
Input signal range
–
fch
Vinp
–
–
–
–
–
–
9
–
–
133.33
3.63
–
-
Kch/s
V
0
–
Reference settling time
Input resistance
Charging refsel
7.5
–
–
µs
Rinp
Cinp
Fc
Effective, single-ended
500
–
–
kꢀ
pF
Input capacitance
–
–
–
–
–
5
Conversion rate
5.859
5.35
–
187
170.7
kHz
µs
Conversion time
Tc
–
Resolution
R
16
±2
Bits
%
Absolute voltage measurement error
–
Using on–chip ADC
firmware driver
–
–
Current
I
P
Iavdd1p2 + Iavdd3p3
–
–
–
1.5
–
1
–
mA
mW
nA
Power
–
Leakage Current
Power-up time
Integral nonlinearity
Ileakage
Tpowerup
INL
T = 25°C
–
–
100
200
1
–
–
µs
LSBa
In the guaranteed
performance range
–1
–
Differential nonlinearity
DNL
In the guaranteed
performance range
–1
–
1
LSBa
a. LSBs are expressed at the 10-bit level.
Document Number: 002-14888 Rev. *C
Page 12 of 24

CYW20737S
6. Timing and AC Characteristics
6.1 SPI Timing
SPI interface timing is illustrated in Figure 4 and Figure 5 and defined in Table 10 on page 14.
Figure 4. SPI Timing—Modes 0 and 2
6
SPI_CSN
SPI_CLK
1
(Mode 0)
SPI_CLK
(Mode 2)
2
3
‐
First Bit
Second Bit
Last bit
Last bit
‐
SPI_MOSI
SPI_MISO
4
5
First Bit
Not Driven
Second Bit
Not Driven
Figure 5. SPI Timing—Modes 1 and 3
6
SPI_CSN
SPI_CLK
1
(Mode 1)
SPI_CLK
(Mode 3)
2
3
‐
Invalid bit
Invalid bit
‐
First bit
Last bit
Last bit
SPI_MOSI
SPI_MISO
4
5
Not Driven
Not Driven
First bit
Document Number: 002-14888 Rev. *C
Page 13 of 24


CYW20737S
Table 10. SPI Interface Timing Specifications
Reference
Characteristics
Min.
Typ.
Max.
1
2
3
4
5
6
Time from CSN asserted to first clock edge
Master setup time
1 SCK
–
100
∞
1/2SCK
–
–
Master hold time
1/2SCK
–
-
Slave setup time
1/2 SCK
–
–
Slave hold time
1/2 SCK
SCK
–
Time from last clock edge to CSN deasserted
10 SCK
100
6.2 BSC Interface Timing
BSC interface timing is illustrated in Figure 6 and is defined in Table 11.
Figure 6. BSC Interface Timing
Table 11. BSC Interface Timing Specifications
Reference
Characteristics
Min.
Max.
Unit
1
2
Clock frequency
–
100, 400, 800, 1000
kHz
ns
ns
ns
ns
ns
ns
ns
ns
ns
START condition setup time
START condition hold time
Clock low time
650
280
650
280
0
–
–
3
4
–
5
Clock high time
–
6
Data input hold time
Data input setup time
STOP condition setup time
Output valid from clock
Bus free time
–
7
100
280
–
–
8
–
9
400
–
10
650
Document Number: 002-14888 Rev. *C
Page 14 of 24


CYW20737S
6.3 UART Timing
UART timing is illustrated in Figure 7 and defined in Table 12.
Figure 7. UART Timing
Table 12. UART Timing Specifications
Reference
Characteristics
Min.
Max.
24
Unit
Baudout cycles
ns
1
2
3
Delay time, UART_CTS_N low to UART_TXD valid
Setup time, UART_CTS_N high before midpoint of stop bit
Delay time, midpoint of stop bit to UART_RTS_N high
–
–
–
10
2
Baudout cycles
Document Number: 002-14888 Rev. *C
Page 15 of 24


CYW20737S
7. PCB Design and Manufacturing Recommendations
7.1 Pad and Solder Mask Opening Dimensions
CYW20737S pad and solder mask opening dimensions are defined in Table 13.
Table 13. Pad and Solder Mask Dimensions
Pad Type
Type A
Pad Dimensions
0.6 × 0.25
Solder Mask Opening Dimensions
Unit
0.7 × 0.35
0.65 × 0.4
0.5 × 0.5
Type B
Type C
0.55 × 0.3
mm
0.4 × 0.4
7.2 PCB Layout Recommendations
The following layout recommendations are referenced to Figure 8 on page 16.
■ Connect to system ground from side D of the module (pins 13–22).
■ The L-shaped ground plane is required for the embedded BLE antenna. Keep the GND continuous. Do not cut off the GND shape
to accommodate trace routes.
■ An L-shaped ground plane is required. If the L-shaped GND plane is located on the top layer of the PCB, do not place components
on the ground plane. If this cannot be avoided, move the L-shaped ground plane to another layer.
■ Antenna efficiency of 31–41% can be achieved based on the layout in Figure 8 on page 16 and the dimensions listed below.
Following these layout recommendations is expected to yield 50+ meters of usable range; deviating from these recommendations
may reduce the range of the antenna.
❐ D: 4.5 mm (typical)
❐ G, H, S: 3 mm (typical)
❐ L: 3 mm (minimum)
❐ W: 0.4 mm (typical)
■ Route signal traces out of the module from side C (between pins 27 and 30) or side D (between pins 16 and 19) of the module.
Traces can be overlapped to avoid routing through the keep-out area.
■ Do not route traces from side A or side B.
Figure 8. PCB Layout Example
Document Number: 002-14888 Rev. *C
Page 16 of 24


CYW20737S
7.3 PCB Stencil
The recommended PCB stencil is shown in Figure 9 (all measurements in mm). Use an unsolder mask to set the module footprint.
Figure 9. CYW20737S Stencil (Bottom View)
7.4 Solder Reflow
The recommended solder reflow profile for the CYW20737S is defined in Figure 10.
Figure 10. Solder Reflow Profile
245°C
217°C
200°C
150°C
Pre‐Heating: 90~120 sec.
Soldering: 60~90 sec.
Ti
Document Number: 002-14888 Rev. *C
Page 17 of 24


CYW20737S
8. Packaging and Storage Information
The CYW20737S is available in a tape and reel package and is shipped in an ESD-protected moisture-resistant (MSL-3) bag as shown
in Figure 11. The storage temperature range is –40°C to +125°C.
Figure 11. CYW20737S ESD/Moisture Packaging
The moisture sensitivity label on the CYW20737S shipping bag is shown in Figure 12 on page 19.
Document Number: 002-14888 Rev. *C
Page 18 of 24

CYW20737S
Figure 12. CYW20737S Moisture Sensitivity Label
Figure 13 shows the location of pin 1 on the CYW20737S relative to its orientation on the tape packaging.
Figure 13. CYW20737S Tape and Reel Pin 1 Location
Document Number: 002-14888 Rev. *C
Page 19 of 24

CYW20737S
9. Mechanical Information
Package dimensions for the CYW20737S are shown in Figure 14.
Figure 14. CYW20737S Package Dimensions
Additional CYW20737S package dimensions are shown in Figure 15 on page 21.
Document Number: 002-14888 Rev. *C
Page 20 of 24

CYW20737S
Figure 15. CYW20737S Pin Dimensions (Bottom View)
Document Number: 002-14888 Rev. *C
Page 21 of 24
CYW20737S
10. Ordering Information
Table 14. Ordering Information
Part Number
Package
Operating Temperature
Humidity
CYW20737S
48-pin LGA
–40°C to +85°C
95% max., noncondensing
Document Number: 002-14888 Rev. *C
Page 22 of 24
CYW20737S
Document History
Document Title: CYW20737S Bluetooth Low Energy System-in-Package (SiP) Module
Document Number: 002-14888
Orig. of
Change
Submission
Date
Revision
ECN
Description of Change
20737S-DS100-R:
Initial release
**
–
–
09/26/2014
20737S-DS101-R:
Updated
*A
–
UTSV
UTSV
11/06/2015
09/23/2016
•
Table 5 on page 14
Updated to Cypress Template
Updated Cypress Logo and Copyright.
*B
*C
5444054
5688156
AESATMP7 04/21/2017
Document Number: 002-14888 Rev. *C
Page 23 of 24
CYW20737S
Sales, Solutions, and Legal Information
Worldwide Sales and Design Support
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office
closest to you, visit us at Cypress Locations.
®
Products
PSoC Solutions
ARM® Cortex® Microcontrollers
cypress.com/arm
cypress.com/automotive
cypress.com/clocks
cypress.com/interface
cypress.com/iot
PSoC 1 | PSoC 3 | PSoC 4 | PSoC 5LP | PSoC 6
Automotive
Cypress Developer Community
Clocks & Buffers
Interface
Forums | WICED IoT Forums | Projects | Video | Blogs |
Training | Components
Internet of Things
Memory
Technical Support
cypress.com/memory
cypress.com/mcu
cypress.com/support
Microcontrollers
PSoC
cypress.com/psoc
cypress.com/pmic
cypress.com/touch
cypress.com/usb
Power Management ICs
Touch Sensing
USB Controllers
Wireless Connectivity
cypress.com/wireless
24
© Cypress Semiconductor Corporation, 2014-2017. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC (“Cypress”). This document,
including any software or firmware included or referenced in this document (“Software”), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries
worldwide. Cypress reserves all rights under such laws and treaties and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other
intellectual property rights. If the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the Software, then Cypress
hereby grants you a personal, non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in the Software (a) for Software provided in source code form, to
modify and reproduce the Software solely for use with Cypress hardware products, only internally within your organization, and (b) to distribute the Software in binary code form externally to end users
(either directly or indirectly through resellers and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress's patents that are infringed by the Software (as
provided by Cypress, unmodified) to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use, reproduction, modification, translation, or compilation
of the Software is prohibited.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS DOCUMENT OR ANY SOFTWARE
OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent
permitted by applicable law, Cypress reserves the right to make changes to this document without further notice. Cypress does not assume any liability arising out of the application or use of any
product or circuit described in this document. Any information provided in this document, including any sample design information or programming code, is provided only for reference purposes. It is
the responsibility of the user of this document to properly design, program, and test the functionality and safety of any application made of this information and any resulting product. Cypress products
are not designed, intended, or authorized for use as critical components in systems designed or intended for the operation of weapons, weapons systems, nuclear installations, life-support devices or
systems, other medical devices or systems (including resuscitation equipment and surgical implants), pollution control or hazardous substances management, or other uses where the failure of the
device or system could cause personal injury, death, or property damage (“Unintended Uses”). A critical component is any component of a device or system whose failure to perform can be reasonably
expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim,
damage, or other liability arising from or related to all Unintended Uses of Cypress products. You shall indemnify and hold Cypress harmless from and against all claims, costs, damages, and other
liabilities, including claims for personal injury or death, arising from or related to any Unintended Uses of Cypress products.
Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are trademarks or registered trademarks of Cypress in
the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com. Other names and brands may be claimed as property of their respective owners.
Document Number: 002-14888 Rev. *C
Revised April 21, 2017
Page 24 of 24
厂商 型号 描述 页数 下载

CYPRESS

 		CYW134MOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134MOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

SPECTRALINEAR

 		CYW137OXC FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SPECTRALINEAR

 		CYW137OXCT FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SILICON

 		CYW150 [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXC [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXCT [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

CYPRESS

 		CYW15G0101DXB 单通道的HOTLink II ™收发器[ Single-channel HOTLink II⑩ Transceiver ] 39 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222748s
