RYC8520L

型号：

RYC8520L

品牌：

OKI[ OKI ELECTRONIC COMPONETS ]

页数：

7 页

PDF大小：

210 K

下载PDF手册

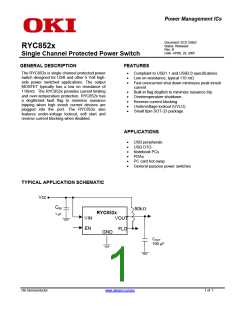

Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
GENERAL DESCRIPTION
FEATURES
The RYC852x is single channel protected power
switch designed for USB and other 5 Volt high-
side power switched applications. The output
MOSFET typically has a low on resistance of
110mΩ. The RYC852x provides current limiting
and over-temperature protection. RYC852x has
a deglitched fault flag to minimize nuisance
tripping when high inrush current devices are
plugged into the port. The RYC852x also
features under-voltage lockout, soft start and
reverse current blocking when disabled.
•
•
•
Compliant to USB1.1 and USB2.0 specifications
Low on-resistance, typical 110 mΩ
Fast overcurrent shut down minimizes peak inrush
current
Built-in flag deglitch to minimize nuisance trip
Overtemperature shutdown
Reverse current blocking
Undervoltage lockout (UVLO)
Small 6pin SOT-23 package
•
•
•
•
•
APPLICATIONS
•
•
•
•
•
•
USB peripherals
USB OTG
Notebook PCs
PDAs
PC card hot swap
General purpose power switches
TYPICAL APPLICATION SCHEMATIC
Vcc
CIN
50kΩ
RYC852x
VOUT
µ
1
F
VIN
EN
FLG
GND
COUT
100 µF
Oki Semiconductor
www.okisemi.com/us
1 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
ORDERING INFORMATION
Part Description
Part Number
Enable Logic
Continuous
Current (A)
0.6
Package
Tape and Reel
Quantity
RYC8520H
RYC8520L
A20930-000
E49332-000
Active High
Active Low
SOT-23-6
SOT-23-6
2,500 pcs
2,500 pcs
0.6
Note: Other current may be available, please contact factory
MATERIALS INFORMATION
ROHS Compliant
ELV Compliant
Pb-Free
PIN CONFIGURATION
6
4
5
EN
IN
NC
OUT
FLG
GND
1
2
3
PIN DESCRIPTION
Pin Number
Pin Name
Pin Function
1
FLG
Fault Flag (Output): Active-low open-drain output. Indicate overcurrent, UVLO
and thermal shutdown.
2
3
GND
OUT
Ground: Supply return.
Switch Output: Output MOSFET source. Typically connect to switched side of
load.
4
5
6
NC
IN
No connection.
Supply Input: Output MOSFET drain. Also supplies IC’s internal circuitry.
Connect to positive supply.
Enable (Input): Logic-compatible enable input. High input > 2.4V. Low input <
0.8V (H-active high, L-active low). Do not float.
EN
Oki Semiconductor
www.okisemi.com/us
2 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Parameter
Symbol
VIN
Value
-0.3 to +6
-0.3 to +6
+6
Units
V
Max main supply voltage
Max voltage, all I/O pins
Output voltage
VIN
V
VOUT
IOUT
V
Output current
Internally limited
A
Control input
VEN
V
− 0.3 to Vin+0.3
− 65 to +150
260
Storage temperature
Max lead temperature during soldering (5 sec.)
TS
°C
°C
Note 1. Operation beyond absolute maximum rating or improper use may result in permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods or to conditions beyond absolute maximum rating conditions may adversely affect
device reliability. Functional operation under absolute maximum rating conditions is not implied.
Note 2. Devices are ESD sensitive. Handling precautions recommended. .
OPERATING RATINGS (Note 3)
Parameter
Symbol
Value
Units
Supply voltage
VIN
+4.5 to +5.5
V
Continuous output current
IOUT
TA
0.6
-40 to +85
240
A
Ambient operating temperature
Thermal resistance (5pin SOT-23), Note 5
°C
°C/W
θ JA
Note 3. The device is not designed to function outside its operating rating.
ELECTRICAL CHARACTERISTICS (VIN = +5V; TA = 25°C; unless noted.)
Power Switch
Condition
Min
Typ
110
0.5
Max
Units
mΩ
ms
Pin to Pin Resistance
Output Turn-On Time
Output Turn-Off Time
VIn = 5V, I OUT = 500mA
RL = 50 Ω, CL = 1µF, sum of delay+ rise time.
RL = 50 Ω, CL = 1µF, sum of delay+ fall time
150
µs
Current Limit
Condition
Min
Typ
Max
Units
Short-circuit Current Limit
0.6
1.0
1.25
A
RYC8520, Short circuit applied to the output pin of EN device with 0.5Ω
load
Short-circuit response time
Short-circuit applied to the output pin ('Hot-plugged short') VOUT = 5.0V,
RL = 0.5Ω, Note 5
1
µs
Enable Input
Enable Input Threshold
Condition
Min
Typ
1.5
1.5
Max
2.4
Units
V
V
µA
pF
Low-to-high transition, Note 4
High-to-low transition, Note 4
VEN = 0V to 5.5V
0.8
Enable Input Current
Enable Input Capacitance
0.01
1
5
Note 5
Leakage Current
Supply Current
Condition
Min
Typ
6
100
1
Max
15
200
20
Units
µA
µA
Switch disabled, OUT =open
Switch on, OUT = open
Output disabled
Output Leakage Current
0.01
µA
Overtemperature and UVLO Condition
Min
Typ
130
120
2.4
Max
Units
°C
°C
V
Overtemperature Shutdown
Threshold
TJ increasing, Note 5
TJ decreasing, Note 5
VIn = increasing
UVLO Threshold
VIn = decreasing
2.2
V
Oki Semiconductor
www.okisemi.com/us
3 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
Error Flag
Condition
VIn = 5V, IL = 10mA, open drain
VFLAG = 5V
Min
Typ
50
0.01
10
Max
100
1
Units
Ω
µA
Error Flag Output Resistance
Error Flag Off Current
Error flag output deglitch
Fault on overcurrent, UVLO and thermal shutdown, Note 6
20
ms
Note 4. VIN should be within the operating range before the device is enabled.
Note 5. Validated by design, but not production tested.
Note 6. No error flag out deglitch on UVLO and thermal shutdown.
TYPICAL CHARACTERISTICS
Figure 1. Test Circuit and Timing Diagram
Figure 2. Turn-on Delay Time
VIN = 5V, RL = 50 Ω
Time (200 µs/div)
VEN
(5V/div)
OUT
tr
tf
RL
CL
90% 90%
VOUT
VFLG
(5V/div)
10%
10%
Output rise and fall
time
Test Circuit
VOUT
(5V/div)
50%
50% 50%
50%
90%
VEN
VEN
tON
tOFF
tON
tOFF
90%
VOUT
VOUT
IOUT
10%
10%
(0.5A/div)
Active-low switch delay
time
Active-high switch delay
time
FUNCTIONAL DESCRIPTION
The RYC852x is single channel protected power switches designed for USB and other 5 Volt high-side power
switched applications. The output MOSFET has a low on resistance of typical 110mΩ. The RYC852x provides
current limiting and over-temperature protection. RYC852x has a deglitched fault flag to minimize nuisance tripping
when high inrush current devices are plugged into the port. The RYC852x also features under-voltage lockout, soft
start and reverse current blocking when disabled.
Current Limit and Overtemperature
Oki Semiconductor
www.okisemi.com/us
4 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
The current limit is 0.6A minimum and 1.25A maximum for the RYC8520. When the current limit is exceeded, the
device will first limit the current and then, if necessary, will go into thermal shutdown when the die temperature
reaches approximately 130°C. When the temperature falls 10°C below the thermal shutdown temperature, the
device will restart. If the fault has not been removed, the device will continue to cycle on and off. The frequency of
the cycle is dependent on the impedance of the fault and the thermal environment.
Enable Pull Up/Down
The EN input is logic level compatible. The enable pin should not be allowed to float; a pull-up/down resistor should
be used to tie the pin high/low.
Fault Flag
The fault flag signal is asserted low when an overcurrent, overtemperature or undervoltage event occurs. In the
event of an overcurrent, the fault flag is deglitched for approximately 10 ms to minimize nuisance tripping. The FLAG
pin is an open drain design and will require a pull-up resistor.
Undervoltage lockout (UVLO)
If the supply voltage drops below approximately 2.2V the RYC852x will turn off. The undervoltage limit protects the
hub from operating at voltages too low to assure reliable logic operation.
Soft Start
When the device is first enabled into a load, the device is turned on slowly and requires 0.5 ms to reach 90% of the
maximum voltage.
Oki Semiconductor
www.okisemi.com/us
5 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
APPLICATION INFORMATION
Input Capacitor
Decoupling input capacitors (0.1 µF) should be used to tie the VIN pin to ground to minimize voltage transients.
Input transients which exceed the absolute maximum rating may cause damage to the device.
Output Capacitors
Decoupling capacitors (0.1 µF) between the output and ground are also recommended to reduce the impact of other
voltage transients such as ESD. Output capacitors will help minimize negative voltage spikes due to parasitic
inductance. USB specifications require 120 µF of low ESR output capacitance per hub.
Vcc
CIN
50kΩ
RYC852x
1 µF
VOUT
FLG
VIN
EN
GND
COUT
100 µF
Oki Semiconductor
www.okisemi.com/us
6 of 7
Power Management ICs
Document: SCD 25862
Status: Released
Rev. B
RYC852x
Single Channel Protected Power Switch
Date: APRIL 29, 2005
PACKAGE INFORMATION
6 Pin SOT-23 PACKAGE NOTES:
1. Dimensions and tolerance per ANSI Y14.5M-1982.
2. Dimensions A and B are datums and T is a datum surface.
3. Controlling dimensions: Millimeters
4. Dimension A and B do not include mold flash. Mold flash shall not exceed 0.15mm [0.006] per side.
5. Dimension D does not include interlead flash. Interlead flash shall not exceed 0.25 mm [0.010].
Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of each product for
their applications. Oki Semiconductor assumes no responsibility for the use of its product or for any infringement of patents or other rights of third
parties resulting from the use of its product. No license is granted by implication or otherwise under any patent or proprietary right of Oki
Semiconductor except the right to use such product for the purpose for which it is sold. Oki Semiconductor reserves the right to change or
update, without notice, any information contained in this publication; to change, without notice, the design, construction, processing, or
specification of any product; and to discontinue or limit production or distribution of any product. This publication supersedes and replaces all
information previously supplied. Without express written consent by an officer of Oki Semiconductor, Oki Semiconductor does not authorize the
use of any its products as components in nuclear facility applications, aerospace, or in critical life support devices or systems. Oki
Semiconductor’ only obligations are those in the Oki Semiconductor Standard Terms and Conditions of Sale and in no case will Oki
Semiconductor be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of its products.
© 2006 Oki Semiconductor
Oki Semiconductor
www.okisemi.com/us
7 of 7
厂商 型号 描述 页数 下载

ROHM

 		RYC002N05 0.9V驱动N沟道MOSFET[ 0.9V Drive Nch MOSFET ] 7 页

TYSEMI

 		RYC002N05 0.9V驱动N沟道MOSFET的高速switing 。小型封装（ SST3 ） 。[ 0.9V Drive Nch MOSFET High speed switing. Small package(SST3). ] 2 页

TYSEMI

 		RYC002N05T316 0.9V驱动N沟道MOSFET[ 0.9V Drive Nch MOSFET ] 2 页

ETC

 		RYC130 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC136 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC143 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC150 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC230 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC236 光电\n[ Optoelectronic ] 8 页

ETC

 		RYC240 光电\n[ Optoelectronic ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226875s
