RYC8620-1MZ0AL

型号:

RYC8620-1MZ0AL

品牌:

OKI[ OKI ELECTRONIC COMPONETS ]

页数:

14 页

PDF大小:

168 K

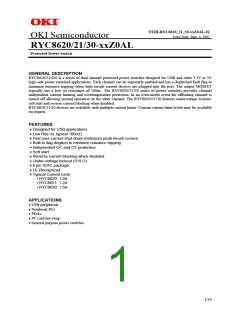

FEDLRYC8620_21_30-xxZ0AL-01
Issue Date: June. 4, 2007
OKI Semiconductor
RYC8620/21/30-xxZ0AL
Protected Power Switch
GENERAL DESCRIPTION
RYC8620/21/630 is a series of dual channel protected power switches designed for USB and other 3.3V to 5V
high-side power switched applications. Each channel can be separately enabled and has a deglitched fault flag to
minimize nuisance tripping when high inrush current devices are plugged into the port. The output MOSFET
typically has a low on resistance of 100m:. The RYC8620/21/30 series of power switches provides channel
independent current limiting and overtemperature protection. In an overcurrent event the offending channel is
turned off allowing normal operation on the other channel. The RYC8620/21/30 features undervoltage lockout,
soft start and reverse current blocking when disabled.
RYC8620/21/30 devices are available with multiple current limits. Custom current limit levels may be available
on request.
FEATURES
Designed for USB applications
Low Rds on, typical 100m
Fast over-current shut down minimizes peak inrush current
Built-in flag deglitch to minimize nuisance tripping
Independent OC and OT protection
Soft start
Reverse current blocking when disabled.
Under-voltage lockout (UVLO)
8 pin SOIC package
UL Recognized
Typical Current Limit
RYC8620: 1.0A
RYC8621: 1.2A
RYC8630: 1.5A
APPLICATIONS
USB peripherals
Notebook PCs
PDAs
PC card hot swap
General purpose power switches
1/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
TYPICAL APPLICATION SCHEMATIC
Vcc
50k
50k
LOGIC CONTROLLER
RYC86xx
ENA
Vin
Enable
OUTA
OUTPUTA
100μF
Over-Current
Over-Current
FLGA
FLGB
IN
GND
10μF
OUTPUTB
GND
Enable
ENB
OUTB
100μF
ORDERING INFORMATION
Part Description
Enable
Continuous
Current (A)
Package
Tape and Reel
Quantity
RYC8620-1MZ0AL
RYC8620-2MZ0AL
RYC8621-1MZ0AL
RYC8621-2MZ0AL
RYC8630-1MZ0AL
RYC8630-2MZ0AL
Active High
0.6
0.6
0.7
0.7
1.1
1.1
8-lead SOIC
8-lead SOIC
8-lead SOIC
8-lead SOIC
8-lead SOIC
8-lead SOIC
2,500 pcs
2,500 pcs
2,500 pcs
2,500 pcs
2,500 pcs
2,500 pcs
Active Low
Active High
Active Low
Active High
Active Low
Note: Other current may be available, please contact factory.
2/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
PIN CONFIGURATION
1
2
3
4
8
7
6
5
ENA
FLGA
FLGB
ENB
OUTA
IN
GND
OUTB
DEVICE MARKING
8620
- 2M

Part ID1
Part ID2
Lot ID
PIN DESCRIPTION
Pin Number
1, 4
Pin Name
EN(A/B)
Pin Function
Enable (Input): Logic-compatible enable input. Do not float.
High input > 2.4V. Low input <0.8V (-1 active high, -2 active low).
2, 3
5, 8
FLG(A/B) Fault Flag (Output): Active-low open-drain output. Indicates overcurrent,
UVLO and thermal shutdown.
OUT(A/B) Switch Output: Output MOSFET source. Typically connects to switched side
of load.
6
7
GND
IN
Ground: Supply return.
Supply Input: Output MOSFET drain. Also supplies ICs internal circuitry.
Connect to positive supply.
3/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
FUNCTIONAL DIAGRAM
Charge Pump
FLGA
Current
Limit
Port A Flag
Control &
Deglitch
ENA
OUTA
V_in
Port A
OC Logic
Port A
OC Detection
SWA Gate
Drive
I Sensor A
I Sensor B
Thermal.
Shutdown
UVLO
Temp.
Sensor
SWB Gate
Drive
Port B
OC Detection
Port B
OC Logic
OUTB
FLGB
ENB
Port B Flag
Control &
Deglitch
Oscillator
Current
Limit
Charge Pump
GND
4/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Parameter
Max main supply voltage
Symbol
Value
-0.3 to +6
-0.3 to +6
+6
Units
V
VIN
VIN
Max voltage, all I/O pins
Output voltage
V
VOUT
IOUT
VEN
TS
V
Output current
Internally limited
0.3 to 5.5
65 to +150
25
A
Control input
V
Storage temperature
Fault flag current
°C
mA
°C
IFLG
Max lead temperature during soldering (5 sec.)
260
Note 1. Operation beyond absolute maximum rating or improper use may result in permanent damage
to the device. Exposure to absolute maximum rating conditions for extended periods or to
conditions beyond absolute maximum rating conditions may adversely affect device reliability.
Functional operation under absolute maximum rating conditions is not implied.
Note 2. Devices are ESD sensitive. Handling precautions recommended.
OPERATING RATINGS (Note 3)
Parameter
Supply voltage, Note 4
Symbol
VIN
Value
Units
V
+3.0 to +5.5
RYC8620 0.6
RYC8621 0.7
RYC8630 1.1
A
A
A
Continuous Output Current
IOUT
Ambient operating temperature
TA
-40 to +85
120
°C
Thermal resistance (8 pin SOIC), Note 5
θ JA
°C/W
Note 3. The device is not designed to function outside its operating rating.
Note 4. UL recognized at 3.3 5Vdc
5/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
ELECTRICAL CHARACTERISTICS (VIN = +5V; TA = 25°C; unless noted.)
Power Switch
Condition
VIN = 5V, IOUT = 500mA, Note 6
VIN = 3.3V, IOUT = 500mA, Note 6
RL = 50 , CL = 1µF, each output, sum of delay+
rise time.
Min
Typ Max Units
Pin to Pin Resistance
100
100
0.5
140
140
1.0
mΩ
Output Turn-On Time
Output Turn-Off Time
0.2
10
ms
µs
RL = 50 , CL = 1µF, each output, sum of delay+
fall time
150
300
Current Limit
Condition
Min
0.6
Typ Max Units
Short-circuit Current Limit
RYC8620 Short circuit applied to the output pin
of EN device with 1load
1.0
1.2
1.5
1
1.25
1.35
2.2
A
RYC8621 Short circuit applied to the output pin
of EN device with 1load
0.7
1.1
A
RYC8630 Short circuit applied to the output pin
of EN device with 1load
A
Short-circuit Response Time Short-circuit applied to the output port of EN
device ('Hot-plugged short') VOUT = 5.0V, RL =
0.5 , Note 5
µs
Enable Input
Condition
Low-to-high transition, Note 7
High-to-low transition, Note 7
VEN = 0V to 5.5V
Min
Typ Max Units
Enable Input Threshold
1.8
1.7
2.4
V
V
0.8
Enable Input Current
0.01
1
5
µA
pF
Enable Input Capacitance
Note 5
Leakage Current
Supply Current
Condition
Switch off, OUT = open
Min
Typ Max Units
6
100
1
15
200
20
µA
µA
µA
All switches on, OUT = open
Each output, output disabled
Output Leakage Current
0.01
Min
Over-temperature and UVLO
Condition
Typ Max Units
Over-temperature Shutdown TJ increasing, Note 5
130
120
2.3
°C
°C
V
Threshold
TJ decreasing, Note 5
VIN = increasing
UVLO Threshold
VIN = decreasing
2.0
V
Error Flag
Condition
Min
Typ Max Units
Error Flag Output Resistance VIN = 5V, IL = 10mA, open drain
10
100
1
Error Flag Off Current
VFLAG = 5V
0.01
µA
Fault on over-current, UVLO and thermal
shutdown, Note 8
Error Flag Output Deglitch
12
20
ms
Note 5. Validated by design, but not production tested.
Note 6. Pin to Pin total resistance includes lead frame, silicon die metalization, bond wire and FET
Rdson resistances. Please be aware that some manufacturers only specify the Rdson value,
which can be significantly less than the total pin to pin resistance.
Note 7. VIN should be within the operating range before the device is enabled.
Note 8. No error flag out deglitch on UVLO and thermal shutdown.
6/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
TYPICAL CHARACTERISTICS
OUT
tr
tr
RL
CL
90%
90%
VOUT
10%
10%
Test Circuit
Output rise and fall time
50%
50%
90%
50%
50%
VEN
VEN
tON
tON
tOFF
tOFF
90%
VOUT
VOUT
10%
10%
Active-low switch delay time
Active-high switch delay time
Figure 1. Test Circuit and Timing Diagram
Figure 2. Turn-on Delay Time VIN = 5V, RL = 10 Ω
Figure 3. Enable into Short Circuit (note the 13 ms flag delay)
VIN = 5V, RL = 0.1 Ω
7/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
Figure 4. Enable into Short Circuit (extended time with thermal cycling)
VIN = 5V, RL = 0.1 Ω
Figure 5. Hot-plugged Short Circuit VIN = 5V, RL = 0.1 Ω
Figure 6. Hot-plugged Short Circuit (extended time with thermal cycling)
VIN = 5V, RL = 0.05 Ω
8/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
Figure 7. Nuisance Trip Elimination
Hot plugged into a capacitive load
VIN = 5V, RL = 10 Ω, CL = 1880 μF
Figure 8. Independent OC/OT Coordination
VIN = 5V, RLA = 10 Ω, RLB = 0.1 Ω
9/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
FUNCTIONAL DESCRIPTION
The RYC86xx is a series of dual channel protected power switches designed for USB, SD Memory, and other 3.3V
to 5V high-side power switched applications. Each channel can be separately enabled and has a deglitched fault
flag to minimize nuisance tripping when high inrush current devices are plugged into the port. The output
MOSFET typically has a low on resistance of 100m. The RYC86xx provides channel independent current
limiting and overtemperature protection. In an overcurrent event, the offending channel is turned off allowing
normal operation on the other channel. The RYC86xx features undervoltage lockout, soft start and reverse current
blocking when disabled.
Current Limit and Over-temperature
The RYC86xx is designed to support two power ports. The current limit is 0.6A minimum and 1.25A maximum
for the RYC8620, 0.7A minimum and 1.35A maximum for RYC8621 and 1.1A minimum and 2.2A maximum for
the RYC8630. When the current limit is exceeded, the device will first limit the current and then, if necessary, will
go into thermal shutdown when the die temperature reaches approximately 130°C. When the temperature falls
10°C below the thermal shutdown temperature, the device will restart. If the fault has not been removed, the
device will continue to cycle on and off. The frequency of the cycle is dependent on the impedance of the fault and
the thermal environment. Each channel operates independently and in a fault event will be protected while
allowing the other channel to operate normally.
Enable Pull Up/Down
The EN input is logic level compatible. The enable pin should not be allowed to float; a pull-up/pull-down resistor
(depending on the polarity of the enable) should be used to tie the pin high/low.
Fault Flag
The fault flag signal is asserted low when an overcurrent, overtemperature or undervoltage event occurs. In the
event of an overcurrent, the fault flag is deglitched for approximately 10 ms to minimize nuisance tripping. The
FLAG pin is an open drain design and will require a pull-up resistor.
Undervoltage lockout (UVLO)
If the supply voltage (V_aux) drops below approximately 2.0V the RYC86xx will turn off. The undervoltage limit
protects the hub from operating at voltages too low to assure reliable logic operation.
Soft Start
When the device is first enabled into a load, the device is turned on slowly and requires typically 0.5 ms to reach
90% of the operating voltage.
10/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
APPLICATION INFORMATION
Input Capacitor
Decoupling input capacitors (0.1 μF) should be used to tie the VIN pin to ground to minimize voltage transients.
Input transients which exceed the absolute maximum rating may cause damage to the device.
Output Capacitors
Decoupling capacitors (0.1 μF) between the output and ground are also recommended to reduce the impact of other
voltage transients such as ESD. Output capacitors will help minimize negative voltage spikes due to parasitic
inductance. USB specifications require 120 μF of low ESR output capacitance per hub.
Vcc
50k
50k
LOGIC CONTROLLER
RYC86xx
ENA
Vin
Enable
OUTA
OUTPUTA
OUTPUTB
100μF
Over-Current
Over-Current
FLGA
FLGB
IN
GND
10μF
GND
Enable
ENB
OUTB
100μF
11/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
PACKAGE INFORMATION
8-lead SOIC PACKAGE NOTES:
1
2
3
4
5
Dimensions and tolerance per ANSI Y14.5M-1982.
Dimensions A and B are datums and T is a datum surface.
Controlling dimensions: Millimeters
Dimension A and B do not include mold flash. Mold flash shall not exceed 0.15mm [0.006] per side.
Dimension D does not include interlead flash. Interlead flash shall not exceed 0.25 mm [0.010].
12/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
RYC8620/21/30-xxZ0AL
Revision History
Page
Previous
Edition
Document No.
Date
Description
First Edition
Current
Edition
FEDLRYC8620_21_
30-xxZ0AL-01
June. 4, 2007
13/14
FEDLRYC8620_21_30-xxZ0AL-01
OKI Semiconductor
NOTICE
RYC8620/21/30-xxZ0AL
1. The information contained herein can change without notice owing to product and/or technical improvements.
Before using the product, please make sure that the information being referred to is up-to-date.
2. The outline of action and examples for application circuits described herein have been chosen as an explanation
for the standard action and performance of the product. When planning to use the product, please ensure that the
external conditions are reflected in the actual circuit, assembly, and program designs.
3. When designing your product, please use our product below the specified maximum ratings and within the
specified operating ranges including, but not limited to, operating voltage, power dissipation, and operating
temperature.
4. Oki assumes no responsibility or liability whatsoever for any failure or unusual or unexpected operation
resulting from misuse, neglect, improper installation, repair, alteration or accident, improper handling, or
unusual physical or electrical stress including, but not limited to, exposure to parameters beyond the specified
maximum ratings or operation outside the specified operating range.
5. Neither indemnity against nor license of a third partys industrial and intellectual property right, etc. is granted
by us in connection with the use of the product and/or the information and drawings contained herein. No
responsibility is assumed by us for any infringement of a third partys right which may result from the use
thereof.
6. The products listed in this document are intended for use in general electronics equipment for commercial
applications (e.g., office automation, communication equipment, measurement equipment, consumer
electronics, etc.). These products are not, unless specifically authorized by Oki, authorized for use in any
system or application that requires special or enhanced quality and reliability characteristics nor in any system
or application where the failure of such system or application may result in the loss or damage of property, or
death or injury to humans.
Such applications include, but are not limited to, traffic and automotive equipment, safety devices, aerospace
equipment, nuclear power control, medical equipment, and life-support systems.
7. Certain products in this document may need government approval before they can be exported to particular
countries. The purchaser assumes the responsibility of determining the legality of export of these products and
will take appropriate and necessary steps at their own expense for these.
8. No part of the contents contained herein may be reprinted or reproduced without our prior permission.
Copyright 2007 Oki Electric Industry Co., Ltd.
14/14
厂商 型号 描述 页数 下载

ROHM

RYC002N05 0.9V驱动N沟道MOSFET[ 0.9V Drive Nch MOSFET ] 7 页

TYSEMI

RYC002N05 0.9V驱动N沟道MOSFET的高速switing 。小型封装( SST3 ) 。[ 0.9V Drive Nch MOSFET High speed switing. Small package(SST3). ] 2 页

TYSEMI

RYC002N05T316 0.9V驱动N沟道MOSFET[ 0.9V Drive Nch MOSFET ] 2 页

ETC

RYC130 光电\n[ Optoelectronic ] 8 页

ETC

RYC136 光电\n[ Optoelectronic ] 8 页

ETC

RYC143 光电\n[ Optoelectronic ] 8 页

ETC

RYC150 光电\n[ Optoelectronic ] 8 页

ETC

RYC230 光电\n[ Optoelectronic ] 8 页

ETC

RYC236 光电\n[ Optoelectronic ] 8 页

ETC

RYC240 光电\n[ Optoelectronic ] 8 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.234659s
