UZLLS400TA

型号：

UZLLS400TA

品牌：

ZETEX[ ZETEX SEMICONDUCTORS ]

页数：

6 页

PDF大小：

275 K

下载PDF手册

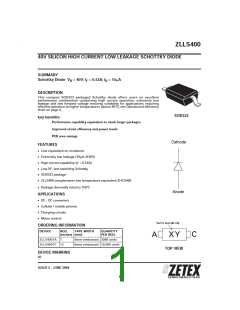

ZLLS400
40V SILICON HIGH CURRENT LOW LEAKAGE SCHOTTKY DIODE
SUMMARY
Schottky Diode V = 40V; I = 0.52A; I = 10 A
R
F
R
DESCRIPTION
This com pact SOD323 packaged Schottky diode offers users an excellent
perform ance com bination com prising high current operation, extrem ely low
leakage and low forward voltage ensuring suitability for applications requiring
efficient operation at higher tem peratures (above 85ЊC) see Operational efficiency
chart on page 4.
SOD323
key benefits:
Perform ance capability equivalent to m uch larger packages
Im proved circuit efficiency and pow er levels
PCB area savings
FEATURES
· Low equivalent on resistance
· Extrem ely low leakage (10␮A @30V)
· High current capability (IF = 0.52A)
· Low VF, fast switching Schottky
· SOD323 package
· ZLLS400 com plem ents low tem perature equivalent ZHCS400
· Package therm ally rated to 150ЊC
APPLICATIONS
· DC - DC converters
· Cellular / m obile phones
· Charging circuits
· Motor control
ORDERING INFORMATION
DEVICE
REEL
(in ch e s ) (m m )
TAPE WIDTH
QUANTITY
PER REEL
ZLLS 400TA
7
8m m e m b o s s e d 3000 u n its
8m m e m b o s s e d 10,000 u n its
ZLLS 400TC 13
TOP VIEW
DEVICE MARKING
40
ISSUE 5 - J UNE 2004
1
S E M IC O N D U C T O R S
ZLLS400
ABSOLUTE MAXIMUM RATINGS
PARAMETER
S YMBOL
VALUE
UNIT
S ch o t t ky d io d e
Co n tin u o u s re ve rs e vo lta g e
Fo rw a rd cu rre n t
VR
IF
40
V
A
A
0.52
0.85
Pe a k re p e titive fo rw a rd cu rre n t
Re cta n g u la r p u ls e d u ty cycle
IFPK
No n re p e titive fo rw a rd cu rre n t
t=Յ100␮s
t=Յ10m s
IFS M
12
A
A
2.5
Pa cka g e
Po w e r d is s ip a tio n a t Ta m b =25ЊC
S in g le d ie co n tin u o u s
PD
330
390
m W
m W
S in g le d ie m e a s u re d a t t<5 s e cs
S to ra g e te m p e ra tu re ra n g e
J u n ctio n te m p e ra tu re
Ts tg
Tj
-55 to +150
150
ЊC
ЊC
THERMAL RESISTANCE
PARAMETER
S YMBOL
R⍜J A
VALUE
379
UNIT
°C/W
°C/W
(a )
J u n ctio n to a m b ie n t
(b )
J u n ctio n to a m b ie n t
R⍜J A
317
Notes
(a) For a device surface m ounted on 25m m x 25m m FR4 PCB with high coverage of single sided 1oz copper,
in still air conditions.
(b) For a device surface m ounted on FR4 PCB m easured at t<5 secs.
ISSUE 5 - J UNE 2004
2
S E M IC O N D U C T O R S
ZLLS400
TYPICAL CHARACTERISTICS
ISSUE 5 - J UNE 2004
3
S E M IC O N D U C T O R S
ZLLS400
ELECTRICAL CHARACTERISTICS (at Tam b = 25°C unless otherw ise stated)
S CHOTTKY DIODE CHARACTERIS TICS
PARAMETER
S YMBOL MIN.
V(BR)R 40
VF
TYP.
MAX.
UNIT CONDITIONS
Re ve rs e b re a kd o w n vo lta g e
Fo rw a rd vo lta g e
V
IR=200µA
305
335
395
445
550
620
710
405
360
390
450
500
630
710
800
m V
m V
m V
m V
m V
m V
m V
m V
IF=50m A*
IF=100m A*
IF=250m A*
IF=400m A*
IF=750m A*
IF=1A*
IF=1.5A*
IF=400m A*,Ta = 100ЊC
Re ve rs e cu rre n t
IR
6
10
␮A
␮A
VR=30V
370
VR=30V,Ta = 85ЊC
Dio d e ca p a cita n ce
CD
15
p F
f=1MHz,VR=30V
Re ve rs e re co ve ry tim e
trr
3
n s
Switched from
IF = 500m A to VR = 5.5V
Measured @ IR 50m A
di /d t = 500m A/ ns
Rsource = 6⍀;Rload= 10⍀
Re ve rs e re co ve ry ch a rg e
Qrr
210
p C
*Measured under pulsed conditions. Pulse width = 300µS. Duty cycle ഛ 2%.
Operational efficiency chart
The operational efficiency chart indicates the beneficial use of the ZLLS series diodes in applications requiring
higher voltage, higher tem perature operation. Circuits requiring low voltage low tem perature operation will
benefit from using Zetex low VF ZHCS series diodes.
ISSUE 5 - J UNE 2004
4
S E M IC O N D U C T O R S
ZLLS400
TYPICAL CHARACTERISTICS
ISSUE 5 - J UNE 2004
5
S E M IC O N D U C T O R S
ZLLS400
Package Outline
Pad Layout
Package Dim ensions
Millim e t e rs
DIM
In ch e s
Min .
0.91
0.0
Ma x.
Min .
0.036
0.0
Ma x.
0.046
0.004
0.016
0.008
0.070
0.054
0.107
A
B
D
E
1.16
0.1
0.33
0.127
1.52
1.11
2.46
0.4
0.013
0.005
0.060
0.044
0.097
0.2
F
1.77
1.37
2.71
G
H
© Zetex Sem iconductors plc 2004
Europe
Am ericas
Asia Pacific
Corporate Headquarters
Zetex Gm bH
Zetex Inc
Zetex (Asia) Ltd
Zetex Sem iconductors plc
Lansdowne Road, Chadderton
Oldham , OL9 9TY
Streitfeldstraß e 19
D-81673 München
Germ any
700 Veterans Mem orial Hwy
Hauppauge, NY 11788
USA
3701-04 Metroplaza Tower 1
Hing Fong Road, Kwai Fong
Hong Kong
United Kingdom
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Telephone (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
These offices are supported by agents and distributors in m ajor countries world-wide.
This publication is issued to provide outline inform ation only which (unless agreed by the Com pany in writing) m ay not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Com pany
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product inform ation, log on to www.zetex.com
ISSUE 5 - J UNE 2004
6
S E M IC O N D U C T O R S
