UZLLS500TC

型号：

UZLLS500TC

品牌：

DIODES[ DIODES INCORPORATED ]

页数：

6 页

PDF大小：

305 K

下载PDF手册

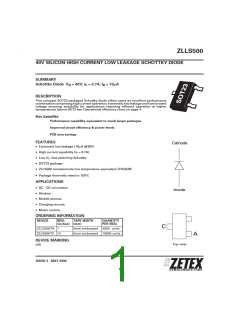

ZLLS500
40V SILICON HIGH CURRENT LOW LEAKAGE SCHOTTKY DIODE
SUMMARY
Schottky Diode V = 40V; I = 0.7A; I = 10 A
R
F
R
DESCRIPTION
This compact SOT23 packaged Schottky diode offers users an excellent performance
combinationcomprisinghighcurrentoperation, extremely low leakageandlow forward
voltage ensuring suitability for applications requiring efficient operation at higher
temperatures (above 85ЊC) see Operational efficiency chart on page 4.
Key benefits:
Performance capability equivalent to much larger packages
Improved circuit efficiency & power levels
PCB area savings
FEATURES
• Extremely low leakage (10␮A @30V)
• High current capability (IF = 0.7A)
• Low VF, fast switching Schottky
• SOT23 package
• ZLLS500 complements low temperature equivalent ZHCS500
• Package thermally rated to 150ЊC
APPLICATIONS
• DC - DC converters
• Strobes
• Mobile phones
• Charging circuits
• Motor control
ORDERING INFORMATION
DEVICE
REEL
TAPE WIDTH
QUANTITY
PER REEL
(inches) (mm)
ZLLS500TA
7
8mm embossed 3000 units
8mm embossed 10000 units
ZLLS500TC 13
DEVICE MARKING
L05
Top view
ISSUE 3 - MAY 2006
1
SEMICONDUCTORS
ZLLS500
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
VALUE
UNIT
Schottky Diode
Continuous reverse voltage
Forward current
VR
IF
40
V
A
A
0.7
1.14
Peak repetitive forward current
Rectangular pulse duty cycle
IFPK
Non repetitive forward current
t=Յ100␮s
t=Յ10ms
IFSM
13
A
A
3.2
Package
Power dissipation at Tamb=25ЊC
single die continuous
single die measured at t<5 secs
Storage temperature range
Junction temperature
PD
500
mW
mW
ЊC
630
Tstg
-55 to +150
150
ЊC
Tj
THERMAL RESISTANCE
PARAMETER
SYMBOL
R⍜JA
VALUE
250
UNIT
°C/W
°C/W
Junction to ambient (a)
Junction to ambient (b)
R⍜JA
198
Notes
(a) For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper,
in still air conditions.
(b) For a device surface mounted on FR4 PCB measured at t<5secs.
ISSUE 3 - MAY 2006
2
SEMICONDUCTORS
ZLLS500
TYPICAL CHARACTERISTICS
ISSUE 3 - MAY 2006
3
SEMICONDUCTORS
ZLLS500
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated)
SCHOTTKY DIODE CHARACTERISTICS
PARAMETER
Reverse breakdown voltage V(BR)R
Forward voltage VF
SYMBOL MIN. TYP.
MAX.
UNIT
V
CONDITIONS
IR=200µA
40
305
335
395
465
550
620
710
415
6
360
390
450
530
630
710
800
mV
mV
mV
mV
mV
mV
mV
mV
␮A
␮A
pF
IF=50 mA*
IF=100 mA*
IF=250mA*
IF=500mA*
IF=750mA*
IF=1A*
IF=1.5A*
IF=500mA*,Ta = 100ЊC
VR=30V
Reverse current
IR
10
370
16
VR=30V,Ta = 85ЊC
f=1MHz,VR=30V
Diode capacitance
CD
trr
Reverse recovery time
Reverse recovery charge
3
ns
Switched from
IF = 500mA to VR = 5.5V
Measured @ IR 50mA.
di /d t = 500mA/ ns.
Rsource = 6⍀;Rload= 10⍀
Qrr
210
pC
*Measured under pulsed conditions. Pulse width = 300µS. Duty cycle ഛ 2%.
Operational efficiency chart
The operational efficiency chart indicates the beneficial use of the ZLLS series diodes in applications requiring
higher voltage, higher temperature operation. Circuits requiring low voltage low temperature operation will
benefit from using Zetex low VF ZHCS series diodes.
ISSUE 3 - MAY 2006
4
SEMICONDUCTORS
ZLLS500
TYPICAL CHARACTERISTICS
ISSUE 3 - MAY 2006
5
SEMICONDUCTORS
ZLLS500
Package Outline
Pad Layout
Package Dimensions
Millimeters
DIM
Inches
Min
2.67
1.20
–
Max
Min
0.105
0.047
–
Max
0.120
0.055
0.043
0.021
0.0059
A
B
C
D
F
3.05
1.40
1.10
0.53
0.15
0.37
0.085
0.0145
0.0033
G
K
L
NOM 1.9
NOM 0.075
0.01
2.10
0.10
2.50
0.0004
0.0825
0.004
0.0985
N
NOM 0.95
NOM 0.037
© Zetex Semiconductors plc 2006
Europe
Americas
Asia Pacific
Corporate Headquarters
Zetex GmbH
Zetex Inc
Zetex (Asia) Ltd
Zetex Semiconductors plc
Zetex Technology Park
Chadderton, Oldham, OL9 9LL
United Kingdom
Streitfeldstraße 19
D-81673 München
Germany
700 Veterans Memorial Hwy
Hauppauge, NY 11788
USA
3701-04 Metroplaza Tower 1
Hing Fong Road, Kwai Fong
Hong Kong
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Telephone (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
These offices are supported by agents and distributors in major countries world-wide.
This publication is issued to provide outline information only which (unless agreed by the Company in writing) may not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Company
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product information, log on to www.zetex.com
ISSUE 3 - MAY 2006
6
SEMICONDUCTORS
